CellarCool CX Series Wine Cooling Unit CX2200

Q: What is the cooling capacity of this unit?

It delivers about 1,453 BTU/hour when the condenser‑intake air temperature is 85°F.

Q: What are its physical dimensions and weight?

Its dimensions are approximately 16.38 inches deep × 14.25 inches wide × 13.25 inches high, and it weighs around 65 pounds.

Q: What electrical requirements does the CX2200 have?

It operates on 115 V and requires a dedicated 20‑amp circuit.

Q: How loud is this unit when operating?

The sound level is approximately 63 dBA on both the evaporator and condenser sides.

Q: What type of installation is needed?

The CX2200 is designed for through‑the‑wall installation, with a mounting bracket that lets it fit between standard wall studs.

Q: What temperature differential can it maintain?

It supports about a 30°F temperature differential, meaning it can maintain a 55°F cellar even if the condenser intake air is as warm as 85°F."]

CellarCool | SKU: U-WKCX2200-115-FC-2

CellarCool Authorized Dealer badge – official retailer for CellarCool wine cellar cooling systems and units.

$2,159.00

FREE SHIPPING in the Continental US on most orders

Please Choose Power Cord

FRONT POWER CORD REAR POWER CORD

Call Us At (800) 407-7770 Or Chat Now To UNLOCK THE BEST PRICE AVAILABLE!

In Stock & Ready to Ship

Estimated Delivery in 3-7 business days

SELF-CONTAINED WINE CELLAR COOLING SYSTEM

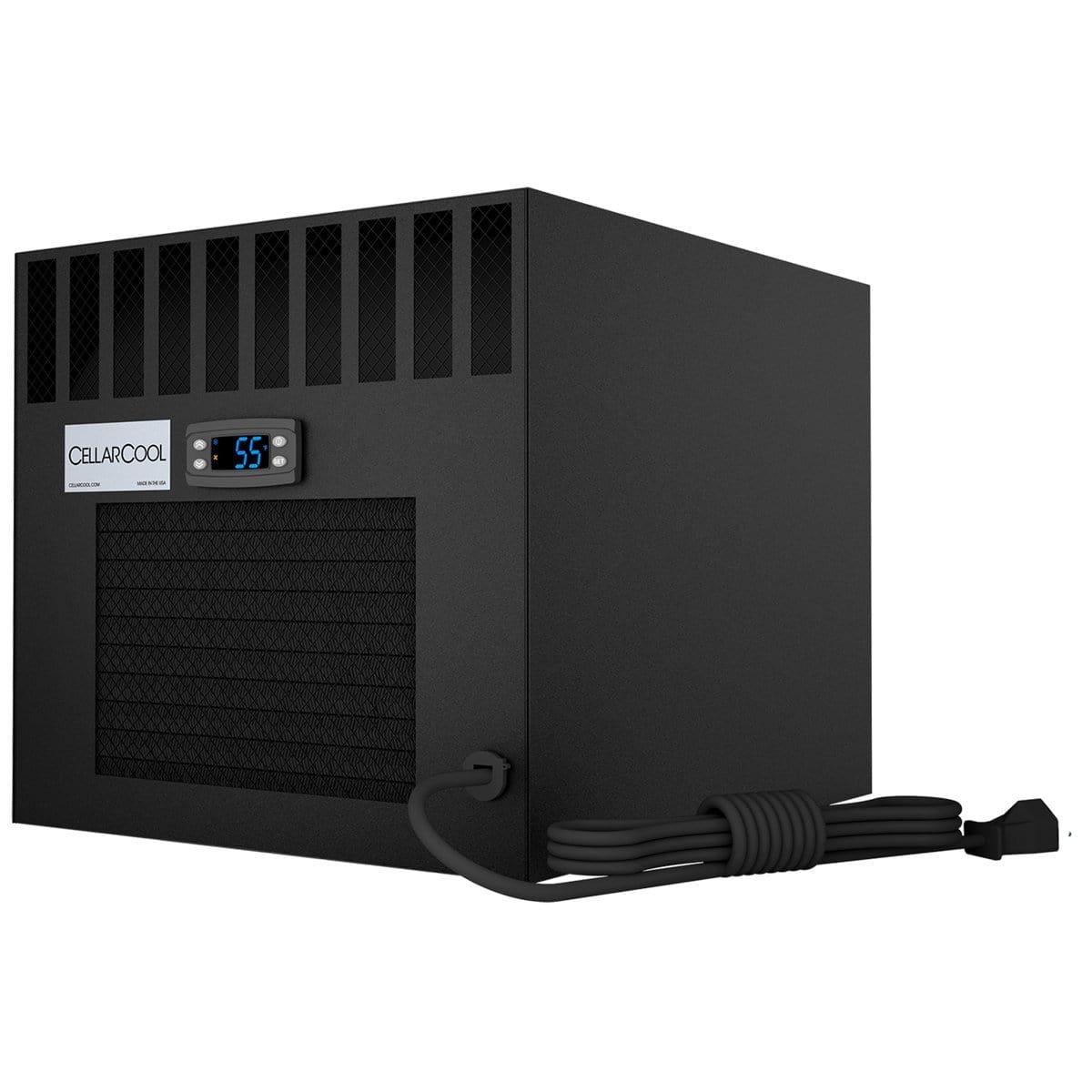

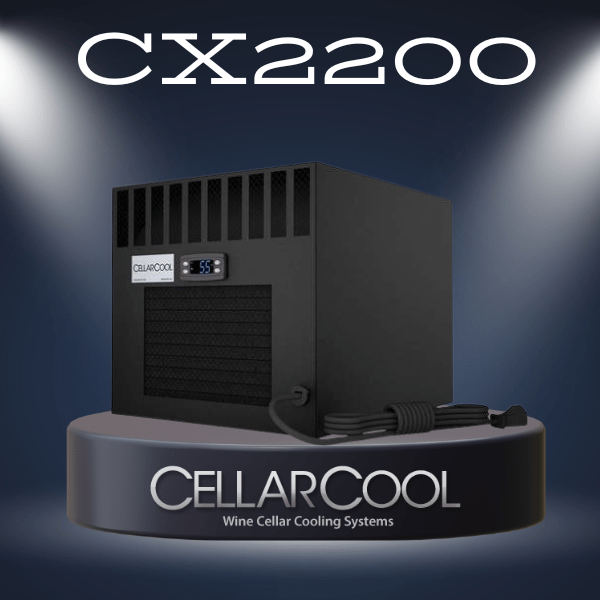

CellarCool CX2200 Wine Cellar Cooling Unit

The CellarCool CX2200 Wine Cellar Cooling Unit is a self-contained through-the-wall cooling system designed for properly insulated residential wine cellars up to approximately 265 cubic feet. Made in the USA, the CX2200 delivers dependable cellar cooling performance, advanced digital controls, and vibration-free operation for protecting your wine collection.

Up to 265 cu. ft. cellar capacity
Through-the-wall installation
1453 BTUh cooling capacity
Advanced digital temperature controls
Multiple mounting options
Made in the USA

CellarCool CX2200 Overview

The CellarCool CX2200 is designed for wine collectors who need a compact and affordable cooling solution for small wine cellars. Its through-the-wall design simplifies installation while providing the cooling performance necessary to maintain proper wine storage conditions.

When installed in a fully insulated and sealed wine cellar with a proper vapor barrier, the CX2200 can accommodate approximately 265 cubic feet. The system features heavy-duty coils, dynamic airflow technology, anti-frost protection, and an advanced digital controller for reliable operation.

The CX2200 is designed to fit between standard wall studs without requiring support shelving, making it a practical option for many residential wine cellar projects.

Important Installation Notice: The area receiving the unit's condenser exhaust air must not exceed 85°F if the system is expected to maintain a 55°F cellar temperature.

Quick Specifications

Specification	Value
Recommended Cellar Size	Up to 265 cu. ft.
Cooling Capacity	1453 BTUh
Airflow	118 CFM
Installation Type	Through-the-Wall
Voltage	115V
Running Amps	4.5
Noise Level	63 / 63 dBA
Warranty	2-Year Parts & Labor / 5-Year Compressor

Best For

Small residential wine cellars up to 265 cu. ft.

Through-the-wall cooling applications

Homeowners seeking a self-contained cooling system

DIY-friendly wine cellar projects

Not Recommended For

Wine cellars larger than 265 cu. ft.

Rooms without proper insulation

Wine cellars without vapor barrier protection

Exhaust environments exceeding 85°F

Key Features

Through-the-Wall Installation

Designed to fit between standard wall studs without requiring support shelves.

Heavy-Duty Coils

Built for dependable cooling performance and long-term operation.

Dynamic Airflow Design

Strategically engineered airflow helps maintain stable wine cellar conditions.

Advanced Digital Controller

User-friendly digital controls allow convenient temperature management.

System Safety Management

Includes SSM protection and anti-frost technology for reliable performance.

Vibration-Free Operation

Designed to minimize vibration exposure inside the wine cellar environment.

Advantages

Simple through-the-wall installation
No refrigerant line set required
Fits standard wall framing
Multiple mounting options available
Digital temperature controls
Made in the USA
Affordable alternative to split wine cellar cooling systems
Vibration-free operation

Limitations

Requires a properly insulated wine cellar.
Requires a continuous vapor barrier.
Cooling performance depends on cellar construction quality.
Condenser exhaust area must remain at or below 85°F.
Heat load calculations should be completed before selecting a cooling unit.

Installation Requirements

Fully insulated wine cellar construction
Proper vapor barrier installation
115V electrical supply
Dedicated 20-amp circuit required
Rear condensate drain location
Through-the-wall installation space
Maximum condenser intake temperature of 85°F for maintaining a 55°F cellar temperature

Technical Specifications

Specification	Value
Cellar Capacity	265 cu. ft. approximate capacity in a fully insulated and sealed cellar with proper vapor barrier
BTUh	1453 with 85°F air entering condenser coil
CFM	118
Dimensions (W x H x D)	14.25" x 13.25" x 16.38"
Refrigerant	R-134a
Horsepower	0.57 HP
Voltage Rating	115V, 20 amp dedicated circuit required
Weight	65 lbs
Amps	4.5 running amps
Noise Level	63 / 63 dBA, evaporator / condenser
Drain Line	Condensate, rear location only
Installation	Through-the-wall, partially ducted
Thermostat	Advanced digital display
Temperature Delta	Maintains 55°F cellar temperature with condenser intake temperatures up to 85°F
Warranty	2-year parts and labor warranty / 5-year compressor warranty

Available CellarCool CX Series Models

Model	Recommended Cellar Size
CX2200	265 cu. ft.
CX3300	650 cu. ft.
CX4400	1000 cu. ft.
CX8800	2000 cu. ft.

Browse all CellarCool Wine Cooling Systems or explore our complete collection of Self Contained Wine Cellar Cooling Systems.

Manuals & Downloads

Product Specifications Image

CellarCool CX2200 Wine Cellar Cooling Unit specifications chart

Expert Recommendation

The CellarCool CX2200 is best suited for homeowners building a compact residential wine cellar who want a straightforward cooling solution without the complexity of split-system installation. When paired with proper insulation and vapor barrier construction, it delivers dependable cooling performance for wine collections stored in spaces up to approximately 265 cubic feet.

Get Free Wine Cellar Design Assistance

Every wine cellar has unique cooling requirements based on room size, insulation, construction materials, glass exposure, and ambient temperatures. Our wine cellar specialists can help determine whether the CellarCool CX2200 is the right cooling solution for your project.

Need Expert Advice?

Call +1-888-407-7770 or email support@winecoolersempire.com for personalized cooling system recommendations and FREE wine cellar design assistance.

📚 Frequently Asked Questions (FAQs)

["What cellar size is the CX2200 designed for?

The CX2200 is designed to cool a wine cellar of around 265–300 cubic feet, assuming the room is fully insulated and properly sealed.

What is the cooling capacity of this unit?

What are its physical dimensions and weight?

What electrical requirements does the CX2200 have?

How loud is this unit when operating?

What type of installation is needed?

What temperature differential can it maintain?
