Quiet, Professional-Grade Cooling for Mid-Size Wine Cellars

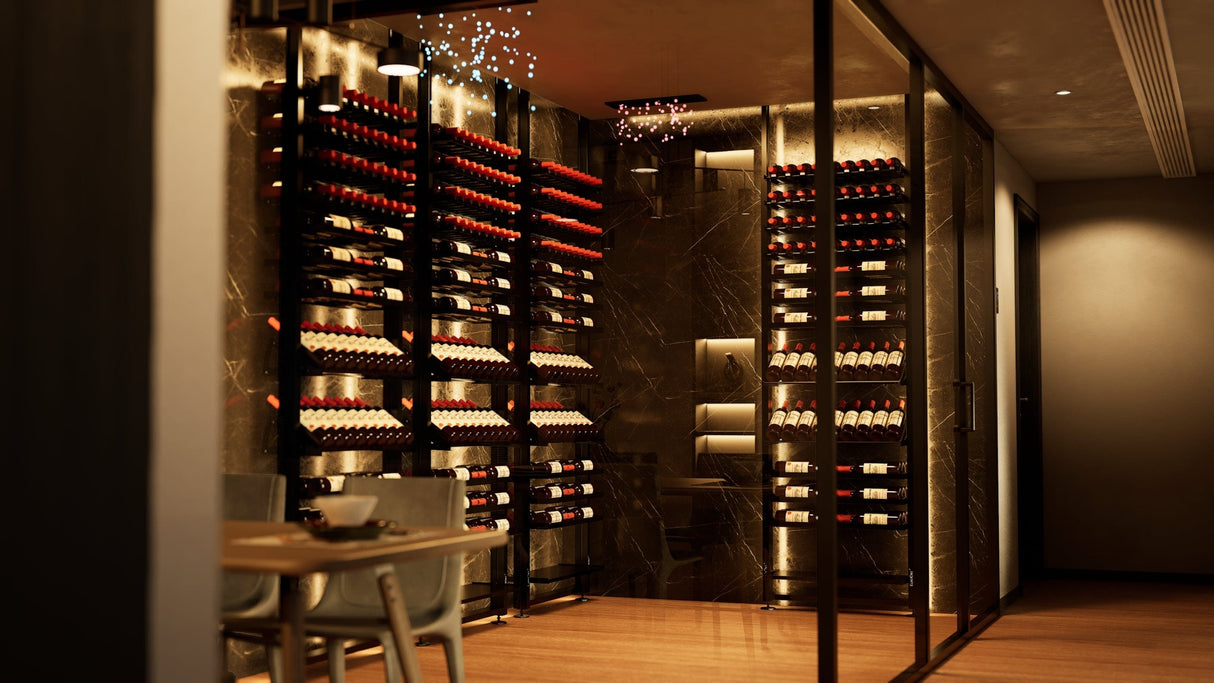

The Panthaire APEX 5000 is a fully ducted wine cellar cooling system engineered for collectors and professionals who require silent operation, precise temperature control, and long-term reliability. Designed for mid-size, properly insulated wine cellars, this system removes heat discreetly while keeping all mechanical noise and equipment outside the cellar.
With a powerful 4,462 BTU cooling capacity and support for cellars up to 1,200 cubic feet (with R20 insulation), the APEX 5000 is ideal for residential wine rooms, custom home builds, and hospitality projects where performance and aesthetics matter equally.
Best Applications (Read Before Choosing)
✔ Best For:
- Mid-size wine cellars up to 1,200 cu. ft. with R20 insulation
- Fully ducted installations requiring minimal noise in the cellar
- Residential homes, luxury builds, and hospitality environments
- Wine cellars designed for long-term storage and aging
- Projects planned with professional cellar design guidance
✖ Not Recommended For:
- Poorly insulated spaces or rooms without a vapor barrier
- Through-the-wall or non-ducted installations
- Open-concept wine displays without full climate control planning
Expert Note from Wine Coolers Empire:
The APEX 5000 performs best when insulation, vapor barrier integrity, and duct runs are properly planned. This is why we include free professional wine cellar design planning with every purchase.
Why Choose the Panthaire APEX 5000?

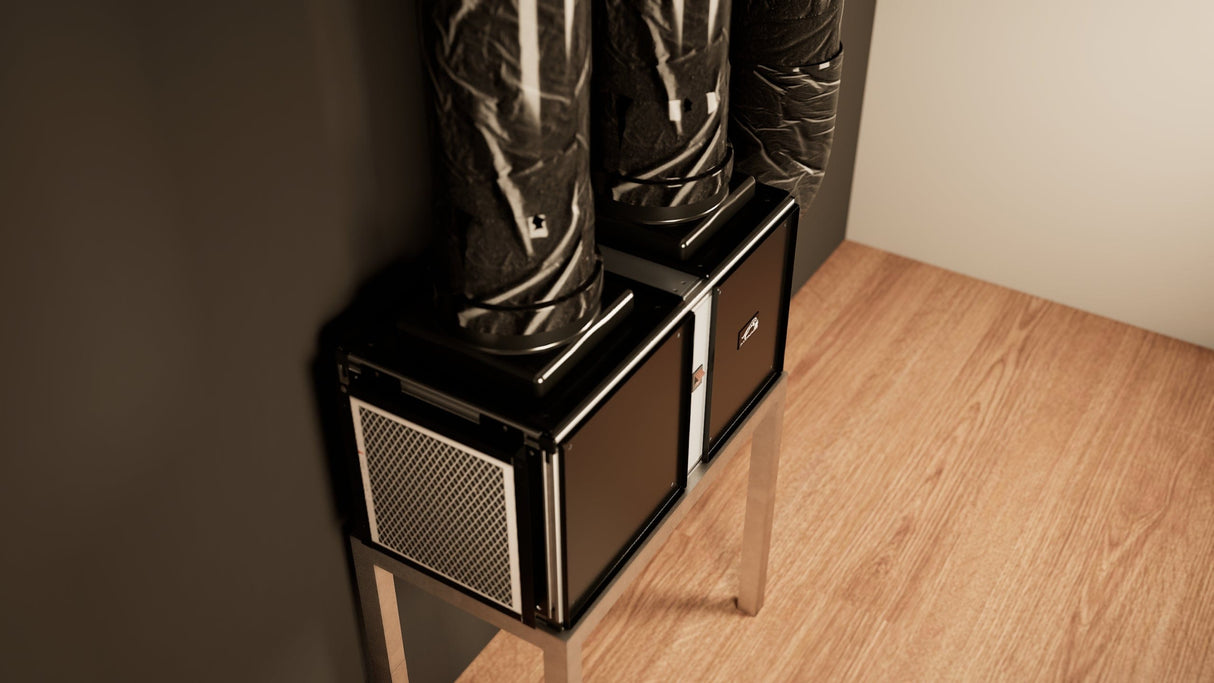

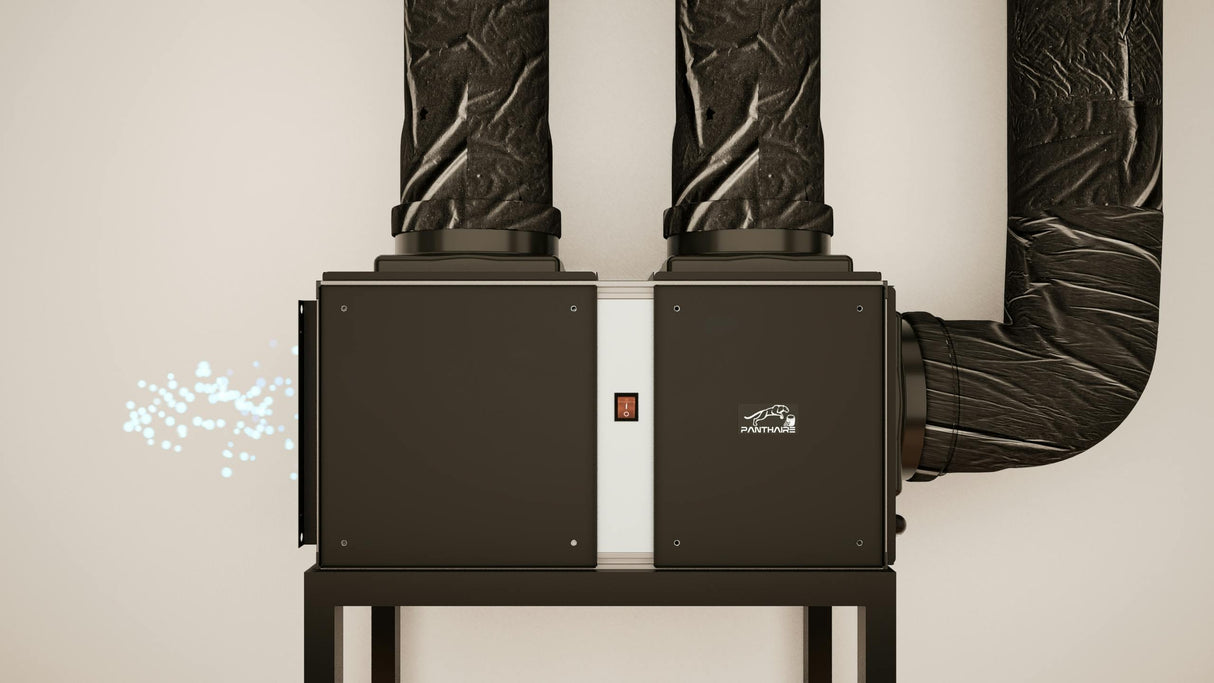

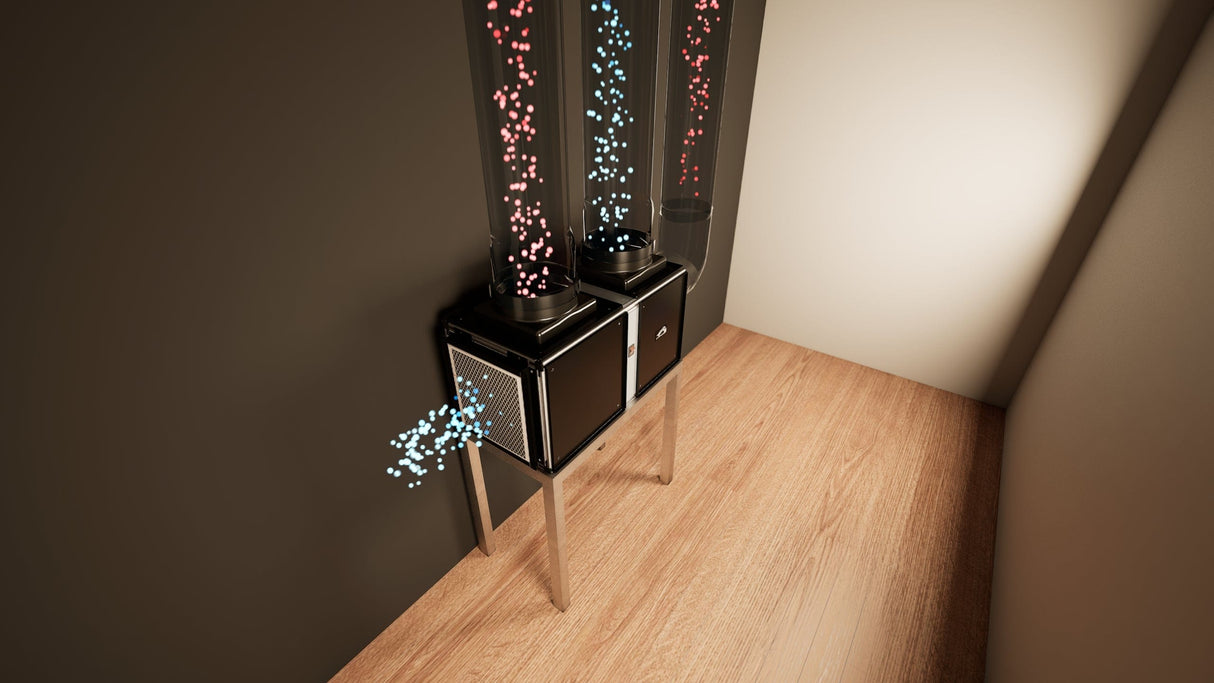

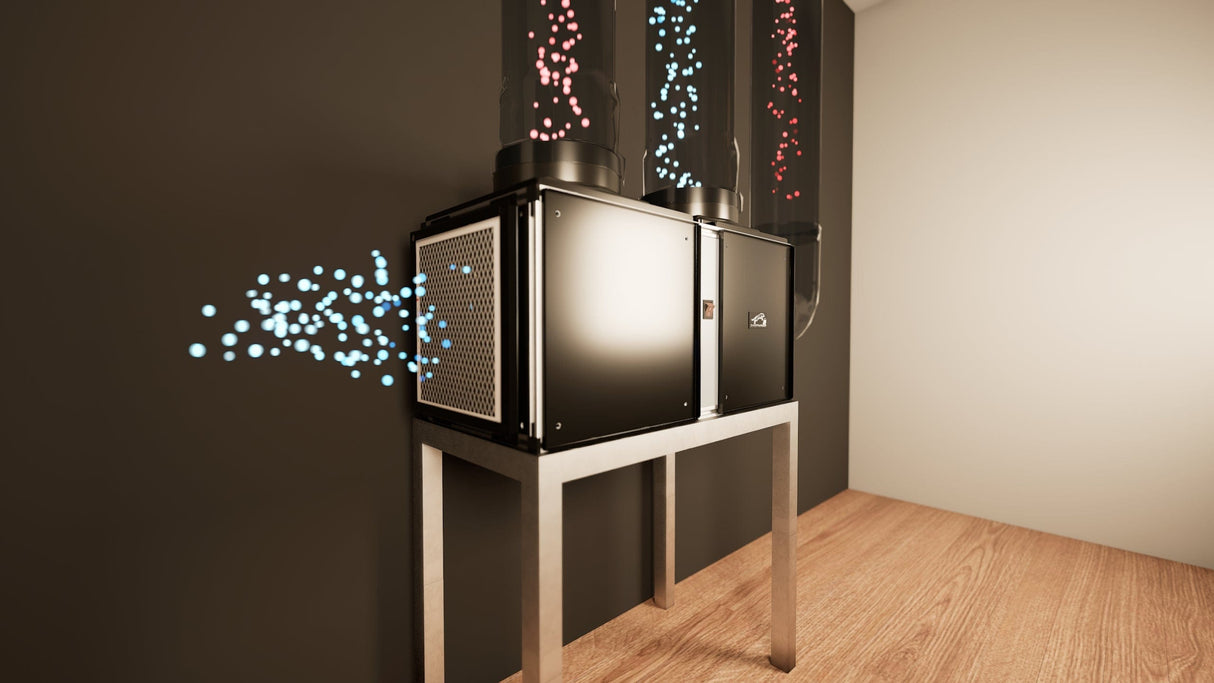

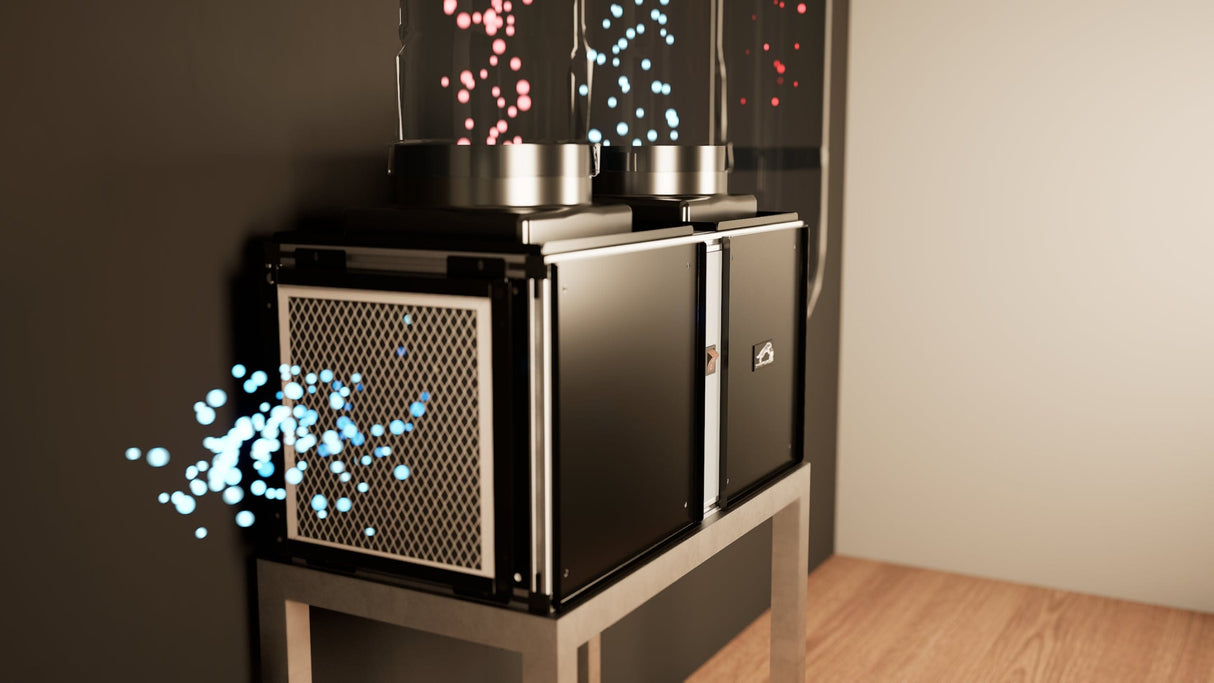

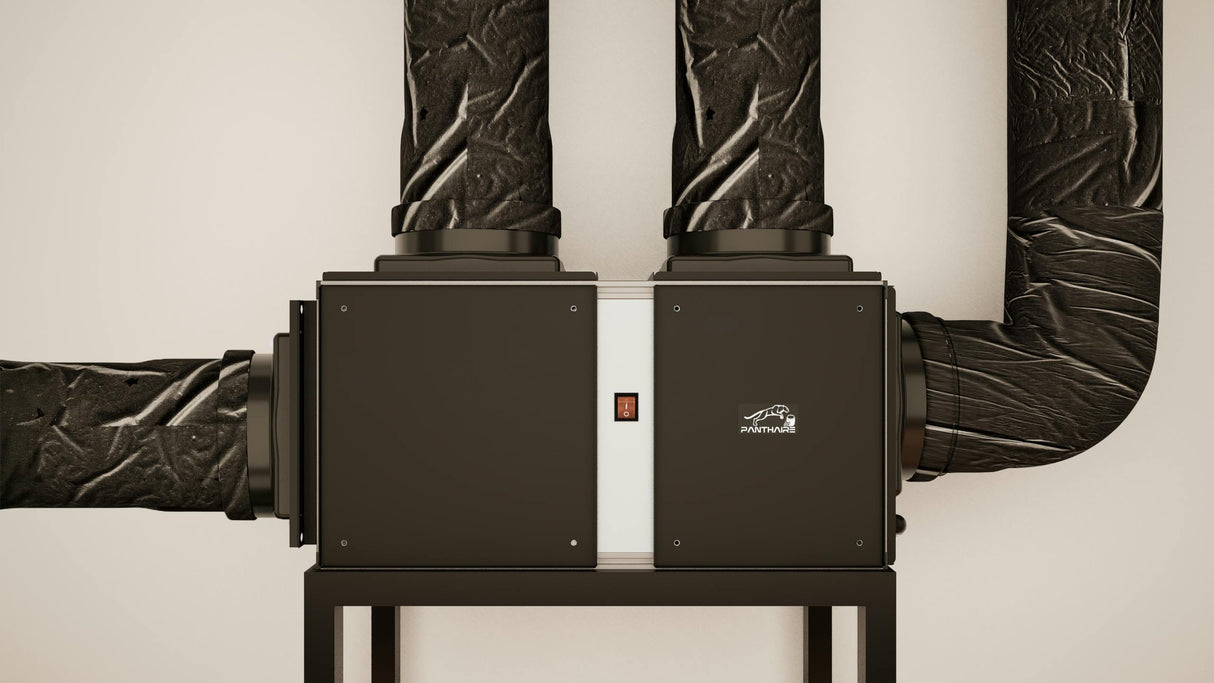

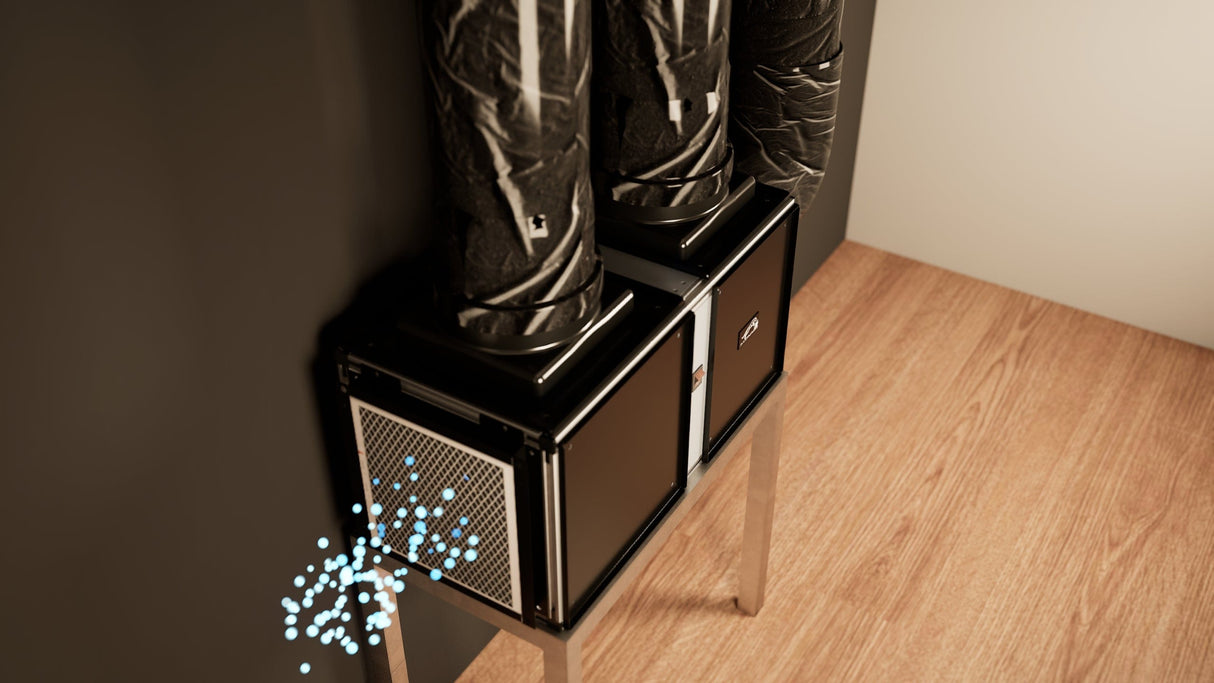

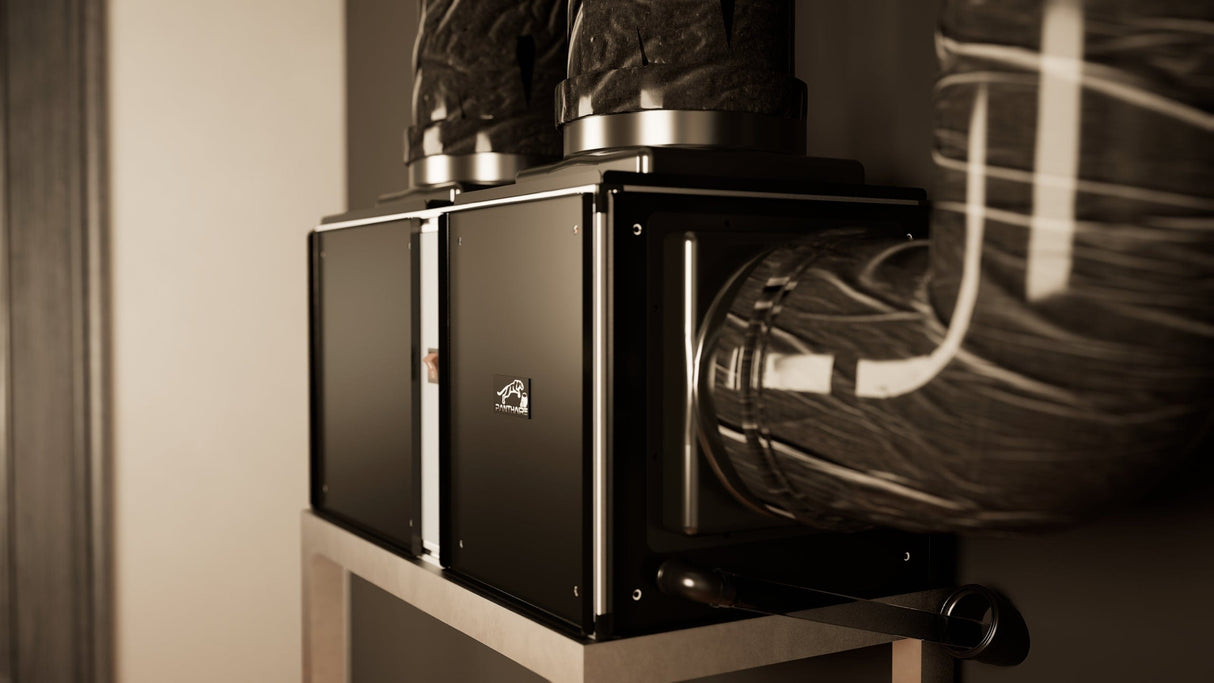

Fully Ducted for Near-Silent Operation
The system’s fully ducted configuration keeps all mechanical components and airflow noise outside the wine cellar, making it ideal for living spaces and entertaining areas.
Stable Temperature Control for Wine Preservation
Engineered to maintain cellar temperatures between 50–70°F, the APEX 5000 protects wine from damaging temperature fluctuations that can compromise aging and flavor development.
Designed for Real-World Installations
With flexible ducting options, balanced airflow, and a compact footprint, this system integrates smoothly into residential and commercial cellar designs.
Environmentally Responsible Refrigerant
The use of R290 refrigerant provides efficient cooling with a lower environmental impact compared to traditional refrigerants.
Key Features & Benefits
-
Fully ducted wine cellar cooling system – isolates heat and noise outside the cellar
-
Cooling capacity of 4,462 BTU/h – supports mid-size, well-insulated wine rooms
-
Cellar coverage up to 1,200 cu. ft. (with R20 insulation)
-
Dual-speed airflow control – balances performance and efficiency
-

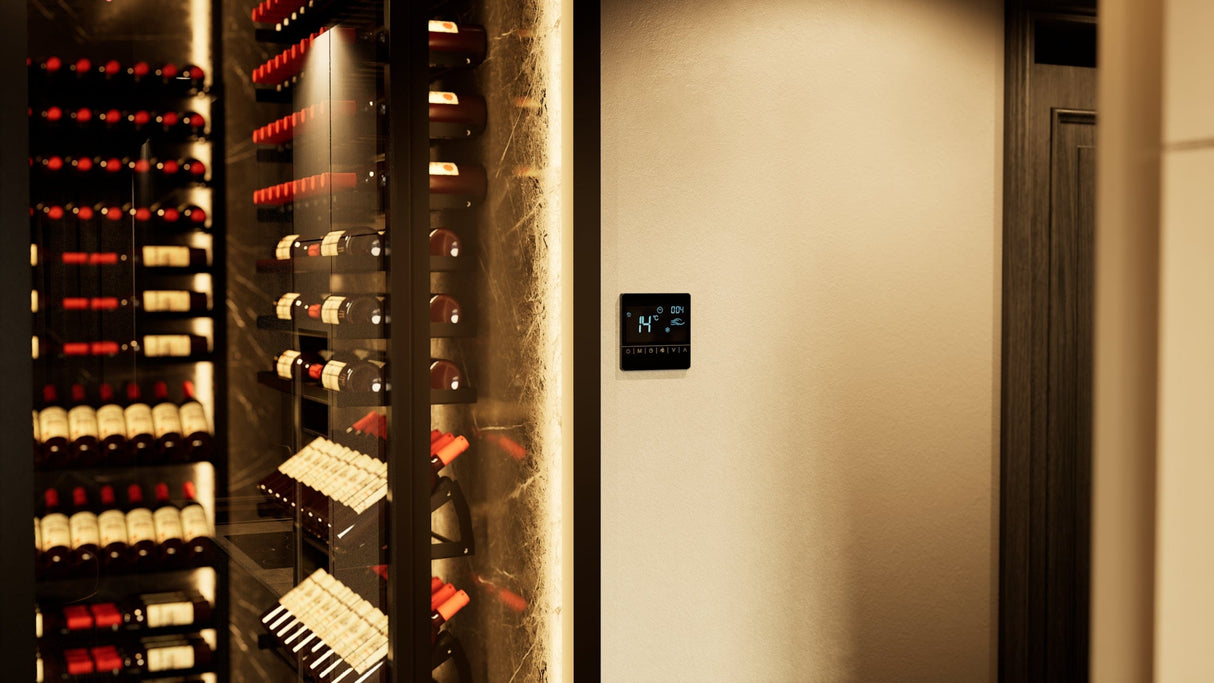

Digital temperature control – precise, user-friendly operation
-
Low ambient operating capability – suitable for varied installation conditions
-
Compact and serviceable design – built for long-term reliability
Technical Specifications
| Specification |
Details |
| Cooling Capacity |
4,462 BTU/h |
| Recommended Cellar Size |
Up to 1,200 cu. ft. (with R20 insulation) |
|
Temperature Range* |
50–70°F (10–25°C) |
| Refrigerant |
R290 |
| Power Supply |
115V / 60Hz, 15A |
| Current Draw |
9.2 A |
| Air Flow – Speed 1 |
360 CFM |
| Air Flow – Speed 2 |
420 CFM |
| Duct Size (Supply) |
8" |
| Duct Size (Return) |
8" |
| Maximum Duct Length |
25 ft per duct |
| Drain Connection |
5/8" ID |
| Dimensions (L × W × D) |
33.9" × 13.8" × 13.8" |
| Weight |
40 kg (88.2 lbs) |
| Warranty |
2-year warranty covering parts and labor |
Manuals for APEX 5000 Wine Cellar Cooling Systems of Panthaire
What These Specifications Mean for Your Cellar
- The 4,462 BTU capacity is well-suited for mid-size cellars when insulation standards are met
-
R20 insulation and a sealed vapor barrier are critical to achieving the full 1,200 cu. ft. capacity
-

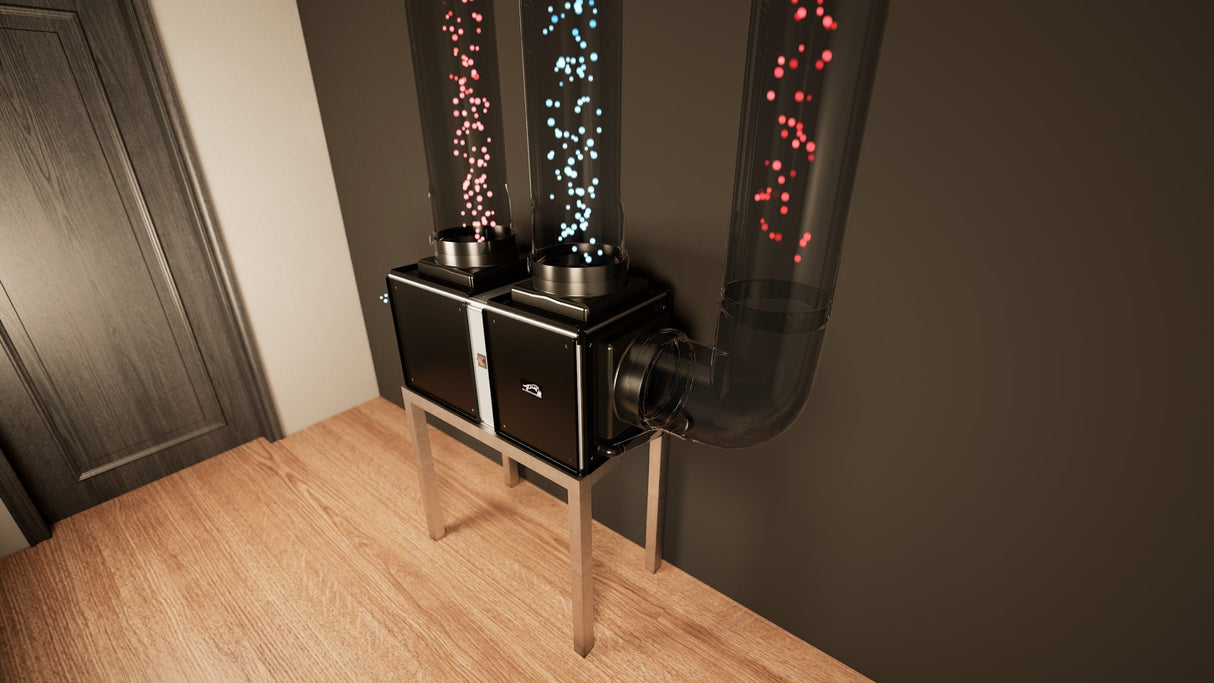

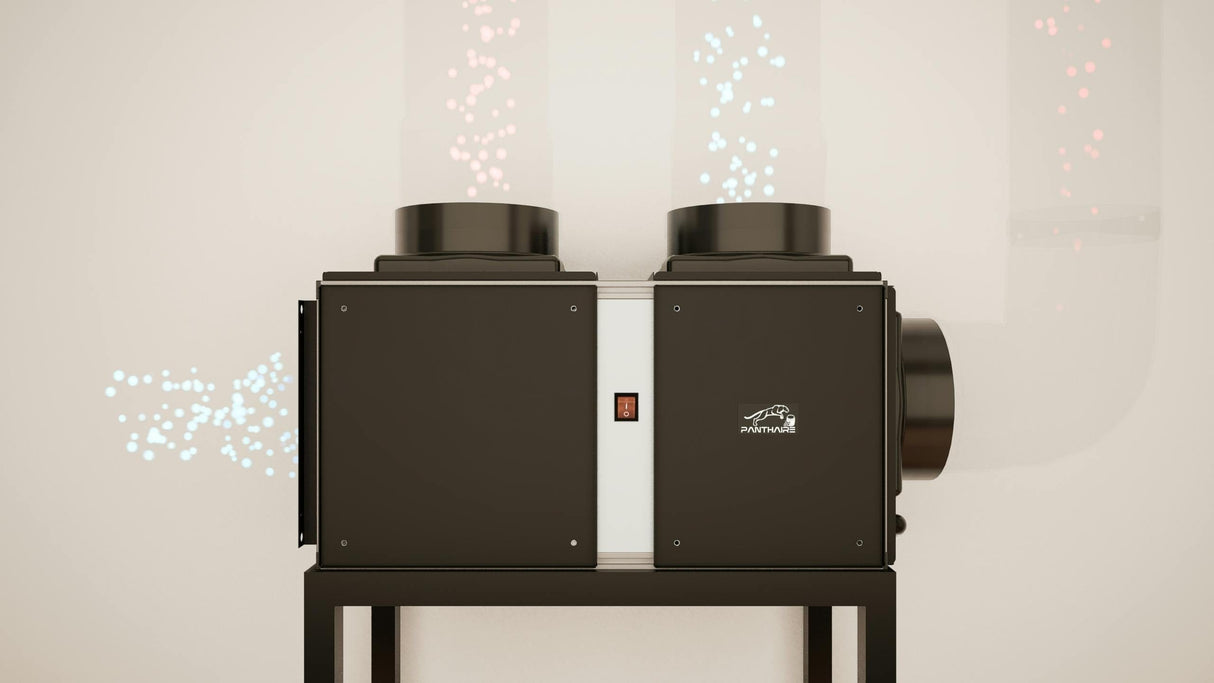

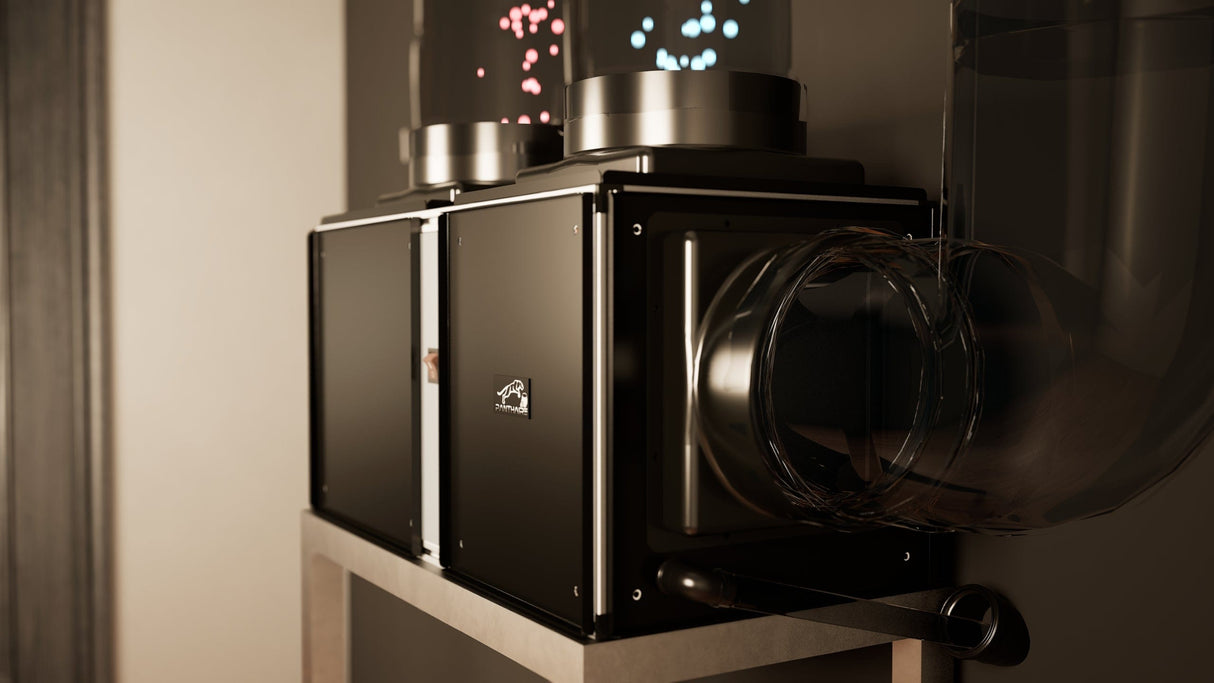

8" supply and return ducts ensure balanced airflow and efficient heat removal
-
Dual airflow speeds allow the system to adapt to changing cooling demands
- Proper duct length planning (up to 25 ft per duct) is essential for optimal performance
If you’re unsure whether your cellar meets these requirements, our design team can evaluate your space before you buy.
Installation Notes (Important)
- Professional installation is strongly recommended
- Proper insulation and vapor barrier are required for performance and warranty compliance
- Duct routing, length, and airflow balance directly affect efficiency and longevity
👉 Wine Coolers Empire provides free professional wine cellar design planning to ensure your system is sized and specified correctly.
Need Help Deciding?
Selecting the right wine cellar cooling system requires more than matching BTUs.
Our specialists help ensure your cellar is designed correctly from the start.
👉 Request your free professional wine cellar design plan
👉 Speak with a Wine Cooling Specialist today
