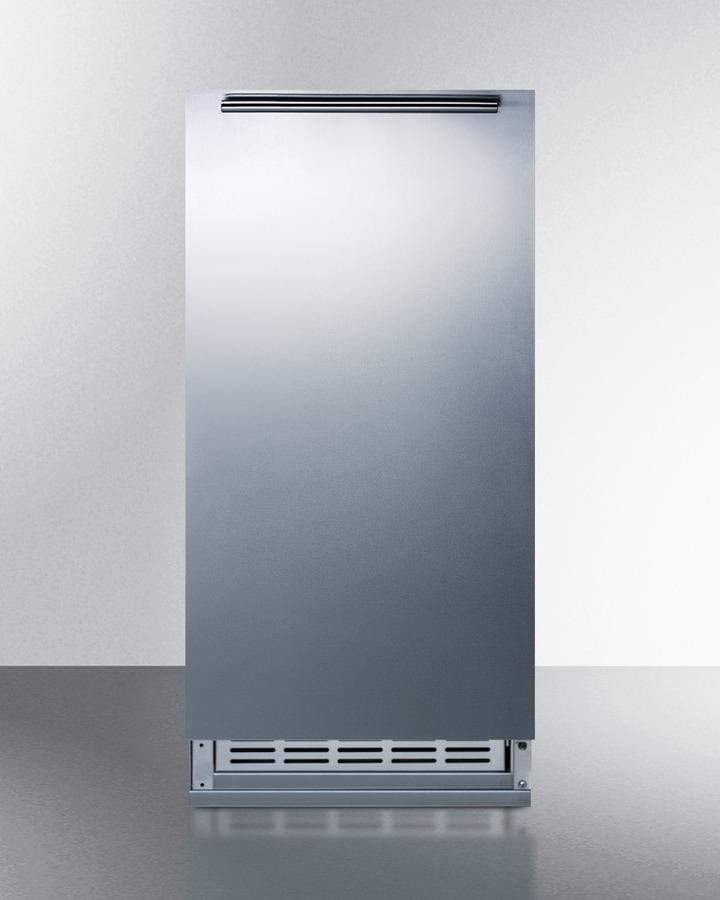

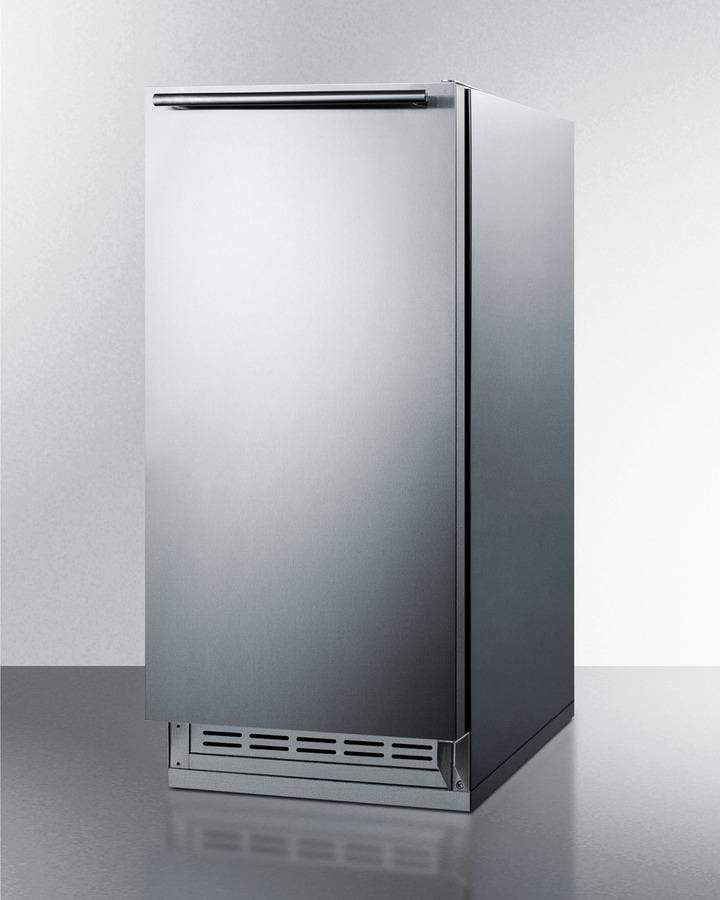

Summit 12 lb. Built-in Ice Maker Stainless Steel Drain-Free Cabinet And Door BIM25H34 Review
SUMMIT brings convenient luxury under the counter with built-in icemakers in complete stainless steel. Sized at just 15 1/8" wide, the BIM25H34 features a front-breathing design for built-in installation but also has a fully finished cabinet to allow freestanding use. The cabinet and user-reversible door are wrapped in 304-grade stainless steel for a professional style built to last, with a sleek handle mounted horizontally to finish the look. This unit includes a lower non-refrigerated storage compartment with a swing door. It has a sealed back and right-angle plug to allow more flush installation. Inside, the BIM25H34 can produce up to 12 pounds of crescent-shaped ice per day, storing it inside a removable insulated bin. The static manual defrosts cooling system allows ice to stay solid longer. No drain or pump is required for use, offering more flexibility in where you place the unit. The BIM25H34 ships with a connection hose. Other hardware should be supplied by your plumber. With its complete stainless steel construction and low maintenance design, the BIM25H34 is a great way to finish any undercounter kitchen space. For this unit sized at 32" for use under ADA compliant counters, see the BIM25H32.
FEATURES
- No pump or drain required
- Convenient design allows more flexibility in positioning the unit
- Built-in capable
- Make the best use of space by installing your icemaker under the counter and flush with other cabinets
- Complete stainless steel exterior
- Door, cabinet, and kickplate feature full 304 grade stainless steel construction made in the USA
- Professional handle
- Sleek handle in brushed stainless steel is horizontally mounted for a modern look
- Mid-sized capacity
- Produces and stores up to 12 pounds of ice per day cycle

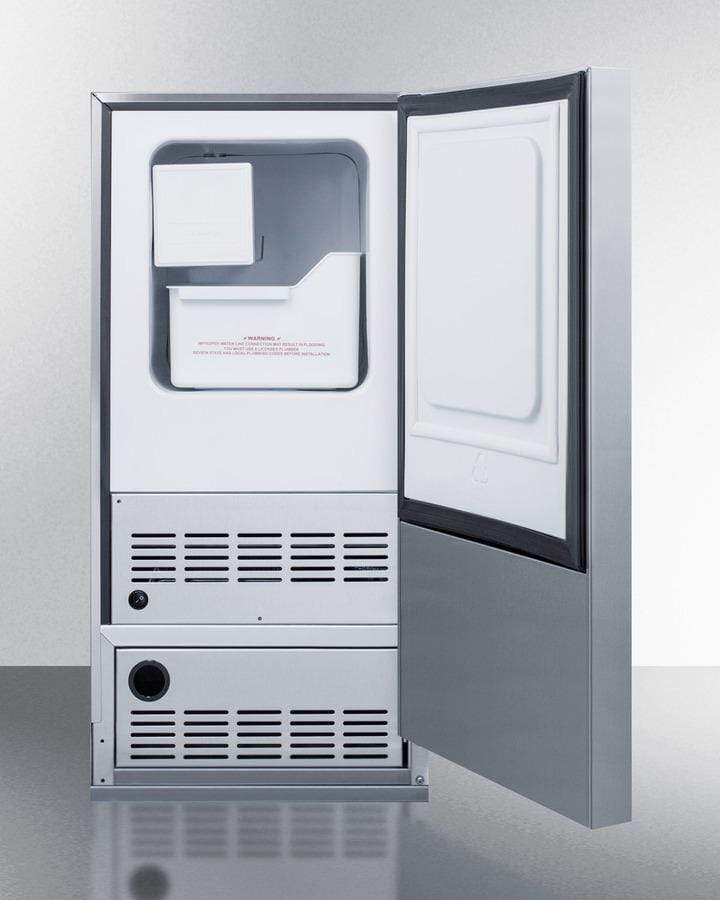

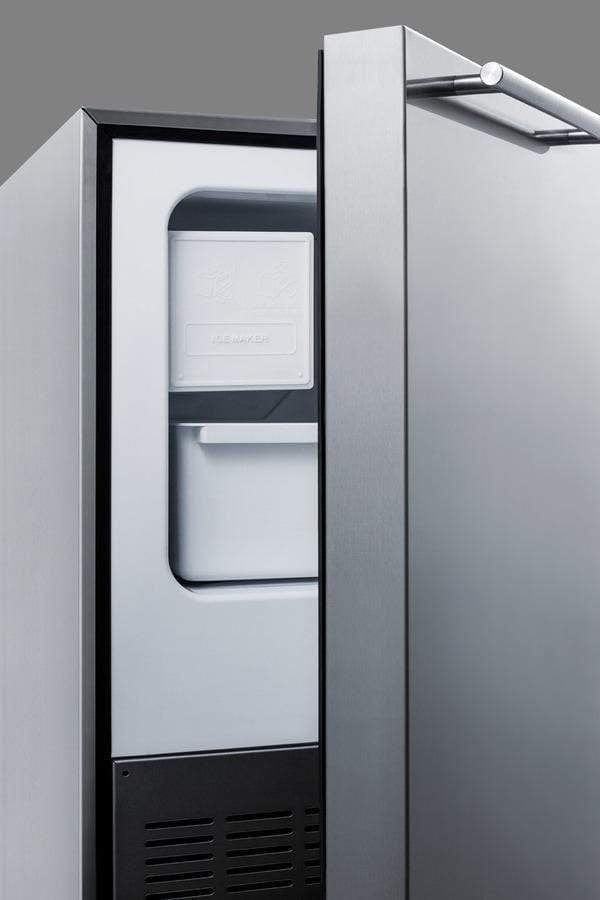

- Insulated storage bin
- Ice stays solid longer in this cold-protected bin
- Removable bin
- The bucket can be removed for fast and easy cleaning
- Storage compartment
- Includes a lower compartment for storing non-refrigerated items
- Reversible door
- The user-reversible design allows you to change the door swing to better accommodate your setup
- Right angle plug
- The design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Manual defrost
- The static cooling system helps to keep ice frozen for longer periods of time compared to other systems
- Ice scoop included
- Large plastic ice scoop included for your convenience
- Sealed back
- Flush design with no exposed coils for easier cleanup
- Defrost drain included
- Rear-mounted drain for added convenience
- Height adjustable
- The unit can be adjusted from 33 1/2" to 34 1/2" for the perfect undercounter fit
- Fully finished cabinet
- Allows the ice maker to be used freestanding
- 100% CFC free
- Environmentally friendly design without ozone-damaging chemicals
SPECIFICATION
| Overview |
| Height of Cabinet |
33.5" (85 cm) |
| Height to Hinge Cap |
33.75" (86 cm) |
| Width |
15.18" (39 cm) |
| Depth |
21.0" (53 cm) |
| Depth with Handle |
22.5" (57 cm) |
| Depth with door at 90° |
34.0" (86 cm) |
| Capacity |
1.0 cu.ft. (28 L) |
| Defrost Type |
Manual |
| Door |
Stainless Steel |
| Cabinet |
Stainless Steel |
| US Electrical Safety |
UL |
| Canadian Electrical Safety |
ULC |
| Amps |
1.7 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
100.0 lbs. (45 kg) |
| Shipping Weight |
105.0 lbs. (48 kg) |
| Estimated Time to Ship |
2 to 4 days |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| Icemaker |
| Door Swing |
RHD |
| Reversible |
Yes |
| Daily Ice Production |
12.0 lbs. (5 kg) |
| Ice Storage Capacity |
12.0 lbs. (5 kg) |
| Ice Shape |
Crescent |
| Number of Ice Cube Sizes |
1 |
| Refrigerant Type |
R134a |
| Refrigerant Amount |
2.12 oz. |
| High Side PSI |
250.0 |
| Low Side PSI |
110.0 |
| Interior Height |
11.5" (29 cm) |
| Interior Width |
10.0" (25 cm) |
| Interior Depth |
12.63" (32 cm) |
| Level Legs |
4 |
