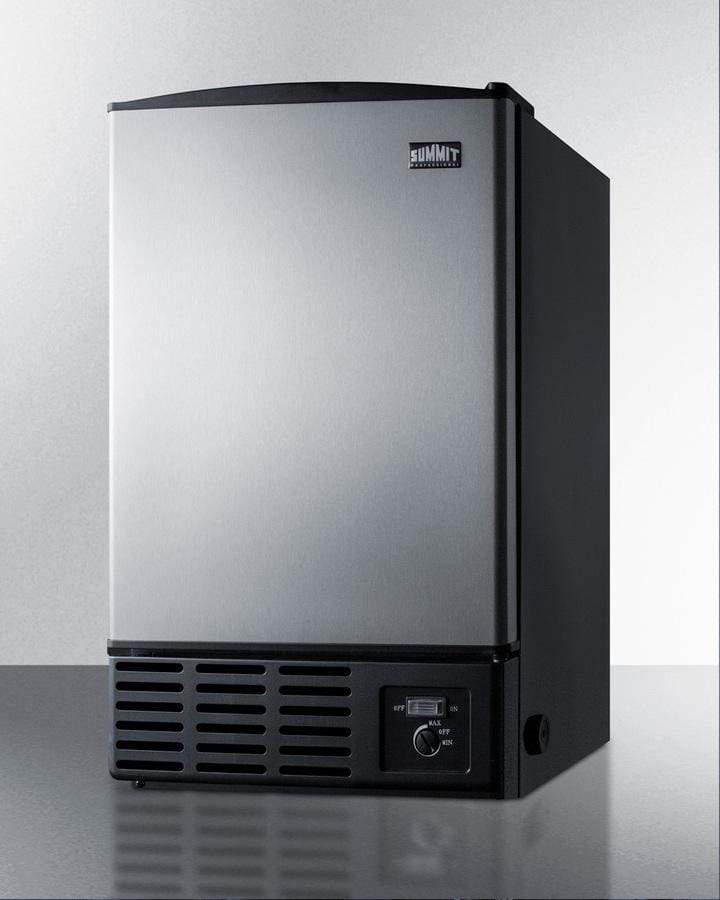

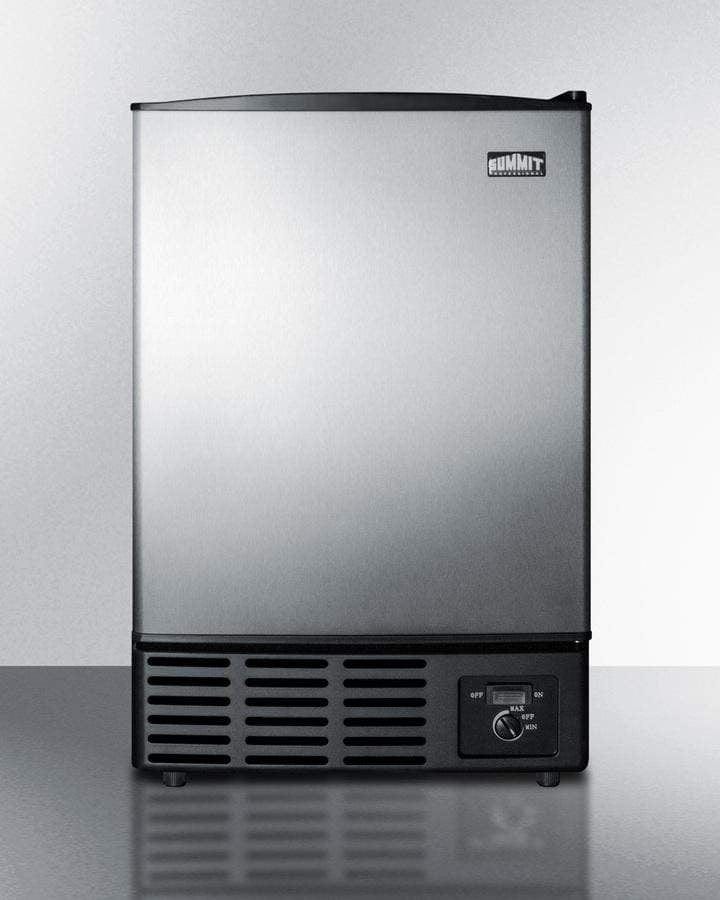

Summit 12 lb. Drain-Free Built-in Ice Maker - Black Cabinet with Stainless Steel Door BIM25 Review - Discontinued
SUMMIT BIM25 is a compact icemaker with a modern look and convenient design. Sized at 15" wide, the BIM25 can produce up to 12 pounds of crescent-shaped ice per day, storing it in a removable insulated bin. This unit features a fully finished black cabinet with a stainless steel door for an attractive look. The front-breathing system allows the unit to be installed under counters. A side defrost drain is included for easier cleaning. No drain or pump is required for use. This unit includes a connection hose, but other hardware must be supplied by your plumber. With its compact size and easy operation, the BIM25 is the perfect unit for home bars, apartment units, yacht kitchens, and other settings looking to offer a reliable icemaker in attractive style.
FEATURES
- Built-in capable
- Make the best use of space by installing your icemaker under the counter and flush with other cabinets
- Mid-sized capacity
- Produces and stores up to 12 pounds of ice per day cycle

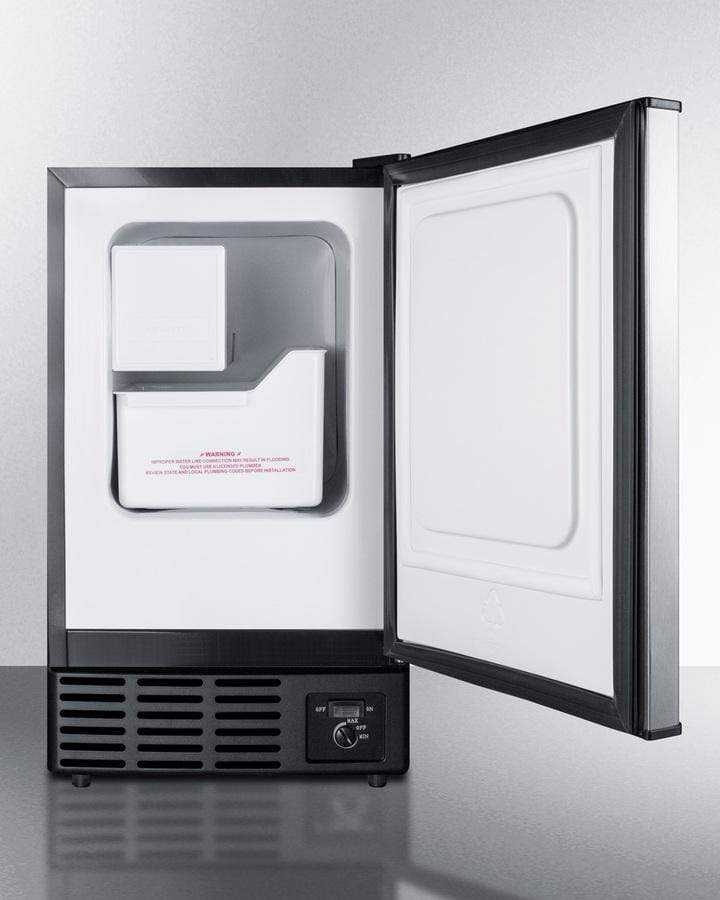

- Insulated storage bin
- Ice stays solid longer in this cold-protected bin
- Manual defrost
- Side drain included for easier cleanup
- Ice scoop included
- Large plastic ice scoop included for your convenience
- Fully finished cabinet
- Allows the icemaker to be used freestanding
- 100% CFC free
- Environmentally friendly design without ozone-damaging chemicals
SPECIFICATION
| Overview |
| Height of Cabinet |
24.75" (63 cm) |
| Height to Hinge Cap |
25.25" (64 cm) |
| Width |
15.0" (38 cm) |
| Depth |
18.25" (46 cm) |
| Depth with door at 90° |
31.75" (81 cm) |
| Capacity |
1.0 cu.ft. (28 L) |
| Defrost Type |
Manual |
| Door |
Stainless Steel |
| Cabinet |
Black |
| US Electrical Safety |
UL |
| Canadian Electrical Safety |
ULC |
| Amps |
1.7 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
50.0 lbs. (23 kg) |
| Shipping Weight |
53.0 lbs. (24 kg) |
| Estimated Time to Ship |
Next day shipping |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| Icemaker |
| Door Swing |
RHD |
| Reversible |
Factory Reversible |
| Daily Ice Production |
12.0 lbs. (5 kg) |
| Ice Storage Capacity |
12.0 lbs. (5 kg) |
| Ice Shape |
Crescent |
| Number of Ice Cube Sizes |
1 |
| Refrigerant Type |
R134a |
| Refrigerant Amount |
2.12 oz. |
| High Side PSI |
250.0 |
| Low Side PSI |
110.0 |
| Interior Height |
11.5" (29 cm) |
| Interior Width |
10.0" (25 cm) |
| Interior Depth |
12.63" (32 cm) |
| Level Legs |
2 |
