Summit 15" 2-Drawer Panel Ready All-Refrigerator ASDR1524PNR Overview
Looking for a compact and accessible refrigerator solution? The Summit 15" 2-Drawer Panel Ready All-Refrigerator ASDR1524PNR is the answer!
NOTE: PANELS NOT INCLUDED

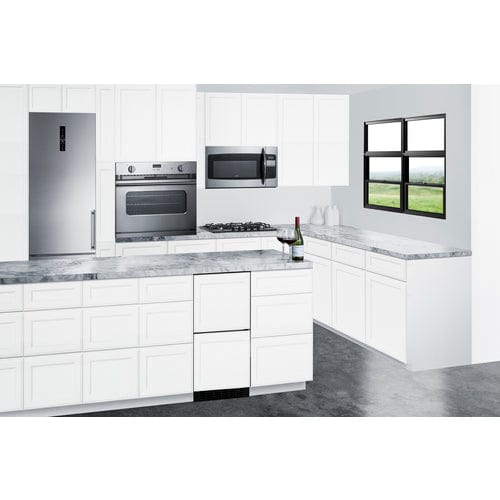

Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations.

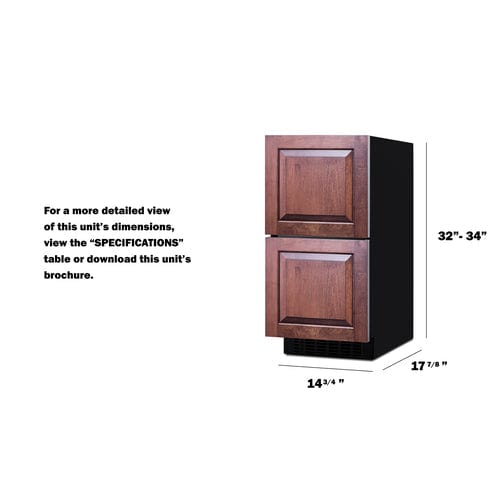

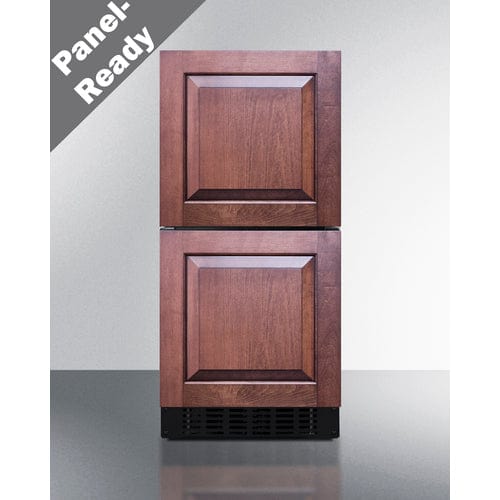

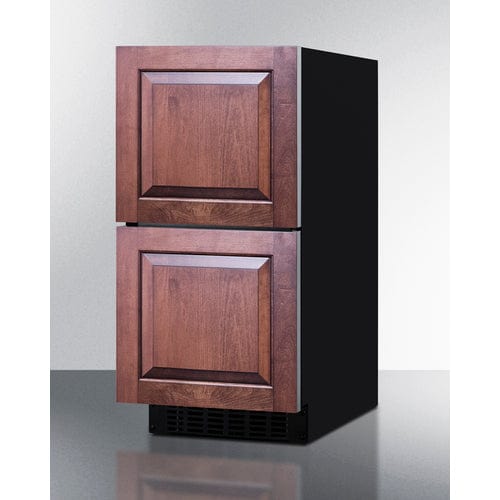

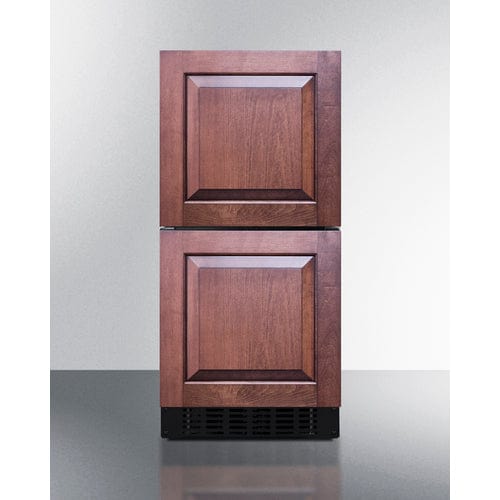

Model ASDR1524PNR is a 15" wide 2-drawer refrigerator sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The drawer fronts are fully finished in stainless steel, but can also accept panel overlays for a custom look (panel dimensions: 14.75" W x 14.1" H at 3/4" thick). Sleek stainless steel handles are included for optional use. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit has a sealed rear and right angle cord for a better fit.

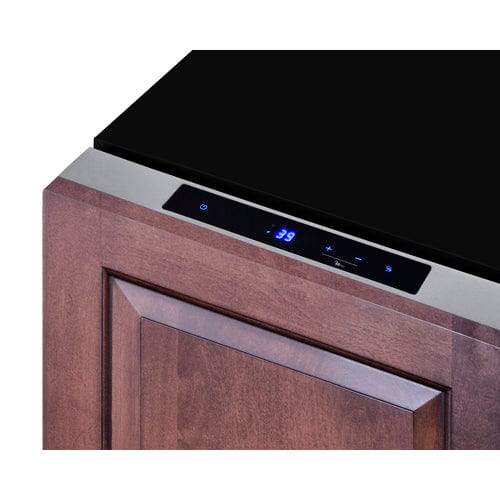

Frost-free operation ensures minimal user maintenance, with fan-forced cooling to evenly distribute the temperature. A digital thermostat, located atop the upper drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two removable dividers allow you to separate the drawer compartments for more versatile storage. White LED lighting makes it easy to view stored contents in the top drawer. A child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, a temporary memory function to recover all settings in the event of power loss, and sabbath mode to disable certain electrical features during periods of religious observance.
The ASDR1524PNR refrigerator is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Additional 18" deep choices are available in a variety of styles, including 15", 19", and 24" widths, as well as outdoor refrigerators, wine cellars, and more.
Purchase the Summit 15" 2-Drawer Panel Ready All-Refrigerator ASDR1524PNR today and revolutionize your food storage NOW!
Features
Features:
2-Drawer All-Refrigerator
- 15" wide 1.7 cu.ft. all-refrigerator with two gliding drawers
Panel-ready drawer fronts
- Drawers can be customized with overlay panels sized (at 14.75" W x 14.1" H at 3/4" thick) to match or accent existing cabinetry
Less than 18" deep
- Unique 17.88" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
ADA compliant design
- Sized just under 32" high to allow installation under lower ADA compliant counters
Adjustable height
- Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
Built-in capable
- Front-breathing design allows you to make the best use of space by installing your appliance under the counter and flush with other cabinets in 15" wide openings
Stainless steel drawers
- Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for lasting durability with a finished front for an elegant look
Panel-ready drawer fronts
- Drawers can be customized with overlay panels sized (at 14.75" W x 14.1" H at 3/4" thick) to match or accent existing cabinetry
Professional handles
- Stainless steel handles add style to any setting
Frost-free
- No-frost operation for minimal user maintenance
Digital thermostat
- Electronic controls located on the top drawer ensure intuitive temperature management, with an external readout that can switch from Celsius to Fahrenheit at the touch of a button
Interior lighting
- Elegant LED lighting in a gentle white hue illuminates the top drawer for an easy view of the interior

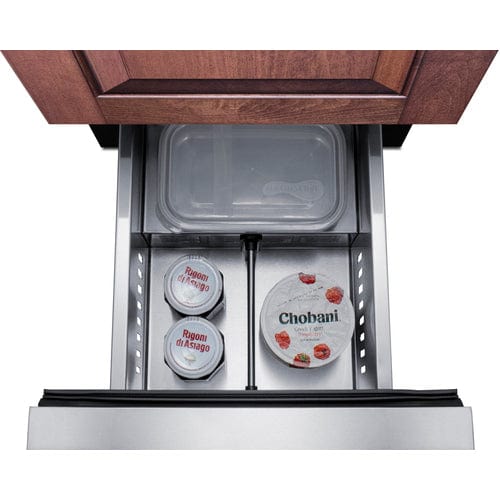

Drawer dividers
- Two adjustable dividers provide flexibility when organizing the interiors
Temperature alarm
- Alarm alerts you if the unit’s temperature goes beyond recommended high and low temperature ranges
Open drawer alarm
- Audible alarm will sound if either drawer is left open longer than one minute
Sabbath Mode
- Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance
Child lock
- Disables digital controls after two minutes of activity for added safety
Temperature memory function
- Unit will restore the most recent temperature settings after losing power
Right-angle plug
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Sealed back
- Space-saving design with no exposed coils for easier cleanability
Fully finished black cabinet
- Allows the freezer to be used as a freestanding
Fan-forced cooling
- Provides for efficient, even cooling of the entire unit
Temperature memory
- Unit will retain temperature settings after losing power
Anti-tip bracket
- Included and recommended for user-installation to reduce the risk of tipping
Commercially approved
- ETL-S listed to NSF-7 standards to allow use in commercial establishments
100% CFC free
- Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Manuals
Manuals:
Need assistance? Talk to an Expert at +1-888-407-7770 or email: support@winecoolersempire.com to get the best-suited Refrigerator for your needs.
Specifications
Specifications
- Height of Cabinet: 32.0" (81 cm)
-
Width: 14.75" (37 cm)
-
Depth: 17.88" (45 cm)
-
Depth with Handle: 19.0" (48 cm)
-
Depth with door at 90°: 29.63" (75 cm)
-
Capacity: 1.7 cu.ft. (48 L)
-
Defrost Type: Frost-Free
-
Door: Stainless Steel/Panel-Ready
-
Cabinet: Stainless Steel
-
US Electrical Safety: ETL
-
Canadian Electrical Safety: ETL-C
-
Sanitation: ETL-S
-
Energy Usage/Year: 235.0kWh/year
-
Amps: 1.0
-
Voltage/Frequency: 115 V AC/60 Hz
-
Weight: 65.0 lbs. (29 kg)
-
Shipping Weight: 85.0 lbs. (39 kg)
-
Parts & Labor Warranty: 1 Year
-
Compressor Warranty: 5 Years
-
UPC: 761101088921
Refrigerator Features
-
Sabbath Mode: Yes
-
Door Swing: Drawer
-
Height Adjustable: Yes
-
Thermostat Type: Digital
-
Fan Type: Interior and Exterior
-
Refrigerant Type: R600a
-
Refrigerant Amount: 0.64oz.
-
High Side PSI: 270.0
-
Low Side PSI: 105.0
-
Level Legs: 4
-
Interior Light: Yes
-
Interior Drawers: Yes
-
Interior Drawers Qty: 2
-
Temperature Range: 36 to 43ºF
-
Sound Level: 32.9 dB
Drawer Dimensions
-
Interior Height 1: 8.0" (20 cm)
-
Interior Width 1: 9.0" (23 cm)
-
Interior Depth 1: 11.25" (29 cm)
-
Interior Height 2: 8.0" (20 cm)
-
Interior Width 2: 9.0" (23 cm)
-
Interior Depth 2: 11.25" (29 cm)
Dimensions
-
Compressor Step Height: 3.75" (10 cm)
-
Compressor Step Width: 9.0" (23 cm)
-
Compressor Step Depth: 4.75" (12 cm)
