Summit 15" Panel Ready 25 lb. Drain Free Icemaker BIM26H32IF

Summit 15" Panel Ready 25 lb. Drain Free Icemaker BIM26H32IF Overview

Looking for a convenient and efficient drain-free ice maker? The Summit 15" Panel Ready 25 lb. Drain Free Icemaker BIM26H32IF is the perfect solution!

NOTE: PANELS NOT INCLUDED

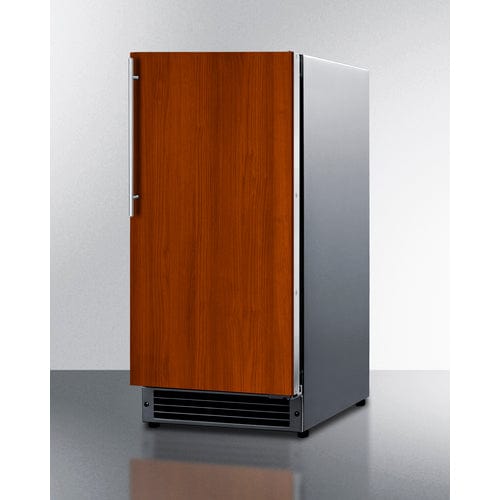

Summit combines convenience and luxury to craft the BIM26H32IF - an undercounter icemaker finished in complete 304-grade stainless steel.

Sized at just under 15" wide, the BIM26H32IF features a front-breathing design for built-in installation but also has a fully finished cabinet to allow freestanding use. With a height just under 32", Summit designed this icemaker to be compatible with ADA-compliant counters. This unit can be raised to 34". A taller kickplate is included for a streamlined and cohesive look.

This model features a panel-ready door with an integrated stainless steel frame that lets you install an overlay to match or complement surrounding cabinetry (recommended panel dimensions: 27 9/16" H x 14 13/16" W at 3/4" thick). The sealed back design allows more flush installation. An optional water filter is included and designed to be mounted in the rear.

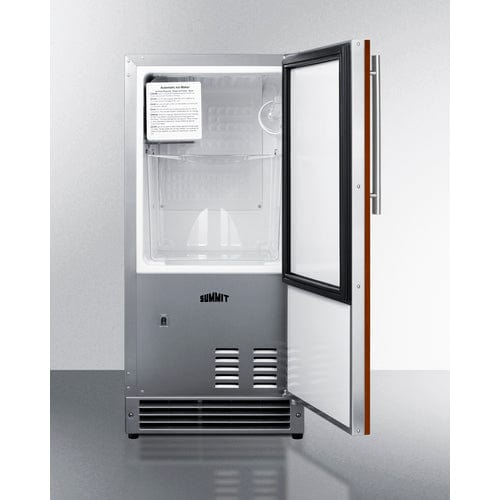

A look inside the BIM26H32IF shows it can produce 25 lbs of crescent-shaped ice daily. The static manual defrost cooling system allows ice to stay solid longer. No drain or pump is required, offering more placement flexibility. For optimal convenience, Summit has pre-installed the connection hose. Plus, this icemaker comes with a removable ice bucket, ice scoop, and a holder for the scoop.

With its customizable exterior, stainless steel cabinet, and low maintenance design, the BIM26H32IF drain-free icemaker is a great way to finish any undercounter kitchen space and allows you to maintain an entire supply of ice with less waste.

This icemaker is an ADA-compliant model. Alternative units are also available in different sizes, colors, and makes. Browse the full Summit product line to explore your options.

Purchase the Summit 15" Panel Ready 25 lb. Drain Free Icemaker BIM26H32IF and take your ice production capabilities to the next level!

 Features

Features:

No-Drain 15" Wide Icemaker

• Built-in or undercounter capable icemaker designed for kitchen islands, home bars, break rooms, health offices, RVs, and even boat kitchens.

ADA compliant

• 31.75" height allows installation under lower ADA-compliant counters

Adjustable Height

• This unit can be raised to 34", with a taller kickplate included for a seamless aesthetic

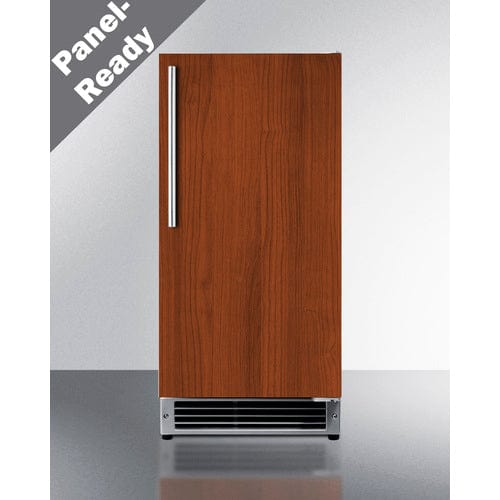

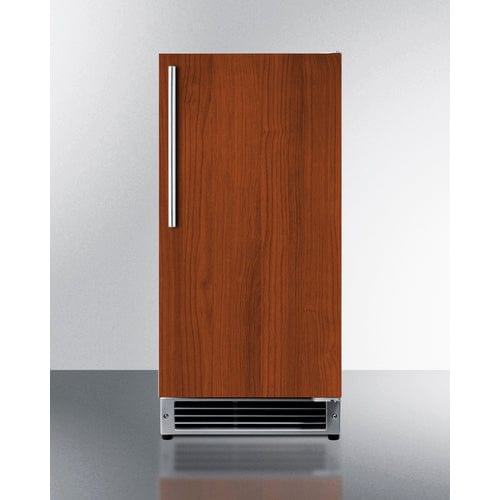

Panel-ready door

• Integrated door frame allows you to install overlay panels for a custom look that blends into your cabinetry (panel size: 27 9/16" H x 14 13/16" W at 3/4" thick)

Large capacity

• Produces 15 lbs of crescent-shaped ice and stores up to 12 lbs

Drain-free design

• Convenient design allows more flexibility in positioning the unit

Manual defrost

• Static cooling system helps to keep ice frozen for longer periods of time compared to other systems

Stainless steel exterior

• 304-grade stainless steel allows the icemaker to be used freestanding

Built-In capable

• Make the best use of space by installing your ice maker under the counter

Reversible door

• User-reversible door swing for flexible placement

Sealed back

• Space-saving design with easier cleanability

Standard water hookup

• Operates with a standard 1/4” OD water supply line

Modern handle

• Horizontally mounted towel bar style handle in stainless steel

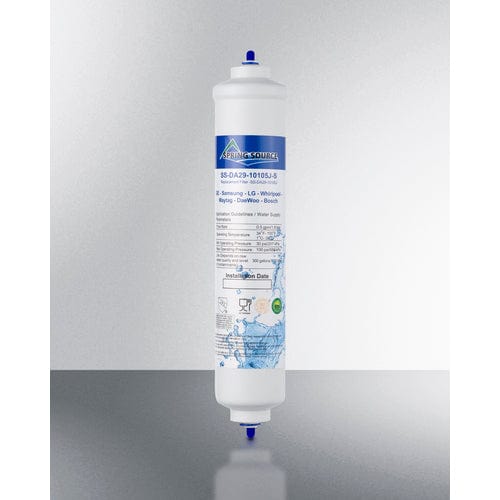

Filter included

• Water filter is included for optional use

Ice scoop included

• Large ice scoop and holder included for your convenience

Lasting ice cube production

• Crescent-shaped ice provides a harder and longer-lasting ice

Removable bin

• Users can remove the ice bucket for fast and easy cleaning

Insulated storage bin

• Ice stays solid longer in this cold-protected bin

100% CFC free

• Environmentally friendly design without ozone-damaging chemicals

Lead-free certified

• Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard

 Manuals

Manuals:

• User Manual for Summit 15" Panel Ready 25 lb. Drain Free Icemaker BIM26H32IF
• Product Brochure for Summit 15" Panel Ready 25 lb. Drain Free Icemaker BIM26H32IF
• Assembly Drawing for Summit 15" Panel Ready 25 lb. Drain Free Icemaker BIM26H32IF

 Need assistance? Talk to an Expert at +1-888-407-7770 or email: support@winecoolersempire.com to get the best-suited Ice Maker for your needs.

Specifications

Specifications

• Height of Cabinet: 31.75" (81 cm)
• Width: 14.88" (38 cm)
• Depth: 20.13" (51 cm)
• Depth with door at 90°: 34.38" (87 cm)
• Defrost Type: Manual
• Door: Panel-Ready
• Cabinet: Stainless Steel
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Amps: 1.9
• Voltage/Frequency: 115 V AC/60 Hz
• Weight: 65.0 lbs. (29 kg)
• Shipping Weight: 95.0 lbs. (43 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• UPC: 761101108407

Ice maker

• Door Swing: RHD
• Reversible: Yes
• Height Adjustable: Yes
• Daily Ice Production: 25.0 lbs. (11 kg)
• Ice Storage Capacity: 22.0 lbs. (10 kg)
• Ice Shape: Crescent
• Size of Cube: 1
• Number of Ice Cube Sizes: 1
• Refrigerant Type: R600a
• Refrigerant Amount: 1.58 oz.
• High Side PSI: 120.0
• Low Side PSI: 55.0
• Interior Height: 15.88" (40 cm)
• Interior Width: 11.88" (30 cm)
• Interior Depth: 12.38" (31 cm)
• Level Legs: 4
