Summit 15" Panel Ready Built-In All-Refrigerator ALR15BIF

Summit 15" Panel Ready Built-In All-Refrigerator ALR15BIF Overview

Looking for a sleek and space-saving built-in all-refrigerator? The Summit 15" Panel Ready Built-In All-Refrigerator ALR15BIF is the perfect solution!

Summit offers the industry's largest selection of 32" high ADA compliant appliances, with quality choices for built-in or freestanding use in 15" wide spaces.

The ALR15BIF is a 2.2 cu.ft. all-refrigerator with a front-breathing system for built-in use. The door features an integrated stainless steel frame designed to accept custom overlay panels, allowing you to match your refrigerator to your cabinetry for a customized look (panel size: 27 3/8" H x 14 11/16" W). This unit has a black cabinet and sealed back for easier cleanup. At just under 32" high, it's perfect for fitting under lower counters following ADA guidelines.

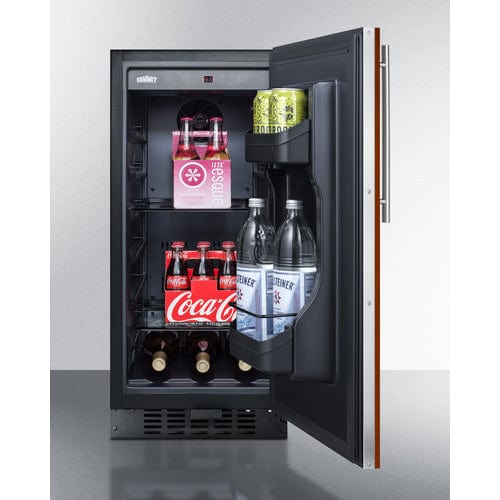

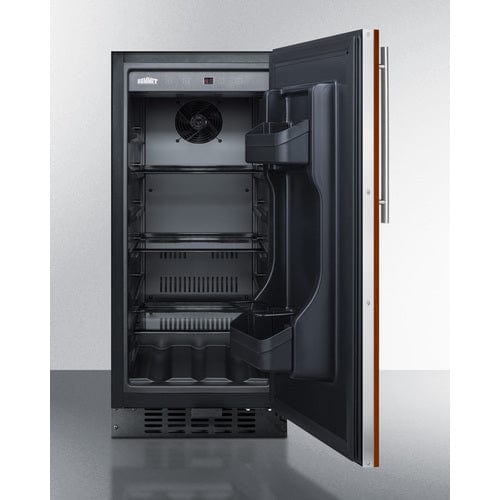

Inside, the ALR15BIF features a jet black finish and convenient frost-free operation for minimum maintenance. Fan-forced cooling helps to stabilize the temperature inside. Adjustable glass shelves offer spill-proof storage and two door racks are ideal for keeping condiments and bottles within reach. This unit comes with a digital control panel for easy temperature management, with a temperature readout viewable in Celsius and Fahrenheit. Additional features include an open door and high temperature alarm, temperature memory function, and Sabbath mode to allow users to disable certain electrical functions during periods of observance. Recessed LED lighting offers an attractive, energy efficient view.

The ALR15BIF is approved for both residential and commercial use, and is ETL-S listed to NSF-7 commercial standards. Additional choices for 15" wide spaces, as well as ADA compliant applications, can be found in Summit's extensive product catalog. Browse our website for more options.

Purchase the Summit 15" Panel Ready Built-In All-Refrigerator ALR15BIF today and and enjoy the convenience of efficient food storage!

 Features

Features:

ADA compliant design

• Sized just under 32" high to fit under lower ADA compliant counters

Built-in capable

• Make the best use of space by installing your appliance under the counter

Panel-ready door

• Integrated stainless steel door frame accepts full overlay panels for a custom look; panel size should be 27 3/8" H x 14 11/16" W at 3/4" thickness

Digital thermostat

• Electronic controls for precise temperature management.

Digital display

• Three removable door racks for additional storage of larger items

LED lighting

• Gentle illumination with an on/off switch

Frost-free operation

• No-frost operation ensures reduced maintenance

Adjustable glass shelves

• Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Door storage

• Two racks offer the perfect storage solution for tall bottles and condiments

Reversible door

• User-reversible door swing for added flexibility to best accommodate your setting

Flush back

• Space saving design that is easy to clean

Sabbath mode setting

• Optional setting lets you disable the lighting and alarm for up to 48 hours

Open door alarm

• Audible alarm will sound if the door is left ajar for over a minute

High temperature alarm

• Audible alarm sounds if the interior temperature rises out of set range

Right angle cord

• Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Integrated hinge

• Door hinge adds no additional height, making it easier to install under a counter

Multiple door finishes available

• Can be ordered with a stainless steel wrapped door or with an integrated frame that accepts custom panels

Temperature memory function

• In the event of power loss, unit will return to its last settings when power is restored

Fully finished black cabinet

• Allows the unit to be used freestanding

Commercially approved

• ETL-S listed to NSF-7 commercial standards

Handle not included

• Customers provide their own handle to match their own cabinetry style

100% CFC free

• Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

• Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

 Manuals

Manuals:

• User Manual for Summit 15" Panel Ready Built-In All-Refrigerator ALR15BIF
• Product Brochure for Summit 15" Panel Ready Built-In All-Refrigerator ALR15BIF
• Assembly Drawing for Summit 15" Panel Ready Built-In All-Refrigerator ALR15BIF
• Integrated Frame Instruction for Summit 15" Panel Ready Built-In All-Refrigerator ALR15BIF

 Need assistance? Talk to an Expert at +1-888-407-7770 or email: support@winecoolersempire.com to get the best-suited Refrigerator for your needs.

Specifications

Specifications

• Height of Cabinet: 31.5" (80 cm)
• Width: 14.75" (37 cm)
• Depth: 23.75" (60 cm)
• Capacity: 2.2 cu.ft. (62 L)
• Defrost Type: Frost-Free
• Door: Panel-Ready
• Cabinet: Black
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Sanitation: ETL-S
• Energy Usage/Year: 240.0kWh/year
• Amps: 1.0
• Voltage/Frequency: 115 V AC/60 Hz
• Weight: 60.0 lbs. (27 kg)
• Shipping Weight: 83.0 lbs. (38 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• UPC: 761101061511

Refrigerator Features

• Sabbath Mode: Yes
• Door Swing: RHD
• Reversible: Factory Reversible
• Refrigerant Type: R600a
• Refrigerant Amount: 0.78oz.
• Full Door Shelves: 2
• High Side PSI: 270.0
• Low Side PSI: 105.0
• Level Legs Qty: 4
• Shelf Type: Glass
• Shelf Qty: 3
• Adjustable Shelves: Yes
• Thermostat Type: Digital
• Fan Type: Interior and Exterior
• Temperature Range: 36°F to 43°F

Dimensions

• Interior Height: 23.0" (58 cm)
• Interior Width: 10.5" (27 cm)
• Interior Depth: 17.5" (44 cm)
• Compressor Step Height: 3.5" (9 cm)
• Compressor Step Width: 10.5" (27 cm)
• Compressor Step Depth: 5.0" (13 cm)
