Summit 15" Stainless Steel Door All-Refrigerator ASDS1523

Summit 15" Stainless Steel Door All-Refrigerator ASDS1523 Overview

Looking for a sleek and space-saving built-in all-refrigerator? The Summit 15" Stainless Steel Door All-Refrigerator ASDS1523 is the perfect solution!

Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations.

Model ASDS1523 is a 15" wide all-refrigerator sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit has a sealed rear and right angle cord for a better fit. The stainless steel wrapped door is user-reversible and includes a front lock and pro style handle.

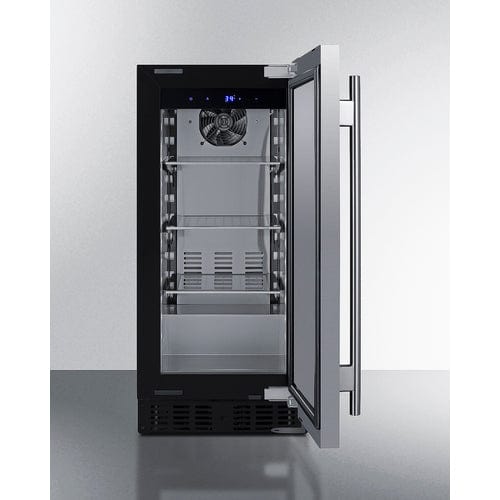

Inside, the ASDS1523 features stainless steel construction for improved durability and sanitation. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes cantilevered shelving system with glass shelves for flexible storage. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.

The ASDS1523 refrigerator is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Additional 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, wine cellars, and more.

Purchase the Summit 15" Stainless Steel Door All-Refrigerator ASDS1523 today and enjoy the convenience of efficient food storage!

Features

Features:

15" wide all-refrigerator

• 1.7 cu.ft. interior for residential or commercial cold storage

Less than 18" deep

• Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space

ADA compliant design

• 32" height allows easy installation under lower ADA compliant counters

Adjustable height

• Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets

Built-in capable

• Front-breathing design lets you make the best use of space by installing your appliance under the counter

Stainless steel interior

• Walls and floor are constructed from stainless steel for added strength and easy cleanup

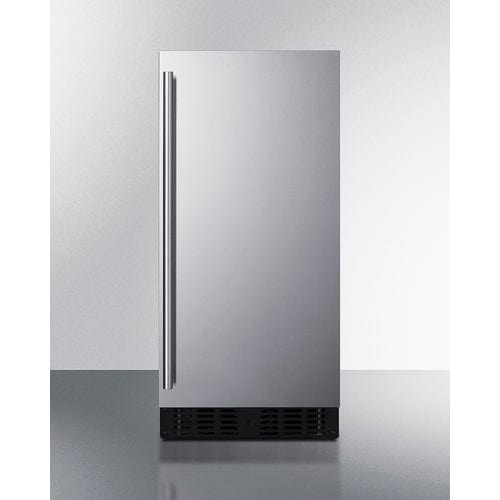

Stainless steel door

• Durable construction with a professional look

Factory installed lock

• Keyed lock for a secure interior (2 keys included)

Professional handle

• Includes a full-length pro handle in chrome

Frost-free operation

• No-frost operation ensures reduced maintenance

Fan-forced cooling

• Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom

Digital thermostat

• Electronic controls for precise temperature management.

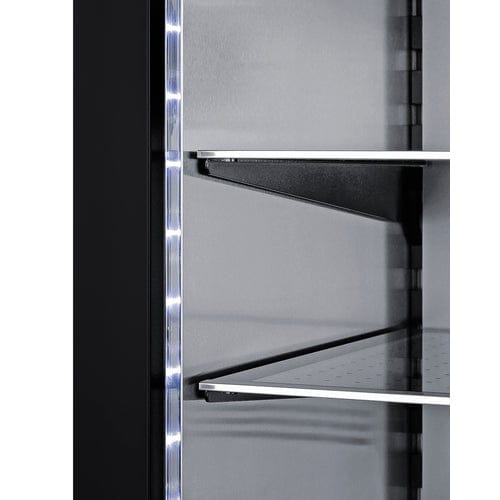

Dimmable LED lighting

• Efficient and attractive presentation with LED lighting that can be adjusted between three levels of brightness

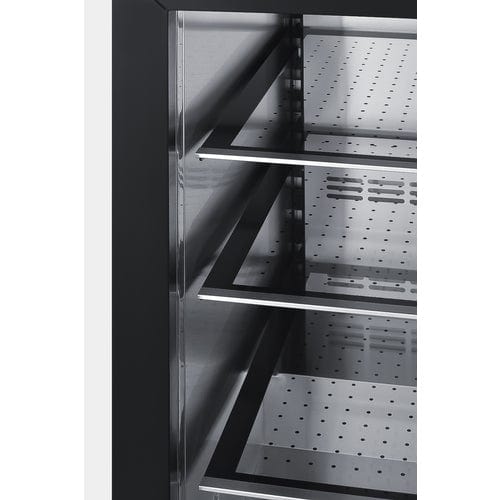

Cantilevered shelving

• Adjustable glass shelves with stainless steel clips allow you to adjust the shelf height for the best fit

Open door alarm

• Audible alarm will sound if the door is left open longer than one minute

High temperature alarm

• Audible alarm sounds if the interior temperature rises out of set range

Sabbath mode setting

• Optional setting lets you disable the lighting and alarm for up to 48 hours

Temperature memory function

• In the event of power loss, unit will return to its last settings when power is restored

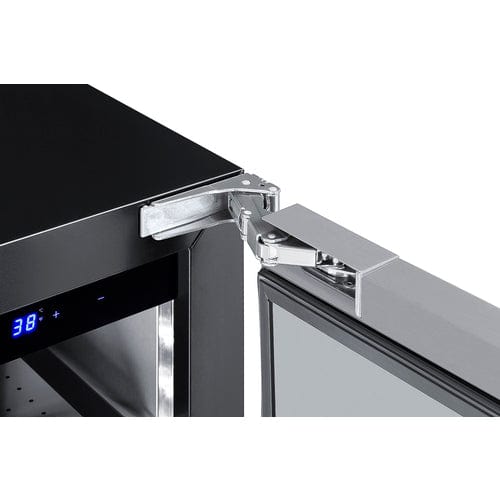

Integrated hinge

• Door hinge adds no additional height, making it easier to install under a counter

Right angle plug

• Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Sealed back

• Space-saving design with no exposed coils that offers easier cleanability

Reversible door

• User-reversible door swing for added flexibility to best accommodate your setting

Fully finished black cabinet

• Allows the unit to be used freestanding

Commercially approved

• ETL-S listed to NSF-7 commercial standards

100% CFC free

• Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

• Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Manuals

Manuals:

• User Manual for Summit 15" Stainless Steel Door All-Refrigerator ASDS1523
• Product Brochure for Summit 15" Stainless Steel Door All-Refrigerator ASDS1523
• Assembly Drawing for Summit 15" Stainless Steel Door All-Refrigerator ASDS1523

Need assistance? Talk to an Expert at +1-888-407-7770 or email: support@winecoolersempire.com to get the best-suited Refrigerator for your needs.

Specifications

Specifications

• Height of Cabinet: 32.0" (81 cm)
• Width: 14.75" (37 cm)
• Depth: 17.75" (45 cm)
• Depth with Handle: 19.75" (50 cm)
• Depth with door at 90°: 31.25" (79 cm)
• Capacity: 1.72 cu.ft. (49 L)
• Defrost Type: Frost-Free
• Door: Stainless Steel
• Cabinet: Black
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Sanitation: ETL-S
• Energy Usage/Year: 235.0kWh/year
• Amps: 1.0
• Voltage/Frequency: 115 V AC/60 Hz
• Weight: 59.0 lbs. (27 kg)
• Shipping Weight: 70.0 lbs. (32 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• UPC: 761101079523

Refrigerator Features

• Sabbath Mode: Yes
• Door Swing: Reversible
• Reversible: Yes
• Height Adjustable: Yes
• Shelf Type: Glass
• Shelf Qty: 3
• Adjustable Shelves: Yes
• Thermostat Type: Digital
• Fan Type: Interior and Exterior
• Refrigerant Type: R600a
• Refrigerant Amount: 0.64oz.
• High Side PSI: 270.0
• Low Side PSI: 105.0
• Level Legs Qty: 4
• Interior Light: Yes
• Temperature Range: 36 to 43ºF
• Sound Level: 33 dB

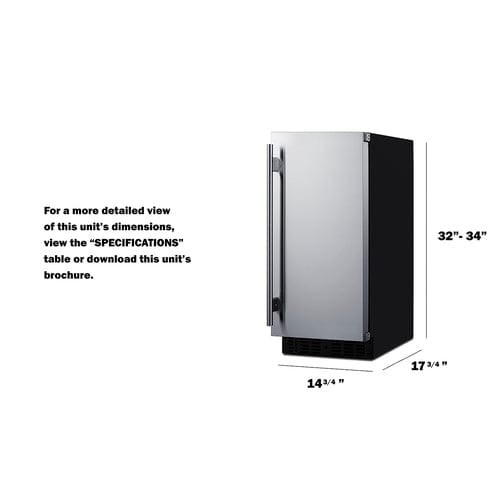

Dimensions

• Interior Height: 24.25" (62 cm)
• Interior Width: 10.75" (27 cm)
• Interior Depth: 12.38" (31 cm)
• Compressor Step Height: 3.75" (10 cm)
• Compressor Step Width: 10.75" (27 cm)
• Compressor Step Depth: 5.5" (14 cm)
