Summit 18" ADA Drain Free Ice Maker BIM18IFADA

Summit 18" ADA Drain Free Ice Maker BIM18IFADAF Overview

Looking for a convenient and efficient drain-free ice maker? The Summit 18" ADA Drain Free Ice Maker BIM18IFADA is the perfect solution!

NOTE: PANELS NOT INCLUDED

Summit brings convenient luxury under the counter with built-in icemakers uniquely sized for use in ADA compliant settings.

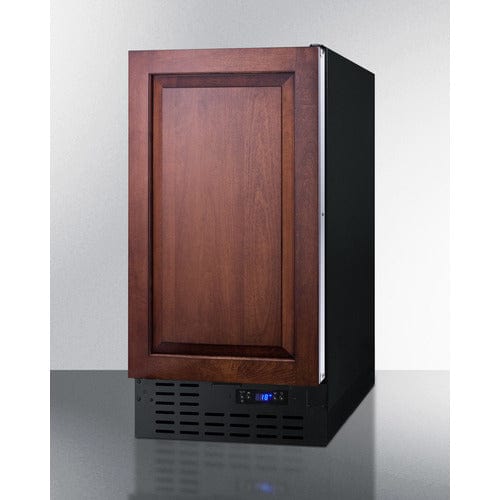

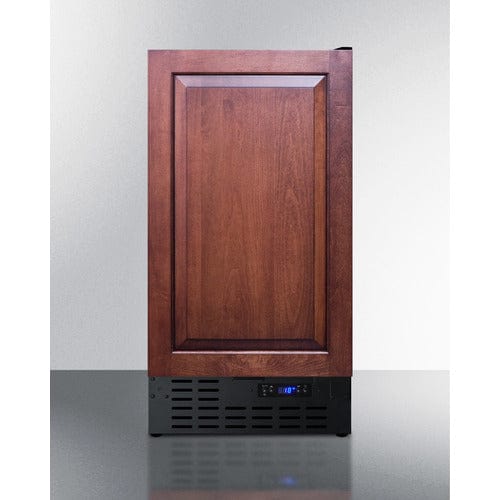

Sized just under 18 inches wide and 32 inches high, the BIM18IFADA is ideal for use under lower counters following ADA compliant guidelines. The door comes with Summit's integrated stainless steel frame designed to accept overlay panels for a custom look that matches or complements other cabinetry. No drain or pump is required for use, offering more flexibility in where you place the unit.

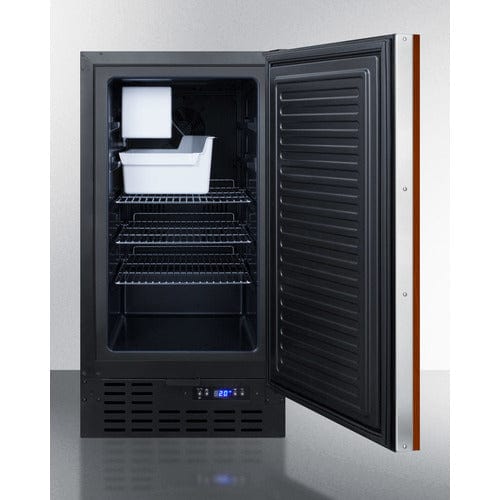

Inside, the BIM18IFADA can produce and hold 8 lbs. of crescent-shaped ice cubes in the removable bucket. Additional chrome shelves allow you to store other frozen items as needed. This unit utilizes frost-free operation to help reduce user maintenance.

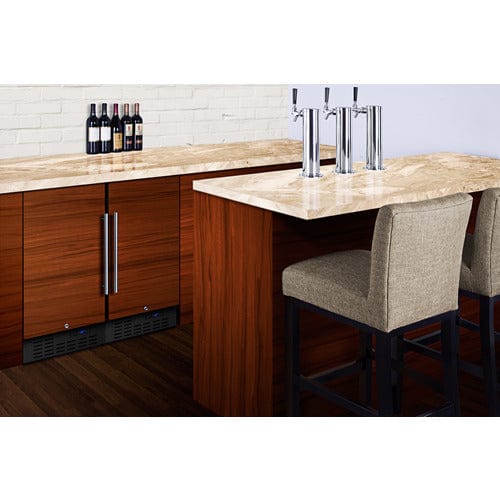

With its ideal size and customizable design, the BIM18IFADA is a great solution to keeping a steady supply of ice on hand in smaller ADA compliant kitchen spaces. Matching 18 inch wide refrigerators, beverage centers, and wine cellars are also available. Browse our website to explore our complete selection.

Purchase the Summit 18" ADA Drain Free Ice Maker BIM18IFADA and take your ice production capabilities to the next level!

Features

Features:

ADA compliant

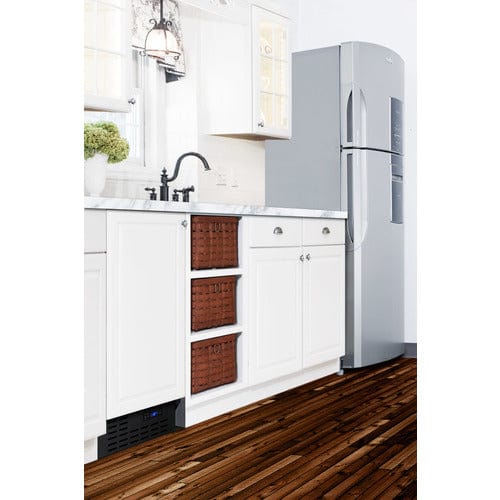

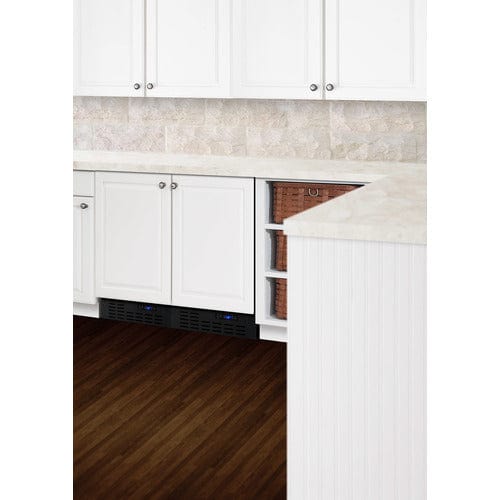

• Sized just under 32" high for installation under lower ADA compliant counters

Built-in capable

• Make the best use of space by installing your appliance under the counter

No pump or drain required

• Convenient design allows more flexibility in positioning the unit

Ice production

• Makes and stores up to 8 lbs. of crescent cubes

Integrated door frame

• Stainless steel door frame accepts full overlay panels for users to create a seamless custom look (panel size: 17 1/2" W x 27 3/4" H; maximum weight: 10 lbs.)

Removable bin

• Bucket can be removed for fast and easy cleaning

Digital thermostat

• Electronic controls for precise temperature management.

Digital display

• Temperature readout can be shown in Celsius or Fahrenheit

Frost-free operation

• Eliminates the need to manually defrost the interior

Extra shelves

• Adjustable chrome shelves included to accommodate additional items

Flush back

• Space saving design with easier cleanability

Fully finished black cabinet

• Allows the unit to be used freestanding

CARB Compliant

• Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

100% CFC Free

• Environmentally friendly design with no ozone-damaging chemicals

Lead-free certified

• Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard

Manuals

Manuals:

• User Manual for Summit 18" ADA Drain Free Ice Maker BIM18IFADA
• Product Brochure for Summit 18" ADA Drain Free Ice Maker BIM18IFADA
• Integrated Frame Instructions for Summit 18" ADA Drain Free Ice Maker BIM18IFADA

Need assistance? Talk to an Expert at +1-888-407-7770 or email: support@winecoolersempire.com to get the best-suited Ice Maker for your needs.

Specifications

Specifications

• Height of Cabinet: 31.38" (80 cm)
• Width: 17.75" (45 cm)
• Depth: 24.0" (61 cm)
• Depth with Handle: 25.75" (65 cm)
• Depth with door at 90°: 40.0" (102 cm)
• Capacity: 2.7 cu.ft. (76 L)
• Defrost Type: Frost-Free
• Door: Panel-Ready
• Cabinet: Black
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Amps: 1.1
• Voltage/Frequency: 115 V AC/60 Hz
• Weight: 82.0 lbs. (37 kg)
• Shipping Weight: 105.0 lbs. (48 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• UPC: 761101063751

Ice maker

• Door Swing: RHD
• Reversible Factory: Factory Reversible
• Daily Ice Production: 8.0 lbs. (4 kg)
• Ice Storage Capacity: 8.0 lbs. (4 kg)
• Ice Shape: Crescent
• Number of Ice Cube Sizes: 1
• Interior Light: Yes
• Fan Type: Interior and Exterior
• Refrigerant Type: R600a
• Refrigerant Amount: 1.06 oz.
• High Side PSI: 270.0
• Low Side PSI: 103.0
• Interior Height: 23.5" (60 cm)
• Interior Width: 12.75" (32 cm)
• Interior Depth: 16.75" (43 cm)
• Compressor Step Height: 4.5" (11 cm)
• Compressor Step Width: 12.75" (32 cm)
• Compressor Step Depth: 4.5" (11 cm)
• Level Legs: 4
• Temperature Range: -22 to 14ºF
