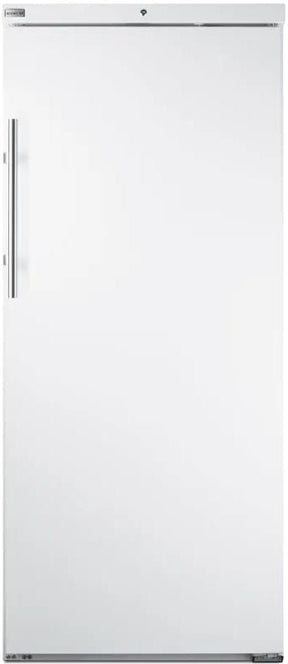

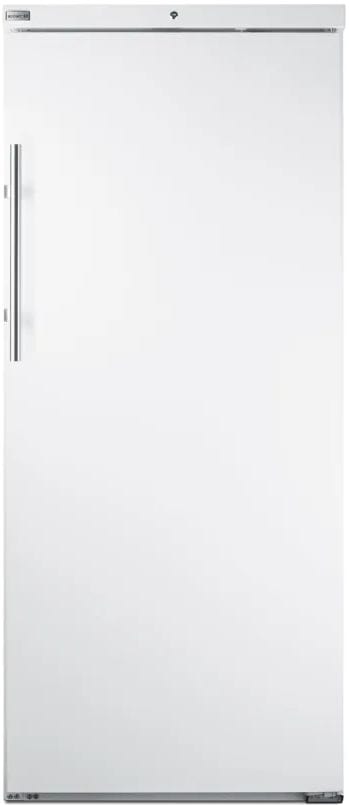

Summit 18 Cu. Ft Upright Manual Defrost Freezer AFM19W

Summit 18 Cu. Ft Upright Manual Defrost Freezer AFM19W Overview

Looking for a reliable and spacious freezer? The Summit 18 Cu. Ft Upright Manual Defrost Freezer AFM19W is the perfect solution!

Summit Commercial manufactures a wide range of full-sized refrigeration choices approved to NSF-7 standards, including upright freezers.

Model AFM19W is a large capacity front-opening freezer with an 18.3 cu.ft. interior. It is ETL-S listed to NSF-7 for commercial storage applications. This freezer utilizes a static manual defrost cooling system that offers more stabilized temperature than traditional no-frost units. The dial thermostat is located inside to prevent accidental temperature adjustments. Cantilevered shelving with epoxy-coated wire shelves allows you to adjust the interior to best accommodate a variety of sizes, while the flat door liner helps to fit deeper trays than units equipped with door racks. An automatic LED light makes it easy to see the full interior.

This freezer comes in a white exterior finish. The keyed lock is conveniently located towards the top of the unit for easier user access. The reversible door includes an easy-grip handle in a brushed aluminum finish. This unit includes a 9'5" long power cord with a hospital grade 'green dot' plug for a more secure connection, ideal for high traffic commercial environments. The cooling system utilizes hydrocarbon refrigerant for a greener footprint that meets CARB regulations. For advanced insulation, the door features a vacuum seal that keeps all cold air inside.

In addition to this freezer, Summit Commercial manufactures a full lineup of full-sized commercial refrigerators and freezers, including reach-in style and frost-free options. Browse the full lineup to explore our catalog.

Purchase the Summit 18 Cu. Ft Upright Manual Defrost Freezer AFM19W today and enjoy the convenience of ample and efficient freezing space NOW!

 Features

Features:

Upright manual defrost all-freezer

• Front-opening commercial freezer

Large capacity

• Over 18 cu.ft. of storage inside

Manual defrost operation

• Static cooling system with no fans or warming cycles

Dial thermostat

• Intuitive and reliable mechanical thermostat located inside the unit to prevent unnecessary adjustments

-20ºC operation

• Preset to -20ºC with a temperature range of -18 to -24ºC

Cantilevered shelving

• Tight pilaster spacing throughout the interior allows you to adjust the shelf positions to meet your exact storage needs

Epoxy-coated wire shelves

• Four heavy duty shelves included

Factory-installed lock

• Conveniently located towards the top of the door for easier user access (2 keys included)

Flat door liner

• No door storage to allow for the interior to accommodate deeper trays

Reversible door

• User-reversible door swing for added flexibility to best accommodate your setting

LED lighting

• Automatic interior lighting for an efficient presentation

9' long cord with hospital grade plug

• Extra long power cord with hospital grade 'green dot' plug for a more secure connection

External handle

• Easy-grip handle in brushed aluminum

Leveling legs

• Adjustable front legs allow you to ensure a straight fit, even on uneven surfaces

Advanced vacuum seal insulation

• Vacuum seal gasket design ensures no cold air escapes (NOTE: seal activates when door is closed, so you must allow a few minutes to pass before re-opening)

Commercially listed

• ETL-S listed to NSF-7 standards for commercial use

100% CFC free

• Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

• Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

 Manuals

Manuals:

• User Manual for Summit 18 Cu. Ft Upright Manual Defrost Freezer AFM19W
• Product Brochure for Summit AFM19W Freezer
• Assembly Drawing for Summit 18 Cubic Feet Upright Freezer
• Safety Data Sheet for Summit Appliance AFM19W

 Need assistance? Talk to an Expert at +1-888-407-7770 or email: support@winecoolersempire.com to get the best-suited Freezer for your needs.

Specifications

Specifications

• Height of Cabinet: 70.75" (180 cm)
• Width: 30.5" (77 cm)
• Depth: 27.0" (69 cm)
• Depth with Handle: 29.75" (76 cm)
• Depth with door at 90°: 54.13" (137 cm)
• Capacity: 18.3 cu.ft. (518 L)
• Defrost Type: Manual
• Door: White
• Cabinet: White
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Sanitation: ETL-S
• Amps: 2.7
• Voltage/Frequency: 115 V AC/60 Hz
• Weight: 215.0 lbs. (98 kg)
• Shipping Weight: 230.0 lbs. (104 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• UPC: 761101077314

 FREEZER

• Door Swing: RHD
• Reversible: Yes
• Interior Light: Yes
• Refrigerant Type: R290a
• Refrigerant Amount: 3.88 oz.
• High Side PSI: 280.0
• Low Side PSI: 145.0
• Level Legs: 2
• Interior Height: 64.0" (163 cm)
• Interior Width: 25.0" (64 cm)
• Interior Depth: 20.88" (53 cm)
• Shelf Type: Wire
• Shelf Qty: 4
• Adjustable Shelves: Yes
• Thermostat Type: Dial
• Temperature Range: -18 to -24ºC (Preset to -20ºC)

Dimensions

• Compressor Step Height: 9.38" (24 cm)
• Compressor Step Width: 25.0" (64 cm)
• Compressor Step Depth: 7.25" (18 cm)
