Summit 20" Black Built-in All-Freezer ALFZ37B

Summit 20" Black Built-in All-Freezer ALFZ37B Overview

Looking for a compact yet efficient all-freezer solution? The Summit 20" Black Built-in All-Freezer ALFZ37B is the perfect solution!

Summit Appliance offers a quality selection of 20" wide built-in undercounter all-freezers designed for installation under lower ADA compliant counters, with advanced features for user convenience.

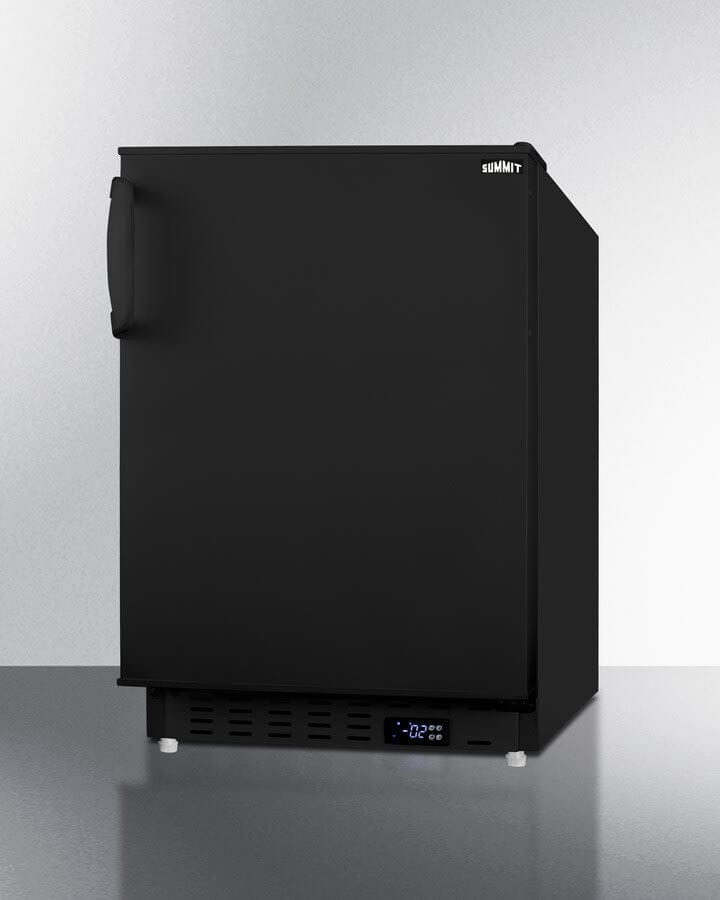

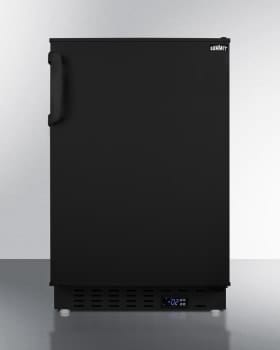

The ALFZ37B is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured black cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The user-reversible door is 3" thick for efficient insulation, with a handle included for added convenience. This unit comes with a right angle cord to allow for easier placement without added depth. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius.

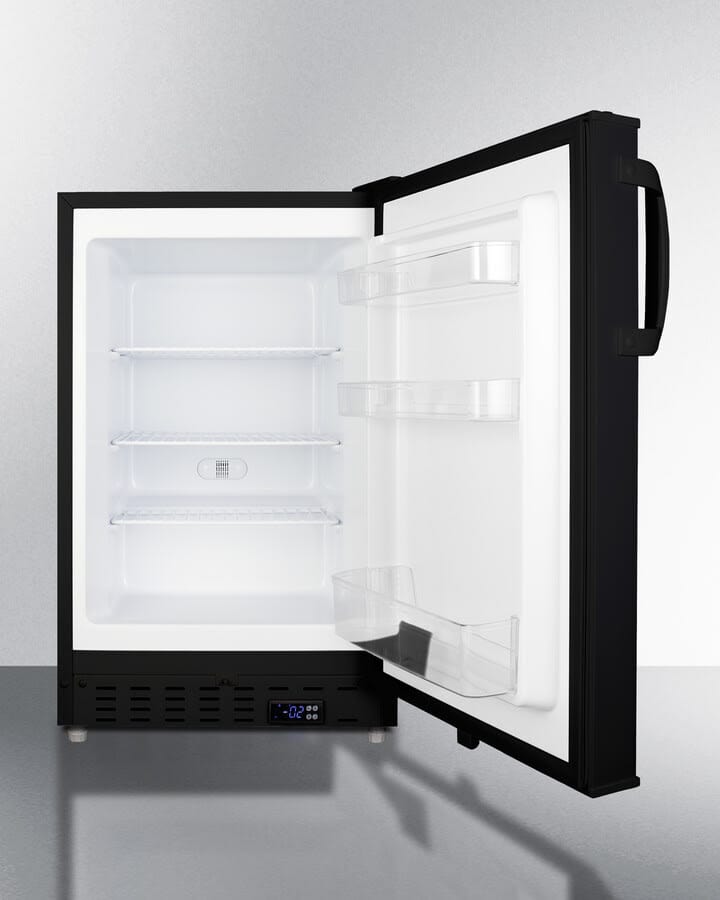

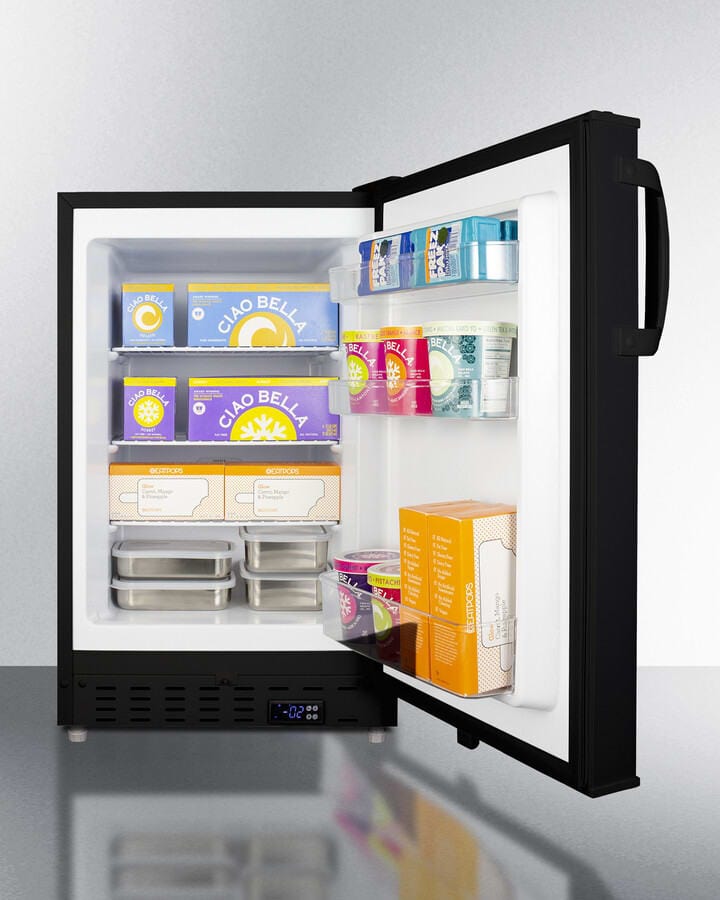

Inside, the ALFZ37B features an all-white interior for easy cleaning and viewing of contents. Static manual defrost operation provides efficient cooling inside the 2.68 cu.ft. interior. Three adjustable wire shelves offer optimal storage options for large and small items, while three removable door racks accommodate additional storage as needed. The user-set high and low temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar over one minute for added peace-of-mind. These alarms can be disabled depending on your needs.

Sized at just 20" wide, the ALFZ37B is the perfect addition for space-challenged spaces seeking dependable freezer options in a durable design. For a complete set, pair this unit with the matching ALR47B all-refrigerator. Additional choices with a stainless steel cabinet and panel-ready styles are available.

Purchase the Summit 20" Black Built-in All-Freezer ALFZ37B today and enjoy the convenience of ample and efficient freezing space NOW!

 Features

Features:

ADA compliant design

• 32" height allows easy installation under lower ADA compliant counters

Built-in capable

• Front-breathing design lets you make the best use of space by installing your appliance under the counter

Adjustable thermostat

• Digital thermostat offers easy temperature management with a readout in Fahrenheit or Celsius

Door shelves

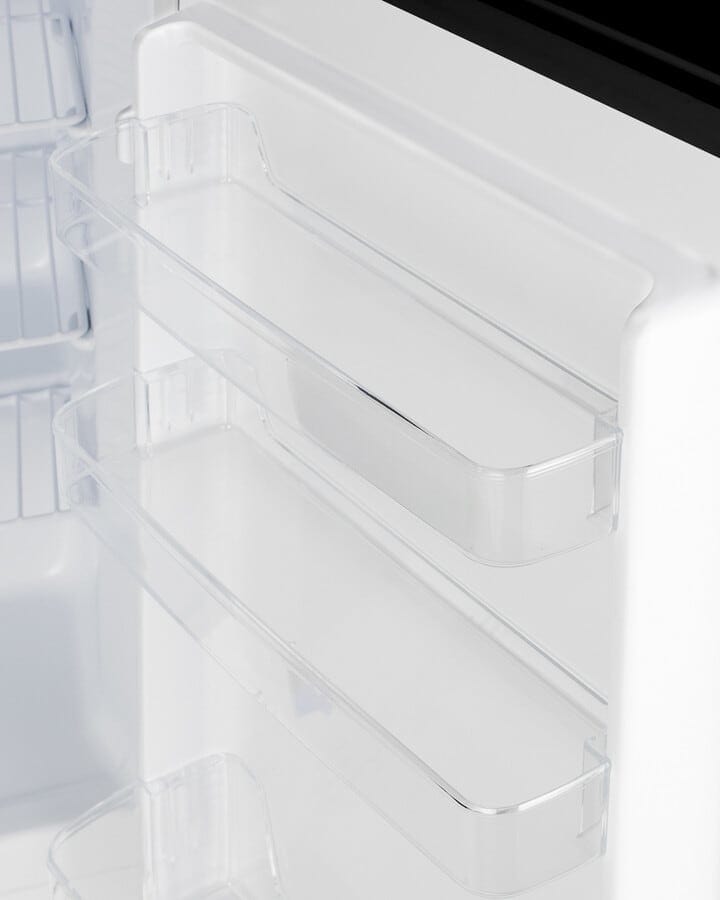

• Three removable door racks for additional storage of larger items

Adjustable shelves

• Three adjustable wire shelves for optimal storage in 2.68 cu. ft. interior

Reversible door

• User-reversible door swing for added flexibility to best accommodate your setting

3" thick door

• Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this refrigerator against a wall, please see our drawings to ensure adequate space

Temperature alarms

• User-set high/low temperature alarms provide added security if temperature goes beyond setpoint

Open door alarm

• Audible alarm will sound if the door is left ajar for over a minute

Sealed back

• Space-saving design that offers easier cleanability

Right-angle plug

• Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Manual defrost

• More temperature stability with an energy efficient manual defrost system

Matching all-refrigerator

• This unit can be paired with the ALR47B all-refrigerator for a complete set

Fully finished white cabinet

• Allows the unit to be used freestanding

100% CFC free

• Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

• Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

 Manuals

Manuals:

• User Manual for Summit 20" Black Built-in All-Freezer ALFZ37B
• Product Brochure for Summit 20" Black Built-in All-Freezer ALFZ37B

 Need assistance? Talk to an Expert at +1-888-407-7770 or email: support@winecoolersempire.com to get the best-suited Freezer for your needs.

Specifications

Specifications

• Height of Cabinet: 31.75" (81 cm)
• Height to Hinge Cap: 32.0" (81 cm)
• Width: 19.75" (50 cm)
• Width with Door Open: 20.25" (51 cm)
• Depth: 22.5" (57 cm)
• Depth with Handle: 24.38" (62 cm)
• Depth with door at 90°: 40.25" (102 cm)
• Capacity: 2.68 cu.ft. (76 L)
• Defrost Type: Manual
• Door: Black
• Cabinet: Black
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Energy Usage/Year: 266.0kWh/year
• Amps: 0.6
• Voltage/Frequency: 115 V AC/60 Hz
• Weight: 65.0 lbs. (29 kg)
• Shipping Weight: 95.0 lbs. (43 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• UPC: 761101074016

 FREEZER

• Door Swing: RHD
• Reversible: Yes
• Interior Height: 23.75" (60 cm)
• Interior Width: 14.5" (37 cm)
• Interior Depth: 17.0" (43 cm)
• Refrigerant Type: R600a
• Refrigerant Amount: 1.83 oz.
• Full Door Shelves: 3
• High Side PSI: 180.0
• Low Side PSI: 80.0
• Level Legs: 2
• Wheels: 2
• Shelf Type: Wire
• Shelf Qty: 3
• Adjustable Shelves: Yes
• Thermostat Type: Digital
• Fan Type: Exterior
• Sound Level: 33.1 dBa

• Temperature Range: -13 to 5ºF
• Compressor Step Height: 5.75" (15 cm)
• Compressor Step Width: 14.5" (37 cm)
• Compressor Step Depth: 6.0" (15 cm)
