Summit 20" White Finish Built-In All-Refrigerator ALR46W

Summit 20" White Finish Built-In All-Refrigerator ALR46W Overview

Looking for a sleek and space-saving built-in all-refrigerator? The Summit 20" White Finish Built-In All-Refrigerator ALR46W is the perfect solution!

Summit Appliance offers a quality selection of 20" wide built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience.

The ALR46W is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The user-reversible door is 3" thick for efficient insulation, with a handle included for added convenience. This unit comes with a right angle cord to allow for easier placement without added depth. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius.

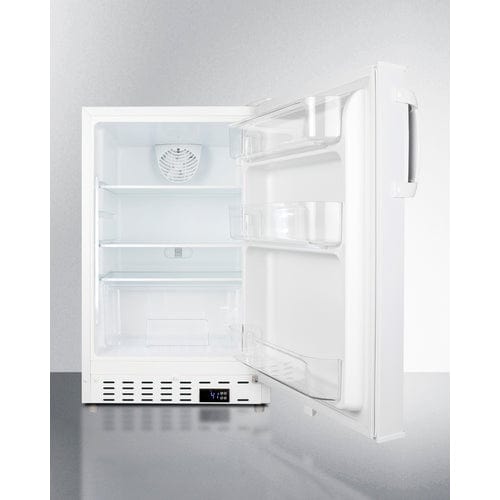

Inside, the ALR46W features an all-white interior for easy cleaning and viewing of contents. An LED light located toward the front of the unit attractively illuminates the interior when the door opens. Automatic defrost operation ensures minimal user maintenance, with an internal fan to help ensure even cooling throughout the 3.53 cu.ft. interior. Three adjustable glass shelves offer optimal storage options for large and small items, while a pull-out crisper drawer provides storage for fruits and vegetables. Three removable door racks accommodate additional storage as needed. The user-set high and low-temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar over one minute for added peace-of-mind. These alarms can be disabled depending on your needs.

Sized at just 20" wide, the ALR46W is the perfect addition for space-challenged environments seeking dependable freezer options in a durable design. For a complete set, pair this unit with the matching ALFZ36 all-freezer. Additional choices are available in stainless steel and panel-ready exterior finishes.

Purchase the Summit 20" White Finish Built-In All-Refrigerator ALR46W today and and enjoy the convenience of efficient food storage!

 Features

Features:

ADA compliant design

• 32" height allows easy installation under lower ADA compliant counters

Built-in capable

• Front-breathing design lets you make the best use of space by installing your appliance under the counter

Adjustable thermostat

• Digital thermostat offers easy temperature management with a readout in Fahrenheit or Celsius

Door shelves

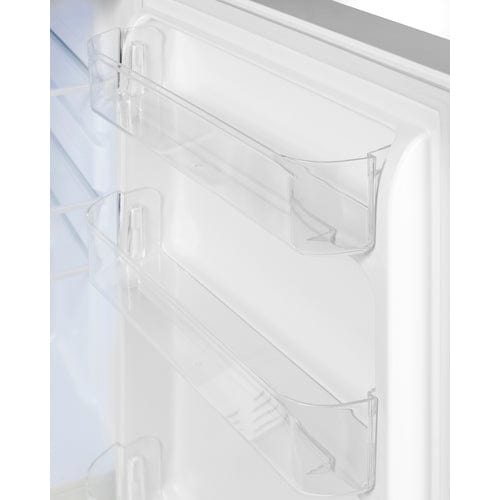

• Three removable door racks for additional storage of larger items

Adjustable glass shelves

• Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Fruit and vegetable crisper

• Get the longest life and best taste out of produce by storing greens in a convenient slide drawer

Reversible door

• User-reversible door swing for added flexibility to best accommodate your setting

3" thick door

• Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this refrigerator against a wall, please see our drawings to ensure adequate space

Temperature alarm

• User-set high/low temperature alarms provide added security if temperature goes beyond setpoint

Open door alarm

• Audible alarm will sound if the door is left ajar for over a minute

Sealed back

• Space-saving design that offers easier cleanability

Right-angle plug

• Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Automatic defrost

• Reduced user maintenance with an auto defrost system

Interior light

• Front-located LED light ensures entire interior is lit when door opens

Matching all-freezer

• This unit can be paired with the ALFZ36 all-freezer for a complete set

Fully finished white cabinet

• Allows the unit to be used freestanding

100% CFC free

• Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

• Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

 Manuals

Manuals:

• User Manual for Summit 20" White Finish Built-In All-Refrigerator ALR46W
• Product Brochure for Summit 20" White Finish Built-In All-Refrigerator ALR46W

 Need assistance? Talk to an Expert at +1-888-407-7770 or email: support@winecoolersempire.com to get the best-suited Refrigerator for your needs.

Specifications

Specifications

• Height of Cabinet: 31.75" (81 cm)
• Height to Hinge Cap: 32.0" (81 cm)
• Width: 19.75" (50 cm)
• Width with Door Open: 20.25" (51 cm)
• Depth: 22.5" (57 cm)
• Depth with Handle: 24.38" (62 cm)
• Depth with door at 90°: 40.25" (102 cm)
• Capacity: 3.53 cu.ft. (100 L)
• Defrost Type: Automatic
• Door: White
• Cabinet: White
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Energy Usage/Year: 251.0kWh/year
• Amps: 1.1
• Voltage/Frequency: 115 V AC/60 Hz
• Weight: 65.0 lbs. (29 kg)
• Shipping Weight: 90.0 lbs. (41 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• UPC: 761101063027

Refrigerator Features

• Door Swing: RHD
• Reversible: Yes
• Crisper Qty: 1
• Crisper Finish: Transparent
• Crisper Cover: Glass
• Refrigerant Type: R600a
• Refrigerant Amount: 0.99oz.
• Full Door Shelves: 3
• High Side PSI: 180.0
• Low Side PSI: 80.0
• Level Legs Qty: 2
• Wheel Qty: 2
• Shelf Type: Glass
• Shelf Qty: 3
• Full Door Shelf Qty: 3
• Adjustable Shelves: Yes
• Thermostat Type: Digital
• Fan Type: Interior
• Temperature Range: 35 to 46°F
• Sound Level: 33.2 dB

Dimensions

• Interior Height: 23.5" (60 cm)
• Interior Width: 16.25" (41 cm)
• Interior Depth: 17.0" (43 cm)
• Compressor Step Height: 6.25" (16 cm)
• Compressor Step Width: 16.25" (41 cm)
• Compressor Step Depth: 6.0" (15 cm)
