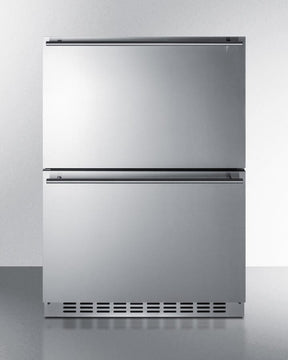

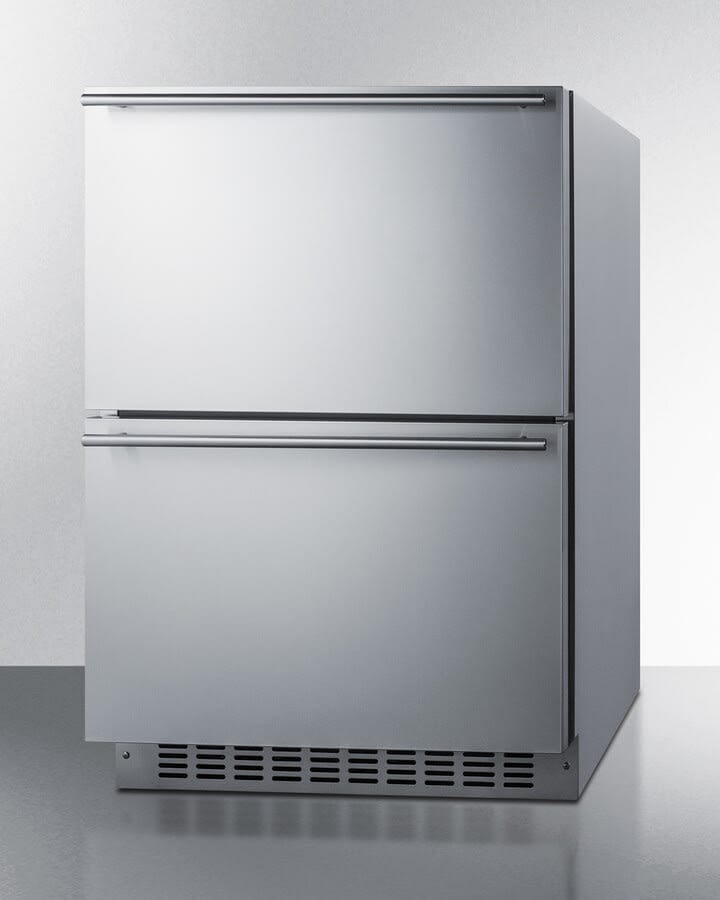

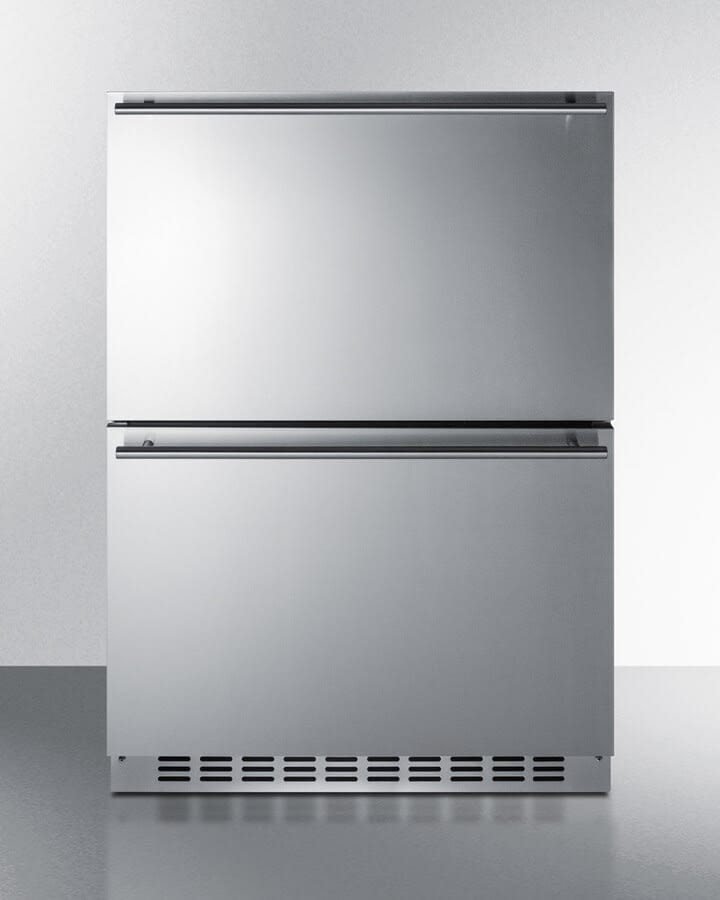

Summit 24" 2 Drawer All-Freezer ADFD243CSS
Looking for a compact yet efficient freezer solution? The Summit 24" 2 Drawer All-Freezer ADFD243CSS is the answer!
Summit manufactures an extensive selection of drawer refrigeration designed to bring elegant style and modern convenience to any undercounter space, with ADA compliant choices designed for indoor and outdoor installation.
Sized at just under 24" wide and 32" high, model ADFD243CSS is a 2-drawer freezer perfectly designed for built-in or freestanding installation in ADA compliant settings with lower counter height. The cabinet and drawers are constructed from weatherproof stainless steel for safe use in outdoor kitchens, with a sealed back to protect all components from the elements. A stainless steel kickplate and sleek horizontally mounted handles complete the stylish look. The drawer fronts can also accept user-provided overlay panels to create a custom look that blends into existing cabinetry designs (panel dimensions: 23.43" W x 14.1" H at 3/4" thick).
Inside, the ADFD243CSS has a generous 3.7 cu.ft. capacity to accommodate your storage needs. Frost-free operation ensures minimal user maintenance, with fan-forced cooling to evenly distribute the temperature. A digital thermostat, located atop the upper drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two adjustable, removable dividers allow you to separate the drawer compartments into two or four zones to easily accommodate a variety of sizes. A full-width sliding removable chrome basket offers added storage convenience, while white LED lighting makes it easy to view stored contents. A child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, a temporary memory function to recover all settings in the event of power loss, and sabbath mode to disable certain electrical features during periods of religious observance.
The ADFD243CSS is ETL-S listed to NSF-7 commercial settings and also meets all residential standards for home use. We also offer a matching refrigerator drawer (model ADRD241CSS) and this same unit as a 2-zone refrigerator-freezer drawer (model ADRF244CSS). Browse the full Summit line to explore our extensive series of 15", 18", and 24" wide refrigerator drawers.
Ready to elevate your kitchen efficiency? Purchase the Summit 24" 2 Drawer All-Freezer ADFD243CSS today and revolutionize your food storage NOW!
Features
Features:
2-Drawer All-Freezer
- 24" wide 3.7 cu.ft. freezer with two gliding drawers
ADA compliant design
- Sized just under 32" high to allow installation under lower ADA compliant counters
Built-in capable
- Front-breathing design allows you to make the best use of space by installing your appliance under the counter and flush with other cabinets in 24" wide openings
Indoor/Outdoor compatible
- Constructed and approved for outdoor installation (as well as use indoors) with a fully sealed cooling system and weatherproof exterior
Stainless steel drawers
- Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for weatherproof durability and elegant style

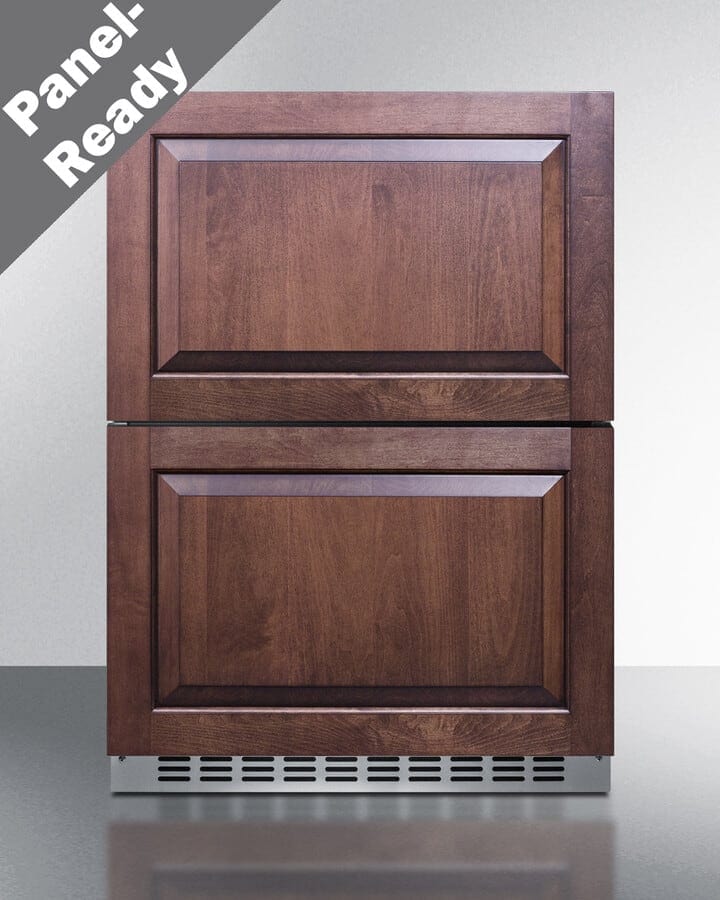

Panel-ready drawer fronts
- Drawers accept overlay panels (size: 23.43" x 14.1" at 3/4" thick) to let you seamlessly blend the refrigerator into cabinetry design
Professional handles
- Sleek stainless steel handles add an elegant touch to any setting
Frost-free operation
- No-frost operation for minimum user maintenance

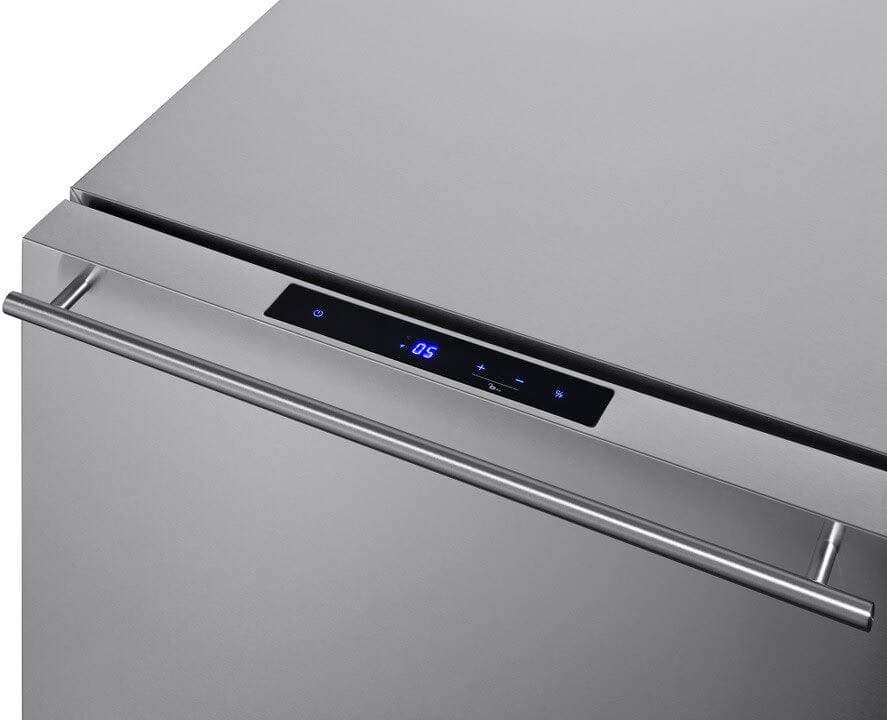

Digital thermostat
- Electronic controls located on the top drawer ensure intuitive temperature management, with an external readout that can switch from Celsius to Fahrenheit at the touch of a button
LED lighting
-
Elegant LED lighting in a gentle white hue illuminates the top drawer for an easy view of the interior
Internal fan
- Fan-forced cooling ensures even temperature distribution from top to bottom

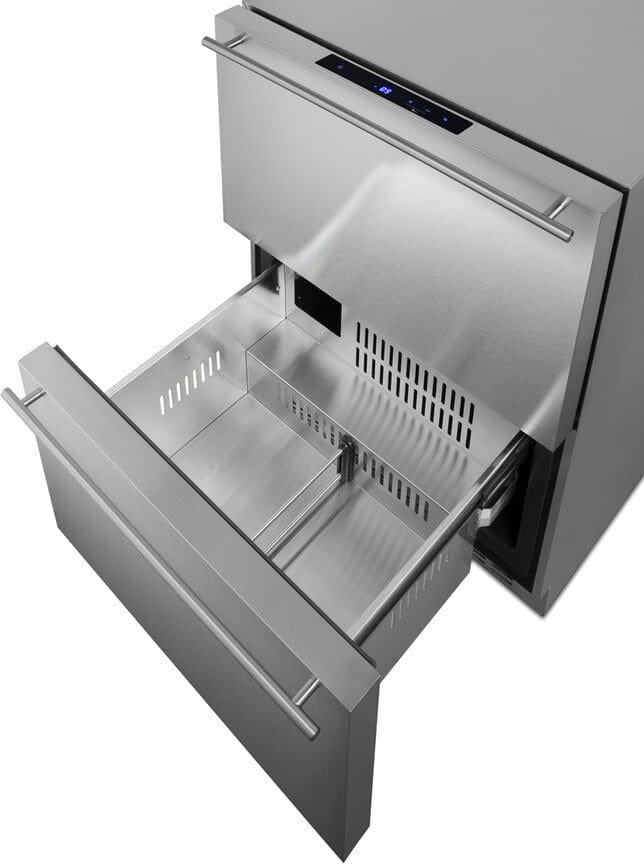

Drawer dividers
- Two adjustable dividers make it easier to organize the drawer interiors

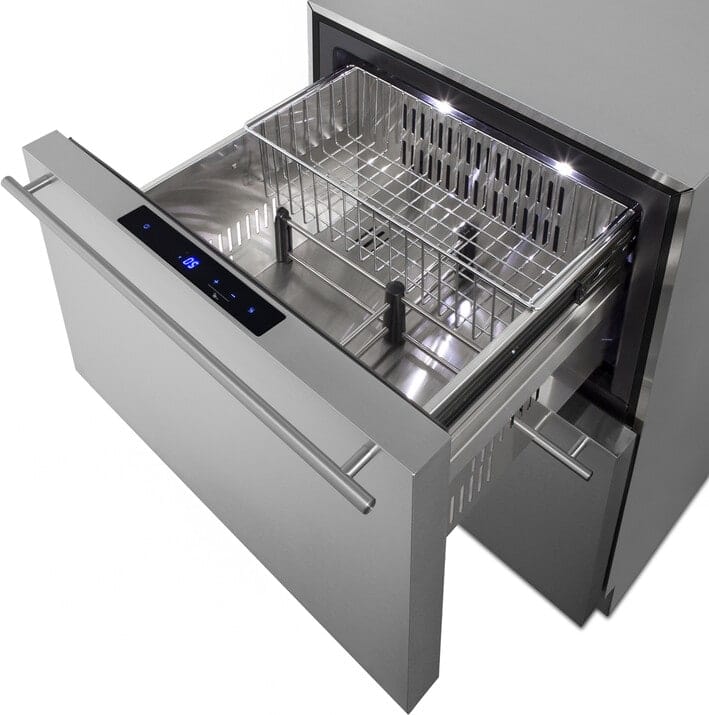

Sliding basket
- Removable chrome basket included for added storage convenience
Temperature alarm
- High temperature alarm sounds if the unit's interior goes out of the recommended range
Open drawer alarm
- Audible alarm will sound if either drawer is left open longer than one minute
Sabbath Mode
- Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance
SuperFreezer function
- Allows you to lower the temperature and continuously run the compressor for short periods of time, ideal for recently loaded groceries
Child lock
- Disables digital controls after two minutes of activity for added safety
Temperature Memory Function
- Unit will restore the most recent temperature settings after losing power
Right angle plug
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Sealed back
- Space-saving design with no exposed coils for easier cleanability and added protection from the elements
Stainless steel wrapped cabinet
- 304 grade stainless steel construction around the exterior for true luxury in the home
Stainless steel kickplate
- Completes the look right down to the toe kick
Anti-tip bracket
- Included and recommended for user-installation to reduce the risk of tipping
Commercially approved
- ETL-S listed to NSF-7 standards to allow use in commercial establishments
Matching refrigerator
- Pair with the ADRD241CSS refrigerator to create a complete 2-drawer undercounter set
100% CFC free
- Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Manuals
Manuals:
Need assistance? Talk to an Expert at +1-888-407-7770 or email: support@winecoolersempire.com to get the best-suited Freezer for your needs.
Specifications
Specifications
- Height of Cabinet: 31.88" (81 cm)
-
Width: 23.38" (59 cm)
-
Depth: 22.5" (57 cm)
-
Depth with Handle: 23.88" (61 cm)
-
Depth with door at 90°: 34.25" (87 cm)
-
Capacity: 3.7 cu.ft. (105 L)
-
Defrost Type: Frost-Free
-
Door: Stainless Steel/Panel-Ready
-
Cabinet: Stainless Steel
-
US Electrical Safety: ETL
-
Canadian Electrical Safety: ETL-C
-
Sanitation: ETL-S
-
Energy Usage/Year: 395.0kWh/year
-
Amps: 1.5
-
Voltage/Frequency: 115 V AC/60 Hz
-
Weight: 136.0 lbs. (62 kg)
-
Shipping Weight: 170.0 lbs. (77 kg)
-
Parts & Labor Warranty: 1 Year
-
Compressor Warranty: 5 Years
-
UPC: 761101088235
FREEZER
-
Door Swing: Drawer
-
Thermostat Type: Digital
-
Interior Light: Yes
-
Fan Type: Interior and Exterior
-
Refrigerant Type: R600a
-
Refrigerant Amount: 1.31 oz.
-
High Side PSI: 270.0
-
Low Side PSI: 105.0
-
Level Legs: 4
-
Interior Drawers: Yes
-
Drawers Qty: 2
-
Interior Height - Drawer 1: 8.0" (20 cm)
-
Interior Width - Drawer: 1: 17.0" (43 cm)
-
Interior Depth - Drawer: 1: 14.5" (37 cm)
-
Interior Height - Drawer 2: 8.0" (20 cm)
-
Interior Width - Drawer 2: 17.0" (43 cm)
-
Interior Depth - Drawer 2: 14.5" (37 cm)
-
Compressor Step Height: 4.0" (10 cm)
-
Compressor Step Width: 17.0" (43 cm)
-
Compressor Step Depth: 3.5" (9 cm)
-
Temperature Range: -11°F to 11°F
-
Sabbath Mode: Yes
-
Sound Level: 33.8 dB
