Summit 24" 2-Drawer All-Refrigerator ASDR2414

Features:

2-Drawer All-Refrigerator

• 15" wide 1.7 cu.ft. all-refrigerator with two gliding drawers

Less than 18" deep

• Unique 17.88" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space

ADA compliant design

• Sized just under 32" high to allow installation under lower ADA compliant counters

Adjustable height

• Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets

Built-in capable

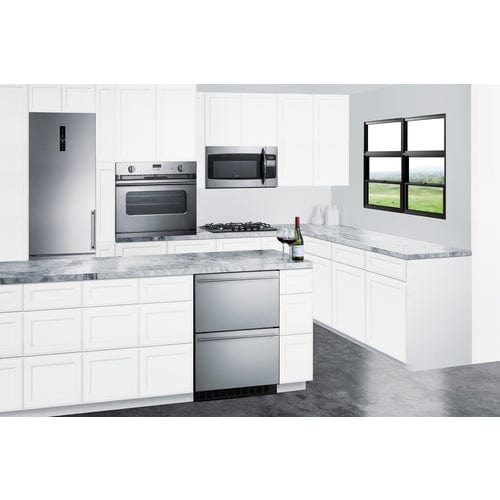

• Front-breathing design allows you to make the best use of space by installing your appliance under the counter and flush with other cabinets in 15" wide openings

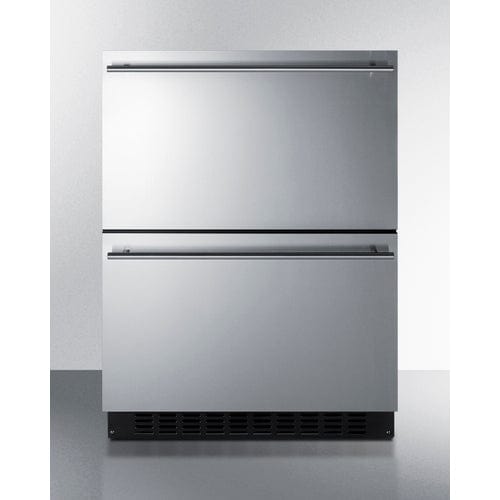

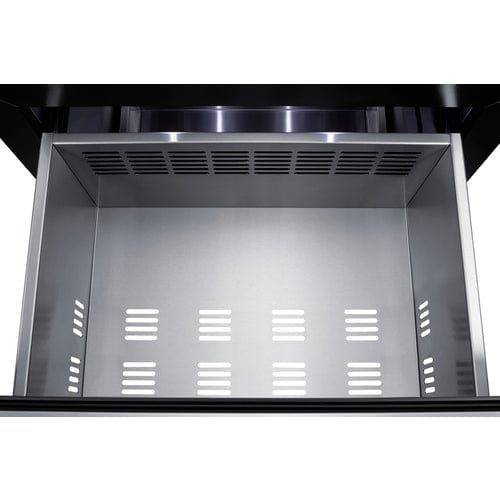

Stainless steel drawers

• Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for lasting durability with a finished front for an elegant look

Panel-ready drawer fronts

• Drawers can be customized with overlay panels sized (at 14.75" W x 14.1" H at 3/4" thick) to match or accent existing cabinetry

Professional handles

• Stainless steel handles add style to any setting

Frost-free

• No-frost operation for minimal user maintenance

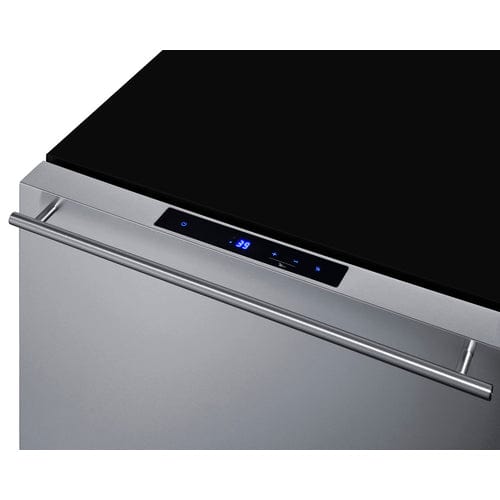

Digital thermostat

• Electronic controls located on the top drawer ensure intuitive temperature management, with an external readout that can switch from Celsius to Fahrenheit at the touch of a button

Interior lighting

• Elegant LED lighting in a gentle white hue illuminates the top drawer for an easy view of the interior

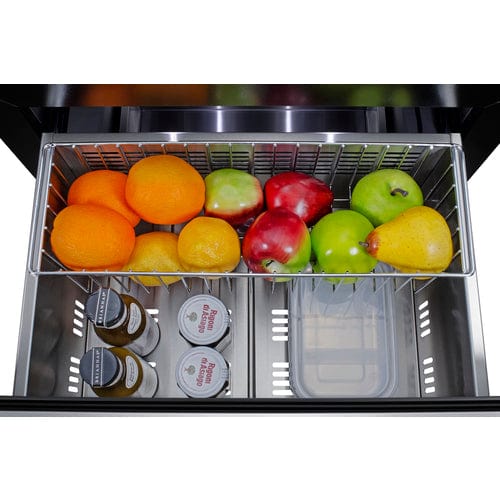

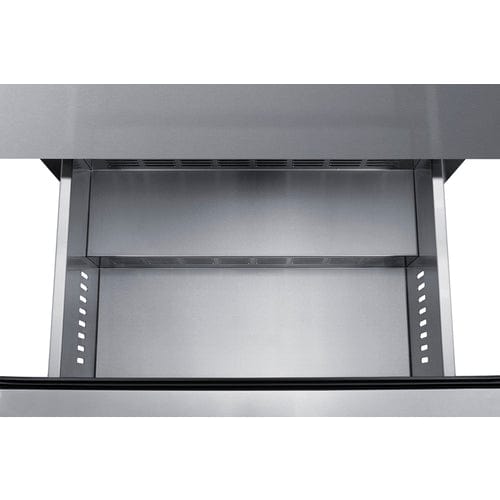

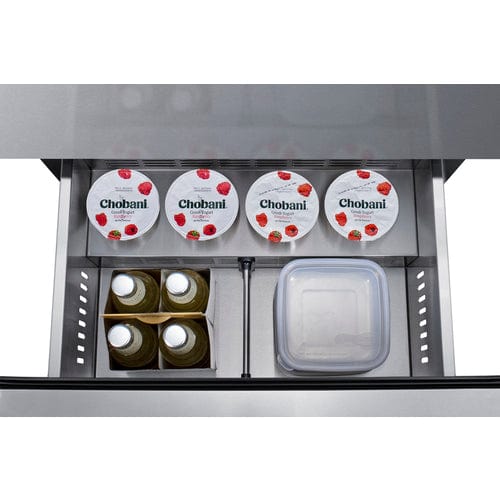

Drawer dividers

• Two adjustable dividers provide flexibility when organizing the interiors

Temperature alarm

• Alarm alerts you if the unit’s temperature goes beyond recommended high and low temperature ranges

Open drawer alarm

• Audible alarm will sound if either drawer is left open longer than one minute

Sabbath Mode

• Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance

Child lock

• Disables digital controls after two minutes of activity for added safety

Temperature memory function

• Unit will restore the most recent temperature settings after losing power

Right-angle plug

• Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Sealed back

• Space-saving design with no exposed coils for easier cleanability

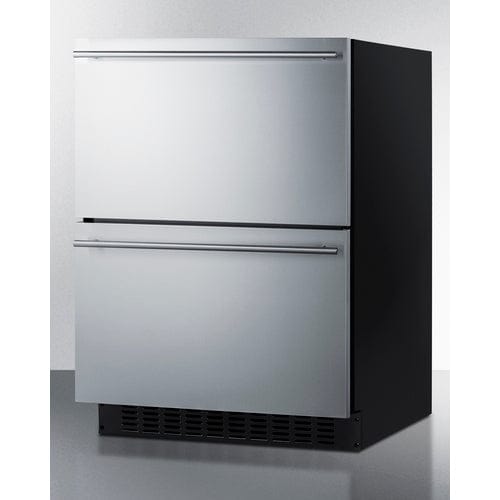

Fully finished black cabinet

• Allows the freezer to be used as a freestanding

Anti-tip bracket

• Included and recommended for user-installation to reduce the risk of tipping

Commercially approved

• ETL-S listed to NSF-7 standards to allow use in commercial establishments

100% CFC free

• Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

• Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Manuals:

• User Manual for Summit 24" 2-Drawer All-Refrigerator ASDR2414
• Product Brochure for Summit 24" 2-Drawer All-Refrigerator ASDR2414
• Assembly Drawing for Summit 24" 2-Drawer All-Refrigerator ASDR2414

 Need assistance? Talk to an Expert at +1-888-407-7770 or email: support@winecoolersempire.com to get the best-suited Refrigerator for your needs.

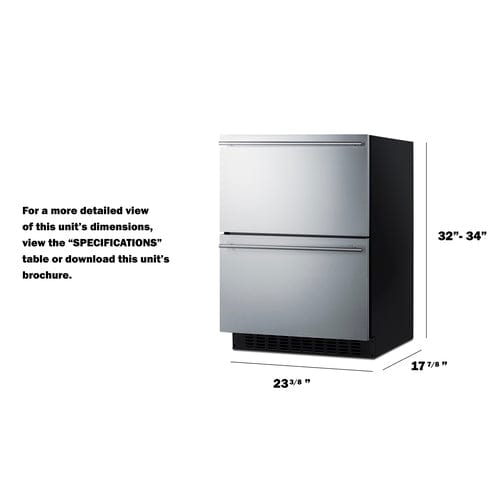

Specifications

•  Height of Cabinet: 32.0" (81 cm)
• Width: 23.38" (59 cm)
• Depth: 17.88" (45 cm)
• Depth with Handle: 19.0" (48 cm)
• Depth with door at 90°: 29.63" (75 cm)
• Capacity: 3.1 cu.ft. (88 L)
• Defrost Type: Frost-Free
• Door: Stainless Steel/Panel-Ready
• Cabinet: Black
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Sanitation: ETL-S
• Energy Usage/Year: 235.0kWh/year
• Amps: 1.0
• Voltage/Frequency: 115 V AC/60 Hz
• Weight: 106.0 lbs. (48 kg)
• Shipping Weight: 150.0 lbs. (68 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• UPC: 761101079493

Refrigerator Features

• Sabbath Mode: Yes
• Door Swing: Drawer
• Height Adjustable: Yes
• Thermostat Type: Digital
• Fan Type: Interior and Exterior
• Refrigerant Type: R600a
• Refrigerant Amount: 1.38oz.
• High Side PSI: 270.0
• Low Side PSI: 105.0
• Level Legs: 4
• Interior Light: Yes
• Temperature Range: 36 to 43ºF
• Sound Level: 33 dB

Drawer Dimensions

• Interior Height 1: 8.0" (20 cm)
• Interior Width 1: 17.63" (45 cm)
• Interior Depth 1: 11.25" (29 cm)
• Interior Height 2: 8.0" (20 cm)
• Interior Width 2: 17.63" (45 cm)
• Interior Depth 2: 11.25" (29 cm)

 Dimensions

• Compressor Step Height: 3.75" (10 cm)
• Compressor Step Width: 17.63" (45 cm)
• Compressor Step Depth: 4.75" (12 cm)
