Summit 24" Blue Door Built-In All-Freezer ALFZ53B

Features:

ADA compliant design

• 32" height allows easy installation under lower ADA compliant counters

Built-in capable

• Front-breathing design allows the unit to be built-in under counters

Frost-free operation

• No-frost convenience eliminates the need to manually defrost the unit

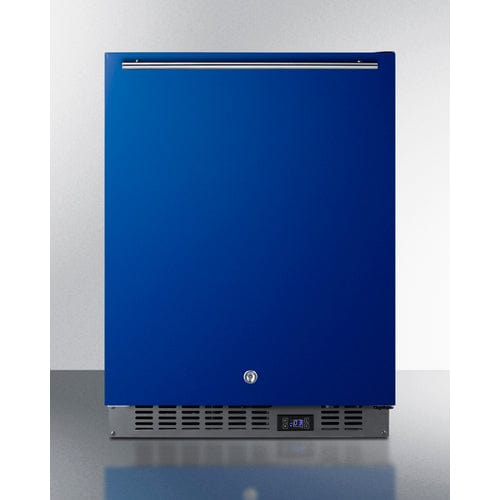

Cobalt blue door

• Deep blue finish with a slight gloss to elevate your undercounter space

Digital thermostat

• Electronic controls offer easy and intuitive temperature management

Recessed LED light

• Elegant lighting with an on/off switch located on the control panel

Reversible door

• User-reversible door swing for added flexibility

Factory installed lock

• Keyed lock for secure interior, with two keys included

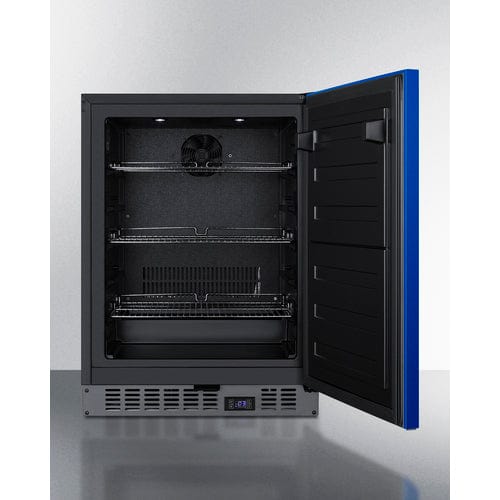

Adjustable shelves

• Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up

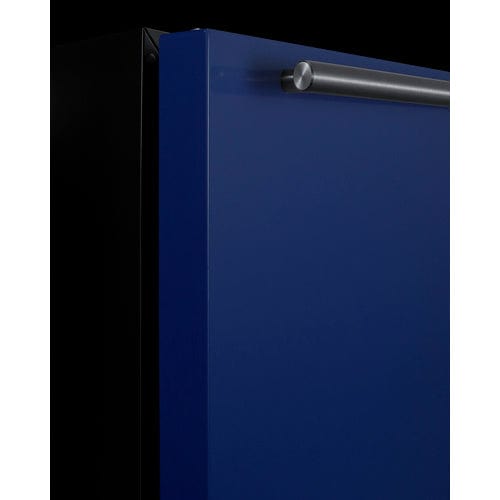

Professional handle

• Brushed stainless steel handle with a thin 14mm diameter is mounted horizontally across the door for a sleek look

Open door alarm

• Audible alarm will sound if the door is left open longer than one minute

Sabbath mode setting

• Optional setting lets you disable the lighting and alarm for up to 48 hours

High temperature alarm

• High temperature alarm sounds if the unit's interior goes out of the recommended range

Temperature Memory Function

• Unit will retain its last settings when power is restored in the event of power loss

Right angle plug

• The design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Stainless steel kickplate

• Added touch of style to complement the handle and complete the look

Sealed back

• Space-saving design with no exposed coils for easier cleanability

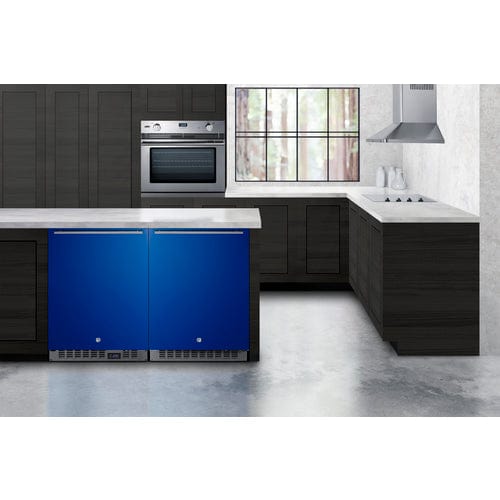

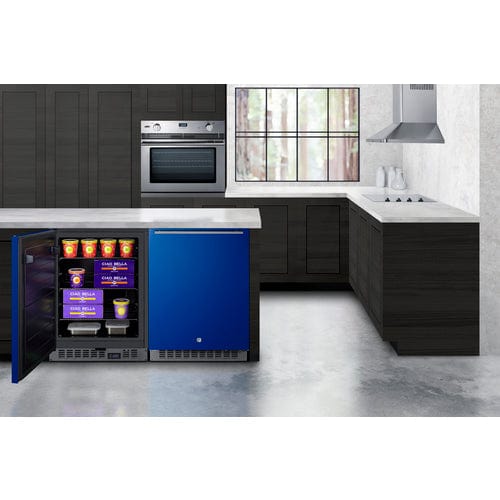

Matching refrigerator

• Pair with the AL54B for a matching side-by-side set under lower ADA compliant counters

Fully finished cabinet

• Allows the unit to be used freestanding

100% CFC free

• Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

• Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Manuals:

• User Manual for Summit 24" Blue Door Built-In All-Freezer ALFZ53B
• Product Brochure for Summit 24" Blue Door Built-In All-Freezer ALFZ53B
• Assembly Drawing for Summit 24" Blue Door Built-In All-Freezer ALFZ53B

 Need assistance? Talk to an Expert at +1-888-407-7770 or email: support@winecoolersempire.com to get the best-suited Freezer for your needs.

Specifications

• Height of Cabinet: 32.0" (81 cm)
• Width: 23.63" (60 cm)
• Depth: 222.63" (57 cm)
• Depth with Handle: 24.13" (61 cm)
• Depth with door at 90°: 45.0" (114 cm)
• Capacity: 3.7 cu.ft. (105 L)
• Defrost Type: Frost-Free
• Door: Blue
• Cabinet: Black
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Energy Usage/Year: 345.0kWh/year
• Amps: 1.5
• Voltage/Frequency: 115 V AC/60 Hz
• Weight: 92.0 lbs. (42 kg)
• Shipping Weight: 106.0 lbs. (48 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• UPC: 761101087665

 FREEZER

• Door Swing: RHD
• Reversible: Yes
• Interior Height: 23.5" (60 cm)
• Interior Width: 18.75" (48 cm)
• Interior Depth: 15.5" (39 cm)
• Refrigerant Type: R600a
• Refrigerant Amount: 1.31 oz.
• High Side PSI: 270.0
• Low Side PSI: 105.0
• Level Legs: 4
• Shelf Type: Chrome
• Shelf Qty: 3
• Adjustable Shelves: Yes
• Thermostat Type: Digital
• Interior Light: Yes
• Fan Type: Interior and Exterior
• Sabbath Mode: Yes
• Sound Level: 33.7 dB

• Temperature Range: -11°F to 11°F
• Compressor Step Height: 3.75" (10 cm)
• Compressor Step Width: 18.75" (48 cm)
• Compressor Step Depth: 4.5" (11 cm)
