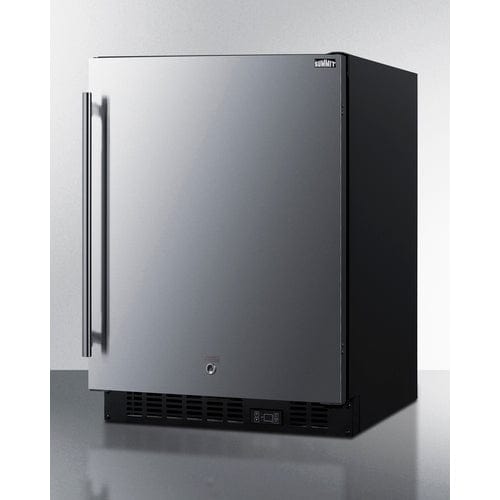

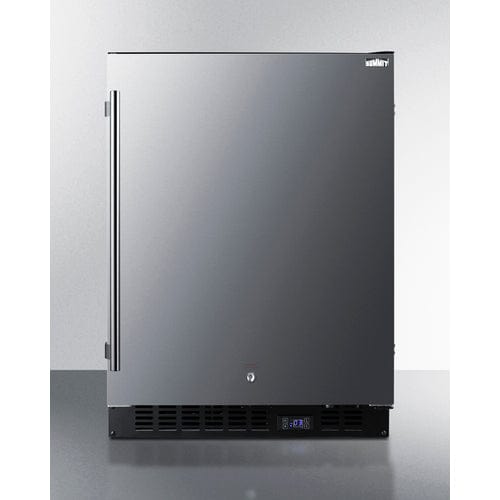

Summit 24" Built-In ADA Compliant All-Freezer ALFZ53

Summit 24" Built-In ADA Compliant All-Freezer ALFZ53 Overview

Looking for a spacious and sleek built-in all-freezer? The Summit 24" Built-In ADA Compliant All-Freezer ALFZ53 is the perfect solution!

Summit manufactures the industry's largest selection of built-in appliances sized for use under lower ADA compliant counters, including frost-free freezers specially designed to match our popular ADA compliant refrigerators.

Model ALFZ53 is a 24" wide all-freezer that can be paired with our AL54 all-refrigerator. Sized at just 32" high, it can easily be installed under an ADA compliant counter. This freezer features a jet black cabinet and user-reversible stainless steel door with a pro style handle. A factory-installed lock offers added security with two keys included. This unit comes with a front-breathing system that enables recessed built-in installation, while the fully finished exterior also allows freestanding use as needed. A right angle plug and sealed back design offers added space savings.

Inside, the ALFZ53 utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look inside the black interior. Three adjustable chrome shelves can be set at five different positions to best accommodate your storage needs. Additional user-friendly features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. This unit features intuitive digital controls located in the external kickplate.

The ALFZ53 freezer is approved for residential use and also ETL-S listed to NSF-7 standards for commercial applications. With its deluxe style and user-friendly features, this unit is the perfect choice for home or commercial kitchens. It's a perfect match for our AL54 all-refrigerator. Additional door finishes are available, including panel-ready, black stainless steel, and our new vibrant colors. Browse the full selection to explore your options.

Purchase the Summit 24" Built-In ADA Compliant All-Freezer ALFZ53 today and enjoy the convenience of ample and efficient freezing space NOW!

 Features

Features:

ADA compliant design

• 32" height allows easy installation under lower ADA compliant counters

Built-in capable

• Front-breathing design allows the unit to be built-in under counters

Frost-free operation

• No-frost convenience eliminates the need to manually defrost the unit

Stainless steel door

• Durable construction with a professional look

Digital thermostat

• Electronic controls offer easy and intuitive temperature management

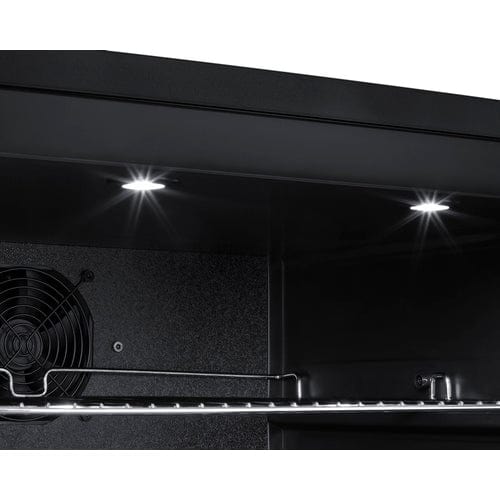

Recessed LED light

• Elegant lighting with an on/off switch located on the control panel

Reversible door

• User-reversible door swing for added flexibility

Factory installed lock

• Keyed lock for secure interior, with two keys included

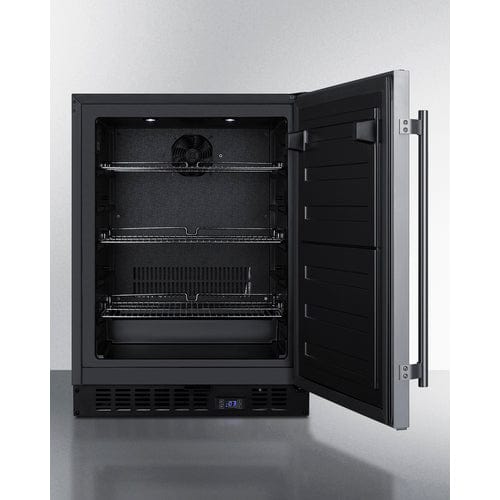

Adjustable shelves

• Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up

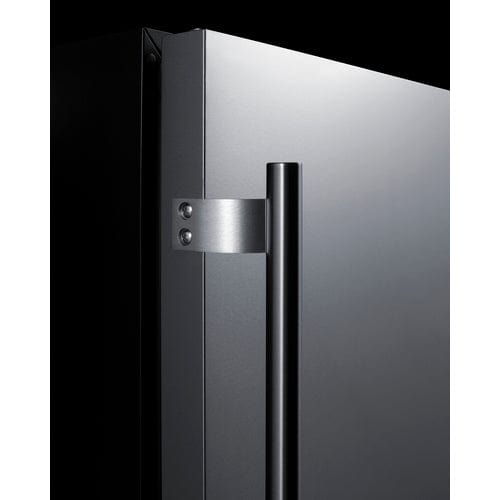

Professional handle

• Stainless steel handle adds style to any setting

Open door alarm

• Audible alarm will sound if the door is left open longer than one minute

Sabbath mode setting

• Optional setting lets you disable the lighting and alarm for up to 48 hours

High temperature alarm

• High temperature alarm sounds if the unit's interior goes out of the recommended range

Temperature Memory Function

• Unit will retain its last settings when power is restored in the event of power loss

Right angle plug

• The design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Sealed back

• Space-saving design with no exposed coils for easier cleanability

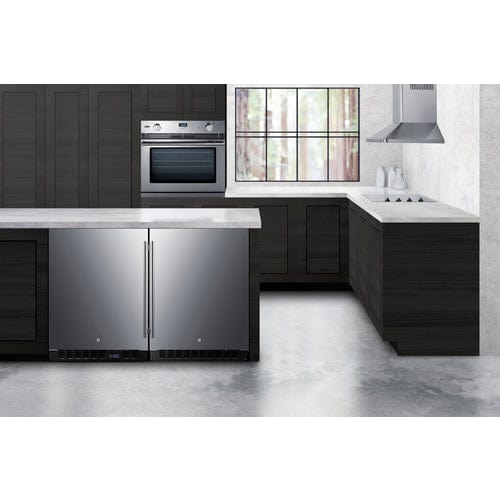

Matching refrigerator

• Pair with the AL54 for a matching side-by-side set under lower ADA compliant counters

Commercially approved

• ETL-S listed to NSF-7 commercial standards

Fully finished cabinet

• Allows the unit to be used freestanding

100% CFC free

• Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

• Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

 Manuals

Manuals:

• User Manual for Summit 24" Built-In ADA Compliant All-Freezer ALFZ53
• Product Brochure for Summit 24" Built-In ADA Compliant All-Freezer ALFZ53
• Assembly Drawing for Summit 24" Built-In ADA Compliant All-Freezer ALFZ53

 Need assistance? Talk to an Expert at +1-888-407-7770 or email: support@winecoolersempire.com to get the best-suited Freezer for your needs.

Specifications

Specifications

• Height of Cabinet: 32.0" (81 cm)
• Width: 23.63" (60 cm)
• Depth: 22.63" (57 cm)
• Depth with Handle: 24.63" (63 cm)
• Depth with door at 90°: 45.0" (114 cm)
• Capacity: 3.67 cu.ft. (104 L)
• Defrost Type: Frost-Free
• Door: Stainless Steel
• Cabinet: Black
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Sanitation: ETL-S
• Energy Usage/Year: 345.0kWh/year
• Amps: 1.5
• Voltage/Frequency: 115 V AC/60 Hz
• Weight: 82.0 lbs. (37 kg)
• Shipping Weight: 96.0 lbs. (44 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• UPC: 761101075464

 FREEZER

• Door Swing: RHD
• Reversible: Yes
• Interior Height: 23.5" (60 cm)
• Interior Width: 18.75" (48 cm)
• Interior Depth: 15.5" (39 cm)
• Refrigerant Type: R600a
• Refrigerant Amount: 1.31 oz.
• High Side PSI: 270.0
• Low Side PSI: 105.0
• Level Legs: 4
• Shelf Type: Chrome
• Shelf Qty: 3
• Adjustable Shelves: Yes
• Thermostat Type: Digital
• Interior Light: Yes
• Fan Type: Interior and Exterior
• Sabbath Mode: Yes
• Sound Level: 33.7 dB

• Temperature Range: -11°F to 11°F
• Compressor Step Height: 3.75" (10 cm)
• Compressor Step Width: 18.75" (48 cm)
• Compressor Step Depth: 4.5" (11 cm)
