Summit 24" Glass Door Built-In Wine Cooler ASDW2412
Looking for a compact and efficient wine fridge for your kitchen? The Summit 24" Glass Door Built-In Wine Cooler ASDW2412 is the perfect solution!
Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations.
Model ASDW2412 is a 24" wide 33-bottle single zone wine cellar sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. Seamless stainless steel trim blends smoothly into the double pane tempered glass door for an elevated look, with a professional stainless steel handle included. This unit has a sealed rear and right angle cord for a better fit. The door is user-reversible and includes a front lock to protect your collection.
Inside, the ASDW2412 features stainless steel construction for improved durability and sanitation. White LED lighting located in the side walls provides elegant display conditions, with dimmable levels that let you create the perfect presentation. The digital control panel lets you adjust the temperature between 41º and 64ºF to accommodate red, white, or sparkling wine. Our uniquely designed steel shelves in a jet black finish extend smoothly on ball-bearing glides, with stainless steel front trim to complete the classic look. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.
The ASDW2412 is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Create a matching set by pairing this with our ASDW2411 beverage center. Additional 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, and more.
NOTE: The interior can store up to 33 Bordeaux-style bottles. Due to the shallow depth of this unit, we recommend loading the bottles with the corks facing the rear for a better fit. Wider Burgundy bottles will also fit on most shelves, but as these may vary more in size, loading capacity will ultimately depend on your specific bottle design. You may also remove shelves to accommodate thicker bottles, such as champagne and sparkling wine. The lower shelf is designed to hold Bordeaux-style bottles horizontally. Please use care when loading and unloading this section.
Impress your guests and elevate your entertaining game with the Summit 24" Glass Door Built-In Wine Cooler ASDW2412 NOW!
Features
Features:
24" wide wine cellar
- Single zone wine cooler for residential or commercial cold storage
Less than 18" deep
- Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
ADA compliant
- 32" height allows easy installation under lower ADA compliant counters
Adjustable height
- Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
Built-in capable
- Front-breathing design lets you make the best use of space by installing your appliance under the counter
Stainless steel interior
- Walls and floor are constructed from stainless steel for added strength and easy cleanup
Double pane tempered glass door
- Elegant design offers a clear but protected view of your interior
Seamless stainless steel door trim
- Glass is framed by with a flush one-piece stainless steel trim for an elevated look
Factory installed lock
- Keyed lock for a secure interior (2 keys included)
Professional handle
- Stainless steel handle completes the look
Digital thermostat
- Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button
Dimmable LED lighting
- Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness
Commercial wine shelving
- Removable steel shelves in a black finish with stainless steel trim for an elegant but modern look
Smooth gliding extension

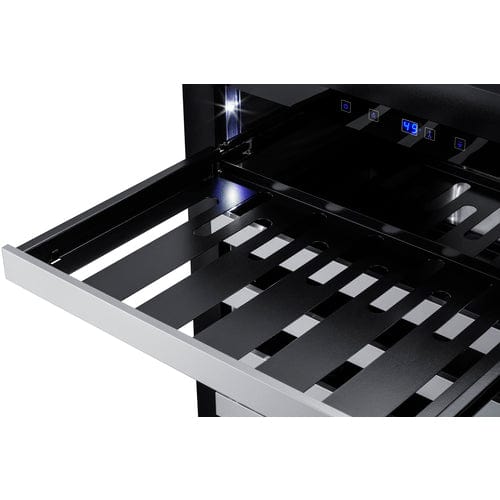

- Shelving is set on ball-bearing glides for a smoother extension, making it easy to load
Large capacity

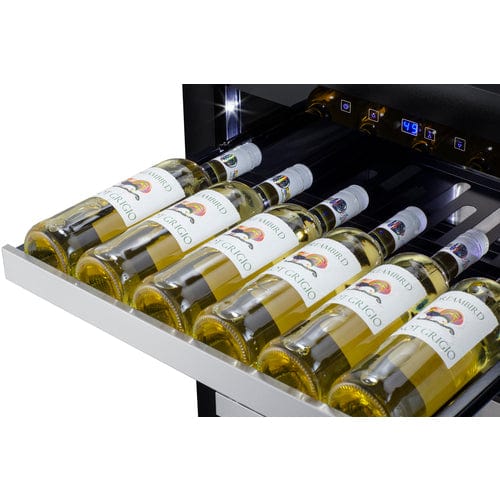

- 33-bottle capacity with five gliding shelves that can each hold up to 6 bottles, and a floor shelf to hold up to 3 bottles in a horizontal configuration (NOTE: capacity may vary depending on specific bottle style)
Frost-free operation
- No-frost operation for minimum user maintenance
Internal fan
- Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom
Open door alarm
- Alarm sounds if the door is left open for more than 60 seconds
High temperature alarm
- High temperature alarm sounds if the unit's interior goes out of the recommended range
Sabbath mode setting
- Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance
Temperature Memory Function
- Unit will retain its last settings when power is restored in the event of power loss
Right angle plug
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Sealed back
- Space-saving design with no exposed coils that offers easier cleanability
Integrated hinge
- Flat hinge ensures no added height is needed when installing under a counter
Reversible door
- User-reversible door swing on the refrigerator for added flexibility
Fully finished black cabinet
- Allows the unit to be used freestanding
Commercially approved
- ETL-S listed to NSF-7 Standards for use in commercial establishments
100% CFC free
- Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Manuals
Manuals:
Need assistance? Talk to an Expert at +1-888-407-7770 or email: support@winecoolersempire.com to get the best-suited Wine Cooler for your needs.
Specifications
Specifications
-

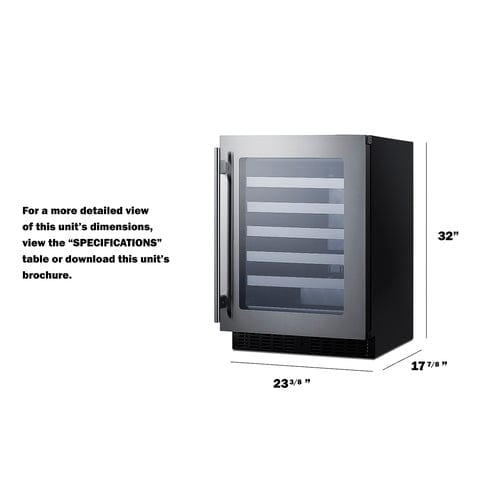

Height of Cabinet: 32.0" (81 cm)
-
Width: 23.38" (59 cm)
-
Depth: 17.75" (45 cm)
-
Depth with Handle: 19.63" (50 cm)
-
Depth with door at 90°: 39.88" (101 cm)
-
Capacity: 3.25 cu.ft. (92 L)
-
Defrost Type: Frost-Free
-
Door: Glass
-
Cabinet: Black
-
US Electrical Safety: ETL
-
Canadian Electrical Safety: ETL-C
-
Sanitation: ETL-S
-
Amps: 1.0
-
Voltage/Frequency: 115 V AC/60 Hz
-
Weight: 120.0 lbs. (54 kg)
-
Shipping Weight: 140.0 lbs. (64 kg)
-
Parts & Labor Warranty: 1 Year
-
Compressor Warranty: 5 Years
-
UPC: 761101079462
Refrigerator Features
-
Number of Zones: 1
-
Door Swing: RHD
-
Reversible: Yes
-
Height Adjustable: Yes
-
Adjustable Shelves: Yes
-
Shelf Type: Steel
-
Shelf Qty: 6
-
Thermostat Type: Digital
-
Interior Light: Yes
-
Fan Type: Interior and Exterior
-
Refrigerant Type: R600a
-
Refrigerant Amount: 1.38 oz.
-
High Side PSI: 270.0
-
Low Side PSI: 105.0
-
Interior Height 1: 24.25" (62 cm)
-
Interior Width 1: 19.5" (50 cm)
-
Interior Depth 1: 12.25" (31 cm)
-
Compressor Step Height: 3.75" (10 cm)
-
Compressor Step Width: 19.5" (50 cm)
-
Compressor Step Depth: 4.5" (11 cm)
-
Level Legs: 4
-
Temperature Range: 41º to 64ºF
-
Sabbath Mode: Yes
