Summit 24 inch Dual Zone Built-In Wine Cellar CL244WC2PNRLHD

Showcase Wine Collection Elegantly with the Panel-Ready Summit CL244WC2PNRLHD Dual-Zone Wine Cellar

Want a built-in dual-zone wine cellar that saves space, blends seamlessly into your décor, and provides commercial-grade performance?

This 24-inch wide, panel-ready wine cellar is designed for built-in or freestanding installation in kitchens and home bars. With two independent temperature zones (41–50 °F for whites and sparkling, 50–64 °F for reds), it holds up to 48 standard bottles elegantly. The exterior can be customized with a panel and bracket kit, and its inverter compressor ensures whisper-quiet performance as low as 32.4 dB. ETL-S to NSF-7 certification makes it ideal for both residential and commercial use.

Why Choose Summit?

Summit offers sleek, customizable wine storage solutions that combine style, precision cooling, and durable construction—trusted by wine enthusiasts and hospitality professionals alike.

Note: Panel Not Included

Key Features

• Built-In Capable: Front-breathing design allows undercounter installation

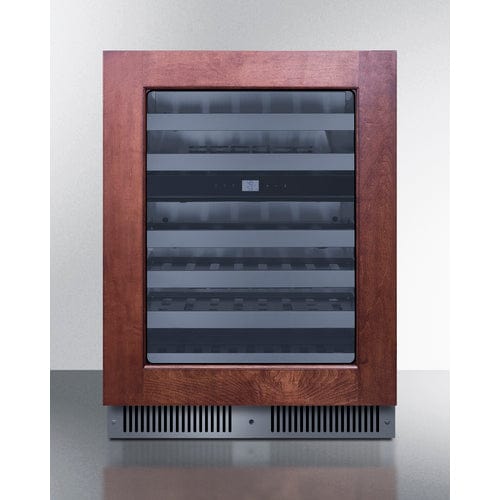

• Custom Style: Panel-ready door for a seamless, integrated look in kitchen or bar
• Commercial Approval: ETL-S listed to NSF-7 Standards for use in commercial establishments
• Panel Installation: Easy installation with included 2-piece bracket kit; recommended panel size 3/4" thickness, 30" H x 23 1/4" W, 3 1/4" inner frame
• Glass Door: Gently tinted for a stylish and protective display
• Door Trim: Seamless 304-grade stainless steel single-piece trim for a deluxe look

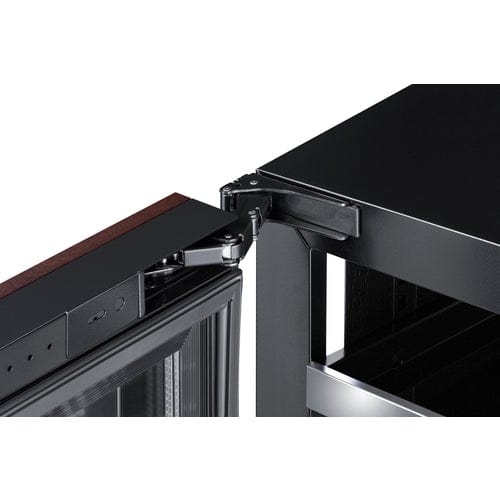

• Hinge Style: Fully articulating European-style hinge for flush fit and smooth opening
• Factory-Installed Lock: Keyed lock in the kickplate for added security
• Matching Sets: Pairs with CL24BV1PNR (24" beverage center) or CL156BV1PNR (15" beverage center)
• Dual Zone Storage: Upper zone 41–50ºF (white/sparkling wine); lower zone 50–64ºF (red wine)
• Bottle Capacity: Holds up to 48 Bordeaux or Burgundy-style bottles (capacity varies with bottle shape)
• Wine Shelving: Removable flat steel shelves with black finish and stainless steel trim
• Full-Extension Shelves: Six ball-bearing glide shelves for easy access and optimal capacity
• Flat Shelf Design: Suitable for cans and other beverage styles
• Vibration-Free Operation: Inverter compressor minimizes vibrations to protect wine quality
• Interior Rear Wall: Stainless steel for durability and easy cleaning
• Tri-Colored LED Lighting: Choose blue, white, or amber lighting for presentation
• Digital Thermostat: Precise temperature control
• Temperature Display: Switchable between Celsius and Fahrenheit
• DynaClima Mode: Maintains consistent temperature and humidity like a natural cellar
• Silent Mode: Reduces vibration by slowing/pausing cooling system
• Automatic Defrost: No-frost design for minimal maintenance
• Kickplate: Stainless steel for a complete luxury look
• Anti-Tip Bracket: Included for safety
• Quiet Operation: 32.4 dB noise level
• Door Swing: Left-hand door swing

Manuals for Summit 24-inch Dual Zone Built-In Wine Cellar

• Product Brochure
• Owner's Manual

Specifications for Summit 24-inch Dual Zone Built-In Wine Cellar CL244WC2PNRLHD

Overview

• Height of Cabinet: 33.75" (86 cm)
• Width: 23.38" (59 cm)
• Depth: 22.88" (58 cm)
• Depth with Panel: 23.63" (60 cm)
• Depth with Door at 90°: 46.63" (118 cm)
• Bottle Capacity: 48 bottles
• Defrost Type: Automatic
• Door: Glass / Panel-Ready Frame
• Cabinet Finish: Black
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Sanitation: ETL-S
• Amps: 3.0
• Voltage/Frequency: 115 V AC / 60 Hz
• Weight: 117.0 lbs. (53 kg)

Wine Cellar

• Number of Zones: 2
• Door Swing: LHD
• Reversible: No
• Adjustable Shelves: Yes
• Shelf Type: Steel
• Shelf Quantity: 6
• Thermostat Type: Digital
• Interior Light: Yes
• Fan Type: Interior and Exterior
• Refrigerant Type: R600a
• Refrigerant Amount: 1.38 oz.
• Interior Height 1: 8.5" (22 cm)
• Interior Width 1: 19.25" (49 cm)
• Interior Depth 1: 15.0" (38 cm)
• Compressor Step Height: 3.75" (10 cm)
• Compressor Step Width: 19.25" (49 cm)
• Compressor Step Depth: 5.0" (13 cm)
• Temperature Range: Upper Zone: 41º to 50ºF; Lower Zone: 50º to 64ºF
• Interior Height 2: 15.5" (39 cm)
• Interior Width 2: 19.25" (49 cm)
• Interior Depth 2: 15.0" (38 cm)
• Sabbath Mode: Yes
• Sound Level: 32.4 dB
