Summit 24-inch Panel Ready Dual Zone Wine Coolers SDHWC98PN

Perfect Wine Storage with the Summit SDHWC98PNR Panel Ready 98-Bottle Dual Zone Wine Cellar

Want a shallow dual zone wine cellar that blends with your cabinets and stores up to 98 bottles?

The Summit SDHWC98PN is a 24-inch wide, panel-ready dual zone wine cellar designed for built-in or freestanding use. With a space-saving 18-inch depth, it fits tight spaces while storing up to 98 bottles across two independently controlled zones. Its panel-ready door lets you create a seamless look, while features like full-extension shelving, tri-color LED lighting, and commercial NSF-7 certification ensure top-tier wine storage and presentation.

Note: Panel Not Included

Why Choose Summit?

Summit delivers space-saving designs, commercial-grade reliability, and customizable aesthetics for professional and home wine collectors alike.

Key Features

• Shallow Depth: 18" depth offers slim-fitting elegance, perfect for narrow home bars, kitchen corners, or other tight spaces
• Built-in Design: Front-breathing cooling system allows seamless integration into cabinetry (recommended opening: 72" H x 24" W x 20" D)
• Dual Zone Storage: Upper zone (41–50ºF) for white/sparkling wines, lower zone (50–64ºF) for reds
• Commercially Approved: ETL-S listed to NSF-7 Standards for use in commercial settings

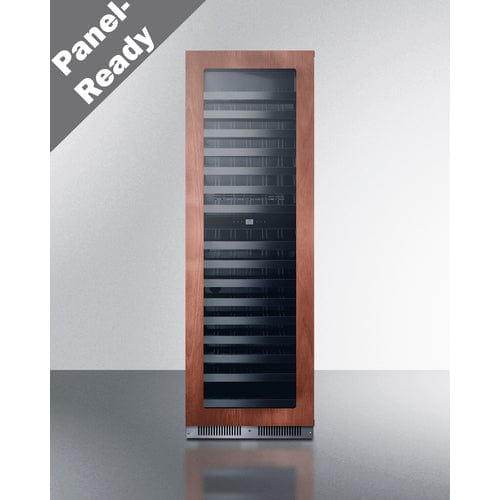

• Panel-Ready Door Trim: Customizable to match cabinetry (recommended panel: 3/4" thick at 67 3/4" H x 23 3/4" W with a 3 1/4" H x 3 1/4" W inner frame)
• Easy Panel Installation: 2-piece bracket kit included for a flush cabinet fit
• Fully Articulating Hinge: European-style hinge ensures smooth operation and seamless fit
• Unbranded Exterior: Blends seamlessly with surrounding appliances
• Tinted Glass Door: Gently tinted for an elegant, protected display
• Professional Handle: Stainless steel look adds premium appeal
• Automatic Defrost: No-frost operation for low maintenance
• Deluxe Wine Shelving: Commercial-grade wire shelving with stainless trim, removable for versatility

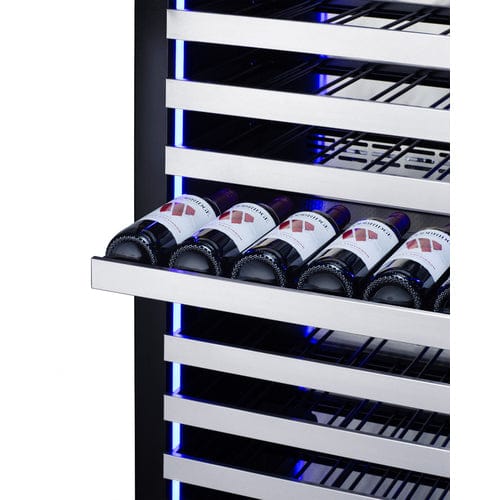

• Full-Extension Shelves: 16 shelves glide out smoothly on ball-bearing tracks for easy access
• Vibration-Free Operation: Inverter compressor minimizes vibration to protect wine integrity

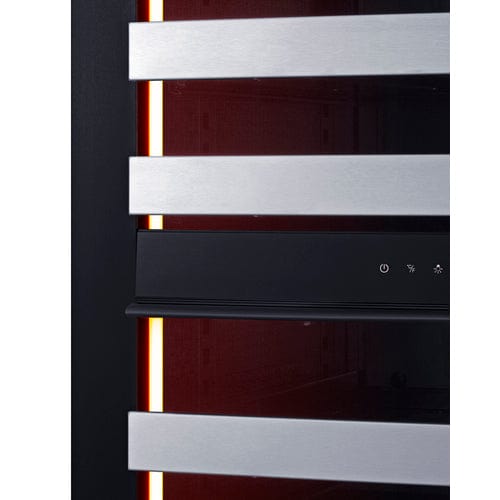

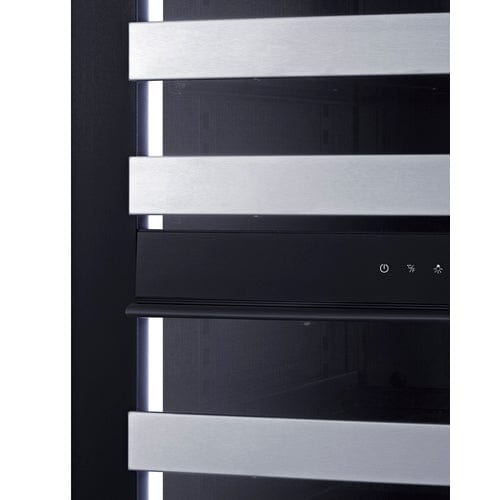

• Tri-Color LED Lighting: Choose from blue, white, or amber LED lighting to match your ambiance
• Digital Thermostat & Display: Precise temperature control with Fahrenheit/Celsius readout
• Sabbath Mode Setting: Disables lighting and alarms up to 96 hours
• Stainless Steel Rear Wall: Durable, easy-to-clean, and helps maintain cooling integrity
• Factory-Installed Lock: Secure keyed lock in the kickplate
• Sealed Back: No exposed coils for easier cleaning and tighter installation
• Stainless Steel Kickplate: Adds refined detail to the base of the unit
• Right Angle Plug: Saves depth, allowing flush placement against wall sockets
• Anti-Tip Bracket: Included for safety—must be installed
• Quiet Operation: Whisper-quiet inverter compressor rated at just 32.2 dB
• Reversible Door: User-reversible swing for layout flexibility

Manuals for Summit 24-inch Panel-Ready Dual-Zone Wine Coolers

• SDHWC98PNR Specifications
• SDHWC98PNRLHD Specifications
• Owner's Manual

Specifications for Summit 24-inch Panel Ready Dual Zone Wine Coolers SDHWC98PN

Overview

• Height of Cabinet: 71.75" (182 cm)
• Width: 23.5" (60 cm)
• Depth (Cabinet Only): 18.0" (46 cm)
• Depth with Panel: 18.75" (48 cm)
• Depth with Door at 90°: 41.25" (105 cm)
• Bottle Capacity: 98 bottles
• Defrost Type: Automatic
• Door Finish: Glass / Panel-Ready Frame
• Cabinet Finish: Black
• Electrical Safety (US): ETL
• Electrical Safety (Canada): ETL-C
• Sanitation Approval: ETL-S (NSF-7 compliant)
• Amperage: 5.0A
• Voltage/Frequency: 115V AC / 60Hz
• Weight: 276 lbs. (125 kg)

Wine Cellar

• Number of Zones: 2
• Door Swing: RHD/LHD
• Reversible Door: Yes
• Adjustable Shelves: Yes
• Shelf Type: Wire
• Number of Shelves: 16
• Thermostat Type: Digital
• Interior Lighting: Yes
• Fan Type: Interior and Exterior
• Refrigerant Type: R600a
• Refrigerant Amount: 1.41 oz.
• Interior Dimensions (Zone 1): 27.5" H x 19.5" W x 12.25" D (70 cm x 50 cm x 31 cm)
• Compressor Step Height: 4.5" (11 cm)
• Compressor Step Width: 19.5" (50 cm)
• Compressor Step Depth: 5.5" (14 cm)
• Temperature Range: Upper zone: 41º to 50ºF; Lower zone: 50º to 64ºF
