Summit 24" Residential Left Hinge Panel Ready Refrigerator-Freezer CT66BK2SSRSIFLHD

Summit 24" Residential Left Hinge Panel Ready Refrigerator-Freezer CT66BK2SSRSIFLHD Overview

Looking for a stylish and spacious refrigerator-freezer? The Summit 24" Residential Left Hinge Panel Ready Refrigerator-Freezer CT66BK2SSRSIFLHD is the perfect solution!

NOTE: PANELS NOT INCLUDED

Summit's undercounter lineup of European-made refrigeration features counter height choices that offer the largest capacity in the industry, including fully featured refrigerators with freezer compartments to meet all of your storage needs.

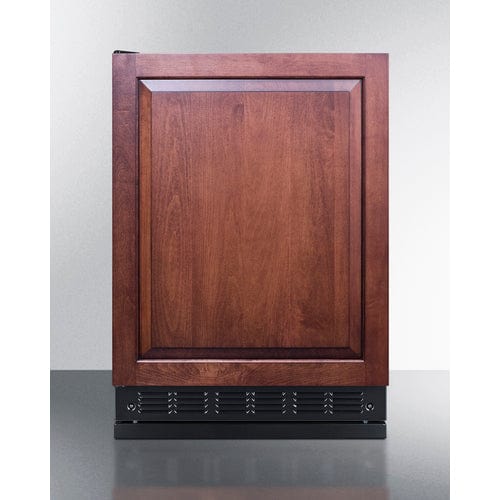

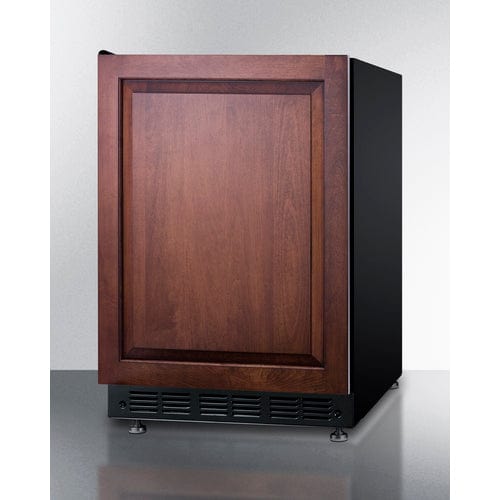

Sized with a 24" footprint, model CT66BK2SSRSIFLHD is an ENERGY STAR certified refrigerator-freezer designed for recessed installation or freestanding use in residential kitchens. The door features an integrated stainless steel exterior frame designed to accept overlay panels, allowing you to create a custom look that can seamlessly blend into your kitchen (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick). Users provide their own handle to complete the look. This unit has a jet black exterior cabinet and runs quietly at less than 33 dB. Adjustable legs allow you to set the height between 33 1/2" and 34 1/2" for the perfect fit. We include a black steel leg shield for optional use if you find there is too much space between the front and floor when the unit is set at its taller height. This unit ships with a left hand door swing.

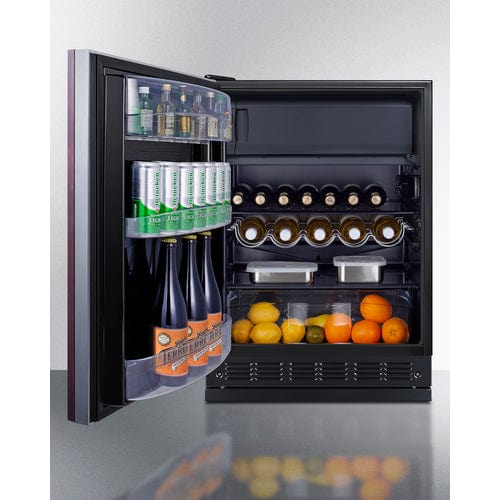

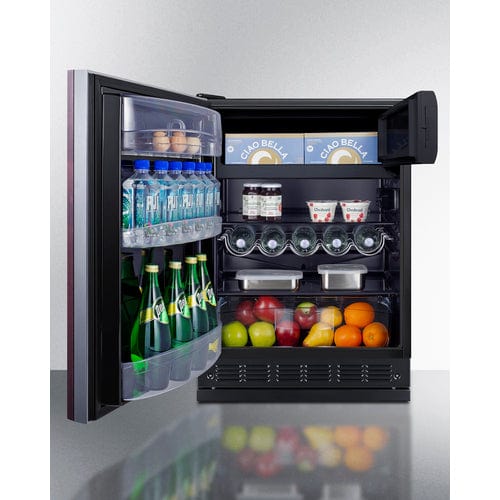

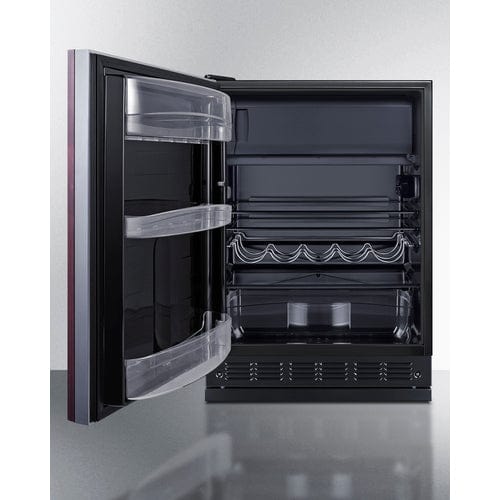

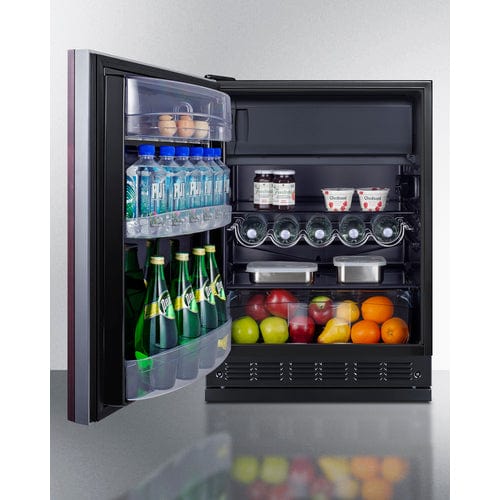

Inside, the CT66BK2SSRSIFLHD offers 5 cu.ft. of storage, a higher capacity than virtually any refrigerator-freezer in this size class. It features a black interior liner and black trimmed adjustable glass shelves for spill-proof storage. We also include a removable scalloped steel rack ideal for holding bottles in a horizontal position. A large clear crisper makes it easy to store produce at its best and three clear door racks let you keep condiments in easy reach. A light automatically illuminates the interior when the door is open.

Summit's European lineup features classic mechanical controls. The dial thermostat ensures an intuitive, trouble-free performance without any internal boards or chips. The advanced dual evaporator system allows separated cooling of the fresh and frozen food sections. The refrigerated compartment utilizes low maintenance automatic defrost, while the interior freezer compartment is manual defrost to achieve lower storage temperatures ideal for ice cream and other frozen food.

The CT66BK2SSRSIFLHD is UL listed for residential use. With its large capacity, professional finish, and user-friendly features, this refrigerator-freezer is a convenient option for homes, offices, schools, and other settings in need of reliable cold storage. Additional choices are available in lower ADA height, as well as in freezerless configurations (model FF6BK2SSRSIFLHD). Browse the full Summit catalog to discover the perfect appliance for your refrigeration needs.

Purchase the Summit 24" Residential Left Hinge Panel Ready Refrigerator-Freezer CT66BK2SSRSIFLHD and a streamlined look that complements your kitchen decor!

 Features

Features:

European refrigerator with freezer

• 24" wide refrigerator-freezer designed and manufactured in Europe for residential use

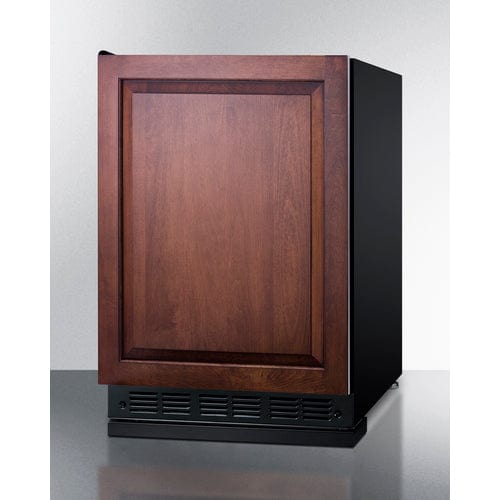

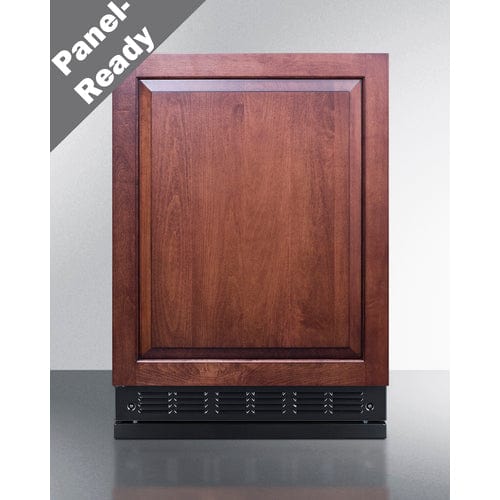

Panel-ready door

• Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)

ENERGY STAR certified

• Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs

Large capacity

• 5 cu.ft. of interior storage, larger than virtually any other refrigerator-freezer in this size class

Slim counter height dimensions for recessed or freestanding use

• Ideal 24" footprint for an easy fit

Height adjustable

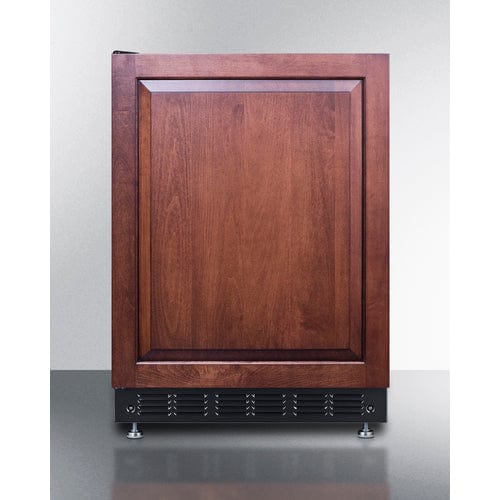

• Adjustable legs allow you to set the height anywhere between 33.5" and 34.5" to best fit under your counter

Leg shield included

• Removable cover that lets you fill the gap that can appear between the refrigerator's kickplate and floor when raising the height

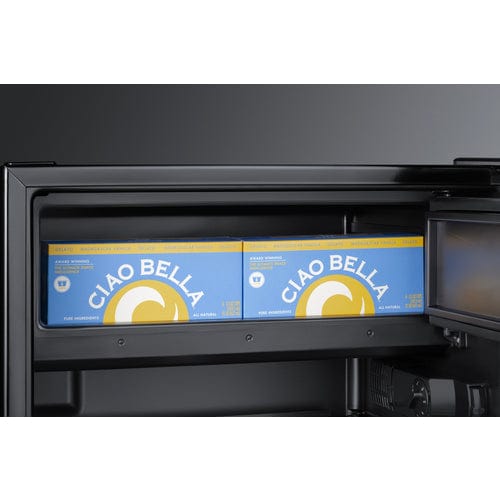

Freezer included

• Interior .6 cu.ft. freezer compartment with reversible door

Cycle defrost

• This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment

Dual evaporator

• Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators

Adjustable glass shelves

• Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Fruit and vegetable crisper

• Get the longest life and best taste out of produce by storing it in a convenient slide drawer

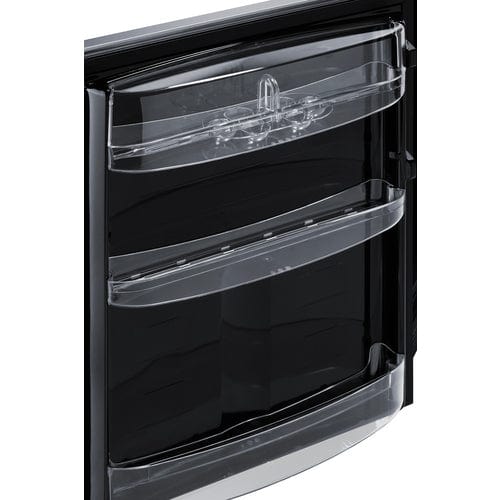

Door storage

• Store tall bottles and condiments right on the door for convenient access

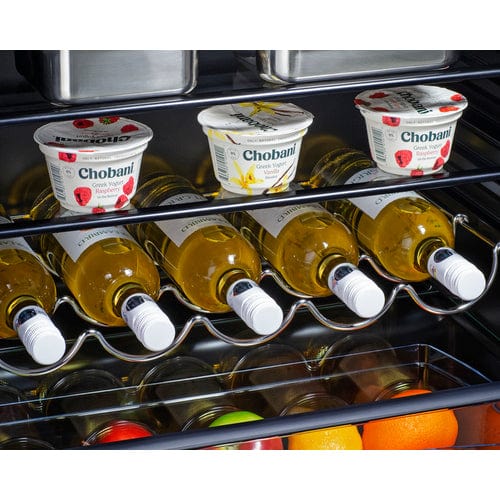

Bottle shelf included

• Removable scalloped steel shelf lets you keep wine and other bottles stored horizontally

Interior light

• Automatically illuminates when you open the door

One piece interior liner

• Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Hidden evaporator

• Cold wall design with hidden evaporator creates a seamless, easy to clean interior

Black interior

• Attractive jet black finish inside to match the cabinet and kickplate

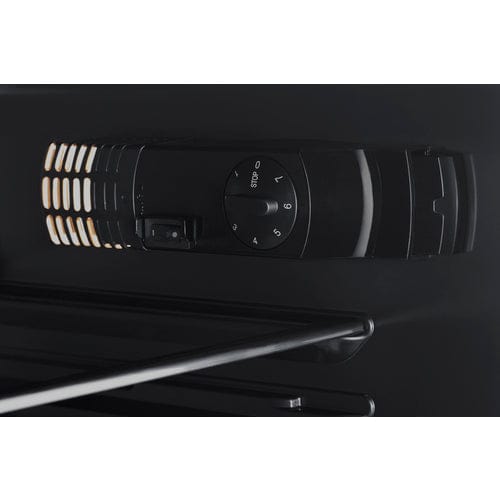

Adjustable mechanical thermostat

• Simple and intuitive analog controls located inside for easy temperature management

Left hand door swing

• For this unit with the door opening from the other side, see model CT66BK2SSRSIF

Fully finished cabinet

• Allows the unit to be used freestanding

100% CFC free

• Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

• Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

 Manuals

Manuals:

• User Manual for Summit 24" Residential Left Hinge Panel Ready Refrigerator-Freezer CT66BK2SSRSIFLHD
• Product Brochure for Summit 24" Residential Left Hinge Panel Ready Refrigerator-Freezer CT66BK2SSRSIFLHD
• Integrated Frame Instruction for Summit 24" Residential Left Hinge Panel Ready Refrigerator-Freezer CT66BK2SSRSIFLHD

 Need assistance? Talk to an Expert at +1-888-407-7770 or email: support@winecoolersempire.com to get the best-suited Refrigerator-Freezer for your needs.

Specifications

Specifications

• Height of Cabinet: 33.13" (84 cm)
• Height to Hinge Cap: 33.5" (85 cm)
• Width: 23.63" (60 cm)
• Depth: 22.38" (57 cm)
• Depth with Handle: 24.0" (61 cm)
• Depth with door at 90°: 44.25" (112 cm)
• Capacity: 5.0 cu.ft. (142 L)
• Defrost Type: Cycle
• Door: Panel-Ready
• Cabinet: Black
• US Electrical Safety:  ETL
• Canadian Electrical Safety: ETL-C
• Energy Usage/Year: 330.0kWh/year
• Amps: 1.2
• Voltage/Frequency: 115 V AC/60 Hz
• Weight: 100.0 lbs. (45 kg)
• Shipping Weight: 122.0 lbs. (55 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• UPC: 761101103402

Refrigerator-Freezer

• Door Swing: LHD
• Reversible: No
• Height Adjustable: Yes
• Adjustable Shelves: Yes
• Crisper Qty: 1
• Crisper Finish: Transparent
• Crisper Cover: Glass
• Wine Bottle Shelving: Yes
• Interior Light: Yes
• Refrigerator - Interior Height: 18.0" (46 cm)
• Refrigerator - Interior Width: 21.0" (53 cm)
• Refrigerator - Interior Depth: 18.0" (46 cm)
• Refrigerator - Capacity: 4.3 cu.ft
• Refrigerator - Shelf Type: Glass
• Refrigerator - Shelf Qty: 2
• Refrigerator - Full Door Shelves: 3
• Refrigerator - Temperature Range: 36°F to 46°F
• Freezer - Interior Height: 5.25" (13 cm)
• Freezer - Interior Width: 19.0" (48 cm)
• Freezer - Interior Depth: 11.5" (29 cm)
• Freezer - Capacity: 0.7 cu.ft
• Thermostat Type: Dial
• Refrigerant Type: R600a
• Refrigerant Amount: 0.92 oz.
• High Side PSI: 180.0
• Low Side PSI: 80.0
• Level Legs: 2
• Compressor Step Height: 5.5" (14 cm)
• Compressor Step Width: 21.0" (53 cm)
• Compressor Step Depth: 6.0" (15 cm)
• Sound Level: 32.6
