Summit 24" Right Hinge Built-In All-Freezer ALFZ51CSS

Summit 24" Right Hinge Built-In All-Freezer ALFZ51CSS Overview

Looking for a spacious and sleek built-in all-freezer? The Summit 24" Right Hinge Built-In All-Freezer ALFZ51CSS is the perfect solution!

Summit manufactures the industry's largest selection of built-in appliances sized for use under lower ADA compliant counters, including frost-free freezers specially designed to match our popular ADA compliant refrigerators.

The ALFZ51CSS is a 24 inch wide all-freezer designed and approved for residential or commercial use. The front-breathing design allows built-in installation, while the fully finished cabinet also enables freestanding use. Sized just under 32 inches high and 24 inches wide, this unit makes an ideal fit under lower ADA compliant counters. The user-reversible door comes in a stainless steel finish and a pro style handle provides a professional, elegant look for any setting. The cabinet is also fully wrapped in stainless steel. A temperature alarm offers added security should the temperature go beyond the setpoint, and the optional Sabbath Mode can be used to disable certain electrical features during periods of religious observance for up to 96 hours. The frost-free cooling system keeps the unit running efficiently with little user maintenance, and the internal fan ensures the unit is evenly cooled.

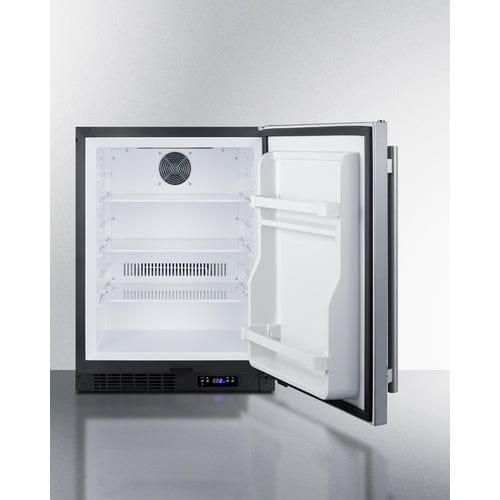

Digital controls ensure easy temperature management. Inside, three easy-glide glass shelves that extend 50% provide flexible storage, and the shelving brake system keeps unit contents safe when loading and unloading. Two door racks are ideal for keeping commonly accessed items in easy reach. The dimmable soft LED lighting in a gentle blue hue with three brightness settings offers an attractive and efficient presentation inside the white interior.

With its advanced user features and versatile design, the ALFZ51CSS is an excellent addition to any ADA compliant setting looking for a frost-free freezer with a modern, elegant look. To create a matching set, pair with the AL55CSS refrigerator.

Purchase the Summit 24" Right Hinge Built-In All-Freezer ALFZ51CSS today and enjoy the convenience of ample and efficient freezing space NOW!

 Features

Features:

ADA compliant design

• 32” height allows for installation within ADA compliant spaces

Commercially approved

• ETL-S listed to NSF-7 commercial standards

Built-in capable

• Front-breathing design allows the unit to be built-in under counters

Digital control panel

• Makes for easy temperature reading/management with electronic controls inside

Factory installed lock

• Keyed lock for secure interior, with two keys included

Stainless steel exterior

• Door and cabinet are constructed from stainless steel for an attractive, durable look

White interior

• Classic interior allows for easy cleaning and viewing of products

Adjustable shelving

• Three easy-glide shelves that extend 50% give space and flexibility when organizing the interior’s contents

Brake shelving system

• Provides added safety when loading and unloading the unit's 3 shelves

Automatic defrost

• Reduced maintenance with auto defrost system

Internal fan

• Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Interior lighting

• Dimmable LED lighting (with 3 brightness settings) in a blue hue allows for easy viewing of contents while maintaining an elegant feel

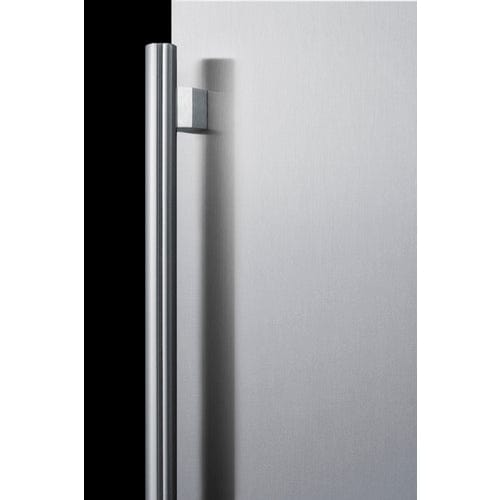

Professional handle

• Stainless steel handle adds style to any setting

Temperature alarm

• Alarm sounds if temperature goes out of recommended range after 2 hours

Sabbath mode

• Optional feature disables alarms, interior light, and displays for up to 96 hours

Reversible door

• User-reversible door swing makes it easy to best accommodate your setting

Integrated hinge

• Flat stainless steel hinge ensures no added height is needed when installing under a counter

Fully finished black cabinet

• Allows the unit to be used freestanding

Matching refrigerator

• Pair with Summit AL55CSS to create a matching ADA height set

100% CFC free

• Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

• Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

 Manuals

Manuals:

• User Manual for Summit 24" Right Hinge Built-In All-Freezer ALFZ51CSS
• Product Brochure for Summit 24" Right Hinge Built-In All-Freezer ALFZ51CSS
• Assembly Drawing for Summit 24" Right Hinge Built-In All-Freezer ALFZ51CSS
• Safety Data Sheet for Summit 24" Right Hinge Built-In All-Freezer ALFZ51CSS

 Need assistance? Talk to an Expert at +1-888-407-7770 or email: support@winecoolersempire.com to get the best-suited Freezer for your needs.

Specifications

Specifications

• Height of Cabinet: 31.63" (80 cm)
• Width: 23.38" (59 cm)
• Depth: 23.38" (59 cm)
• Depth with Handle: 25.38" (64 cm)
• Depth with door at 90°: 45.75" (116 cm)
• Capacity: 4.0 cu.ft. (113 L)
• Defrost Type: Automatic
• Door: Stainless Steel
• Cabinet: Stainless Steel
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Sanitation: ETL-S
• Energy Usage/Year: 380.0kWh/year
• Amps: 1.3
• Voltage/Frequency: 115 V AC/60 Hz
• Weight: 105.0 lbs. (48 kg)
• Shipping Weight: 140.0 lbs. (64 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• UPC: 761101089003

 FREEZER

• Door Swing: RHD
• Reversible: Yes
• Interior Height: 23.75" (60 cm)
• Interior Width: 18.5" (47 cm)
• Interior Depth: 16.75" (43 cm)
• Refrigerant Type: R600a
• Refrigerant Amount: 1.06 oz.
• High Side PSI: 150.0
• Low Side PSI: 50.0
• Level Legs: 4
• Shelf Type: Glass
• Shelf Qty: 3
• Adjustable Shelves: Yes
• Thermostat Type: Digital
• Fan Type: Interior and Exterior
• Sound Level: 40.1 dB

• Temperature Range: -11°F to 11°F
• Compressor Step Height: 5.0" (13 cm)
• Compressor Step Width: 18.5" (47 cm)
• Compressor Step Depth: 5.0" (13 cm)
