Summit 24" Single Tap Panel Overlay Door Built-In Kegerator SBC635MBIFR Review
DISCONTINUED- REPLACED BY SBC635MBIIF

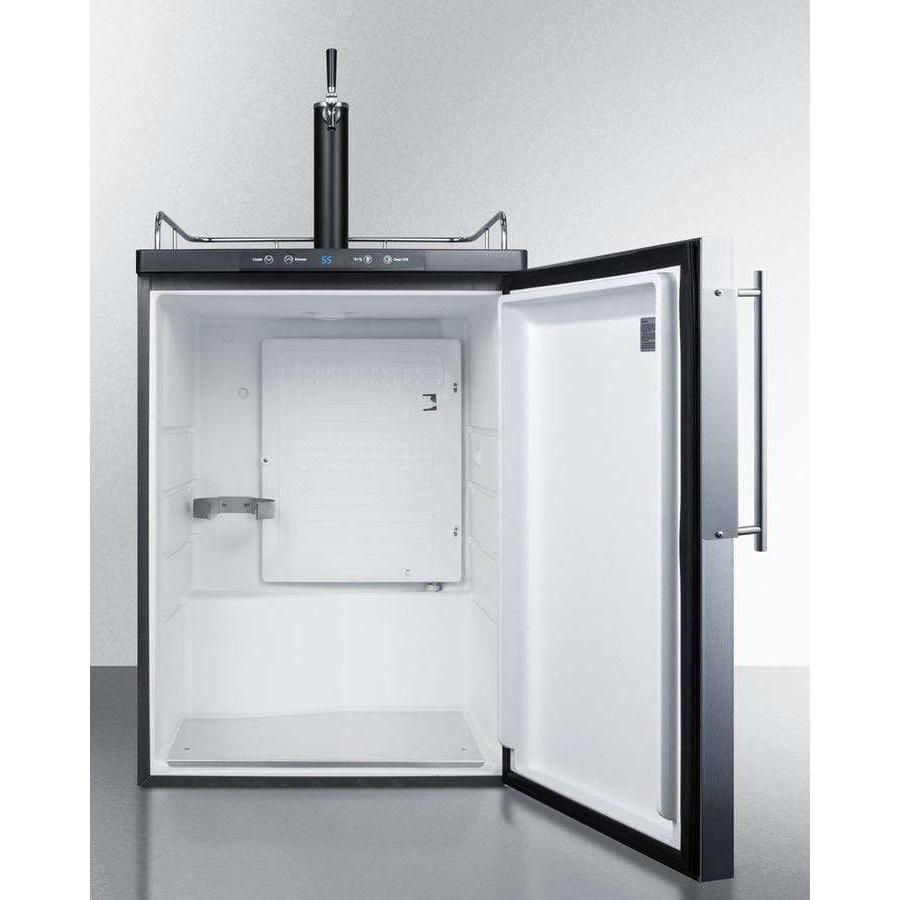

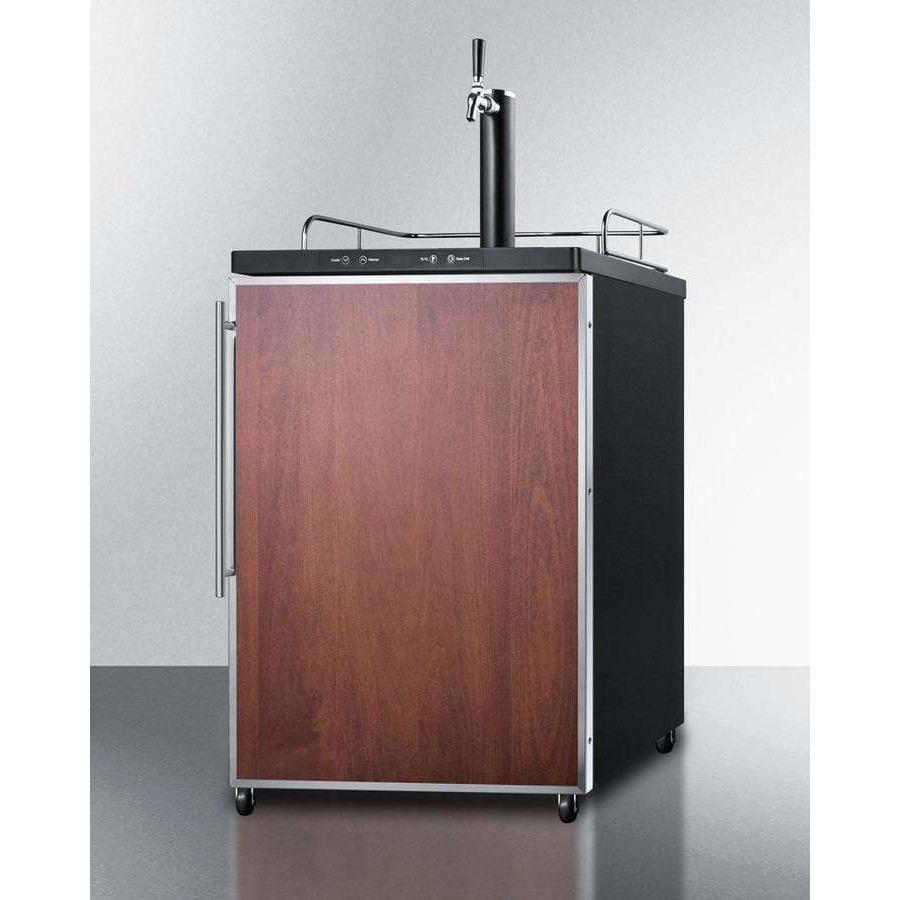

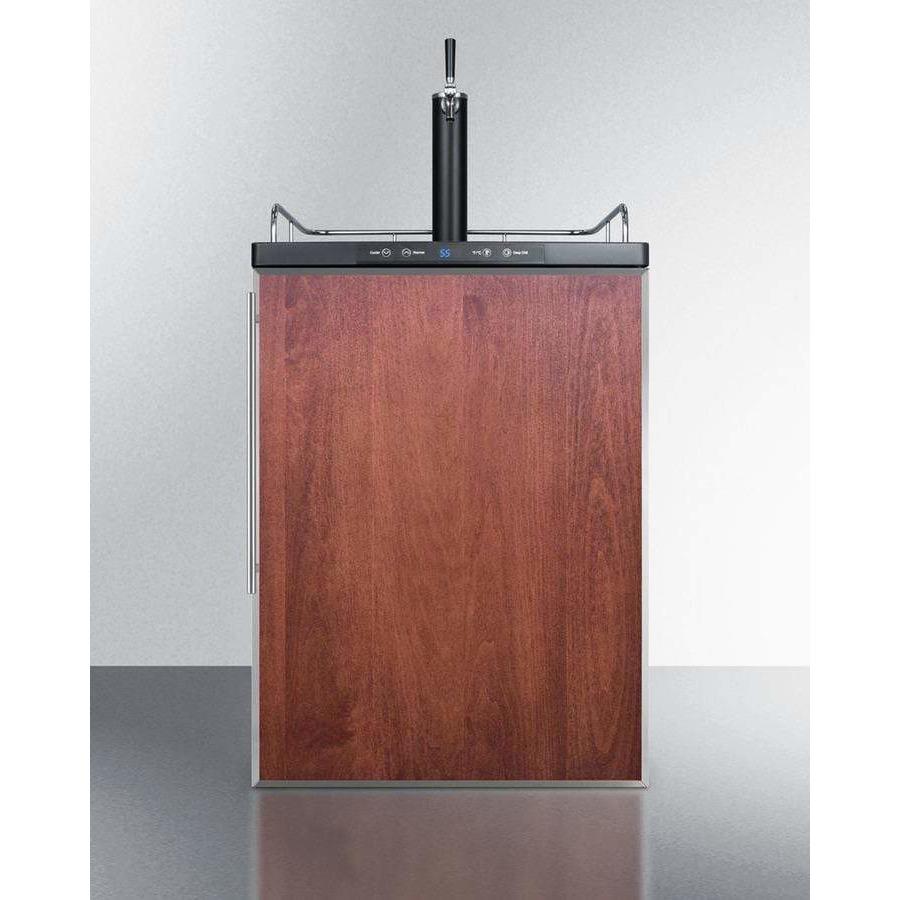

Summit Appliance offers a versatile line of full-sized built-in beer dispensers designed for low maintenance storage in the style of your choice. The SBC635MBIFR features a large interior that can hold a full half, quarter, 1/6 or mini keg. It features a front-breathing design for built-in installation under counters, with stainless steel frame on the door designed to accept slide-in panels for a custom look. The surface includes a removable drip tray to collect spills and a chrome guard rail to help keep glasses and mugs in place. The user-reversible door swing makes it easy to accommodate any location’s setup. A stainless steel handle completes the look. This unit is height adjustable from 33 1/2" to 34" to best fit your undercounter space. Please note that the door does not open in its own radius. When planning your cutout, if the unit is mounted against a wall or flush under cabinetry, you will need between 25 and 25 1/4" width for proper ventilation. Automatic defrost operation ensures minimum user maintenance inside the 5.6 cu.ft. interior. A digital thermostat makes it easy to manage the temperature at the touch of a button. The external digital display shows the temperature in Celsius or Fahrenheit to ensure your beer is stored exactly how you like it. Our American Sankey tap kit includes all the accessories you need for draft service, including a 5 lb. CO2 tank and regulator. The floor is reinforced with a steel cover for added durability when loading kegs. For more style options, browse the full SBC635MBI Series.
FEATURES
- Full-sized beer dispenser

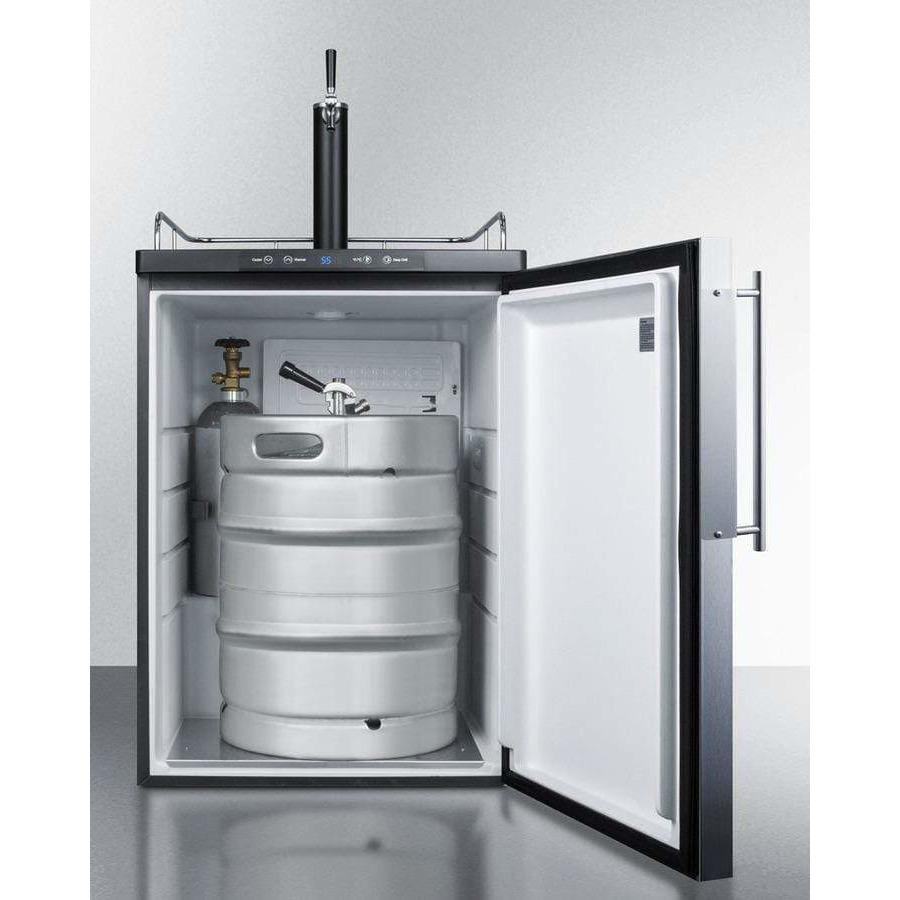

- Large 5.6 cu.ft. interior can accept a full half barrel keg, two 1/6 barrel kegs, or a pony keg
- Built-in capable
- Make the best use of space by installing your appliance under the counter; NOTE: if installing flush with wall or cabinets, unit will require extra space due to the door design. Width should be 25" to 25 1/4". For more information, see the user manual
- Stainless steel door frame
- Slide a panel into this two-piece exposed stainless steel door frame to match the unit to other cabinetry (panel dimensions: 23 1/2" W x 30 5/8" H at up to 1/4" thick)
- Pro style handle
- Stainless steel handle adds an attractive touch
- Tap Kit
- Includes a 5 lb. CO2 tank and regulator, draft arm, Sankey American tap, and connection hardware
- Automatic defrost
- Reduced user maintenance with auto defrost operation
- Digital thermostat
- Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit
- Ideal beer temperature
- Operates between 33º and 50ºF to keep a variety of beers stored at just the right serving temperature
- Fully finished black cabinet
- Allows the unit to be used freestanding
- Reversible door
- User-reversible door swing for added flexibility
- Casters included (ship unassembled)
- To make the beer dispenser portable, install this set of 2 1/2" high locking casters
- Top guard rail (ships unassembled)
- Attractive chrome guard rail helps to reduce spills and neaten service
- Stainless steel floor cover
- Interior includes steel cover to protect the floor when loading kegs
- Drip tray
- Removable drip tray catches spills to help contain the mess
- Deep Chill function
- Great for getting faster cooling results when loading your first keg
- 100% CFC free
- Environmentally friendly design without ozone-damaging chemicals
SPECIFICATIONS
| Overview |
| Height of Cabinet |
33.5" (85 cm) |
| Width |
24.0" (61 cm) |
| Width with Door Open |
25.25" (64 cm) |
| Depth |
25.88" (66 cm) |
| Depth with door at 90° |
47.5" (121 cm) |
| Capacity |
5.6 cu.ft. (159 L) |
| Defrost Type |
Automatic |
| Door |
Panel-Ready |
| Cabinet |
Black |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Energy Usage/Year |
310.0kWh/year |
| Amps |
0.86 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
110.0 lbs. (50 kg) |
| Shipping Weight |
115.0 lbs. (52 kg) |
| Estimated Time to Ship |
3 to 5 days |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| Kegerator |
| Door Swing |
RHD |
| Reversible |
Yes |
| Thermostat Type |
Digital |
| Fan Type |
Exterior |
| Refrigerant |
R600a |
| Refrigerant Amount |
1.13 oz. |
| High Side PSI |
250.0 |
| Low Side PSI |
110.0 |
| Inter Height |
28.0" (71 cm) |
| Interior Width |
20.5" (52 cm) |
| Interior Depth |
19.0" (48 cm) |
| Compressor Step Height |
8.25" (21 cm) |
| Level Legs Qty |
4 |
| Temperature Range |
33º to 50º F |
