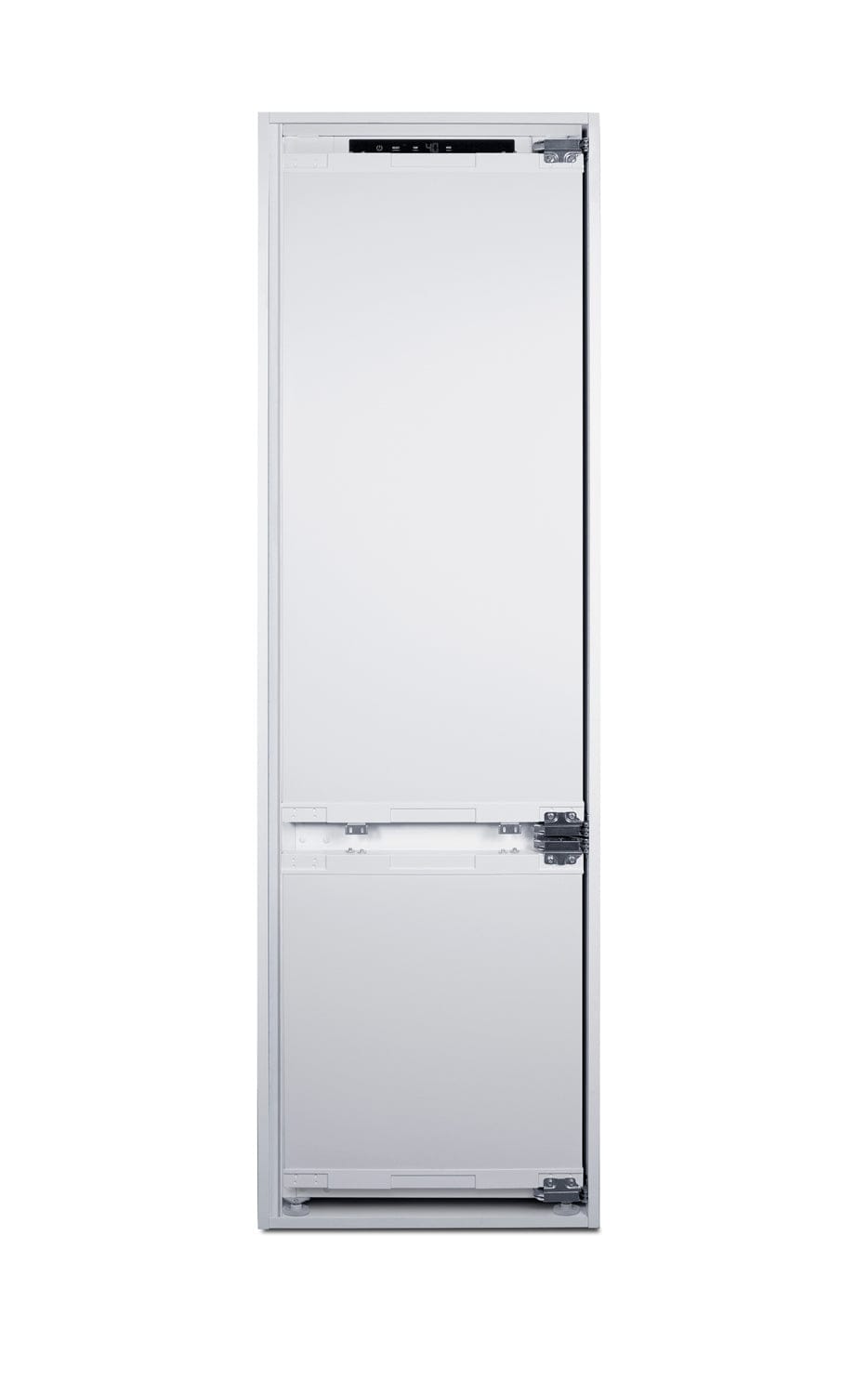

Summit 24" Wide Bottom Mount Refrigerator-Freezer FFBF11NT

24 Inch Panel Ready Bottom Freezer Refrigerator – Built-In, Energy Star Rated, Frost-Free Quiet Cooling

Looking for a 24-inch panel ready bottom freezer fridge that saves energy and fits seamlessly into custom kitchens?

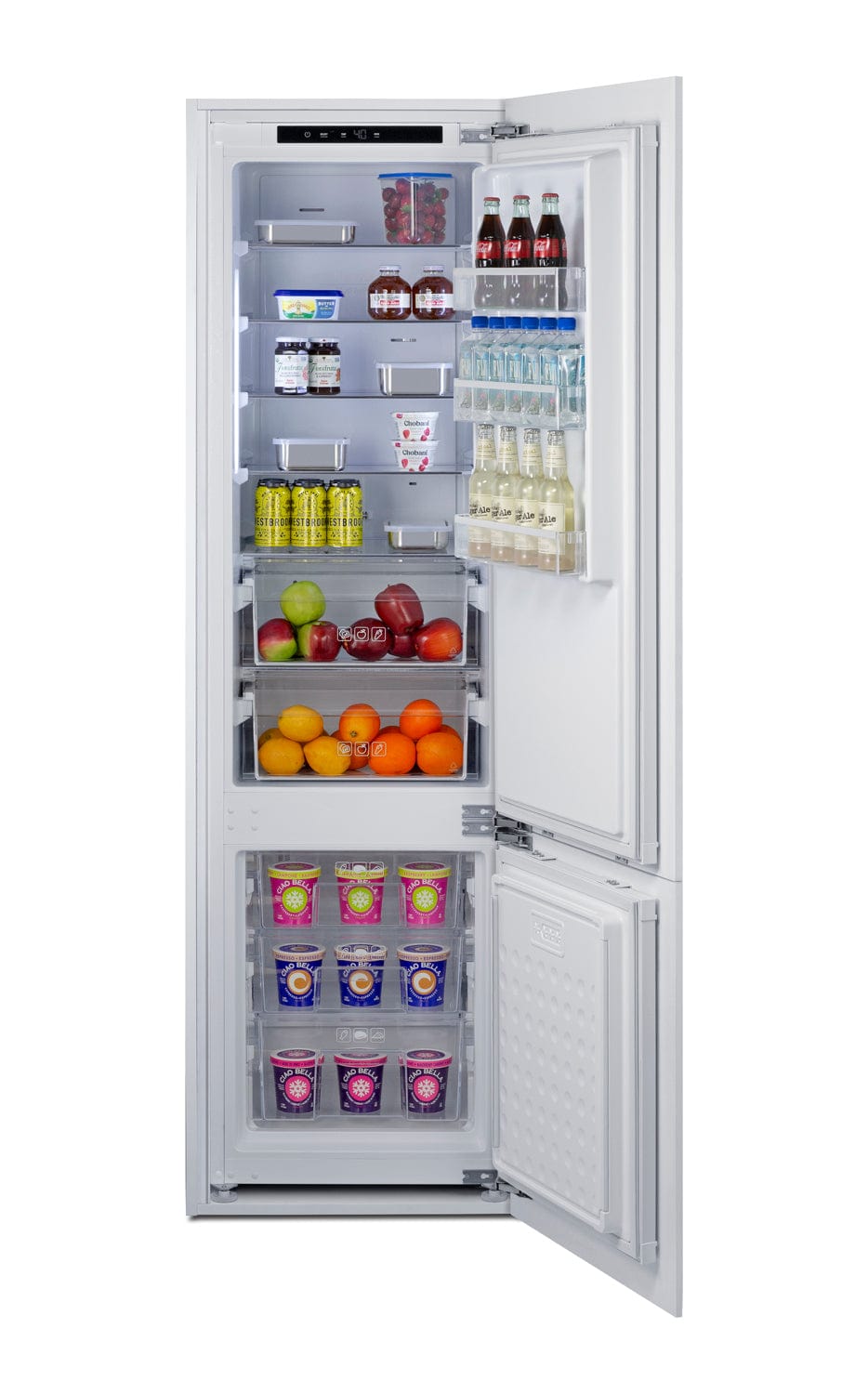

A perfect match for modern kitchens, the Summit FFBF11NT is a 24-inch bottom freezer refrigerator with panel-ready doors, frost-free operation, and ENERGY STAR efficiency. It offers digital controls, Fast Cool/Freeze functions, LED lighting, and adjustable shelving. With 10.77 cu. ft. of space, eco-friendly design, and quiet performance, it blends beautifully into built-in or freestanding setups.

Note: Panel Not Included

Why Choose Summit?

Summit offers premium, energy-efficient refrigeration with flexible design features that integrate seamlessly into any kitchen layout.

Key Features

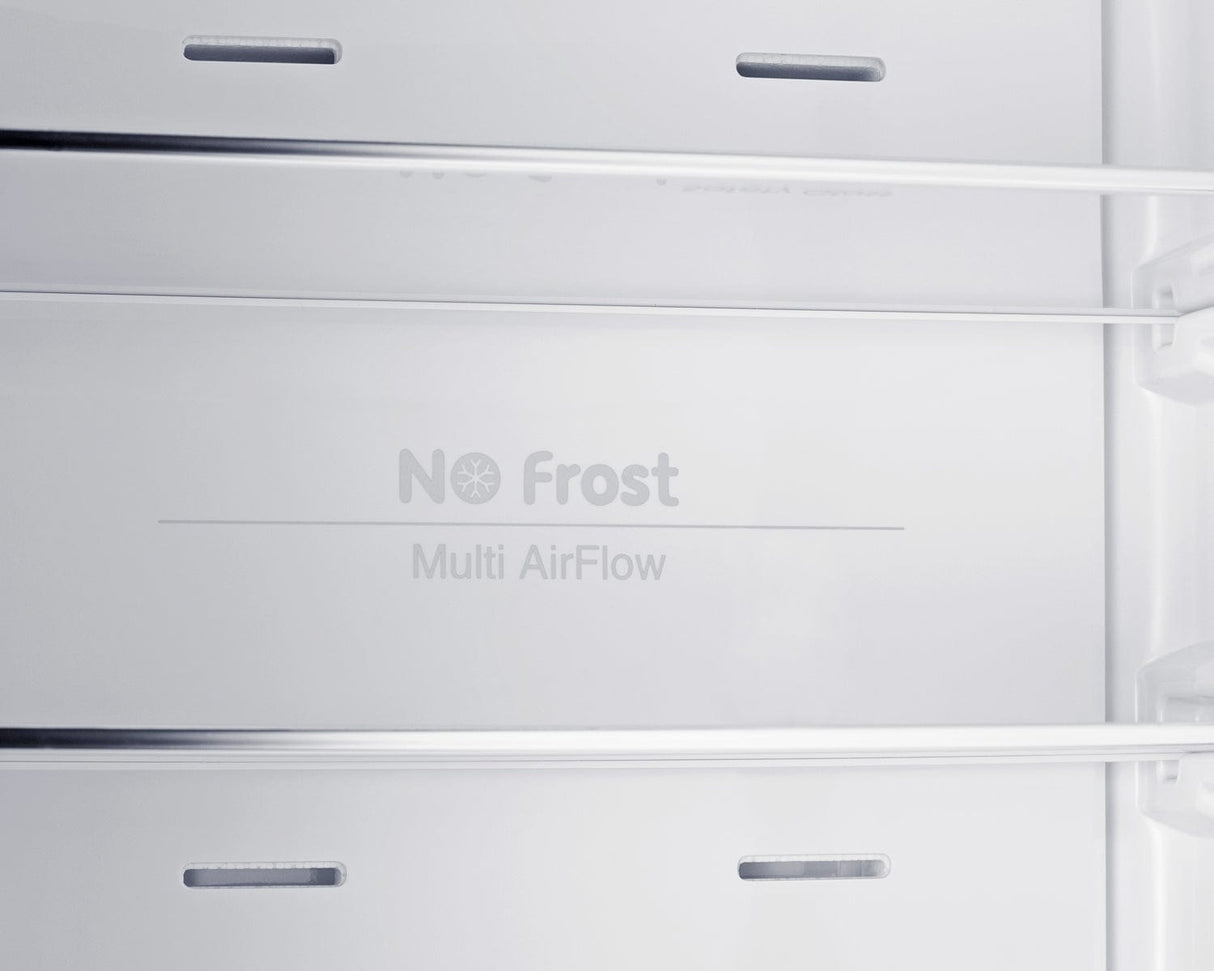

• Frost-Free Operation: Eliminates the need for manual defrosting
• Spacious Capacity: 10.7 cu. ft. of storage in a slim, counter-depth footprint

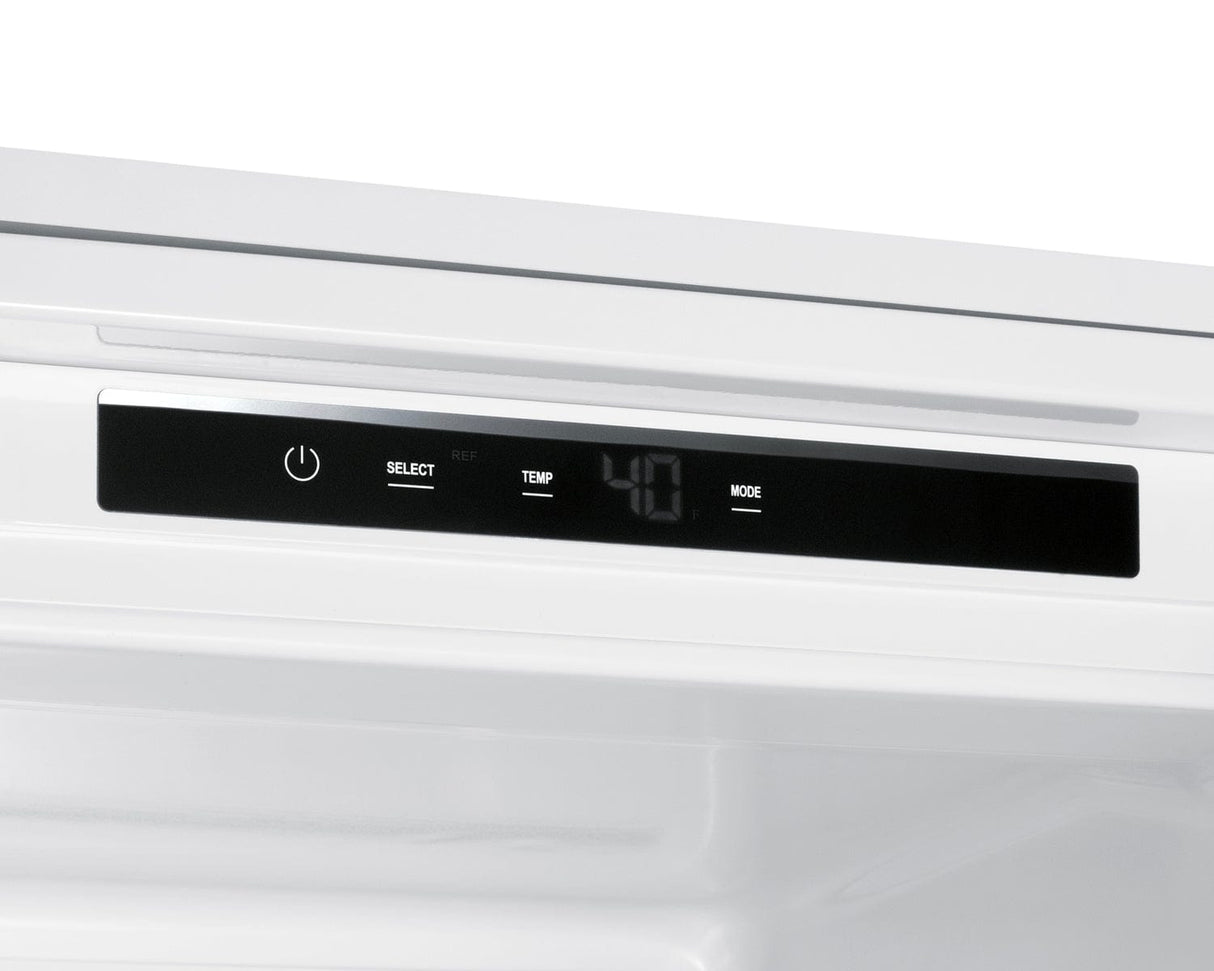

• Digital Temperature Control: Internal control panel allows easy adjustment of refrigerator and freezer settings

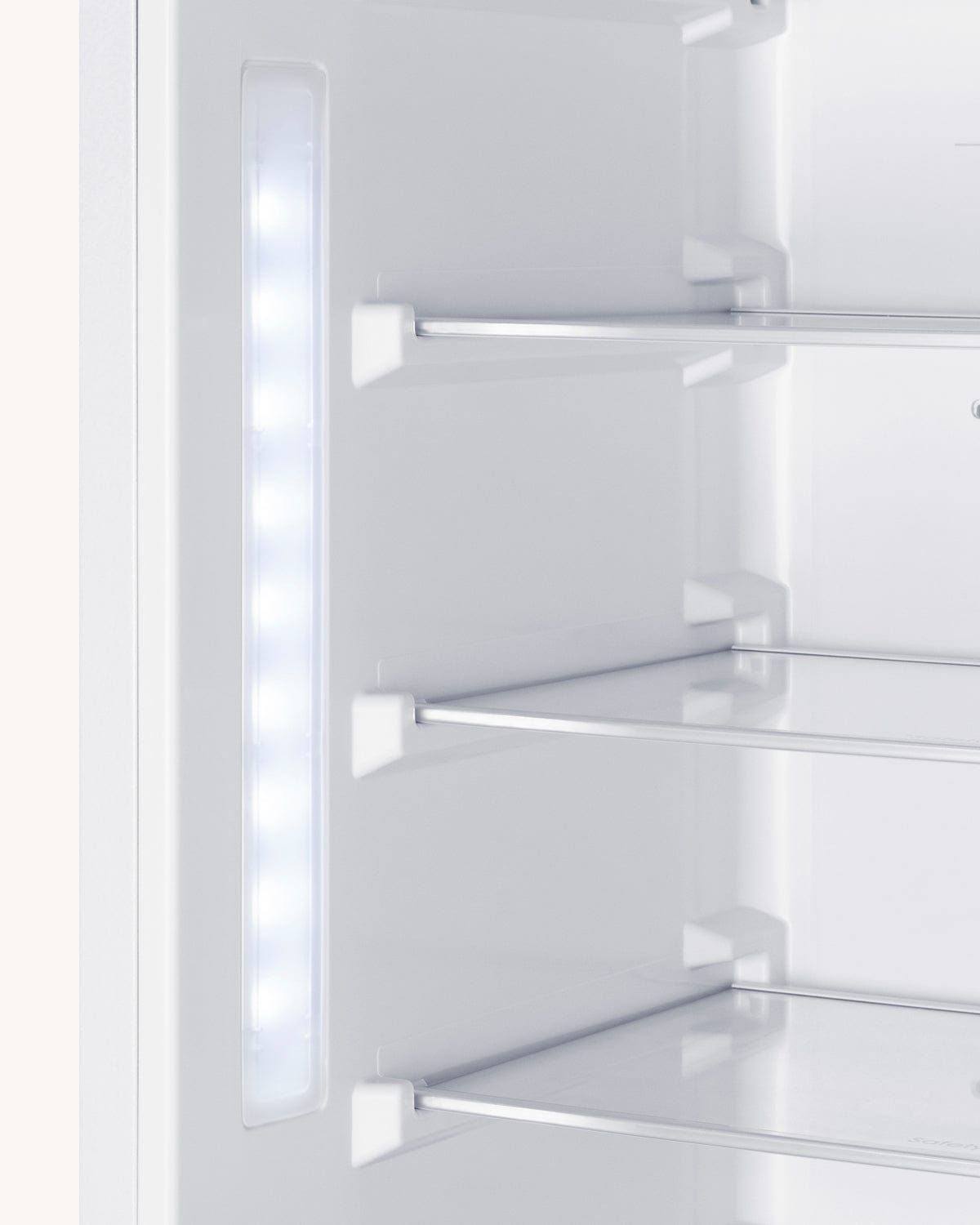

• Interior LED Lighting: Wall-mounted LED lights provide clear interior visibility
• Open Door Alarm: Alerts when door is left open to protect stored contents
• Fast-Cooling Function: Rapidly cools fresh groceries by overriding standard temperature settings
• Adjustable Door Storage: Provides easy access to tall bottles and condiments

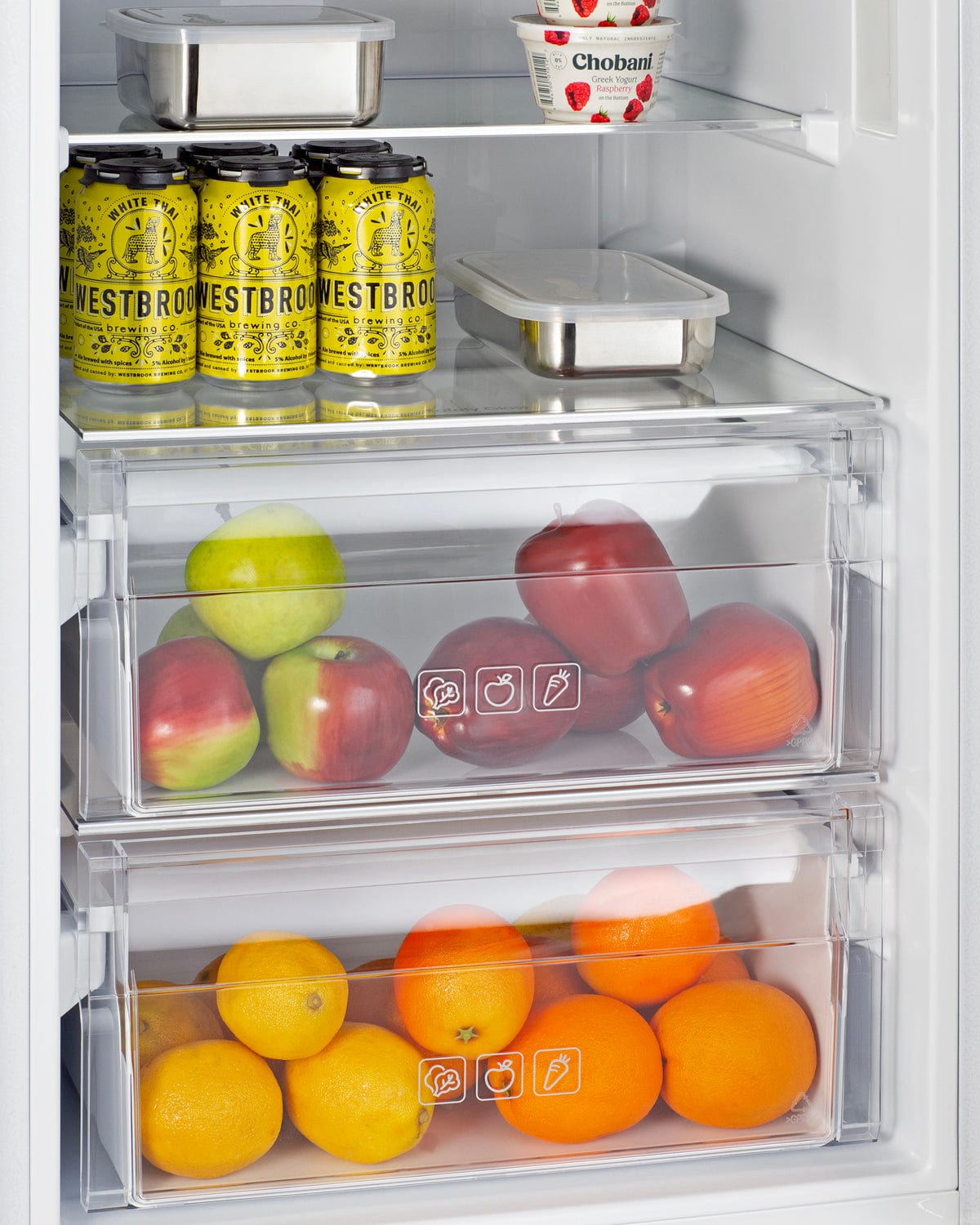

• Two Crisper Drawers: Full-width drawers ideal for storing fruits and vegetables
• Transparent Freezer Drawers: Maintains cold air more efficiently during door openings

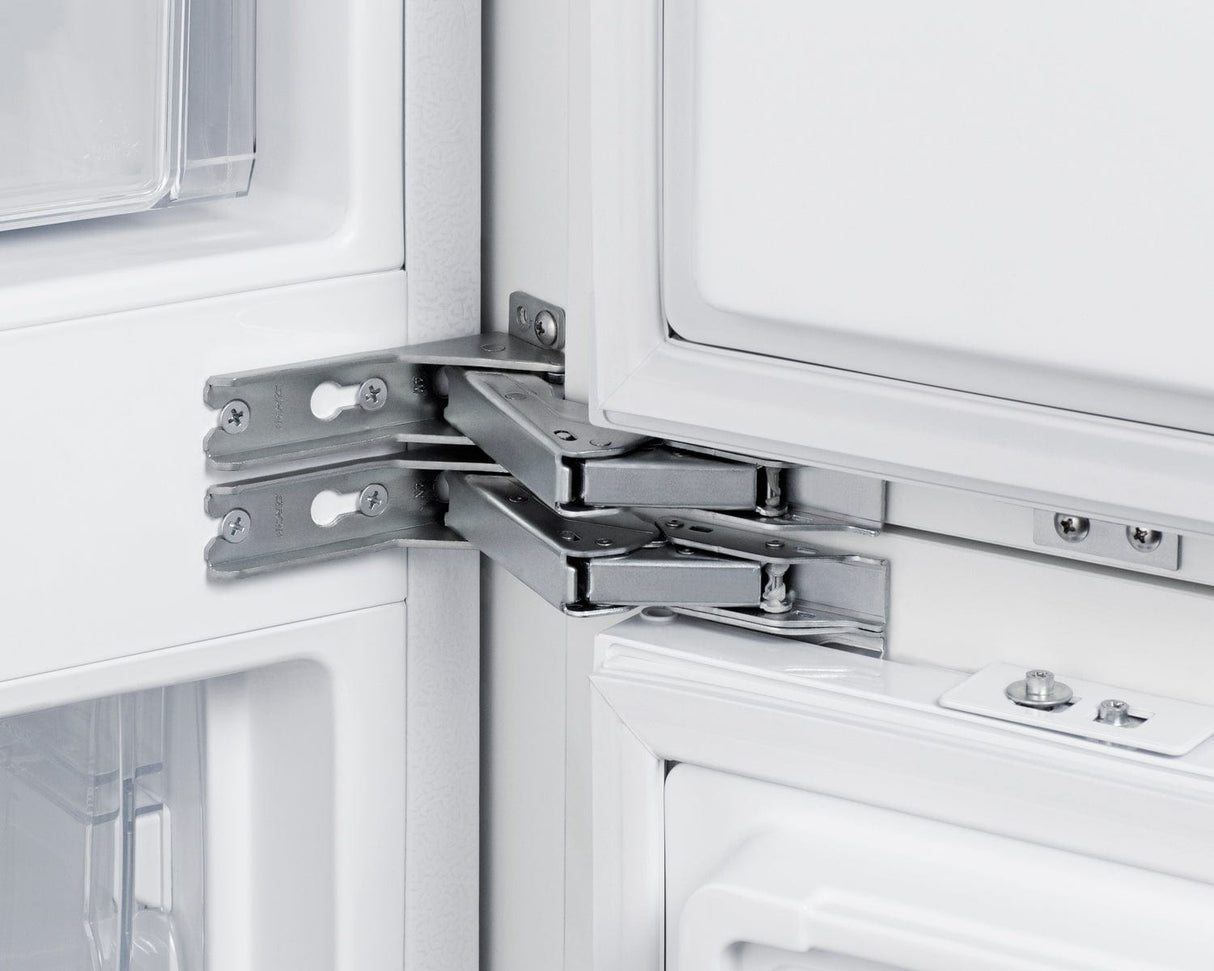

• Reversible Doors: Door swing can be reversed for flexible installation
• 100% CFC Free: Environmentally friendly with no ozone-depleting chemicals
• CARB Compliant: Uses eco-friendly hydrocarbon refrigerant to meet green standards
• Approved for Canadian Sales: Certified by ETL/ETL-C and NRCAN for Canada

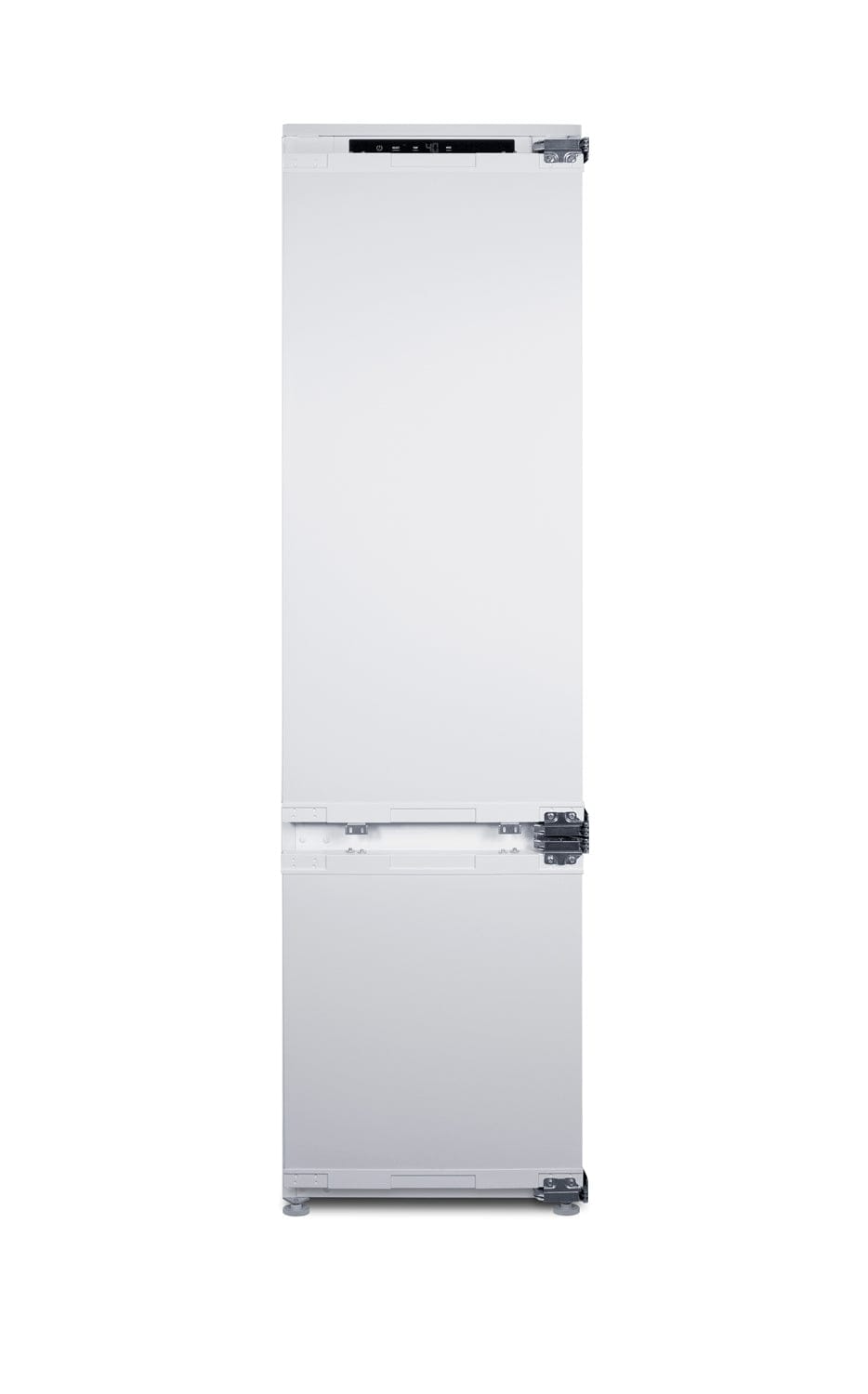

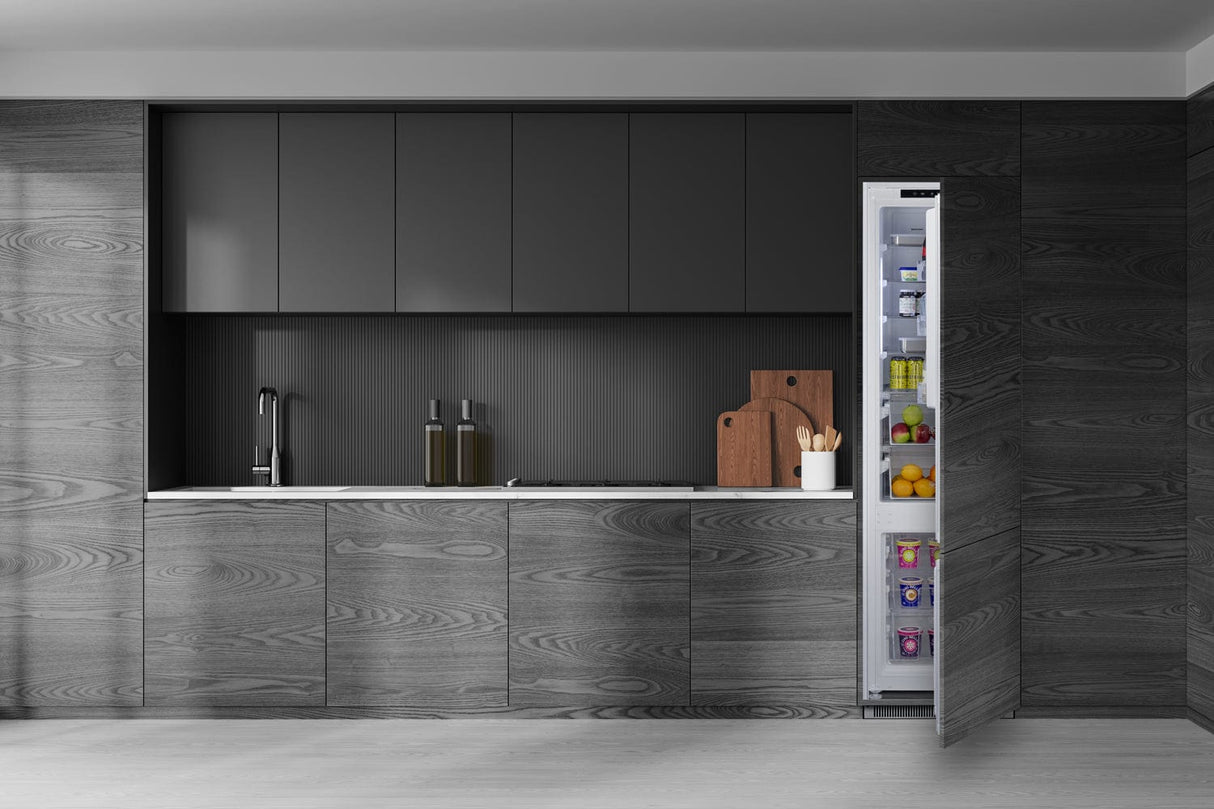

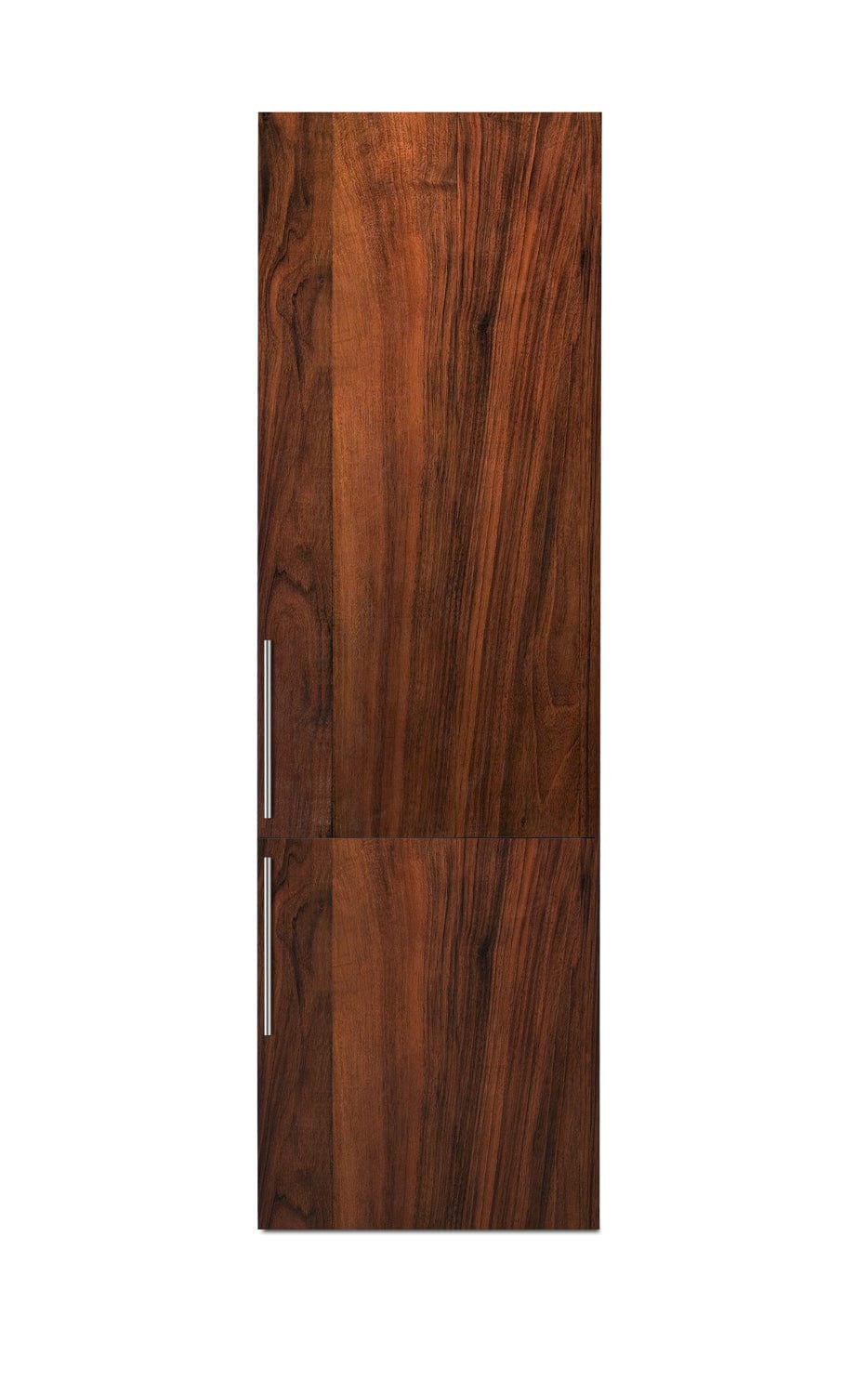

• Panel-Ready: Accepts custom panels for a seamless, integrated look
• ENERGY STAR Certified: Rated by the DOE to perform with more efficiency than federal standards require, helping reduce energy costs

Manuals for Summit 24" Wide Bottom Mount Refrigerator-Freezer

• Product Brochure
• Assembly Drawing
• Use and Care
• Installation Manual

Specifications for Summit 24" Wide Bottom Mount Refrigerator-Freezer FFBF11NT

Overview

• Height of Cabinet: 76.38" (194 cm)
• Width: 21.25" (54 cm)
• Depth: 21.88" (56 cm)
• Depth with Panel: 22.63" (57 cm)
• Capacity: 10.77 cu.ft. (305 L)
• Defrost Type: Frost-Free
• Door: Panel-Ready
• Cabinet: White
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Energy Usage/Year: 400.0 kWh/year
• Amps: 2.0
• Voltage/Frequency: 115 V AC / 60 Hz
• Weight: 128.0 lbs. (58 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years

Refrigerator-Freezer

• Door Swing: RHD
• Reversible: Yes

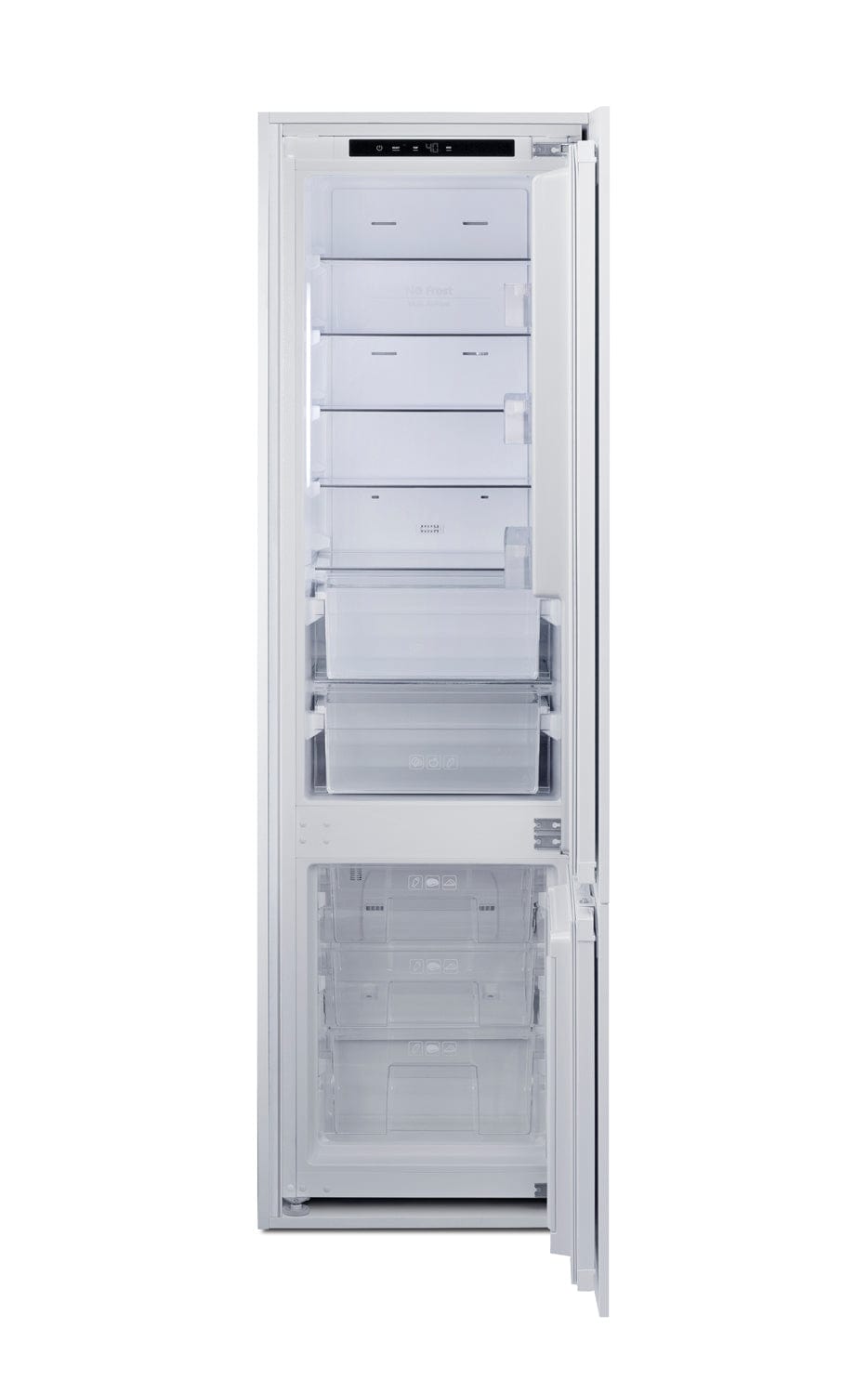

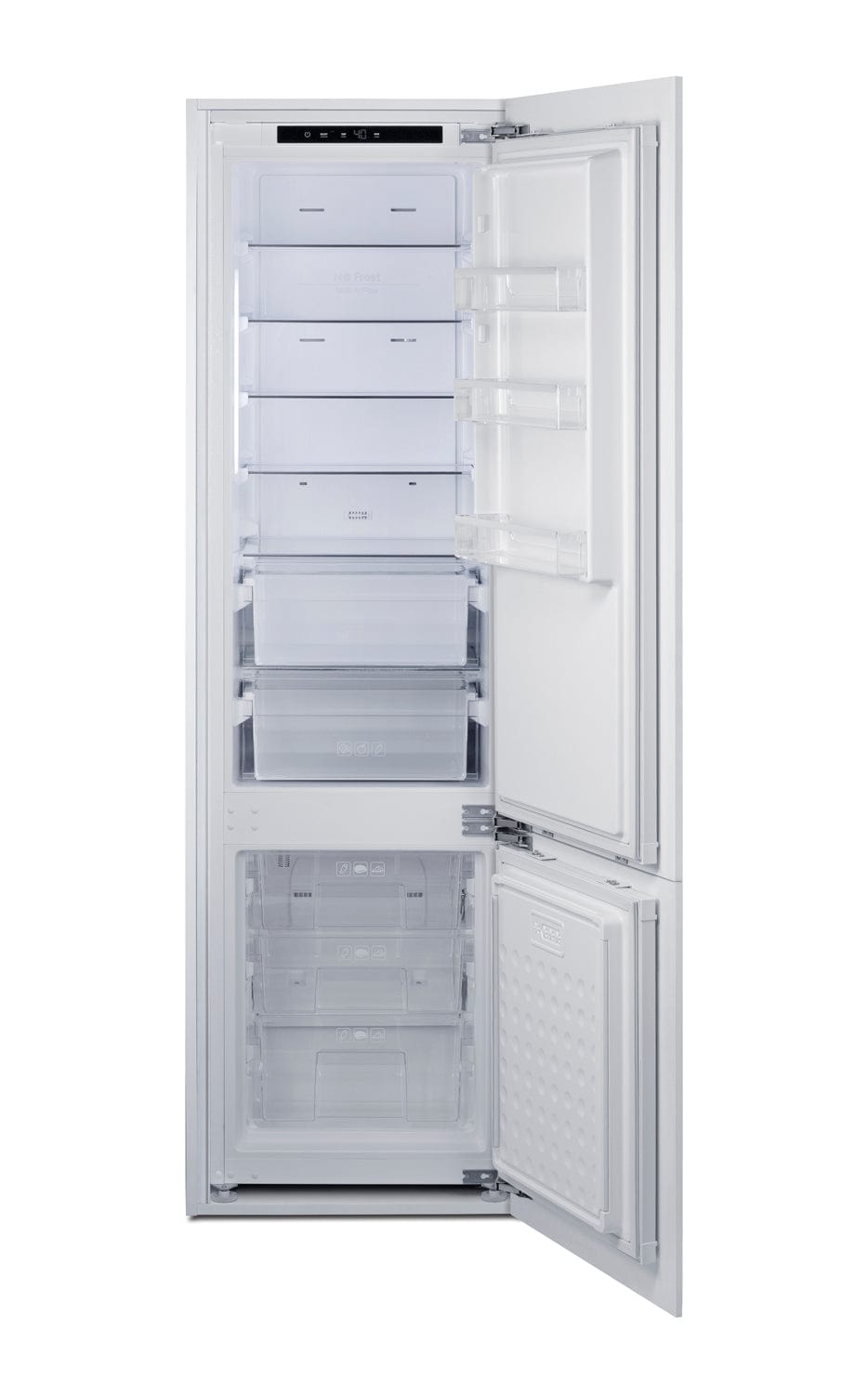

• Adjustable Shelves: Yes
• Interior Drawers: Yes
• Drawer Qty: 5
• Crisper Qty: 2
• Crisper Finish: Transparent
• Crisper Cover: Glass
• Interior Light: Yes

Refrigerator Section

• Interior Height: 44.5" (113 cm)
• Interior Width: 17.25" (44 cm)
• Interior Depth: 16.25" (41 cm)
• Shelf Type: Glass
• Shelf Qty: 5
• Full Door Shelves: 3

Freezer Section

• Interior Height: 20.5" (52 cm)
• Interior Width: 16.25" (41 cm)
• Interior Depth: 10.0" (25 cm)
• Shelf Type: Plastic
• Shelf Qty: 3

Additional Features

• Thermostat Type: Digital
• Fan Type: Interior and Exterior
• Refrigerant Type: R600a
• Refrigerant Amount: 1.34 oz.
• High Side PSI: 180.0
• Low Side PSI: 80.0
• Level Legs: 4
• Sound Level: 32.8 d
