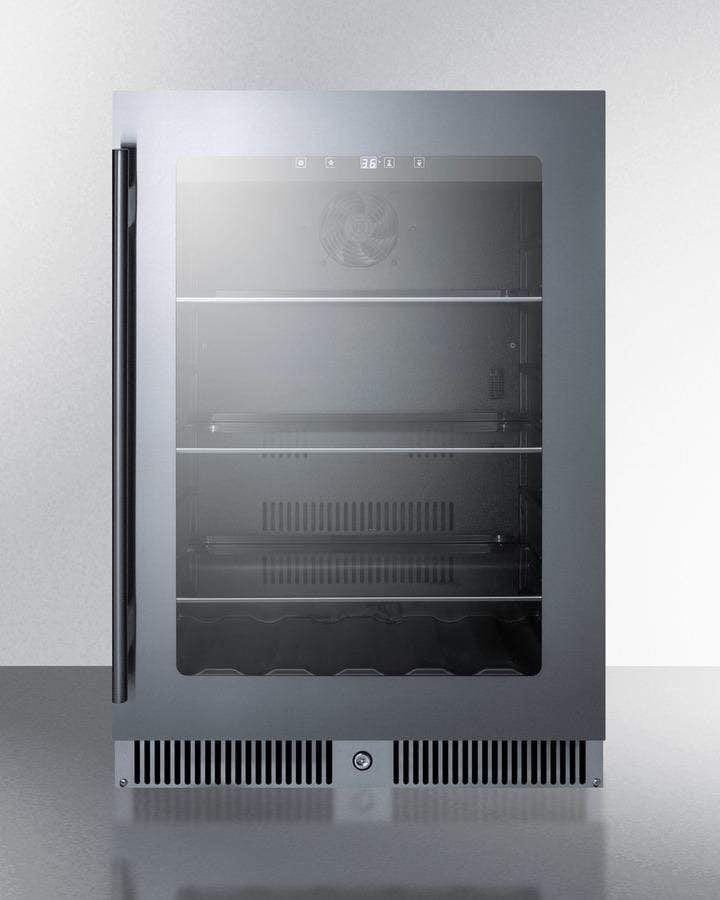

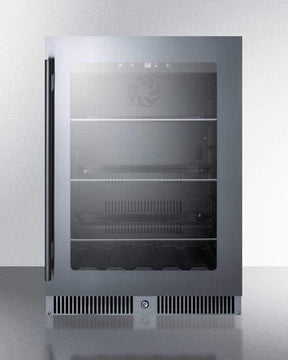

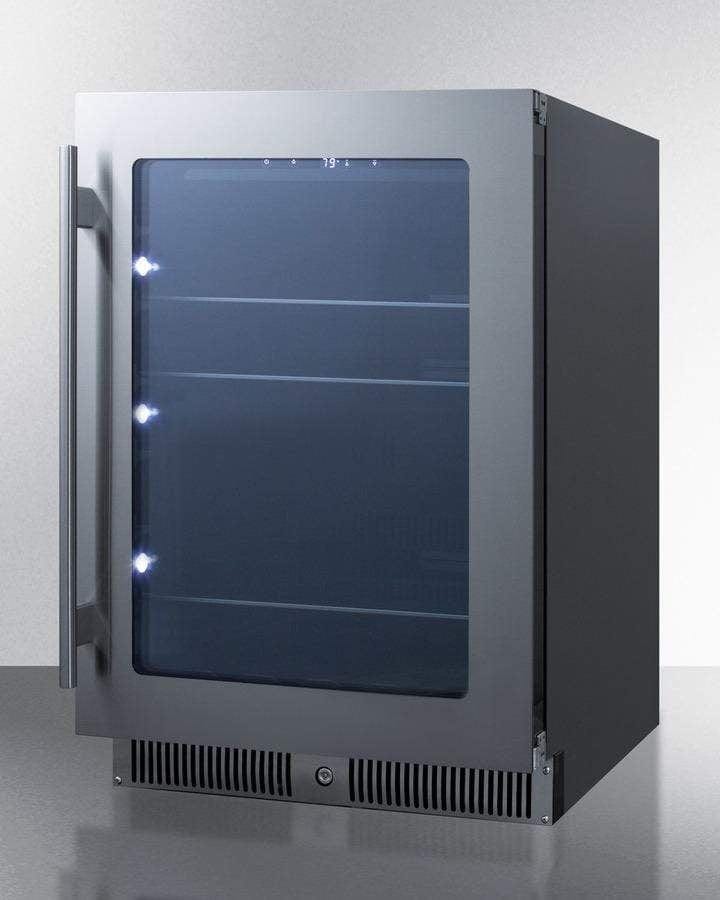

Summit 24" Wide Built-In Beverage Center CL24BV Overview
The SUMMIT Classic Collection features deluxe undercounter appliances designed to bring modern luxury into the home.
The CL24BV is a 24" wide beverage center designed for residential or commercial use. Its front-breathing design allows for built-in installation, while the fully finished jet black cabinet allows freestanding use. The glass door features an attractive seamless stainless steel trim and pro-style handle, while a designer kickplate completes the look and a factory-installed lock offers added security. This unit has a right-hand door swing. For a left hand version, see the CL24BVLHD. This unit can be paired with the matching CL244WC/LHD wine cellar to create a side-by-side set.

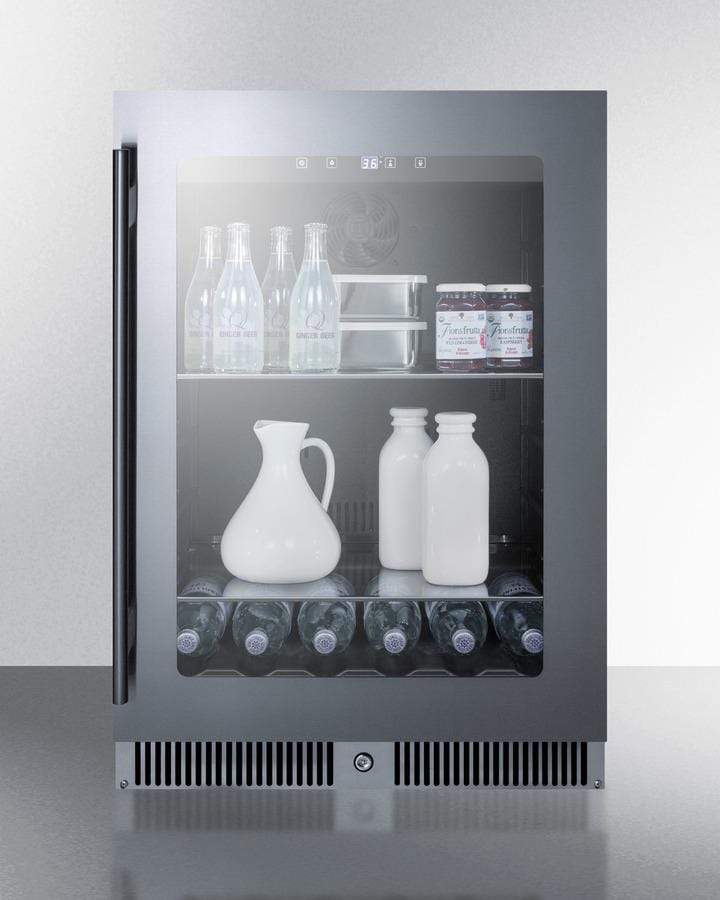

Inside, the CL24BV includes three adjustable slide-out glass shelves to accommodate a variety of sizes. Automatic defrost operation offers low-maintenance operation, with fan-forced cooling to ensure even temperature distribution from top to bottom. The interior control panel includes a digital thermostat for easy and intuitive operation, with a readout in Celsius or Fahrenheit. White LED lighting helps to attractively illuminate the black interior for an attractive view to store and display your items. Additional features include a temperature memory function to restore set temperature in the case of power loss and Sabbath mode which disables certain functions during periods of religious observance. A built-in alarm audibly warns if the door is left ajar or if the unit rises or falls out of the recommended temperature range. Two level legs help to balance the unit on uneven surfaces.
The CL24BV is ETL-S listed to NSF-7 commercial standards and meets UL-471. It also complies with current Department of Energy standards for residential use. With its convenient size and user-friendly features, this is the perfect choice for residential or commercial settings looking for versatile storage under the counter.
Note: This unit comes with an anti-tip bracket that should be installed to help prevent tipping of the unit for added safety.
Features:
-
Commercially approved
ETL-S listed to NSF-7 Standards for use in commercial establishments
-
Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter
-
Glass door
Provides a fully display of stored contents
-
Seamless stainless steel door frame
Single-piece door trim offers a more deluxe look
-
Factory installed lock
Keyed lock for a secure interior (2 keys included)
-
Professional handle
Stainless steel look for added elegance
-
Digital display
Electronic controls for precise temperature management
-
Digital thermostat
Temperature readout can be shown in Celsius or Fahrenheit
-
Recessed LED light
Elegant lighting with a convenient on/off switch on the control panel
-
Adjustable glass shelves
Three slide-out shelves offer attractive and convenient storage for beverages
-
Automatic defrost
No-frost operation for minimum user maintenance
-
Internal fan
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
-
Open door alarm
Audible alarm will sound if the door is left open longer than one minute
-
High temperature alarm
High temperature alarm sounds if the unit's interior goes out of the
recommended range
-
Sabbath mode setting
Optional setting lets you disable the lighting and alarm for up to 48 hours
-
Temperature memory function
Unit will retain its last settings when power is restored in the event of power loss
-
Sealed back
Space-saving design that offers easier cleanability
-
Fully finished black cabinet
Allows the unit to be used freestanding
-
Right-hand door swing
This unit comes with a right-hand door swing. (Note: the door is not user reversible; for a left hand version, see the CL24BVLHD)
-
Anti-tip bracket
Bracket (included) helps prevent tipping for added safety
-
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
-
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
|
Overview
|
| Height of Cabinet |
34.0" (86 cm) |
| Width |
23.38" (59 cm) |
| Depth |
22.75" (58 cm) |
| Depth with Handle |
24.63" (63 cm) |
| Depth with door at 90° |
46.75" (119 cm) |
| Capacity |
5.0 cu.ft. (142 L) |
| Defrost Type |
Automatic |
| Door |
Glass/SS |
| Cabinet |
Black |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Sanitation |
ETL-S |
| Energy Usage/Year |
270.0kWh/year |
| Amps |
1.0 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
117.0 lbs. (53 kg) |
| Shipping Weight |
127.0 lbs. (58 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101058535 |
|
Refrigerator Features
|
| Sabbath Mode |
Yes |
| Door Swing |
RHD |
| Reversible |
No |
| Shelf Type |
Glass |
| Shelf Qty |
3 |
| Adjustable Shelves |
Yes |
| Can Storage |
Yes |
| Thermostat Type |
Digital |
| Fan Type |
Interior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
1.38oz. |
| High Side PSI |
270.0 |
| Low Side PSI |
105.0 |
| Level Legs Qty |
2 |
| Interior Light |
Yes |
| Temperature Range |
36-43°F |
|
Dimensions
|
| Interior Height |
23.5" (60 cm) |
| Interior Width |
20.0" (51 cm) |
| Interior Depth |
17.5" (44 cm) |
| Compressor Step Height |
3.75" (10 cm) |
| Compressor Step Width |
20.0" (51 cm) |
| Compressor Step Depth |
5.0" (13 cm) |
