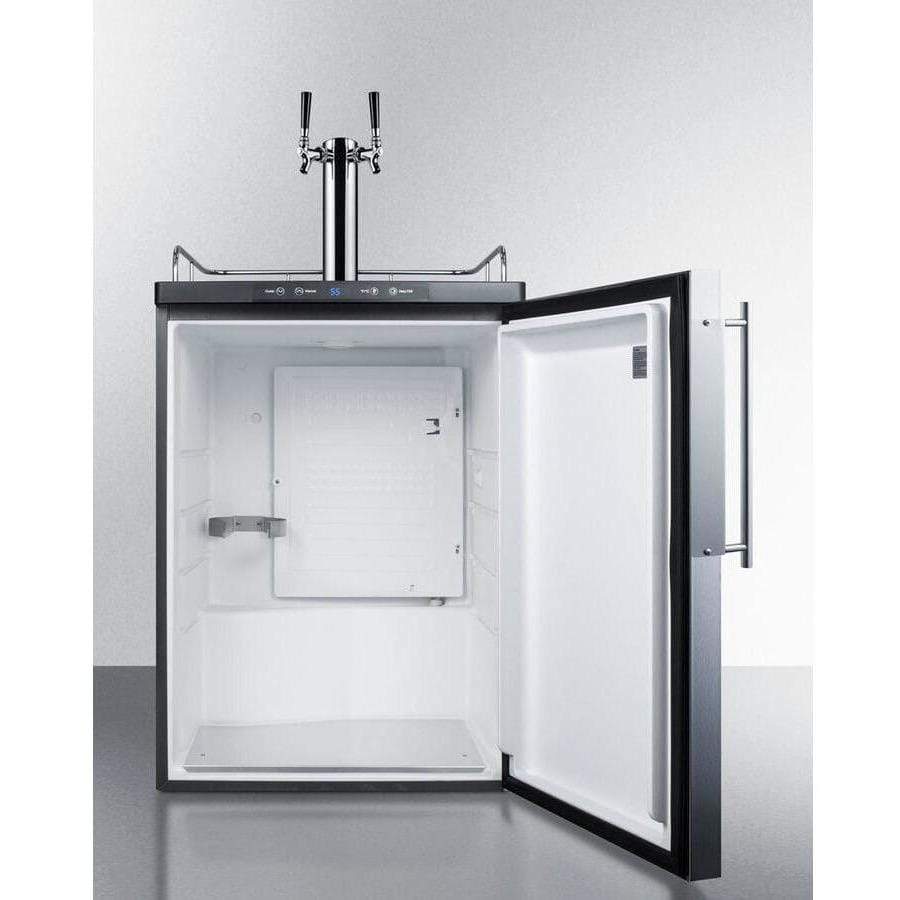

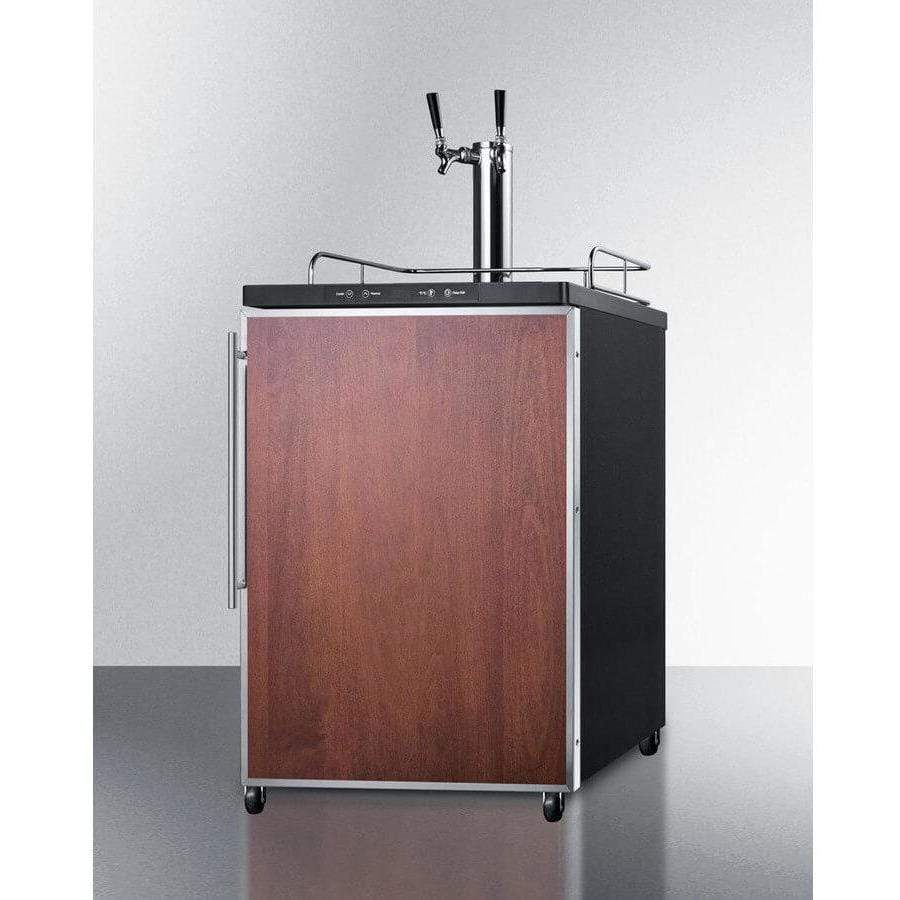

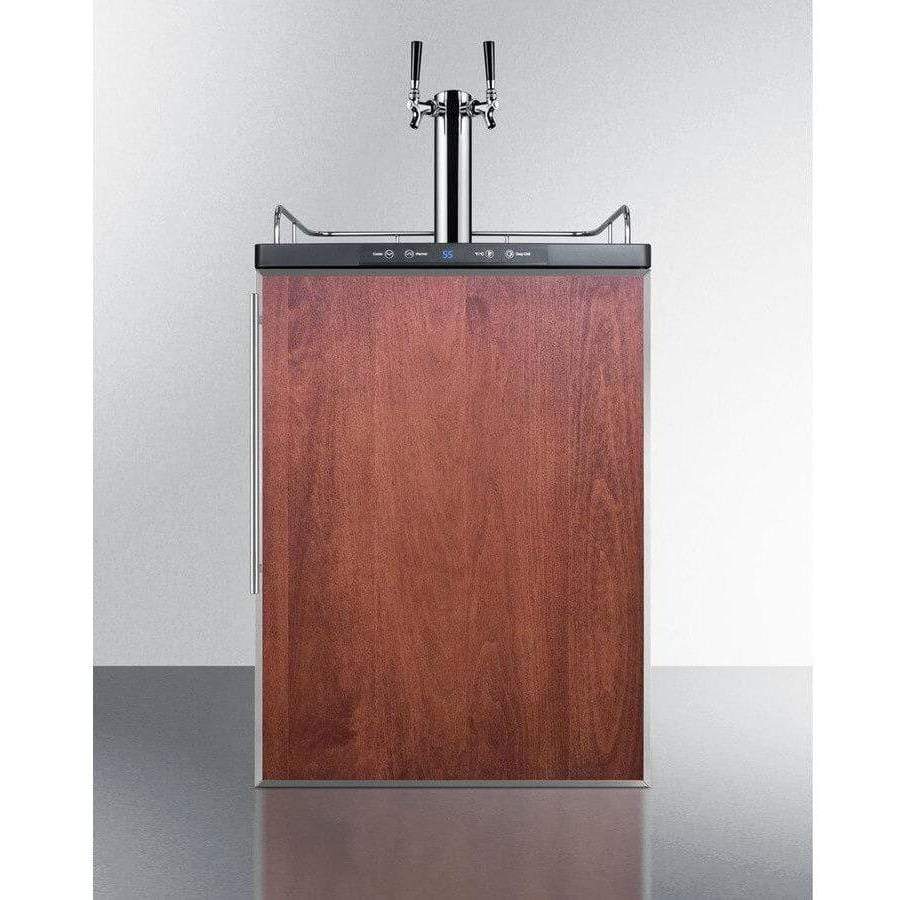

Summit 24" Wide Dual Tap Panel Overlay Door Kegerator SBC635MBIFRTWIN Review
The SBC635MBIFRTWIN is a full-sized beer dispenser that can store a full half barrel keg or two 1/6 barrels to best accommodate all tastes. It features a front-breathing design for built-in installation under counters, with stainless steel frame on the door designed to accept slide-in panels for a custom look. The surface includes a removable drip tray to collect spills and a chrome guard rail to help keep glasses and mugs in place. The user-reversible door swing makes it easy to accommodate any location’s setup. A stainless steel handle completes the look. This unit is height adjustable from 33 1/2" to 34" to best fit your undercounter space. Please note that the door does not open in its own radius. When planning your cutout, if the unit is mounted against a wall or flush under cabinetry, you will need between 25 and 25 1/4" width for proper ventilation. Automatic defrost operation ensures minimum user maintenance inside the 5.6 cu.ft. interior. A digital thermostat makes it easy to manage the temperature at the touch of a button. The external digital display shows the temperature in Celsius or Fahrenheit to ensure your beer is stored exactly how you like it. Our American Sankey dual tap kit includes all the accessories you need for draft service, including a 5 lb. CO2 tank and regulator. The floor is reinforced with a steel cover for added durability when loading kegs. For more style options, browse the full SBC635MBI Series.
FEATURES
- SBC635MBIFRTWIN Kegerator and Dual Faucet Draft Beer Dispense System
-
Includes a brand new 5 lb. Aluminum CO2 Tank
This Tank is produced from high strength aluminum alloy 6061-T6. This is superior to a steel tank because it will not rust. The service pressure is up to 1800 PSI/124 BAR with a test pressure of 3000 PSI/207 BAR. These cyldiners are stamped with required U.S. Department of Transportation and Transport Canada Markings. The 320 Valves are CGA approved, and have a male thread for CO2 Regulators. Average fill good for 5-6 Kegs depending upon your fill. (5.5" diameter, 18.25" Height).
-
Includes a Single Guage CO2 Regulator
This Regulator works with any CO2 Tank with a CGA-320 valve. Comes with an air distributor. The single gauge measures PSI indicating how much CO2 pressure is inside the keg. Adjustable output pressure 0-60 psi. 3000 psig Max Primary Inlet. 60 psig Safety Relief Valve R82. Female CGA-320 connection. Ball valve outlet w/ 5/16" OD Hose Barb connection. Total ports = (2) Primary 1/4" FNPT ports, (2) Secondary 1/4" FNPT ports. UL Listed, Compressed Gas Regulator - for use w/ Air, CO2 and Inert Gases.
-
Includes two of 5 feet of 5/16 Inch I.D. Blue Air Line Assembly with 2 Snap Clamps
The standard length is 5 feet of 5/16" I.D. Blue Air/CO2 Tubing made of Themoplastic Vinyl Hose (Super Vinyl). This tubing will not rot, swell or dry out and is unaffected by normal cleaning compounds. This air line assembly comes with two Plastic Snap Clamps with a reusable clamp design.
-
Includes two D System Lever Handle Keg Couplers which can tap all domestic kegs
These are Commercial Grade Lever Handle Keg Couplers. These keg taps work with all American "D" System Sankey Kegs. These couplers feature a 55-psi pressure relief valve and a nickel-plated forged brass body. These Keg Couplers can be swapped out to Home Brew Couplers for no additional cost.
-
Includes a 3" Diameter Dual Faucet Chrome Plated Metal Draft Tower
The Tower is a commercial grade Single Column, Dual Faucet, 3" Diameter, Chrome Plated Metal Draft Tower. This Tower comes complete with Two Chrome Plated Faucets with Brass Levers and 5 Feet of 3/16 Inch I.D. Clear Beer Tubing that ends in a Nozzle & Hex Nut Assembly that connects to all standard keg couplers. This Tower is mounted using the gasket and four screws that are included.
-
Includes two Chrome Beer Faucets with Brass Levers
This premium quality faucet features a forged brass body with a highly polished chrome finish. This faucet has a brass shaft assembly and lever with a nylon ball washer that ensures smooth operation. The brass lever has standard threading that is compatible with most branded tap handles.
-
PLEASE NOTE: Coors Kegs will not fit into this Kegerator. 1/6 barrel kegs cannot be wider than 9 1/4" and still fit two at a time.
- Full-Sized Beer Dispenser: Large 5.7 cu.ft. interior can accept a half barrel keg, two 1/6 barrel kegs, or a pony keg.
- Built-In Capable: Make the best use of space by installing your appliance under the counter; NOTE: if installing flush with wall or cabinets, unit will require extra space due to the door design. Width should be 25" to 25 1/4".

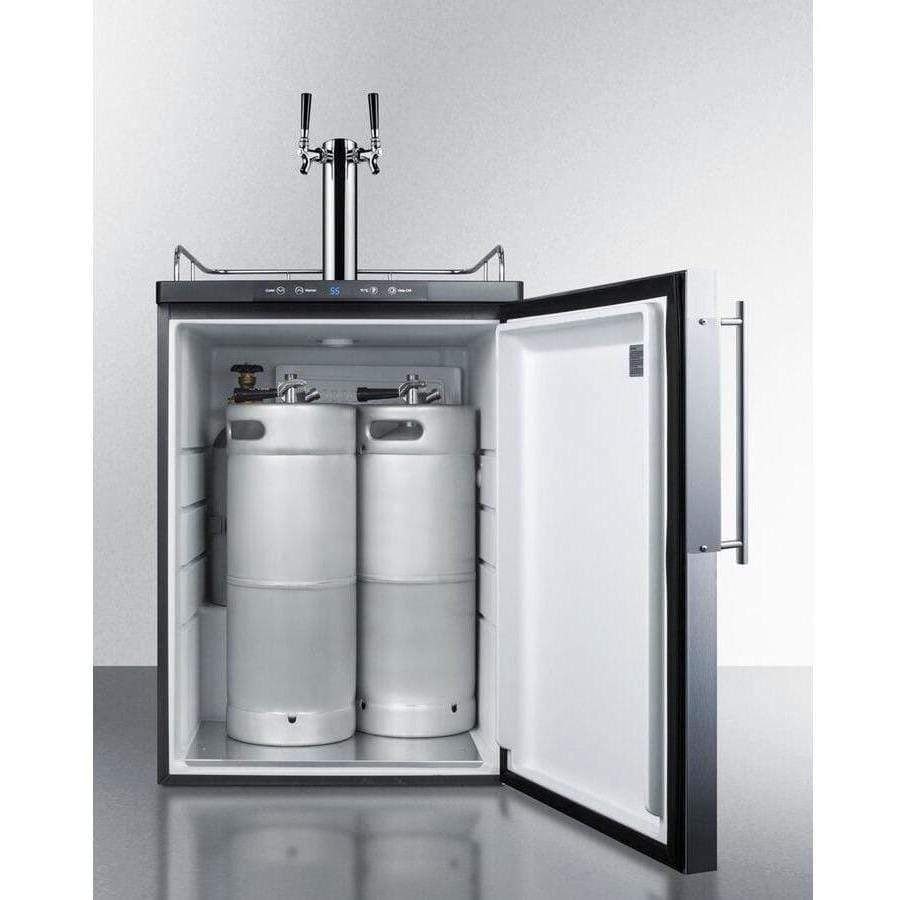

- Dual Tap System: Twin taps let you serve two different types of beer from two 1/6 sized (sixtel) kegs.
- Stainless Steel Door Frame: Slide a panel into this two-piece exposed stainless steel door frame to match the unit to other cabinetry (panel dimensions: 23-1/2" wide x 30-5/8" tall x 1/4" thick).
- Professional Handle: Stainless steel handle adds an attractive touch.
- Digital Thermostat: Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit.
- Ideal Beer Temperature: Operates between 331/2 and 501/2F to keep a variety of beers stored at just the right serving temperature.
- Automatic Defrost: Reduced user maintenance with auto defrost operation.
- Fully Finished Black Cabinet: Allows the beer dispenser to be used freestanding.
- Casters Included: To make the beer dispenser portable, install this set of 2 1/2" high locking casters.
- Top Guard Rail: Attractive chrome guard rail helps to reduce spills and neaten service.
- Stainless Steel Floor Cover: Interior includes steel cover to protect the floor when loading kegs.
- Drip Tray: Removable drip tray catches spills to help contain the mess.
- Deep Chill Function: Great for getting faster cooling results when loading your first keg.
- 100% CFC Free: Environmentally friendly design without ozone-damaging chemicals.
SPECIFICATIONS
| Dimensions |
| Height |
33.5" |
| Width |
24.0" |
| Depth |
25.38" |
| Weight |
| Unit Weight |
100 lbs. |
| Shipping Weight |
130 lbs. |
| Warranty |
| Labor |
1 Year |
| Parts |
1 Year |
| Compressor (Parts Only) |
5 Years |
| Key Features |
| Built-in Capable |
Yes |
| Security Lock |
No |
| Keg Coupler |
Yes |
| Regulator |
Single Guage |
| CO2 Tank |
5 lb. |
| Outdoor Use |
No |
| Commercial Use |
No |
| Keg Storage Capacities |
| Full Size / 1/2-Barrel |
1 |
| Pony Size / 1/4-Barrel |
1 |
| 1/6-Barrel |
2 |
| Exterior |
| Cabinet |
Black |
| Drip Tray |
Yes |
| Guard Rail |
Yes |
| Casters |
Yes |
| Draft Beer Tower |
| Number of Faucets |
2 |
| Material |
Chrome |
| Height |
15" |
| Diameter |
3" |
| Door |
| Color / Material |
Panel-Ready Stainless Steel Frame |
| Number of Doors |
1 |
| Field Reversible |
Yes |
| Accepts Custom Overlay Panel |
Yes |
| Cooling System |
| Type |
Compressor |
| Defrost System |
Auto |
| Controls |
| Adjustable Thermostat |
Yes |
| Digital |
Yes |
| Electrical |
| Electrical Requirements |
115 V / 60 Hz |
| Running Amps |
1.5 |
PRODUCTS OFFERED THROUGH FELIX STORCH, INC. (FSI)'S SUMMIT, SUMMIT COMMERCIAL, ACCUCOLD, AND PURETHERM DIVISIONS ARE MANUFACTURED TO PROVIDE OUTSTANDING VALUE, AND YOUR SATISFACTION IS OUR GOAL ON EVERY PRODUCT. ALL FSI MAJOR APPLIANCES CARRY A ONE YEAR LIMITED WARRANTY ON BOTH PARTS AND LABOR. ALL REFRIGERATORS AND FREEZERS CARRY AN ADDITIONAL FOUR YEARS ON THE COMPRESSOR. CERTAIN EXCLUSIONS MAY APPLY.
CERTAIN MODELS (INCLUDING SELECT RANGES, WALL OVENS, COOKTOPS AND ARISTON LAUNDRY) CARRY THE MANUFACTURER'S WARRANTY (ALSO ONE YEAR PARTS AND ON-SITE LABOR).
FOR DETAILS ON SPECIFIC WARRANTY ISSUES, PLEASE REFER TO THE WARRANTY STATEMENT INCLUDED IN YOUR PRODUCT'S USER MANUAL, OR CONTACT US.
GENERAL PARTS AND LABOR WARRANTY
FSI WARRANTS, TO THE ORIGINAL PURCHASER OF EVERY NEW UNIT, THE CABINET AND ALL PARTS THEREOF, TO BE FREE FROM DEFECTS IN MATERIAL OR WORKMANSHIP, UNDER NORMAL AND PROPER USE AND MAINTENANCE SERVICE AS SPECIFIED BY FSI AND UPON PROPER INSTALLATION AND START-UP IN ACCORDANCE WITH THE INSTRUCTION PACKET SUPPLIED WITH EACH FSI UNIT. FSI’S OBLIGATION UNDER THIS WARRANTY IS LIMITED TO A PERIOD OF 12 MONTHS FROM THE DATE OF ORIGINAL PURCHASE.
ANY PARTS, COVERED UNDER THIS WARRANTY, THAT ARE DETERMINED BY FSI TO HAVE BEEN DEFECTIVE, WITHIN THE ABOVE SAID PERIOD, ARE LIMITED TO THE REPAIR OR REPLACEMENT, INCLUDING LABOR CHARGES, OF DEFECTIVE PARTS OR ASSEMBLIES. ALL SERVICE ISSUES MUST BE DIRECTED TO FSI AT SERVICE@SUMMITAPPLIANCE.COM OR BY CALLING 718-893-3900. SERVICE ISSUES NOT DIRECTLY ASSIGNED BY AND FROM FSI WILL NOT BE COVERED UNDER OUR WARRANTY.
COMPRESSOR WARRANTY
IN ADDITION TO THE WARRANTY PERIOD STATED ABOVE, FSI WARRANTS ITS HERMETICALLY SEALED COMPRESSOR TO BE FREE FROM DEFECTS IN BOTH MATERIAL AND WORKMANSHIP, UNDER NORMAL AND PROPER USE AND MAINTENANCE, FOR A PERIOD OF 60 MONTHS FROM THE DATE OF ORIGINAL PURCHASE. COMPRESSORS DETERMINED BY FSI TO HAVE BEEN DEFECTIVE WITHIN THIS EXTENDED TIME PERIOD WILL, AT FSI’S OPTION, BE EITHER REPAIRED OR REPLACED WITH A COMPRESSOR OR COMPRESSOR PARTS OF SIMILAR DESIGN AND CAPACITY. THE ABOVE SAID EXTENDED COMPRESSOR WARRANTY APPLIES ONLY TO HERMETICALLY SEALED PARTS OF THE COMPRESSOR AND DOES NOT APPLY TO ANY OTHER PARTS OR COMPONENTS, INCLUDING, BUT NOT LIMITED TO, CABINET, PAINT FINISH, TEMPERATURE CONTROL, REFRIGERANT, METERING DEVICE, DRIERS, MOTOR STARTING EQUIPMENT, FAN ASSEMBLY, OR ANY OTHER ELECTRICAL COMPONENT, ETC.
