Summit Appliance offers a versatile line of full-sized freestanding beer dispensers designed for low maintenance storage. The SBC583SS features a large interior that can hold a full half, quarter, 1/6 or mini keg. It comes with a jet black cabinet and stainless steel door. The surface includes a removable drip tray to collect spills and a chrome guard rail to help keep glasses and mugs in place. We include a set of locking casters for easy mobility. The user-reversible door swing makes it easy to accommodate any location’s setup. Automatic defrost operation ensures minimum user maintenance inside the 4.9 cu.ft. interior. The 5 lb. CO2 tank is designed to be mounted in the rear of the unit, freeing up added storage space inside. A dial thermostat ensures easy temperature management. Two adjustable shelves are included to allow alternate storage options. The American Sankey tap kit includes all the accessories you need for draft service. This unit is designed for freestanding use. To order without any tapping equipment, see the SBC583SSNK.

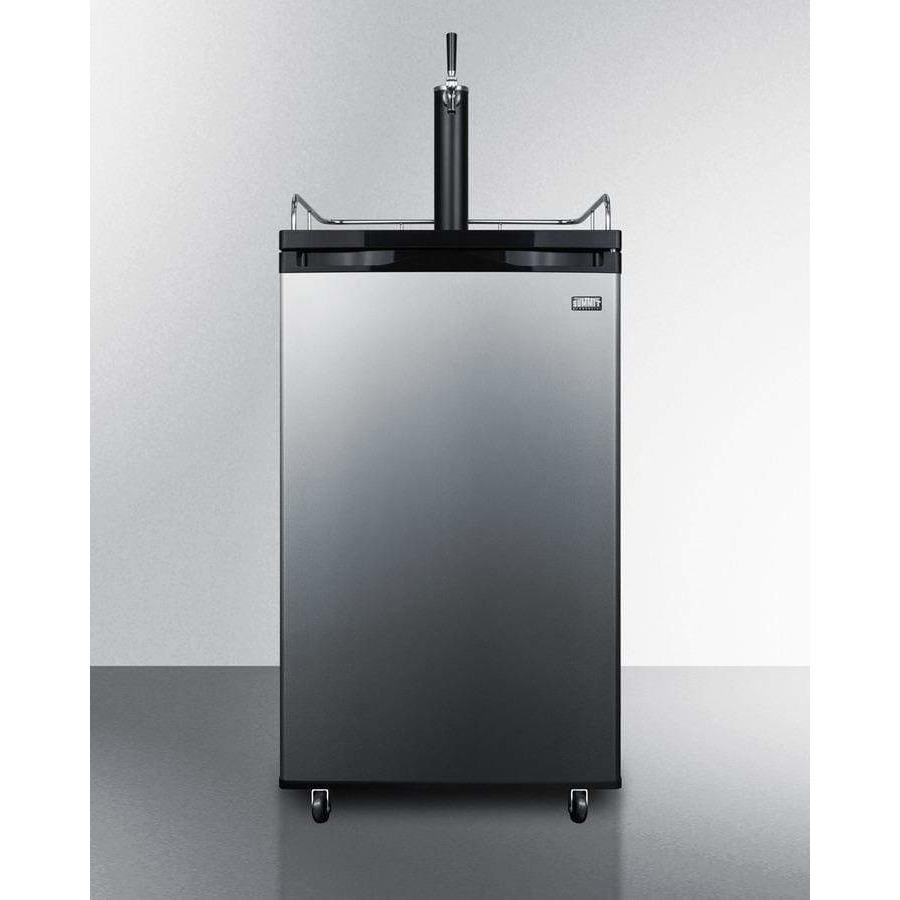

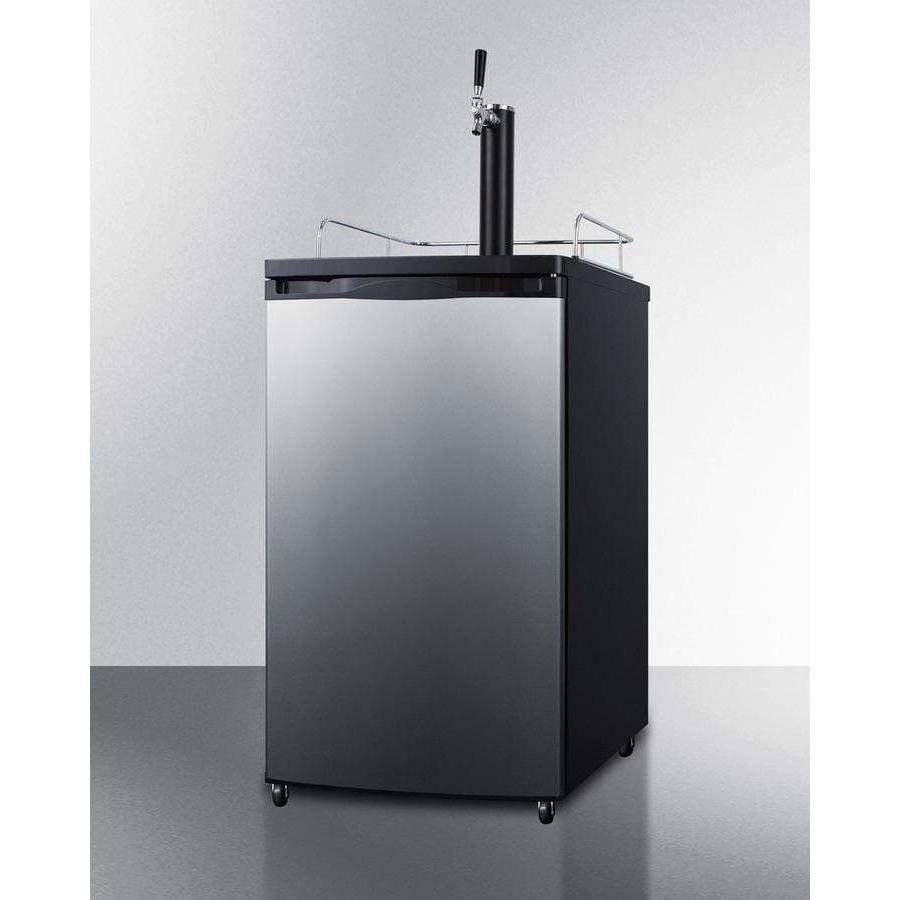

Full-sized beer dispenser
Large 4.9 cu.ft. interior accepts half, quarter, and mini kegs
Tap Kit
Includes a 5 lb. CO2 tank and regulator, draft arm, Sankey American tap, and connection hardware
Automatic defrost
Reduced user maintenance with auto defrost operation
Ideal beer temperature
Operates between 36º and 45ºF to keep a variety of beers stored at just the right serving temperature
Reversible stainless steel door
User-reversible door swing for added flexibility
Adjustable thermostat
Dial thermostat for easy and intuitive temperature management
Adjustable shelves
Includes two wire shelves with six positions for easier storage when using this unit to store other items

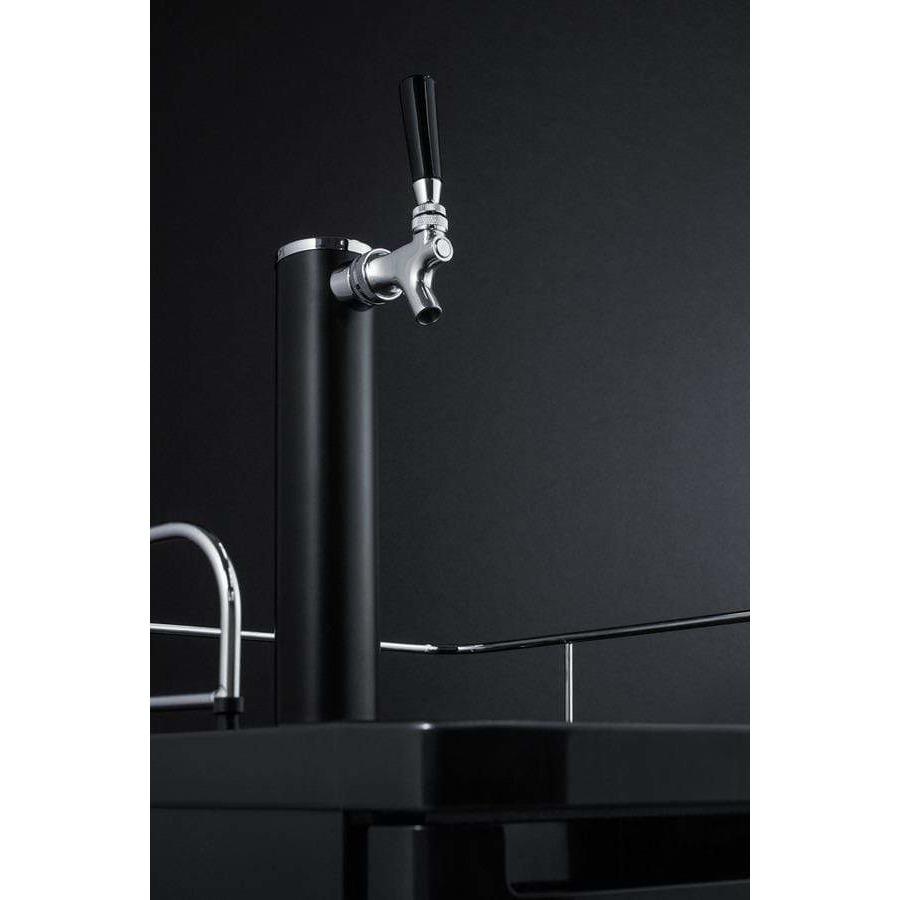

Color-matched beer tower
Draft tower comes in a jet black finish with stainless steel trim for an attractive, modern look
Casters included (ships unassembled)
To make the beer dispenser portable, install this set of 2 1/2" high locking casters
Top guard rail (ships unassembled)
Attractive chrome guard rail helps to reduce spills and neaten service
Drip tray
Removable drip tray catches spills to help contain the mess
Fully finished black cabinet
Allows the beer dispenser to be used freestanding
Brackets for rear-mounted tank

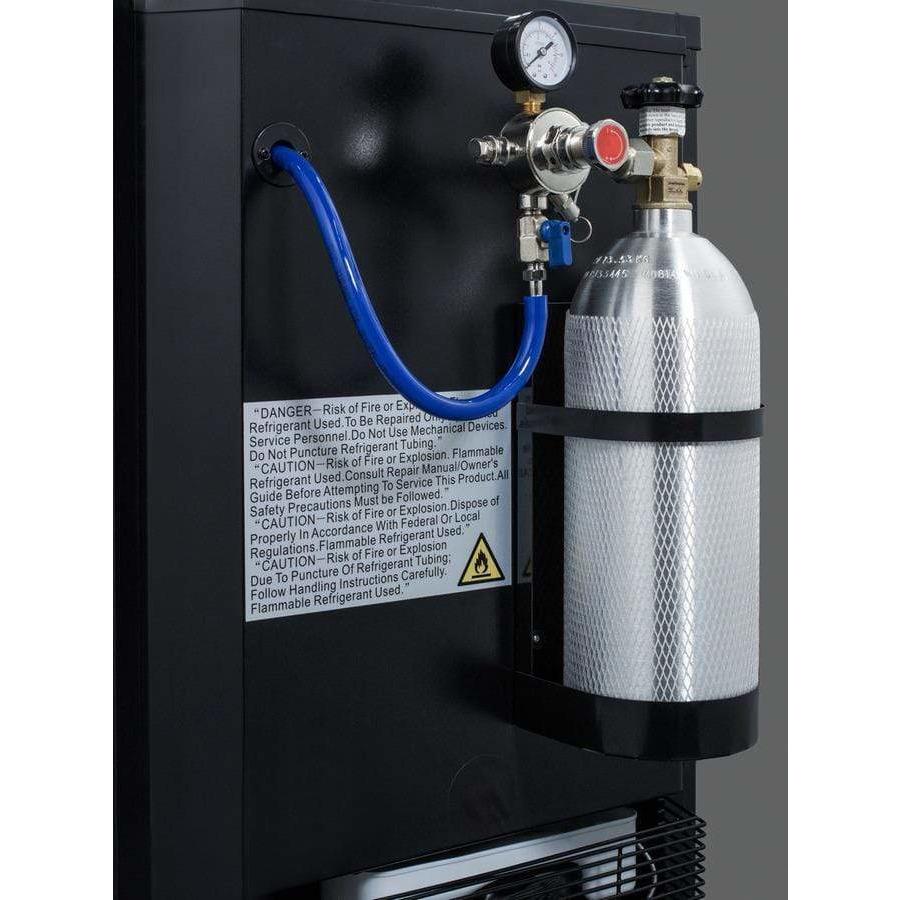

CO2 tank can be mounted outside the beer dispenser in the rear of the cabinet, freeing up added space inside for additional storage
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
SPECIFICATIONS
| Overview |
| Height of Cabinet |
33.0" (84 cm) |
| Width |
20.0" (51 cm) |
| Depth |
30.88" (78 cm) |
| Depth with door at 90° |
43.0" (109 cm) |
| Capacity |
4.9 cu.ft. (139 L) |
| Defrost Type |
Automatic |
| Door |
Stainless Steel |
| Cabinet |
Black |
| US Electrical Safety |
UL |
| Canadian Electrical Safety |
ULC |
| Energy Usage/Year |
270.0kWh/year |
| Amps |
1.1 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
70.0 lbs. (32 kg) |
| Shipping Weight |
73.0 lbs. (33 kg) |
| Estimated Time to Ship |
Next day shipping |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| Kegerator |
| Door Swing |
RHD |
| Reversible |
Yes |
| Tap Kit |
Yes |
| Height with Tap |
48.75" (124 cm) |
| Number of Taps |
1 |
| Adjustable Shelves |
Yes |
| Shelf Type |
Wire |
| Shelf Qty |
2 |
| Thermostat Type |
Dial |
| Refrigerant |
R600a |
| Refrigerant Amount |
0.67 oz. |
| High Side PSI |
150.0 |
| Low Side PSI |
60.0 |
| Inter Height |
28.5" (72 cm) |
| Interior Width |
16.63" (42 cm) |
| Interior Depth |
19.5" (50 cm) |
| Compressor Step Height |
7.75" (20 cm) |
| Compressor Step Width |
16.63" (42 cm) |
| Compressor Step Depth |
4.5" (11 cm) |
| Wheel Qty |
4 |
| Temperature Range |
36º to 45º F |
