Summit 24" Yellow Door Built-in All-Freezer ALFZ53Y

Summit 24" Yellow Door Built-in All-Freezer ALFZ53Y Overview

Looking for a spacious and sleek built-in all-freezer? The Summit 24" Yellow Door Built-in All-Freezer ALFZ53Y is the perfect solution!

Make a statement under the counter with Summit's exclusive collection of boldly colored refrigerators and matching freezers.

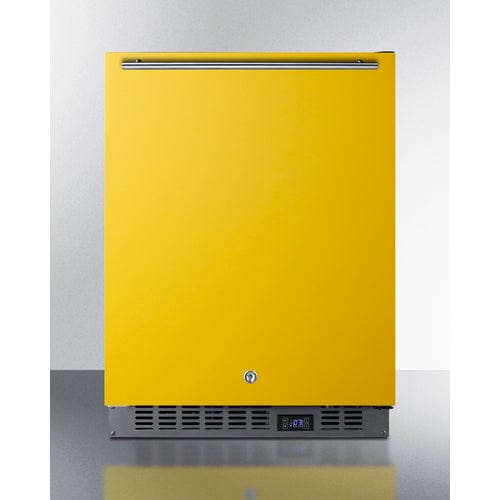

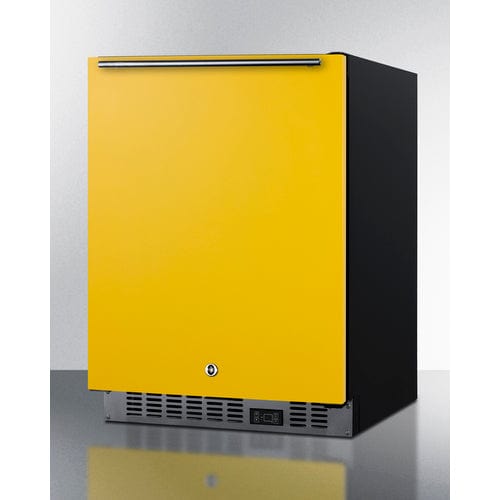

Model ALFZ53Y is a 24" wide freezer sized at just 32" high for easy installation under lower ADA compliant counters. The front-breathing cooling system allows built-in use, while the fully finished black cabinet also enables freestanding applications. The door comes in a bright saffron gold hue, with a sleek horizontally mounted stainless steel handle and matching stainless steel kickplate to complete the unique look.

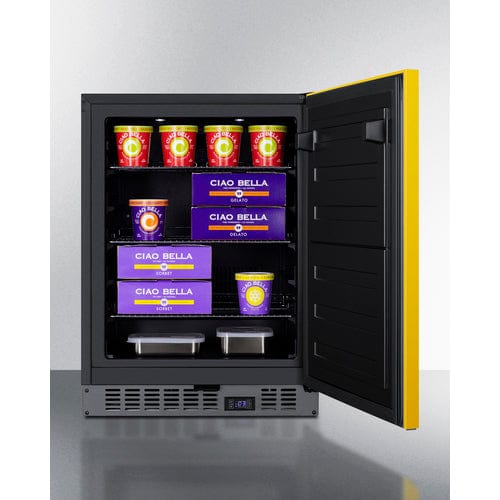

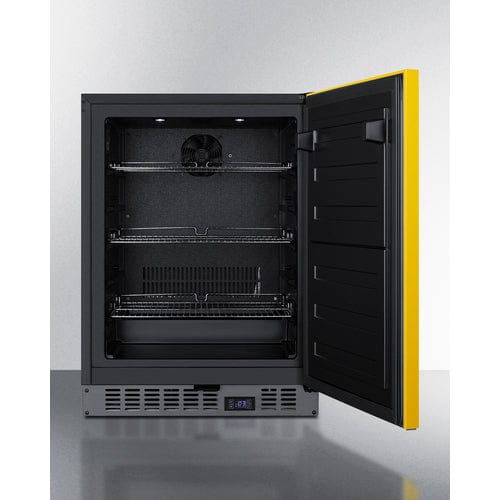

Inside, the ALFZ53Y utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat (located in the kickplate) makes it easy to manage the interior temperature. Three adjustable chrome shelves can be set at five different positions to best accommodate your storage needs. An open door alarm and high temperature alarm audibly warn if stored items are being exposed. An optional Sabbath mode setting lets you disable some of the electrical elements during periods of observance.

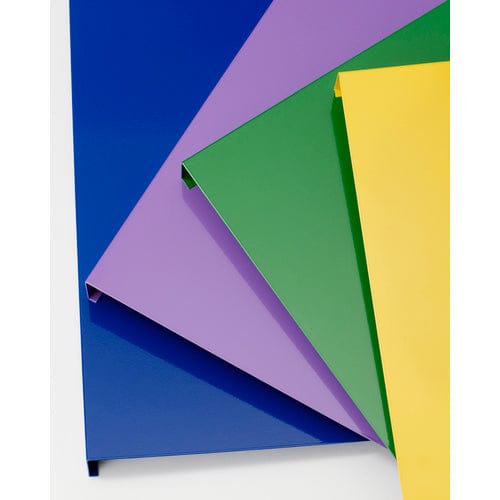

Additional features include a factory-installed lock for optional security, user-reversible door swing to best fit your space, right angle plug to save on depth, and sealed rear to ensure easier cleaning. The ALFZ53Y can be paired with the AL54Y all-refrigerator to create a matching undercounter ADA compliant set. Additional colors are available, including emerald green, cobalt blue, and lavender. Browse the full Summit selection to find the perfect addition to your kitchen.

Purchase the Summit 24" Yellow Door Built-in All-Freezer ALFZ53Y today and enjoy the convenience of ample and efficient freezing space NOW!

 Features

Features:

ADA compliant design

• 32" height allows easy installation under lower ADA compliant counters

Built-in capable

• Make the best use of space by installing your freezer under the counter and flush with other cabinets

Frost-free operation

• No-frost convenience eliminates the need to manually defrost the unit

Saffron gold door

• Bright yellow door finish with a slight gloss to elevate your undercounter space

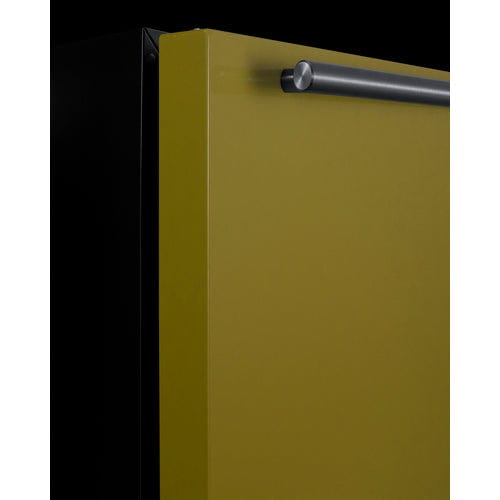

Professional handle

• Brushed stainless steel handle with a thin 14mm diameter is mounted horizontally across the door for a sleek look

Digital thermostat

• Electronic controls offer easy and intuitive temperature management

Recessed LED light

• Elegant lighting with an on/off switch located on the control panel

Reversible door

• User-reversible door swing for added flexibility

Factory installed lock

• Keyed lock for secure interior, with two keys included

Adjustable shelves

• Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Open door alarm

• Audible alarm will sound if the door is left open longer than one minute

Sabbath mode setting

• Optional setting lets you disable the lighting and alarm for up to 48 hours

High temperature alarm

• High temperature alarm sounds if the unit's interior goes out of the recommended range

Temperature Memory Function

• Unit will retain its last settings when power is restored in the event of power loss

Right angle plug

• The design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Stainless steel kickplate

• Added touch of style to complement the handle and complete the look

Sealed back

• Space-saving design with no exposed coils for easier cleanability

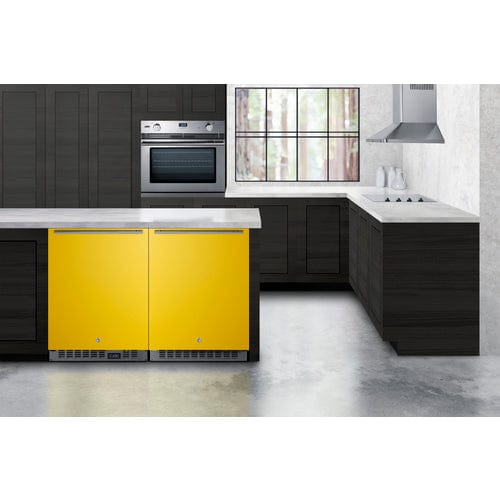

Matching refrigerator

• Pair with the AL54Y for a matching side-by-side set under lower ADA compliant counters

Fully finished cabinet

• Allows the unit to be used freestanding

100% CFC free

• Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

• Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

 Manuals

Manuals:

• User Manual for Summit 24" Yellow Door Built-in All-Freezer ALFZ53Y
• Product Brochure for Summit 24" Yellow Door Built-in All-Freezer ALFZ53Y
• Assembly Drawing for Summit 24" Yellow Door Built-in All-Freezer ALFZ53Y

 Need assistance? Talk to an Expert at +1-888-407-7770 or email: support@winecoolersempire.com to get the best-suited Freezer for your needs.

Specifications

Specifications

• Height of Cabinet: 32.0" (81 cm)
• Width: 23.63" (60 cm)
• Depth: 22.63" (57 cm)
• Depth with Handle: 24.13" (61 cm)
• Depth with door at 90°: 45.0" (114 cm)
• Capacity: 3.7 cu.ft. (105 L)
• Defrost Type: Frost-Free
• Door: Yellow
• Cabinet: Black
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Energy Usage/Year: 345.0kWh/year
• Amps: 1.5
• Voltage/Frequency: 115 V AC/60 Hz
• Weight: 92.0 lbs. (42 kg)
• Shipping Weight: 106.0 lbs. (48 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• UPC: 761101087641

 FREEZER

• Door Swing: RHD
• Reversible: Yes
• Interior Height: 23.5" (60 cm)
• Interior Width: 18.75" (48 cm)
• Interior Depth: 15.5" (39 cm)
• Refrigerant Type: R600a
• Refrigerant Amount: 1.31 oz.
• High Side PSI: 270.0
• Low Side PSI: 105.0
• Level Legs: 4
• Shelf Type: Chrome
• Shelf Qty: 3
• Adjustable Shelves: Yes
• Thermostat Type: Digital
• Interior Light: Yes
• Fan Type: Interior and Exterior
• Sabbath Mode: Yes
• Sound Level: 33.7 dB

• Temperature Range: -11°F to 11°F
• Compressor Step Height: 3.75" (10 cm)
• Compressor Step Width: 18.75" (48 cm)
• Compressor Step Depth: 4.5" (11 cm)
