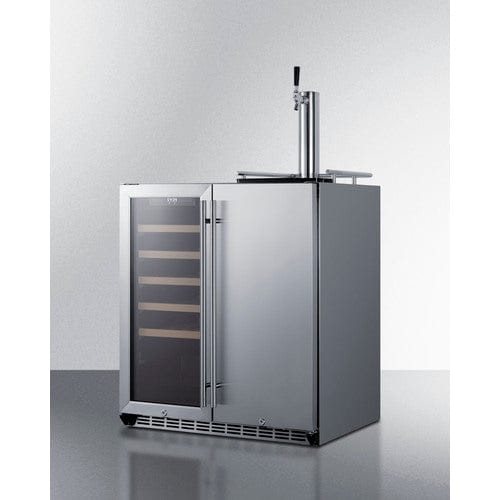

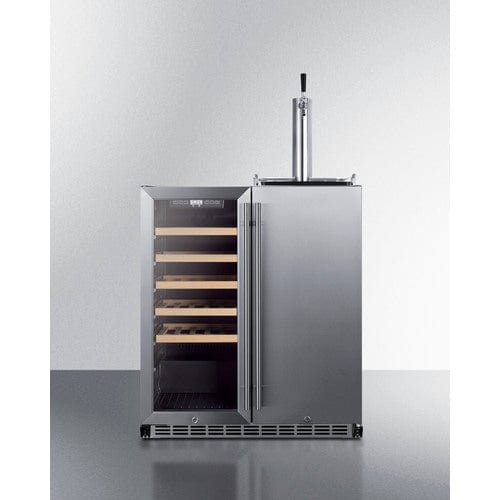

Summit 30" Combination Wine Cellar/Kegerator SWBC3041

Upgrade in Style with the Summit SWBC3041 Dual Zone Wine Cellar and Kegerator

Want an outdoor-ready wine cellar and beer dispenser built for high-end entertaining in any setting?

The Summit SWBC3041 is a 30-inch combination wine cellar and kegerator designed for both indoor and outdoor use. It features dual temperature zones—one for wine storage and one for beer dispensing. The left zone holds up to 24 wine bottles on wooden shelves, while the right side includes a full kegerator setup with tap tower, CO₂ tank, regulator, and drip tray. Frost-free cooling, digital controls, and locking doors make this unit ideal for patios, home bars, or commercial use.

Why Choose Summit?

Summit delivers weatherproof, dual-zone beverage solutions with pro-style stainless steel design, precise temperature control, and flexible indoor/outdoor installation for serious wine and beer enthusiasts.

Key Features

• Combination wine cellar and beer kegerator: Single compressor operation with two distinct temperature zones allows you to preserve and display wine on the left while tapping draft beer on the right

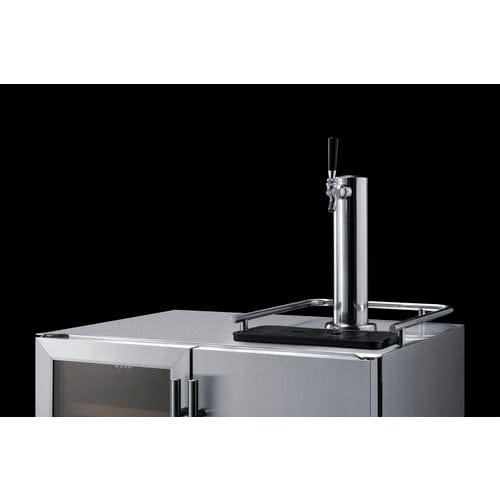

• Complete tap kit for serving beer: Includes all the tapping equipment you need to serve beer from a sixtel keg, with a stainless steel tower and faucet, CO2 tank, and regulator
• Indoor/Outdoor compatible: Durable, weatherproof construction designed to hold up to the elements
• Built-in capable: Front-breathing design allows the unit to be built-in under counters
• Dual zone operation: Each compartment features a wide range, allowing you to find the right temperature for a variety of wine and beer
• Factory installed locks: Keyed lock on each door provides security as needed
• Stainless steel exterior: Cabinet, kegerator door, and wine cellar door trim feature stainless steel construction for a professional look with lasting durability
• Frost-free: No-frost operation for minimal user maintenance
• Fan-forced cooling: Internal fans ensure both interiors have a consistent temperature from top to bottom
• Digital thermostat: Electronic controls for seamless temperature management, with readout in either Celsius or Fahrenheit
• LED lighting: White LED offers an attractive and efficient presentation

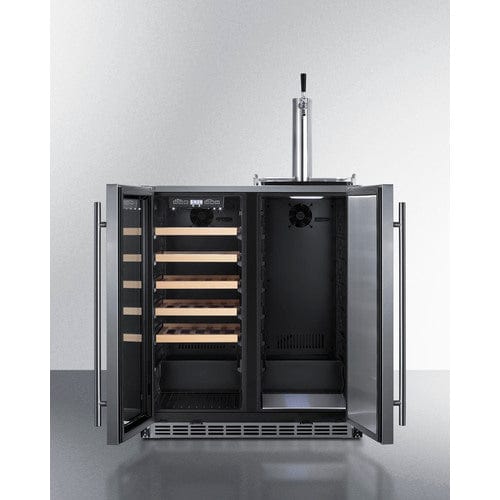

• Adjustable shelving: Wine cellar includes five slide-out wooden shelves to accommodate your bottles
• Professional handles: Stainless steel handles add style to any setting
• Beer dispenser: Right side is designed to accept a 1/6 (sixtel) barrel keg or corny keg
• Top guard rail (ships unassembled): Attractive chrome guard rail helps to neaten service
• Drip tray: Two-piece plastic drip tray included to help catch spills
• Stainless steel floor cover: Kegerator interior includes steel cover to protect the floor when loading kegs
• Sealed back: Space-saving and makes for quick cleaning of the unit’s exterior
• Right angle plug: Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
• Casters included: Set of four wheels (two with locking brakes) for optional installation to allow more mobility as needed
• Child lock function: Allows you to lock the control panel to prevent accidental adjustments
• Fully finished cabinet: Allows the unit to be used freestanding
• CARB Compliant: Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
• 100% CFC free: Environmentally friendly design with no ozone-damaging chemicals

Manuals for Summit 30" Combination Wine Cellar/Kegerator

• Product Brochure
• Owner's Manual
• Assembly Drawing

Specifications for Summit 30" Combination Wine Cellar/Kegerator SWBC3041

Overview

• Nominal Height: 35.0" (89 cm)
• Height of Cabinet: 34.25" (87 cm)
• Nominal Width: 30.0" (76 cm)
• Width: 29.5" (75 cm)
• Width with Door Open: 30.0" (76 cm)
• Nominal Depth: 24.0" (61 cm)
• Depth: 23.38" (59 cm)
• Depth with Handle: 25.13" (64 cm)
• Depth with Door at 90°: 36.5" (93 cm)
• Capacity: 6.3 cu.ft. (178 L)
• Bottles: 24 bottles
• Defrost Type: Frost-Free
• Door: Glass/SS
• Cabinet: Stainless Steel
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Amps: 1.5
• Weight: 140.0 lbs. (64 kg)

Beverage Kegerator

• Number of Zones: 2
• Door Swing: French
• Adjustable Shelves: Yes
• Shelf Type: Wood
• Shelf Quantity: 5
• Thermostat: Digital
• Interior Light: Yes
• Fan: Interior and Exterior
• Refrigerant: R600a
• Refrigerant Amount: 0.78 oz.
• High Side PSI: 220.0
• Low Side PSI: 43.0
• Level Legs: 4
• Wheel: 4
• Temperature Range: Left side: 39ºF to 72ºF; Right side: 32ºF to 72ºF
• Sound Level: 34.1 dB
• Interior Height 1: 26.75" (68 cm)
• Interior Width 1: 12.25" (31 cm)
• Interior Depth 1: 18.5" (47 cm)
• Interior Height 2: 26.75" (68 cm)
• Interior Width 2: 12.25" (31 cm)
• Interior Depth 2: 18.5" (47 cm)
• Compressor Step Height: 3.75" (10 cm)
• Compressor Step Width: 12.25" (31 cm)
• Compressor Step Depth: 5.0" (13 cm)
• Tap Kit: Yes
• Number of Taps: 1
• Height with Tap: 40.0" (102 cm)
