Summit 15" Panel Ready Ice Maker with ADA Compliant

Upgrade Your Kitchen with Summit's 15" Panel Ready Ice Maker with ADA Compliance

Is the Summit the Ideal Undercounter Ice Solution for Your Home or Business?

The Summit is a 15-inch-wide, ADA-compliant undercounter icemaker designed for both residential and commercial settings. Producing up to 68 lbs. of clear, gourmet-style top hat ice daily, it ensures your beverages stay colder longer without dilution. Its panel-ready exterior allows seamless integration into your kitchen or bar design, while the front-breathing design and adjustable height make it ideal for undercounter installations. With user-friendly digital controls, a built-in pump, and frost-free operation, the BIM62ADAPNR offers convenience and efficiency in one sleek package.

Why Choose Summit?

Summit delivers high-quality, space-saving appliances that combine functionality and style, perfect for modern living and commercial environments.

Key Features for 68lb. Ice Maker with ADA Compliance from Summit

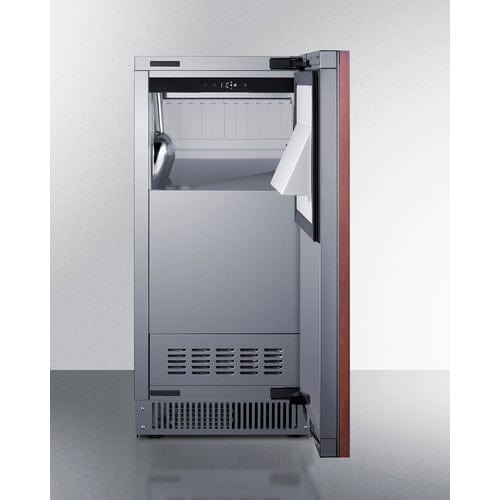

• 15" Wide Clear Icemaker: Built-in undercounter icemaker ideal for installation in kitchens, wet bars, break rooms, and other settings.

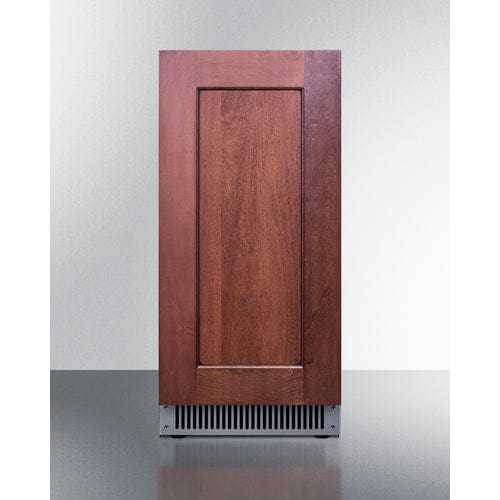

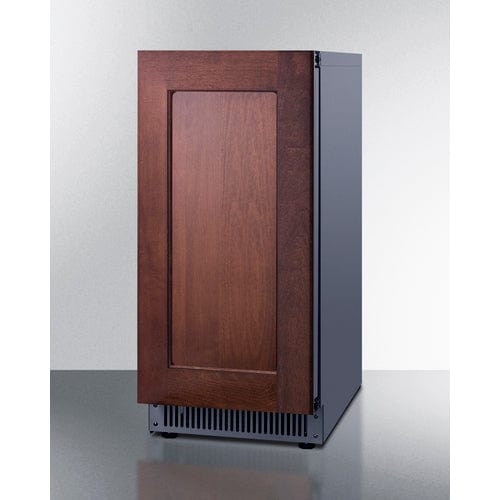

• Custom Style: Panel-ready door trim lets you seamlessly integrate this unit into your kitchen or bar.
• Built-in Undercounter Design: Front-breathing design allows installation under the counter to maximize space.
• Easy Panel Installation: Includes a 2-piece bracket kit for flush cabinet installation (recommended panel size: 3/4" thick, 28 1/4" H x 14 5/8" W).

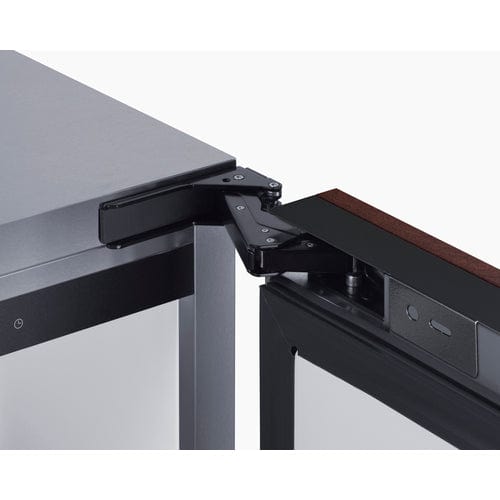

• Fully Articulating Door Hinge: European-style hinge provides a flush fit and smoother opening.
• Versatile Design: Panel-ready bracket kit allows easy custom panel installation and can be removed for a finished stainless steel look.
• ADA-Compliant: 32" height allows installation under lower ADA-compliant counters.
• Height Adjustable: Leveling legs extend up to 2 1/4", with a slide-out kickplate to raise height from 32" to 34 1/4" for taller cabinetry.
• Built-in Pump: Internal pump adds flexibility for placing the unit in various settings.
• Commercially Approved: ETL-S listed to NSF-7 standards for use in commercial establishments.
• 68 lb. Production Capacity: High output keeps plenty of clear gourmet ice on hand.

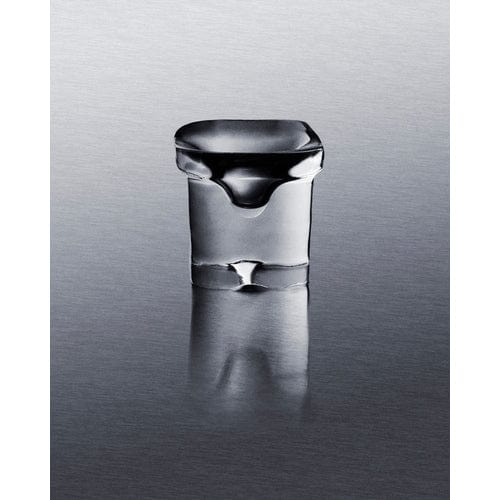

• Gourmet Top Hat Ice: Unique clear ice shape melts slower for upscale presentation and minimal dilution in cocktails.
• Unbranded Exterior: Clean look allows seamless integration with other appliances.
• Touch Controls: User-friendly controls with indicator lights for each stage of the ice-making process.
• Ice Size Selection: Choose from small, medium, or large clear ice cubes.
• Automatic Defrost: No-frost operation minimizes maintenance.
• Clean Function: Allows periodic system cleaning with a neutral detergent.
• Cleaning Alarm: Control panel light flashes every 180 days as a reminder to clean the unit.
• Memory Function: Remembers last settings after a power outage.
• Sabbath Mode: Disables lighting and alarms during periods of religious observance.
• Ice Scoop: Included for convenience, with an interior hook for storage.
• Sealed Back: Space-saving design with no exposed coils, making cleaning easier.
• Right Angle Plug: Allows flush wall installation without adding extra depth.
• Reversible Door: User-reversible door swing adds installation flexibility.

Manuals for Summit 15" Panel Ready Ice Maker

• BIM62ADAPNR Specifications Sheet
• BIM62ADAPNRLHD Specifications Sheet
• Owner's Manual
• Assembly Drawing
• Technical Drawing

Specifications for Summit 15" Panel Ready Ice Maker with ADA Compliance

Overview

• Height of Cabinet: 32.0" (81 cm)
• Width: 14.75" (37 cm)
• Depth: 22.75" (58 cm)
• Depth with Door at 90°: 38.13" (97 cm)
• Defrost Type: Automatic
• Door: Panel-Ready
• Cabinet: Stainless Steel
• Amps: 6.0
• Voltage/Frequency: 115 V AC / 60 Hz

Ice Makers

• Door Swing: RHD
• Reversible: Yes
• Height Adjustable: Yes
• Drain Required: Yes
• Daily Ice Production: 68.0 lbs. (31 kg)
• Ice Storage Capacity: 68.0 lbs. (31 kg)
• Ice Shape: Top hat
• Size of Cube: 1 1/4" H x 1 1/8" W x 1 1/8" D
• Number of Ice Cube Sizes: 3
• Refrigerant Type: R600a
• Refrigerant Amount: 1.58 oz.
• Interior Height: 19.75" (50 cm)
• Interior Width: 12.25" (31 cm)
• Interior Depth: 15.5" (39 cm)
• Level Legs: 4
