Summit 44 Bottle 24" Wide Built-In Wine Fridge SWC532LBISTPNR

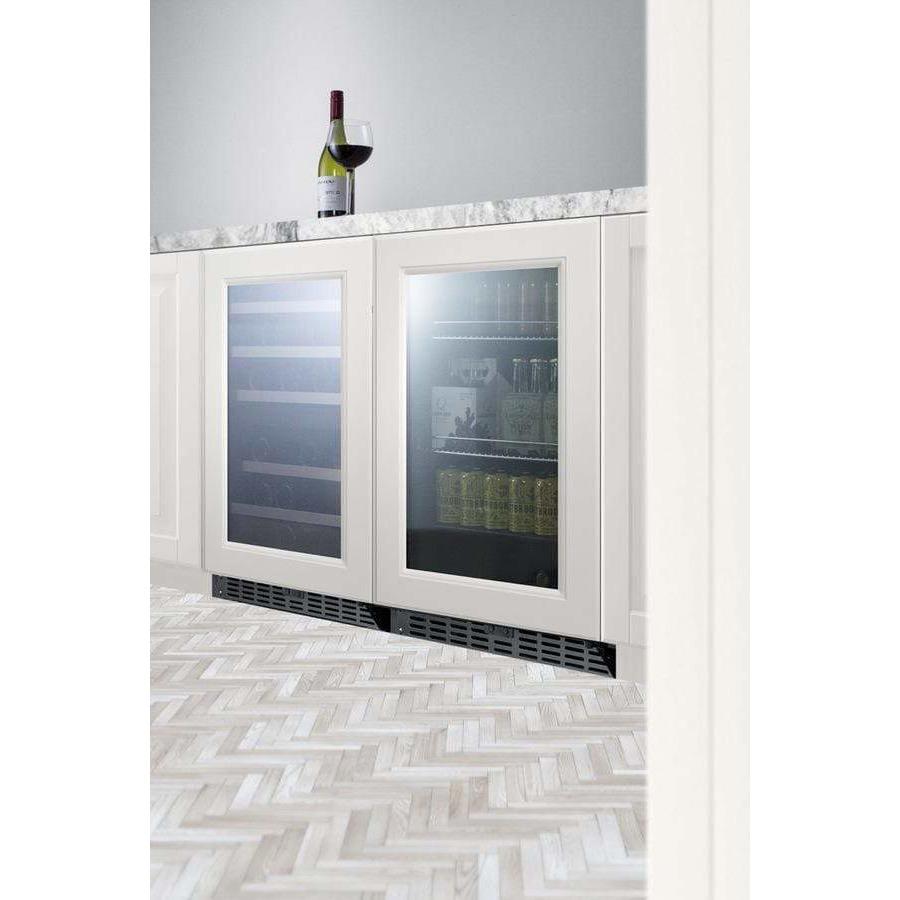

• Built-in capable
• Make the best use of space by installing your appliance under the counter
• Two temperature zones
• Lower zone for reds has a temperature range of 54 to 72º F; Upper zone stores whites and sparkling wine between 41 to 54º F
• Digital thermostat
• Set and adjust two temperature zones separately with easy-to-use digital controls and digital displays that can show the temperature in Celsius or Fahrenheit

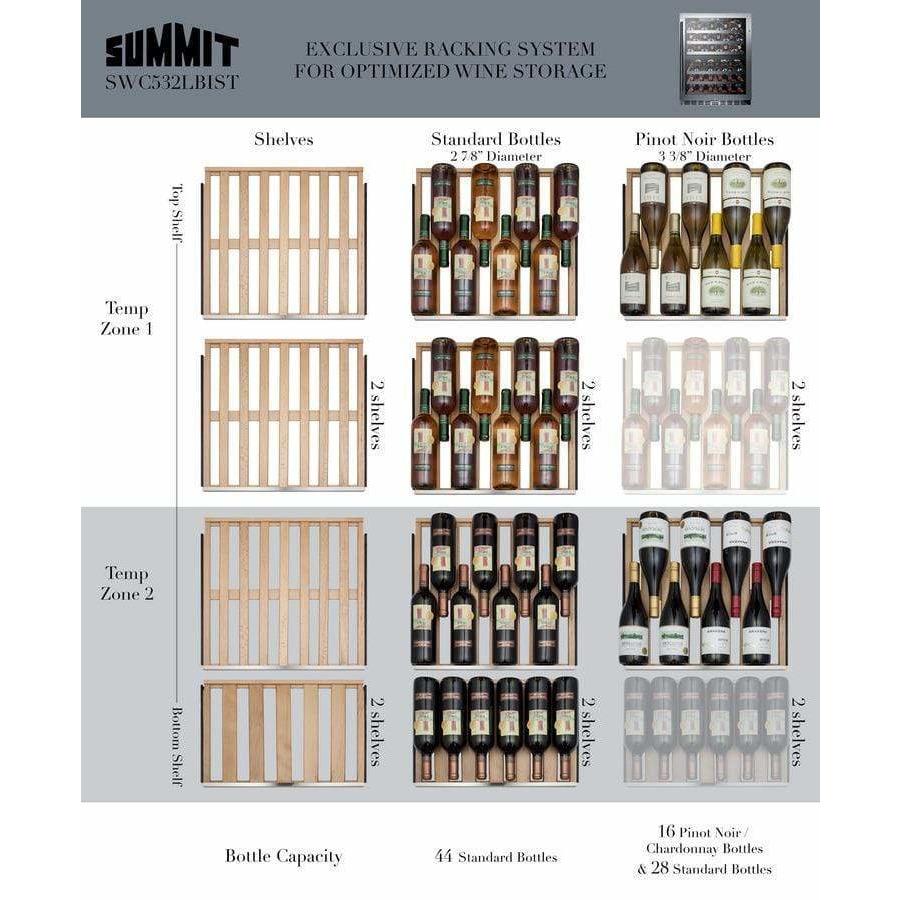

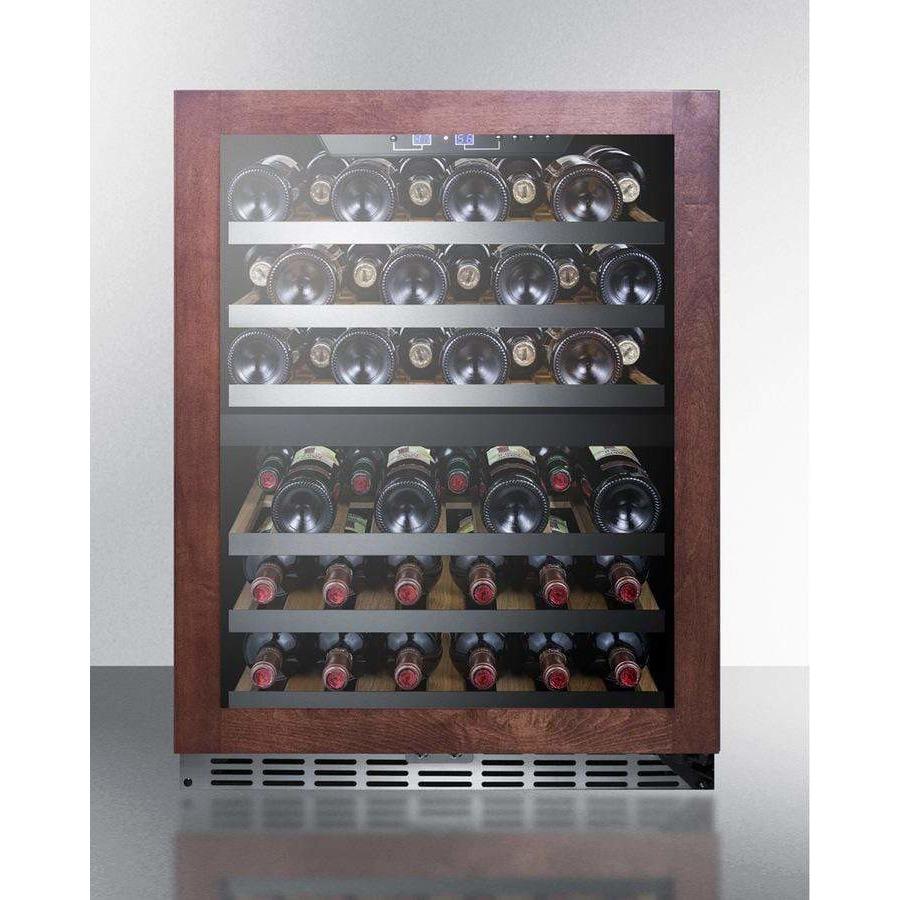

• 44 Bottle capacity
• Interior holds up to 44 standard Bordeaux style bottles. Lower red wine section can store up to 16 larger Burgundy/Pinot Noir style bottles as well

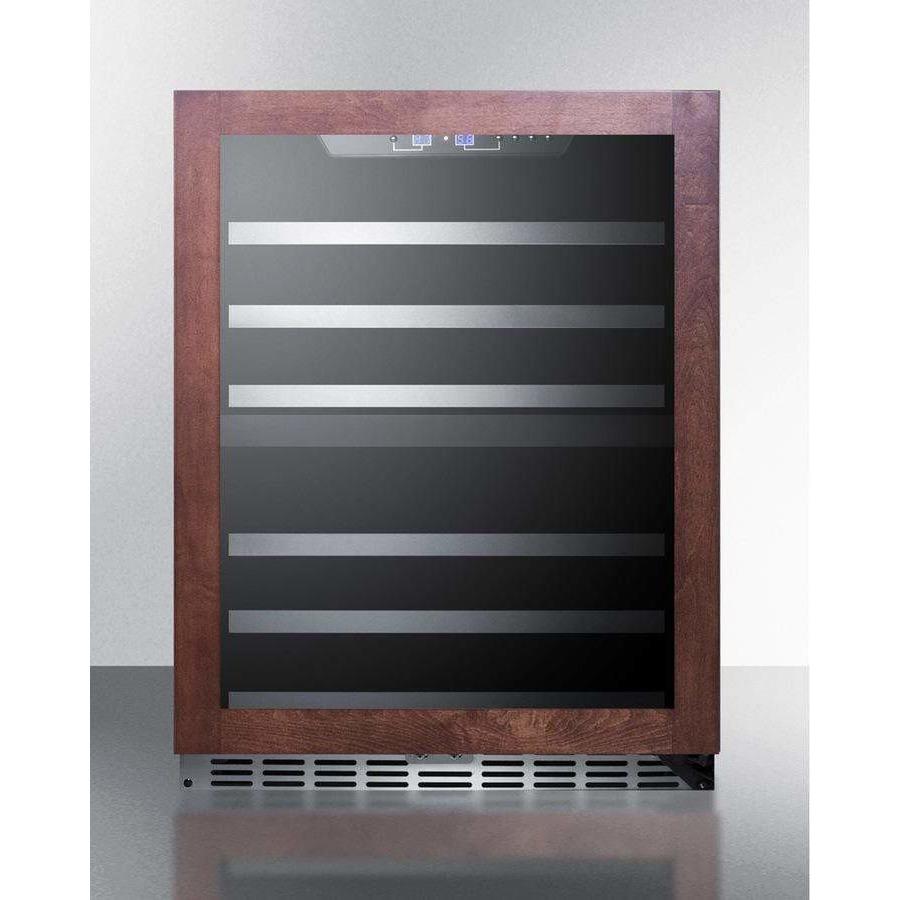

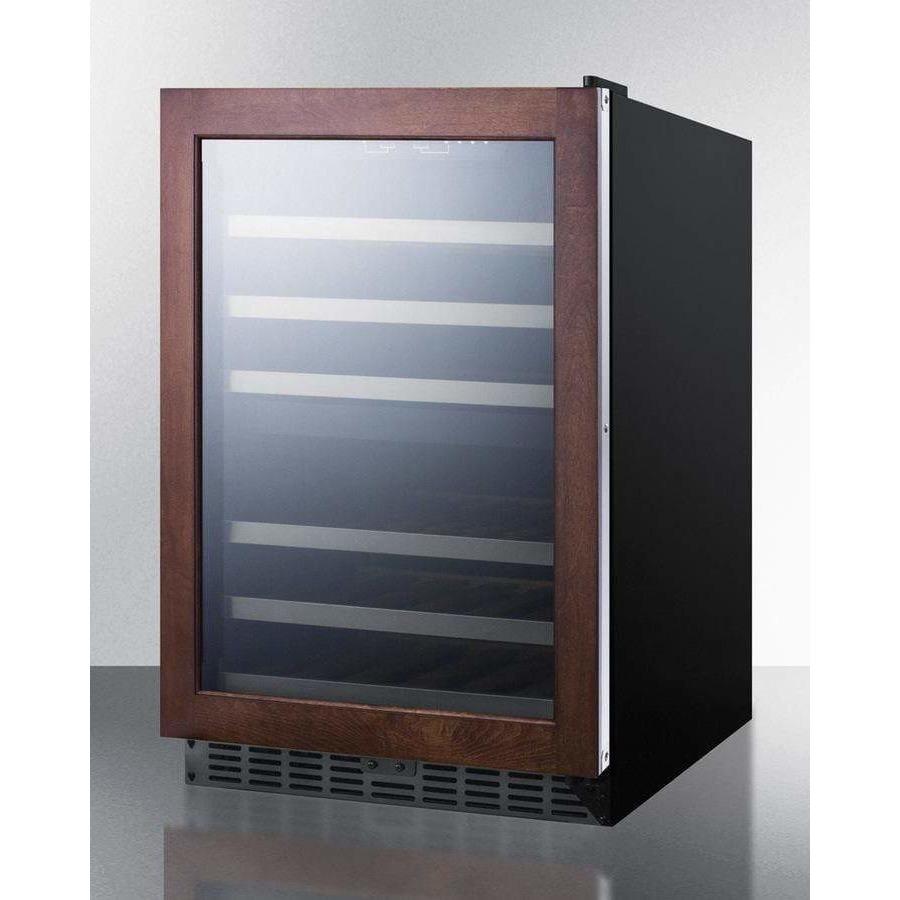

• Panel-ready door trim
• Door frame can be customized with a custom overlay panel (panel frame: 29 7/8" H x 23 3/8" W; trim is 1 3/4" high and wide)
• Full extension slide-out shelves
• Shelves securely glide all the way out for easier loading and unloading
• Automatic defrost
• Reduced maintenance with auto defrost system
• Stainless steel trimmed wooden shelves
• Classic style with an added touch of elegance
• Glass door
• Provides a full display of your collection
• LED lighting
• Elegant lighting in an attractive white hue
• Saved temperature settings
• In the event of power failure, all previous temperature settings are automatically saved
• Reversible door
• User reversible door swing
• Fully finished black cabinet
• Allows the unit to be used freestanding
• Professional handle
• Ships with a stainless steel handle. Customers can also substitute their own for a custom look
• 100% CFC Free
• Environmentally friendly design with no ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet	33.5" (85 cm)
Height to Hinge Cap	34.0" (86 cm)
Width	23.63" (60 cm)
Depth	23.63" (60 cm)
Depth with Handle	25.25" (64 cm)
Depth with door at 90°	46.0" (117 cm)
Capacity	5.43 cu.ft. (154 L)
Bottles	44 bottles
Defrost Type	Automatic
Door	Glass/Panel-Ready Frame
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	1.1
Voltage/Frequency	115 V AC/60 Hz
Weight	112.0 lbs. (51 kg)
Shipping Weight	117.0 lbs. (53 kg)
Estimated Time to Ship	2 to 4 days
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
Wine Cellar
Number of Zones	2
Door Swing	RHD
Reversible	Yes
Shelf Type	Wood
Shelf Qty	6
Thermostat Type	Digital
Interior Light	Yes
Refrigerant Type	R600a
Refrigerant Amount	1.23 oz.
High Side PSI	270.0
Low Side PSI	103.0
Interior Height 1	13.0" (33 cm)
Interior Width 1	20.5" (52 cm)
Interior Depth 1	18.63" (47 cm)
Compressor Step Height	5.0" (13 cm)
Compressor Step Width	20.5" (52 cm)
Compressor Step Depth	6.5" (17 cm)
Temperature Range	41º to 72ºF
Interior Height 2	13.25" (34 cm)
Interior Width 2	20.5" (52 cm)
Interior Depth 2	18.63" (47 cm)



MANUALS



BROCHURE w/ DRAWINGS
SWC532LBISTPNR.pdf





TECHNICAL DRAWING (.dwg)
SWC532LBIST_WINE_CELL.__A-C_2000_.dwg





SUPPORT
PNR_Instructions_-_SCR2466_and_SWC532LBIST.pdf





USE & CARE
SWC532LBIST_manual.pdf





SUPPORT
SWC532LBIST_Shelving_Guide.pdf
