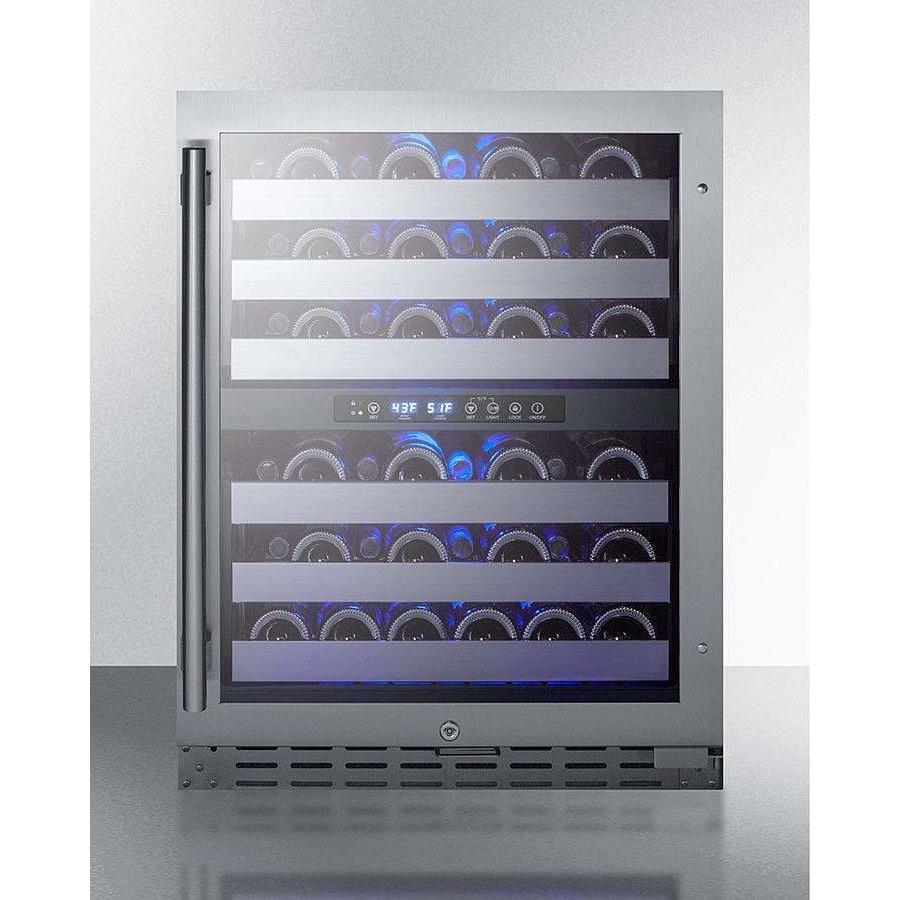

Summit's extensive selection of built-in undercounter wine cellars includes ADA compliant choices with versatile designs for residential or commercial use. The ALWC532 is a dual zone wine cellar that is ETL-S listed to NSF-7 commercial standards. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. Sized just under 32 inches high and 24 inches wide, this unit makes an ideal fit under lower ADA compliant counters. The user-reversible double pane tempered glass door features a seamless stainless steel door trim and pro style handle in stainless steel. A factory-installed lock offers added security and a stainless steel kickplate completes the look. Inside, the ALWC532 is designed to store up to 46 standard Bordeaux style bottles, or a combination of 30 Bordeaux and 16 wider Burgundy bottles. The digital control panel allows you to manage the upper temperature chamber between 41 and 50ºF for white wine, while the lower zone is designed to store red wine between 50 and 64ºF. Six full-extension black wire shelves with stainless steel front trim move out smoothly on ball-bearing glides for easy loading. Both compartments include recessed LED lighting in a gentle blue hue for an attractive and efficient presentation. With its advanced user features and versatile design, the ALWC532 makes a great addition to any ADA compliant setting looking to store wine in modern style. This unit can also be ordered with a panel-ready door trim, or with a stainless steel wrapped exterior cabinet. For more options, browse our website.
ADA compliant
Sized just under 32" high for an easy fit under lower ADA compliant counters
Commercially approved
ETL-S listed to NSF-7 standards for use in commercial applications
Built-in capable
Front-breathing design allows this unit to be installed under counters
Commercial shelving design
Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving

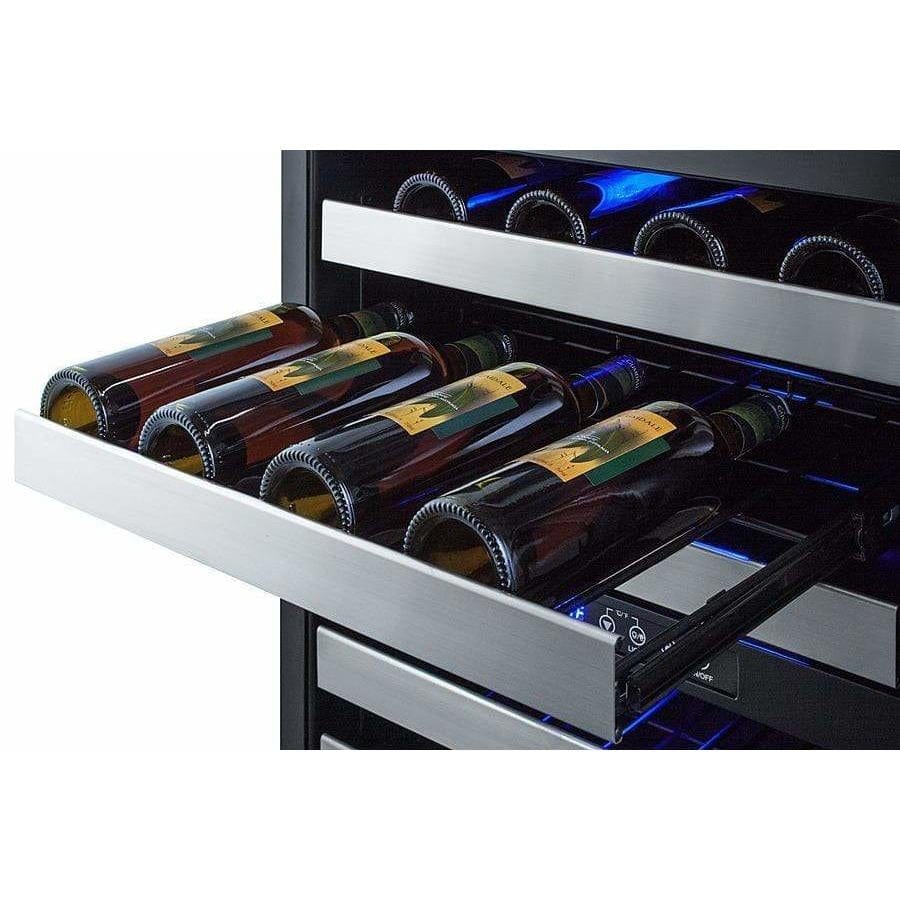

Full-extension shelving
Shelves move smoothly on ball-bearing glides for easier loading and unloading
Two temperature zones
Lower zone for reds has a temperature range of 50º F to 64º F; Upper zone stores whites and sparkling wine between 41º F and 50º F
Digital control panel
Easy temperature management with electronic controls located inside
Versatile readout
Temperature viewable in Celsius or Fahrenheit
Automatic defrost
Reduced maintenance with auto defrost system
Stainless steel door frame
Single-piece door trim offers a more deluxe look
Professional handle
Stainless steel handle with solid 1" diameter for added style
Double pane tempered glass door
Provides a full display of the interior, with two levels of glass for added protection
Interior lighting
Recessed LED lighting in both compartments brings striking blue illumination to your collection
Factory installed lock
Keyed lock for secure interior, with two keys included
Reversible door
User-reversible door swing makes it easy to best accommodate your setting
Fully finished black cabinet
Allows the unit to be used freestanding
Matching beverage center available
Pairs perfectly with the ALBV2466
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
SPECIFICATIONS
| Overview |
| Height of Cabinet |
31.63" (80 cm) |
| Width |
23.5" (60 cm) |
| Depth |
23.38" (59 cm) |
| Depth with Handle |
25.38" (64 cm) |
| Depth with door at 90° |
45.75" (116 cm) |
| Bottles |
46 bottles |
| Defrost Type |
Automatic |
| Door |
Glass |
| Cabinet |
Black |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Sanitation |
ETL-S |
| Amps |
1.25 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
113.0 lbs. (51 kg) |
| Shipping Weight |
120.0 lbs. (54 kg) |
| Estimated Time to Ship |
Next day shipping |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| Wine Cellar |
| Number of Zones |
2 |
| Door Swing |
RHD |
| Reversible |
Yes |
| Shelf Type |
Wire |
| Shelf Qty |
6 |
| Thermostat Type |
Digital |
| Interior Light |
Yes |
| Fan Type |
Interior and Exterior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
1.23 oz. |
| High Side PSI |
150.0 |
| Low Side PSI |
50.0 |
| Interior Height 1 |
11.63" (30 cm) |
| Interior Width 1 |
20.5" (52 cm) |
| Interior Depth 1 |
18.0" (46 cm) |
| Compressor Step Depth |
6.0" (15 cm) |
| Level Legs |
2 |
| Temperature Range |
41 to 64ºF |
| Interior Height 2 |
11.88" (30 cm) |
| Interior Width 2 |
20.5" (52 cm) |
| Interior Depth 2 |
18.0" (46 cm) |
