Summit 50 lb. Outdoor ADA Built-In Clear Icemaker BIM47OSADA

Features:

Commercially approved

• ETL-S listed to NSF-12 commercial standards

Weatherproof design

• Durable stainless steel construction for safe installation in outdoor spaces

ADA compliant

• 32 3/8" height fits under lower ADA compliant counters

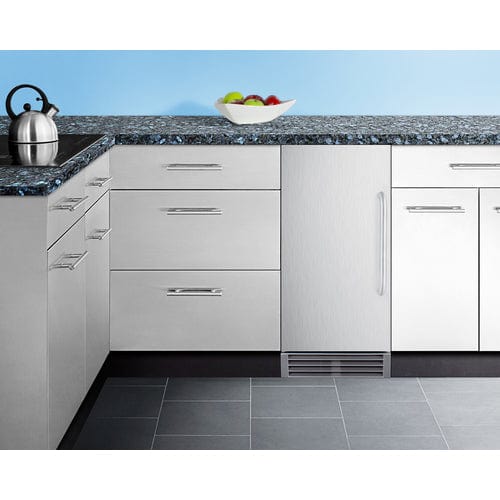

Built-in capable

• Make the best use of space by installing your icemaker under the counter

50 lb. production capacity

• Can make up to 50 lbs. of clear ice cubes in a day cycle and store up to 25 lbs. per day (Note: ice is produced in sheets and can easily be broken into cubes using the provided scoop.)

ENERGY STAR certified commercial performance

• Efficient performance saves on energy use and costs

Built-in pump

• Internal pump affords more flexibility in placing the unit

Panel-ready door

• Stainless steel door frame accepts full overlay panels for users to create a seamless custom look (panel size: 27 7/8" H x14 5/8" W and at least 3/4" thick; maximum weight: 10 lbs.)

Automatic defrost

• Reduced maintenance with auto defrost system

Clear ice cube production

• Produces 7/8" x 7/8" x 7/8" clear ice cubes

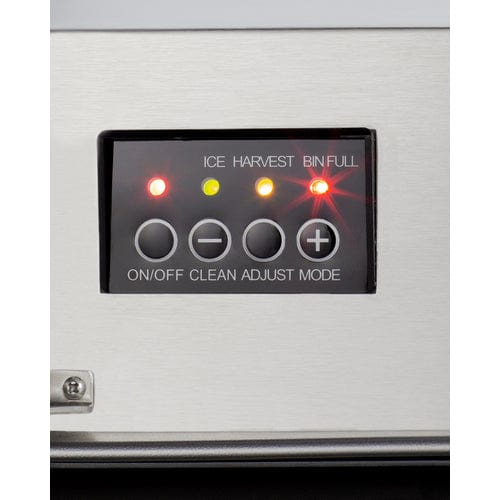

Touch control panel

• Provides easy operation of the unit with indicator lights for each stage of the production process

Reversible stainless steel door

• User-reversible door swing for flexible placement

Professional towel bar handle

• A curved handle in brushed stainless steel offers an easy grip

Insulated storage bin

• Ice stays solid longer in this cold-protected bin

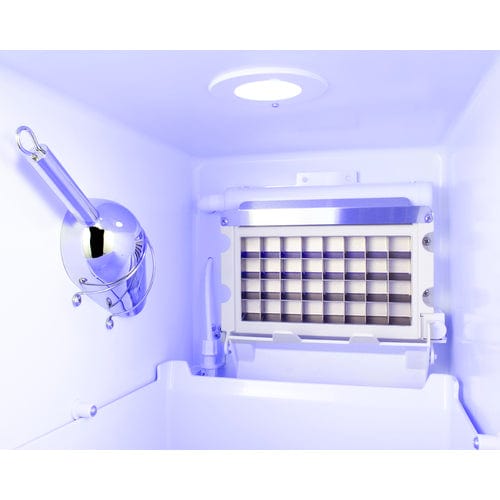

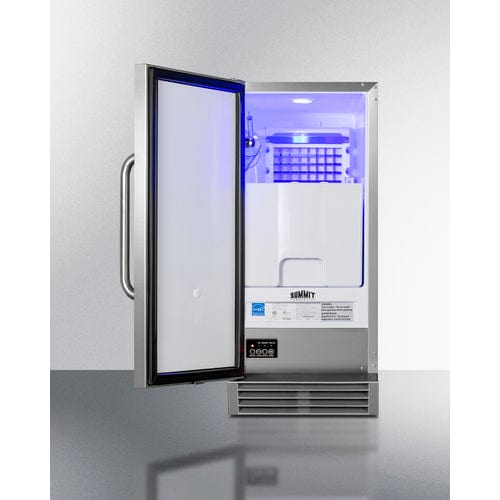

Interior light

• Lighting in a soft blue hue for easy viewing of the interior

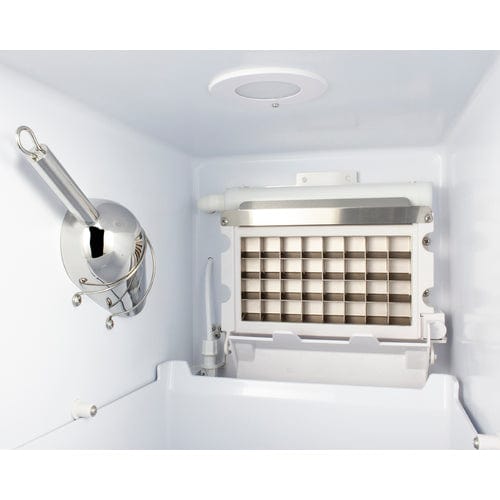

Ice scoop included

• Interior wall includes brackets to hang for easy storage

Fully finished black cabinet

• Allows the unit to be used freestanding

Sealed back

• Space saving design for easier cleanability

Leveling legs

• Four leveling legs help to keep the unit level on uneven surfaces

100% CFC free

• Environmentally friendly design without ozone-damaging chemicals

Lead-free certified

• Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard

Manuals:

• User Manual for Summit 50 lb. Outdoor ADA Built-In Clear Icemaker BIM47OSADA
• Product Brochure for Summit 50 lb. Outdoor ADA Built-In Clear Icemaker BIM47OSADA
• Assembly Drawing for Summit 50 lb. Outdoor ADA Built-In Clear Icemaker BIM47OSADA

 Need assistance? Talk to an Expert at +1-888-407-7770 or email: support@winecoolersempire.com to get the best-suited Ice Maker for your needs.

Specifications

• Height of Cabinet: 32.38" (82 cm)
• Width: 14.5" (37 cm)
• Depth: 23.25" (59 cm)
• Defrost Type: Automatic
• Door: Stainless Steel
• Cabinet: Stainless Steel
• US Electrical Safety: UL
• Canadian Electrical Safety: ULC
• Sanitation: ETL-S
• Amps: 4.8
• Voltage/Frequency: 115 V AC/60 Hz
• Weight: 100.0 lbs. (45 kg)
• Shipping Weight: 115.0 lbs. (52 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• UPC: 761101067766

Ice maker

• Door Swing: LHD
• Reversible: Yes
• Drain Required: Yes
• Daily Ice Production: 50.0 lbs. (23 kg)
• Ice Storage Capacity: 25.0 lbs. (11 kg)
• Ice Shape: Cube
• Size of Cube: 7/8" x 7/8" x 7/8"
• Number of Ice Cube: Sizes 1
• Fan Type: Exterior
• Refrigerant Type: R134a
• Refrigerant Amount: 3.88 oz.
• High Side PSI: 350.0
• Low Side PSI: 130.0
• Interior Height: 18.5" (47 cm)
• Interior Width: 12.0" (30 cm)
• Interior Depth: 16.0" (41 cm)
• Level Legs: 4
