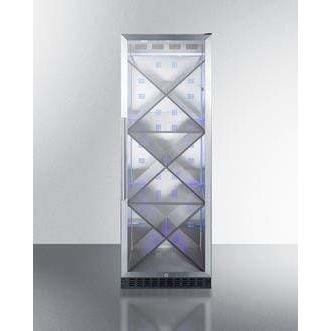

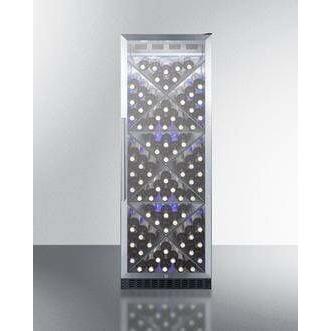

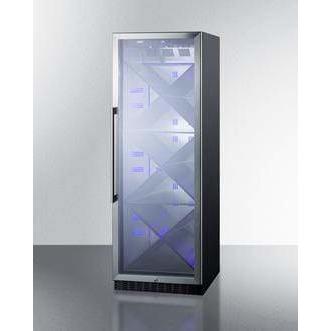

Summit 80 Bottle Commercial 24" Diamond Series Single Zone Black Right Hinge Commercial Wine Fridge SCR1401X Overview



Summit Commercial offers a unique selection of wine cellars designed for optimum storage and bottle presentation. The SCR1401X is an upright wine cellar built to meet NSF-7 commercial standards. The slim 24 inch footprint takes up minimum floor space, while the large 12.6 cu.ft. interior accommodates up to 80 Bordeaux style wine bottles. The self-closing stainless steel trimmed door includes a pro style handle and factory-installed lock for added security. This model comes with a right hand door swing. For a left hand version, see the SCR1401LHX. Inside, the SCR1401X features Summit Commercial's unique diamond style racking system, providing a stunning cellar-style presentation that offers easy bottle access for staff. The shelving and interior walls are constructed from stainless steel for lasting durability in busy commercial settings, with a black rubberized trim built to NSF commercial standards. This unit is illuminated through the rear walls with efficient LED lighting in a striking blue hue. The digital control panel is conveniently located towards the top of the unit, with a wide 36 to 68ºF temperature range that allows you to program the optimum settings for red, white, or sparkling wine. Additional features include an audible high temperature alarm, open door alarm, temperature memory function, and sabbath mode setting. The SCR1401X comes with a fully finished jet black cabinet. Additional choices are available in stainless steel. For a similar unit designed to store champagne bottles, see the SCR1401CH.



FEATURES
  • Commercially approved
  • Design meets UL-471 commercial standards and is ETL-S listed to NSF-7 standards for commercial use
  • Slim fit
  • Just 24" wide and deep for an easy fit in any setting
  • Diamond style wine racks
  • Interior features stainless steel shelving in a unique diamond configuration for an elevated presentation
  • Rubberized safety trim
  • Each shelf features an industrial rubberized trim in a black finish, ensuring there are no sharp edges while providing a clean look
  • Stainless steel interior
  • Walls are constructed from stainless steel for added strength and easy cleanup
  • Double pane tempered glass door
  • Heat-safe glass door with stainless steel trim offers full display all the way down to the floor
  • Interior LED lighting
  • Fully lit interior with a striking blue LED hue, providing an attractive and energy efficient view
  • Self-closing door
  • Door will automatically close when left ajar, preventing items from accidentally being left exposed to ambient temperatures
  • Digital thermostat
  • Electronic controls for precise temperature management, with a readout viewable in Celsius or Fahrenheit
  • Wide temperature range
  • Interior can be set between 36 to 68ºF, allowing users to adjust for red wine, white wine, or champagne
  • Frost-free operation
  • No-frost convenience requires no manual defrosting
  • Factory installed lock
  • Keyed lock for a secure interior (2 keys included)
  • Fan-forced cooling
  • Internal fan ensures the interior is evenly cooled from top to bottom
  • High temperature alarm
  • Alarm sounds if the interior temperature rises out of suggested range
  • Professional handle
  • Attractive design in stainless steel to complete the look
  • Right hand door swing
  • For a left hand version, see the SCR1401LHX
  • Sabbath mode setting
  • Optional setting lets you disable the lighting and alarm for up to 96 hours
  • Right angle plug
  • Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
  • Temperature Memory Function
  • Unit will retain its last settings when power is restored in the event of power loss
  • Fully finished black cabinet
  • Allows the unit to be used freestanding
  • 100% CFC Free
  • Environmentally friendly design with no ozone-damaging chemicals

SPECIFICATION
Overview
Height of Cabinet 69.75" (177 cm)
Width 23.63" (60 cm)
Depth 23.75" (60 cm)
Depth with Handle 25.63" (65 cm)
Depth with door at 90° 46.75" (119 cm)
Capacity 12.6 cu.ft. (357 L)
Bottles 80 bottles
Defrost Type Frost-Free
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.7
Voltage/Frequency 115 V AC/60 Hz
Weight 300.0 lbs. (136 kg)
Shipping Weight 320.0 lbs. (145 kg)
Estimated Time to Ship 5 to 7 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Wine Cellar
Number of Zones 1
Door Swing RHD
Reversible No
Shelf Type Steel
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.76 oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Height 1 59.75" (152 cm)
Interior Width 1 19.5" (50 cm)
Interior Depth 1 11.25" (29 cm)
Compressor Step Height 4.5" (11 cm)
Compressor Step Width 19.5" (50 cm)
Compressor Step Depth 4.5" (11 cm)
Temperature Range 36 to 68ºF
Sabbath Mode Yes

WARRANTY
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
