Summit 80 lb. Commercial Ice Machine BIM85

20 Inch Commercial Undercounter Cube Ice Maker – 80 lb Daily Output, ENERGY STAR, Stainless Steel

Need a shallow-depth commercial ice maker that fits under counters and delivers 80 lb of full-cube ice daily?

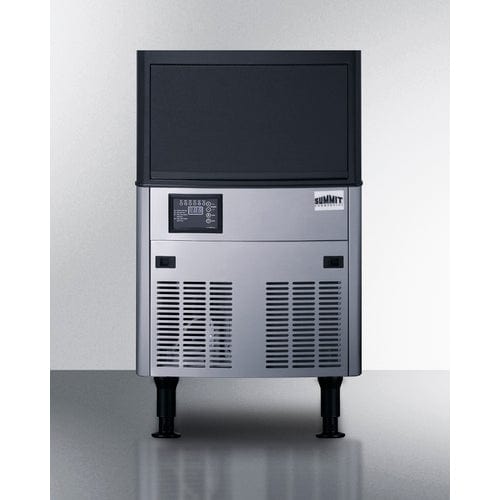

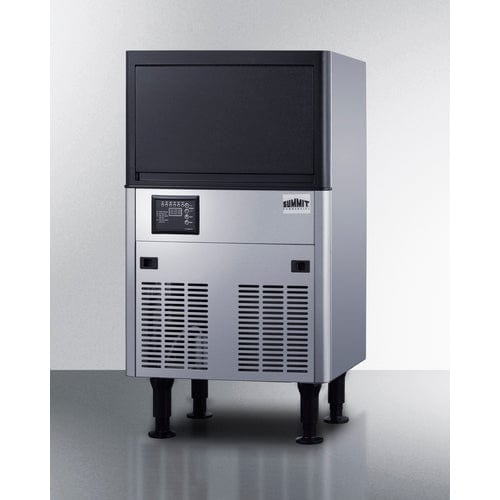

The Summit BIM85 is a 20-inch wide, shallow-depth commercial cube ice maker that produces up to 80 pounds of clear ice daily and stores 33 pounds in a built-in bin. ENERGY STAR certified and NSF/ETL-S listed, this stainless steel unit includes digital controls, adjustable cube size, clean mode, water and air filtration, and interior lighting. Designed to fit under ADA-compliant counters, it’s ideal for bars, break rooms, and foodservice environments.

Why Choose Summit?

Summit offers reliable, energy-efficient commercial appliances with space-saving design, professional certifications, and stainless steel durability for demanding settings.

Key Features

• 20" Wide Commercial Ice Machine: Commercially approved clear cube icemaker ideal for use in restaurants, bars, break rooms, and other settings
• ENERGY STAR Certified Commercial Performance: Efficient performance for commercial use
• Shallow Depth: Unique 18" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
• Commercially Approved: ETL-S listed to NSF-12 commercial standards for use in foodservice settings
• Large Production Capacity: Can make up to 80 lbs. of clear ice cubes in a day cycle and store up to 33 lbs.
• Generous Storage Space:
  Interior holds up to 33 lbs. of ice
• Sliding Door: Top lid is on lift-up glides for easy access to the ice bin
• Full Bin Sensor: Automatic sensor alerts when bin is full and stops ice production to prevent overfill
• Clean Function: Clean mode allows you to periodically clean the system as needed with a neutral detergent
• Air Filter: Removable mesh filter located in the rear of the icemaker makes it easy to keep the condenser clean
• Water Filter: Ice machine comes with a water filter to remove harmful impurities and prevent scale buildup

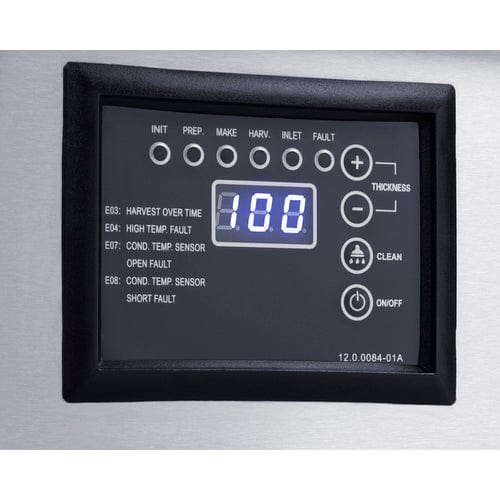

• Adjustable Thickness: Easily increase or decrease ice cube thickness to desired size via digital controls
• Ice Scoop: Ice scoop included for added convenience
• Fully Finished Cabinet: Durable finish allows the unit to be used freestanding
• Easy Cleaning: Included leg set allows you to clean the space below the icemaker
• CARB Compliant: Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
• 100% CFC Free: Environmentally friendly design without ozone-damaging chemicals

Manuals for Summit 80 lb. Commercial Ice Machine BIM85

• Owner's Manual
• Assembly Drawing
• Brochure

Summit 80 lb. Commercial Ice Machine Specifications

Overview

• Nominal Height: 36.0" (91 cm)
• Height of Cabinet: 36.0" (91 cm)
• Nominal Width: 20.0" (51 cm)
• Width: 19.75" (50 cm)
• Nominal Depth: 18.0" (46 cm)
• Depth: 17.75" (45 cm)
• Defrost Type: Automatic
• Door: Black
• Cabinet: Stainless Steel
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Sanitation: ETL-S
• Amps: 3.5
• Voltage/Frequency: 115 V AC/60 Hz
• Weight: 80.0 lbs. (36 kg)

Ice Maker

• Door Swing: Lift-Up
• Drain Required: Yes
• Daily Ice Production: 80.0 lbs. (36 kg)
• Ice Storage Capacity: 33.0 lbs. (15 kg)
• Ice Shape: Cube
• Size of Cube: 1" x 1"
• Number of Ice Cube Sizes: 1

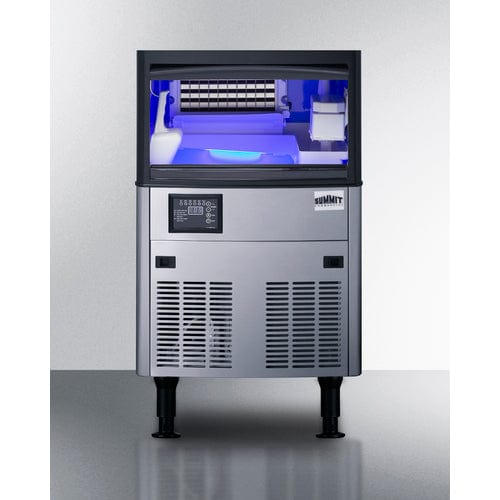

• Interior Light: Yes
• Fan Type: Interior
• Refrigerant Type: R290
• Refrigerant Amount: 2.82 oz.
• High Side PSI: 295.0
• Low Side PSI: 135.0
• Interior Height: 18.0" (46 cm)
• Interior Width: 18.0" (46 cm)
• Interior Depth: 17.25" (44 cm)
• Level Legs: 4
