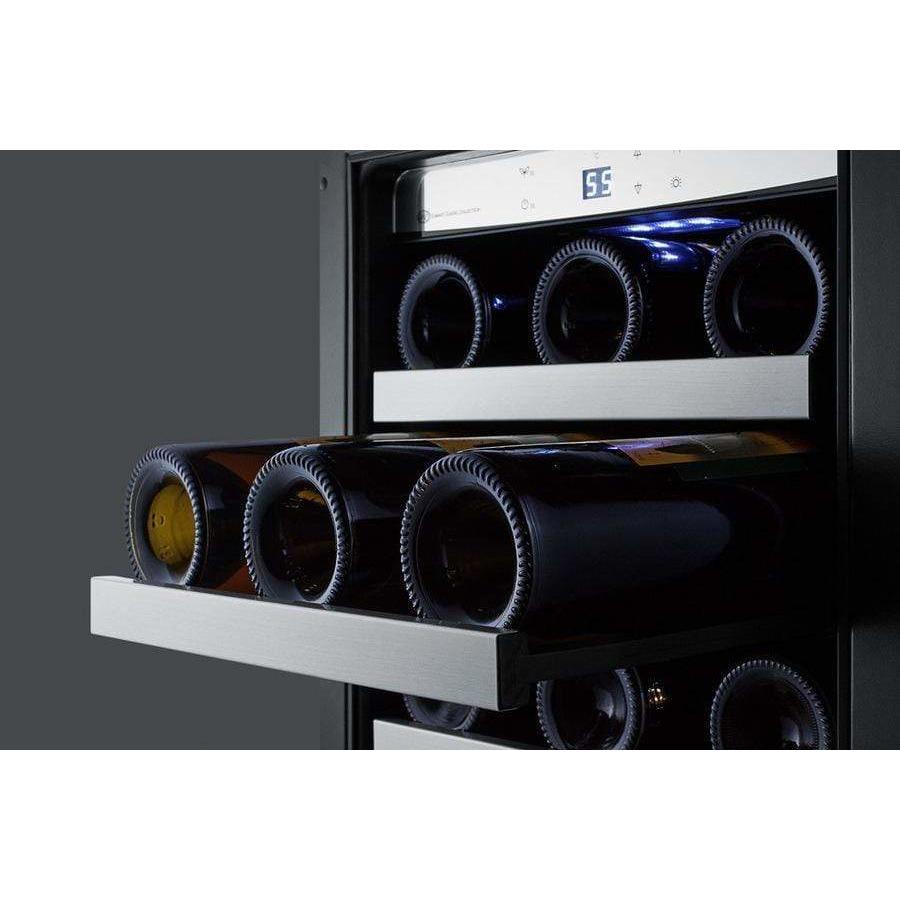

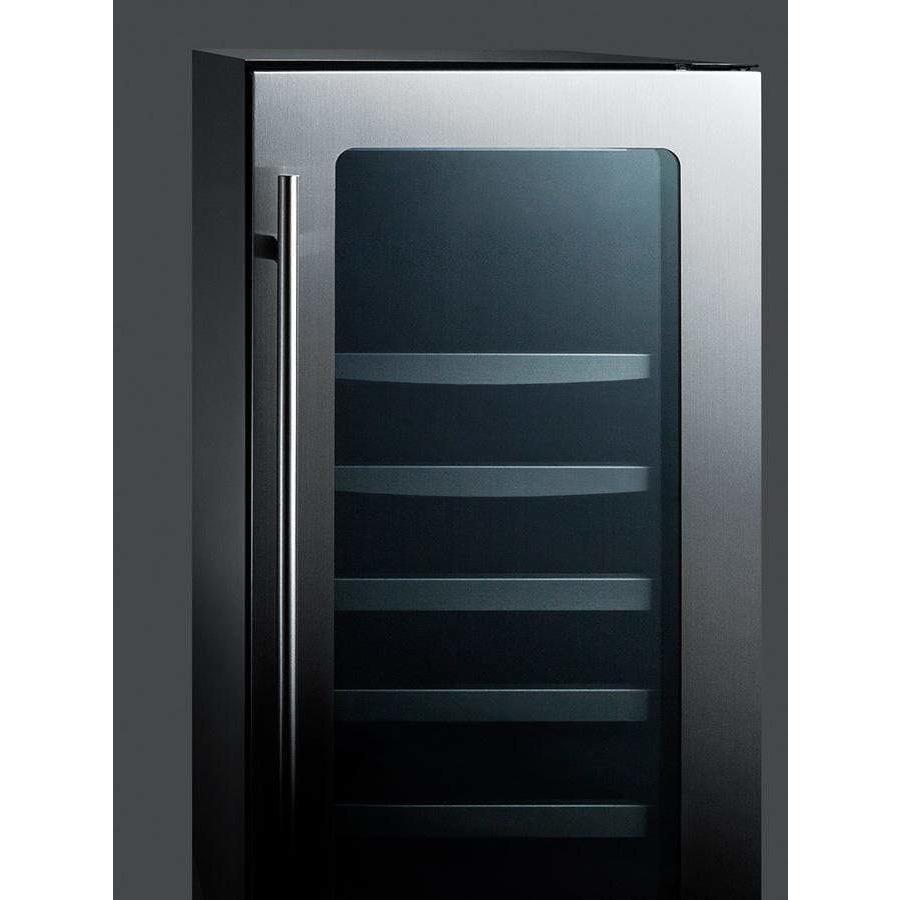

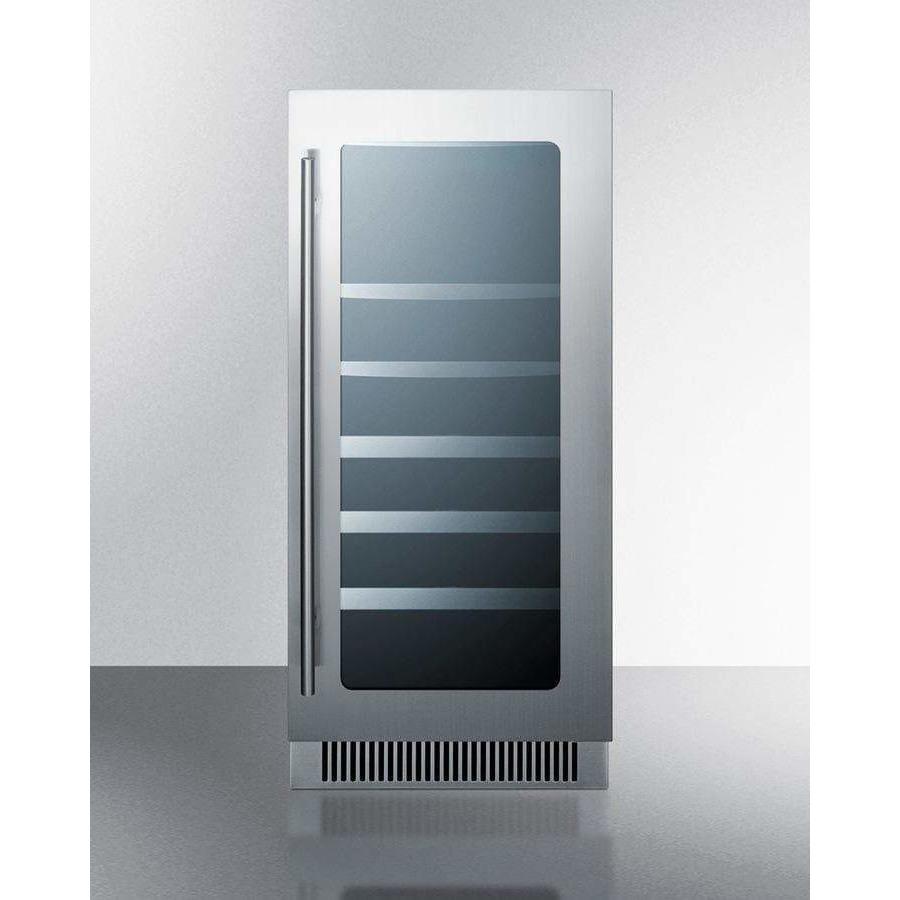

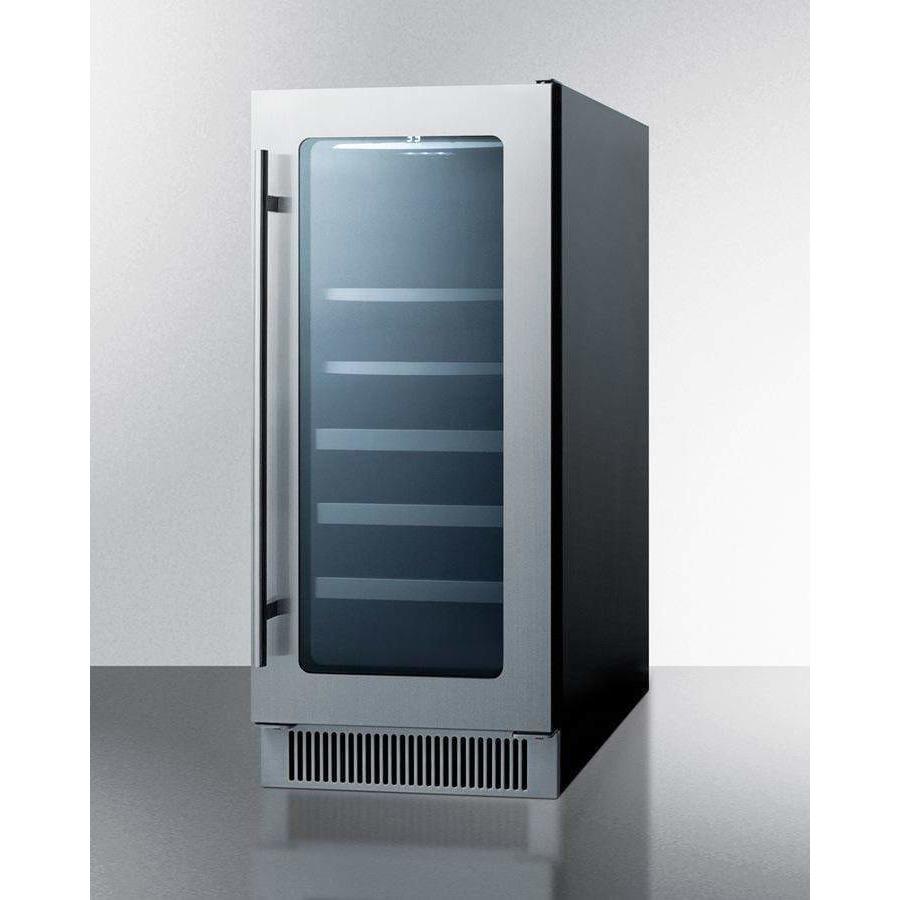

Summit Classic 15" Wide Built-In 34 Bottles Single Zone Wine/Beverage Fridge CL151WBV

Summit Classic 15" Wide Built-In 34 Bottles Single Zone Wine/Beverage Fridge CL151WBV Overview

The SUMMIT Classic Collection features deluxe undercounter appliances designed to bring modern luxury into the home. At just 15" wide, the CL151WBV is the perfect combination wine and craft beer center to complete any home wet bar. The front breathing design allows built-in installation under counters, while the fully finished cabinet in a jet black finish also enables freestanding use. The seamless stainless steel door trim blends right into the softly tinted low-e glass, with a sleek stainless steel handle and designer kickplate completing the stunning look. Inside, white LED lighting complements the black interior and illuminates your collection. The CL151WBV includes a combination of wine and glass shelves to let you get the most out of your storage. The wine shelves feature a stainless steel trim and black wooden finish, while the craft beer shelves are made from unique frosted glass. The interior control panel includes a digital thermostat for easy and intuitive operation, with a readout viewable in Celsius or Fahrenheit. Additional features include a user-reversible door, conservation mode for energy savings, and a temperature memory function to restore set temperature in the case of power loss. A built-in alarm audibly warns if the door is left ajar or if the unit rises or falls out of the recommended temperature. Uniquely styled and fully featured, the CL151WBV brings true luxury to small kitchen spaces.

FEATURES

• Built-in capable: Make the best use of space by installing your appliance under the counter
• Fully finished black cabinet: Allows the unit to be used freestanding
• Low-e glass door: Gently tinted glass provides a full view of stored wine while protecting your collection with energy efficient low-e glass
• Seamless stainless steel trim: Glass is framed by seamless 304 grade stainless steel
• Digital thermostat: Electronic controls for precise temperature management
• Digital display: Temperature readout can be shown in Celsius or Fahrenheit
• Stainless steel trimmed wooden shelves: Black wooden shelves feature stainless steel trim for an added touch of elegance
• Adjustable glass shelves: Spill-proof glass shelves make it easy to store and display craft beer bottles and cans
• White LED lighting: Unique white light offers elegant illumination for the jet black interior
• Professional handle: Vertically mounted handle in brushed stainless steel features a sleek 16mm diameter that suits many popular styles of cabinetry
• Reversible door: User-reversible door swing allows for more flexibility in placing the unit
• Stainless steel kickplate: Completes the professional look down to the toe kick
• Temperature alarm: Audibly alerts if the interior temperature rises or falls out of the recommended wine storage range
• Open door alarm: Audible alarm will sound if the door is left ajar
• Fan-forced cooling: Internal fan ensures the interior is evenly cooled from top to bottom
• Automatic defrost: Reduced maintenance and steady temperature performance
• Sealed back: Space saving design with easier cleanability
• Energy conservation mode: Lets you disable some of the electrical features to save on energy use
• Temperature Memory Function: Unit will retain its last settings when power is restored in the event of power loss
• 100% CFC Free: Environmentally friendly design with no ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet	34.5" (88 cm)
Width	15.0" (38 cm)
Depth	23.38" (59 cm)
Depth with Handle	25.0" (64 cm)
Depth with door at 90°	37.25" (95 cm)
Capacity	3.2 cu.ft. (91 L)
Bottles	34 bottles
Defrost Type	Automatic
Door	Glass
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	1.5
Voltage/Frequency	115 V AC/60 Hz
Weight	77.0 lbs. (35 kg)
Shipping Weight	80.0 lbs. (36 kg)
Estimated Time to Ship	2 to 4 days
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
Wine Cellar
Number of Zones	1
Door Swing	RHD
Reversible	Yes
Adjustable Shelves	Yes
Shelf Type	Wire and Wood
Shelf Qty	5
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.06 oz.
High Side PSI	277.0
Low Side PSI	103.0
Interior Height 1	26.0" (66 cm)
Interior Width 1	12.0" (30 cm)
Interior Depth 1	18.0" (46 cm)
Compressor Step Height	4.5" (11 cm)
Compressor Step Width	12.0" (30 cm)
Compressor Step Depth	5.75" (15 cm)
Level Legs	2
Temperature Range	41°F to 64°F



MANUALS



BROCHURE w/ DRAWINGS
CL151WBV.pdf





TECHNICAL DRAWING (.dwg)
CL15WCWINECELLARA-C2000.dwg





USE & CARE
CL24WC2CLFD24WCCL15WCCL241BVSummitEnglishFrenchmanual131205.pdf
