Summit Commercially approved Beverage Fridge SCR312LCSS

Summit Commercially approved Beverage Fridge SCR312LCSS Overview

Discontinued REPLACED BY SCR314LCSS

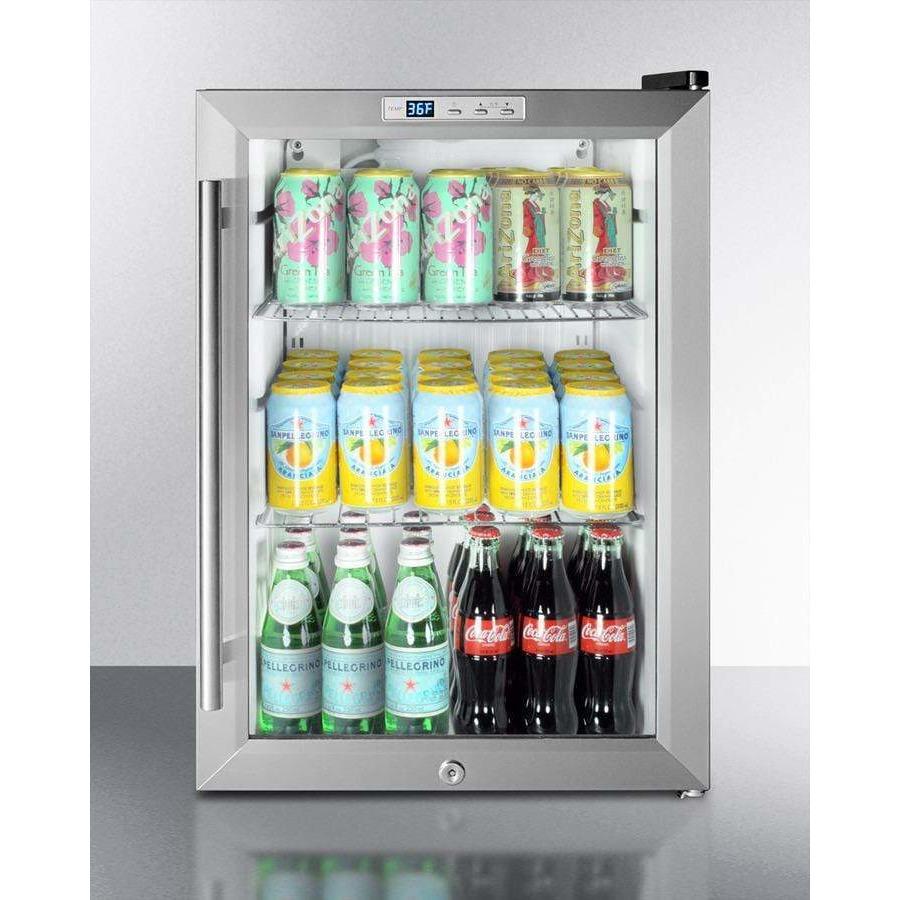

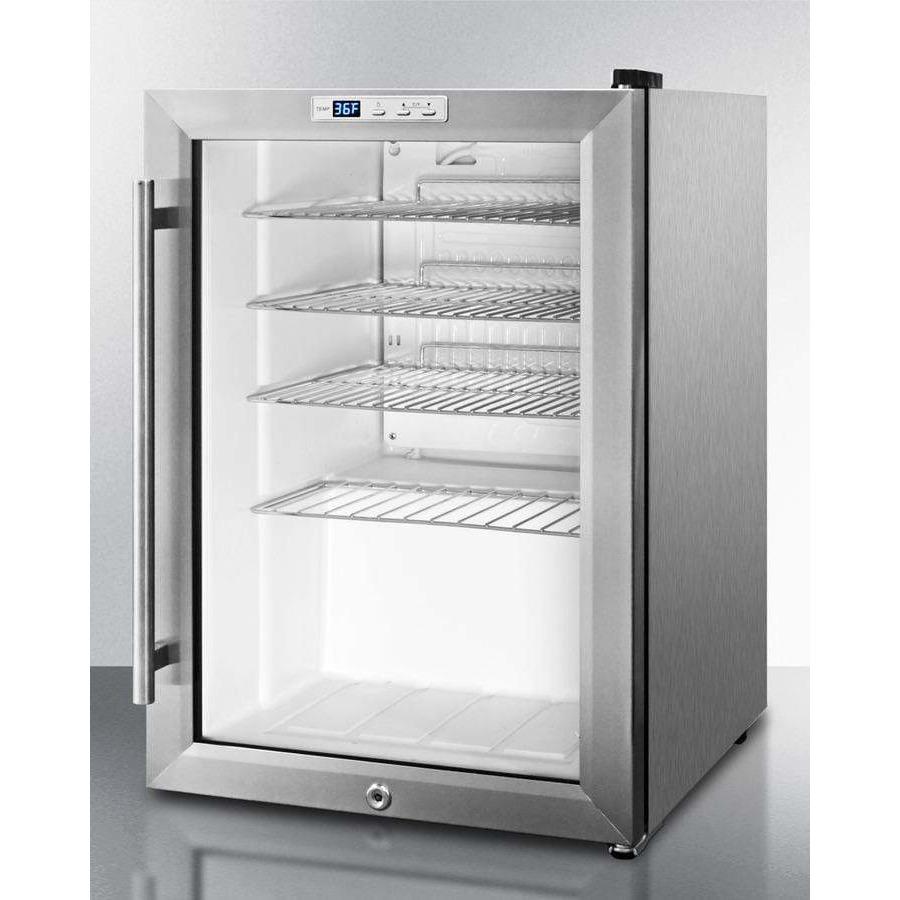

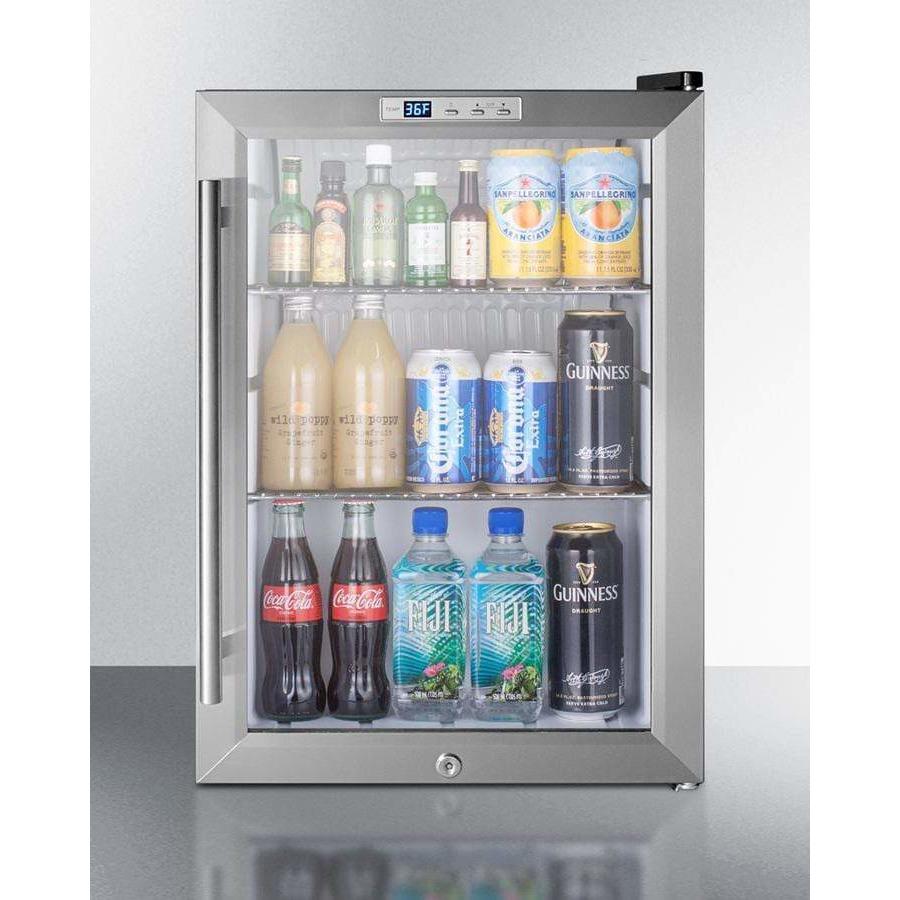

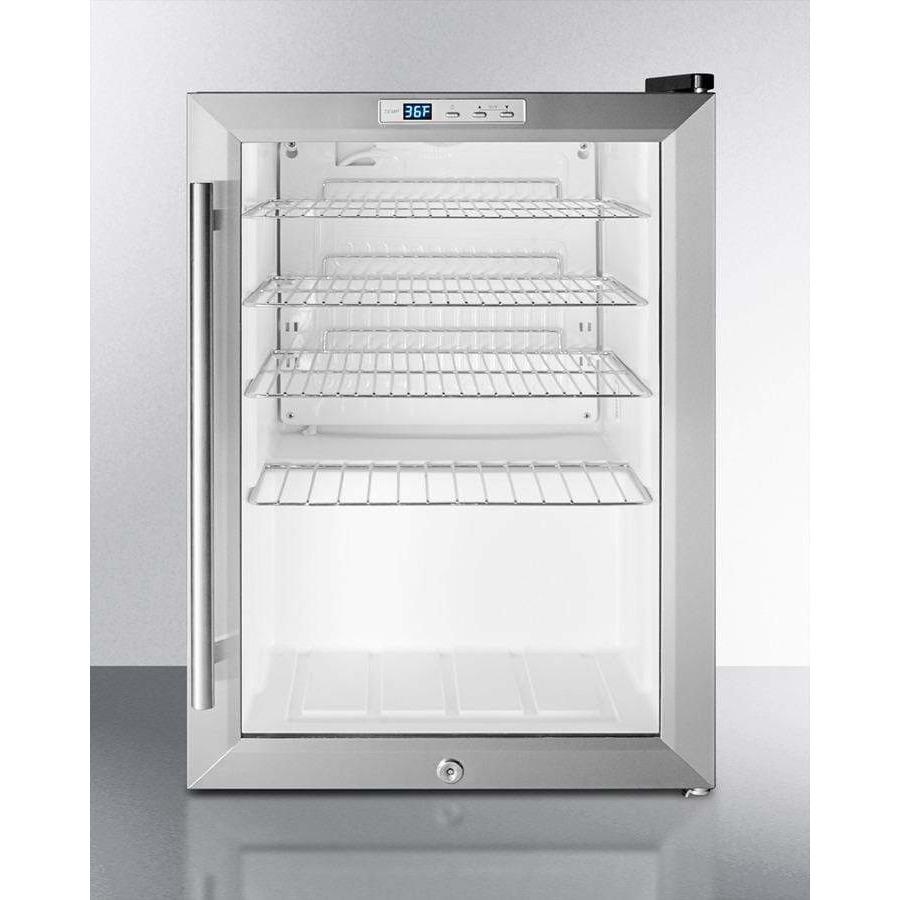

SUMMIT's SCR312LCSS is a perfectly sized beverage cooler with elegant construction that offers the ideal storage and sale conditions. This countertop unit presents a convenient and heat safe display behind a double pane tempered glass door, finished with a stainless steel trim and brushed aluminum handle. The cabinet is fully wrapped in stainless steel for added elegance, with a front lock adding keyed security. Fully featured for commercial use, the SCR312LCSS includes a digital thermostat conveniently located at the top of the door exterior. The external temperature readout and easy touch controls make temperature management simple and precise. An energy efficient LED light illuminates the interior and adjustable chrome shelves add a professional look. Commercially approved to hold beverages and sealed food, the SCR312LCSS uses automatic defrost operation system to minimize unit maintenance. This unit is a perfect replacement for SUMMIT's SCR310LCSS.

FEATURES

• Commercially approved
• ETL-S listed to NSF-7 commercial standards
• Double pane tempered glass door
• Heat resistant design provides clear view of stored products, with an elegant trim in brushed aluminum
• Stainless steel cabinet
• Durable elegance built to last
• Professional handle
• 17 1/2" long handle in brushed aluminum
• Factory installed lock
• Keep contents secure with a front lock on the door
• Automatic defrost
• No-frost convenience for reduced user maintenance
• Digital thermostat
• Precise temperature management at the touch of a button, with an external display for added convenience
• Interior LED light
• Externally located button turns this light on and off to illuminate the products for a tempting view
• Adjustable chrome shelves
• Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup
• 100% CFC free
• Environmentally friendly design does not contain ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet	25.5" (65 cm)
Height to Hinge Cap	26.13" (66 cm)
Width	17.0" (43 cm)
Depth	19.25" (49 cm)
Depth with Handle	21.0" (53 cm)
Depth with door at 90°	35.25" (90 cm)
Capacity	2.5 cu.ft. (71 L)
Defrost Type	Automatic
Door	Glass
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.3
Voltage/Frequency	115 V AC/60 Hz
Weight	80.0 lbs. (36 kg)
Shipping Weight	83.0 lbs. (38 kg)
Estimated Time to Ship	2 to 4 days
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
Refrigerator Features
Door Swing	RHD
Reversible	No
Shelf Type	Wire
Shelf Qty	4
Adjustable Shelves	Yes
Thermostat Type	Digital
Refrigerant Type	R600a
Refrigerant Amount	0.92oz.
High Side PSI	270.0
Low Side PSI	103.0
Level Legs Qty	2
Interior Light	Yes
Temperature Range	36°F to 43°F
Dimensions
Interior Height	20.25" (51 cm)
Interior Width	13.5" (34 cm)
Interior Depth	14.75" (37 cm)
Compressor Step Height	7.5" (19 cm)
Compressor Step Width	13.5" (34 cm)
Compressor Step Depth	5.25" (13 cm)



MANUALS



BROCHURE w/ DRAWINGS
SCR312LCSS.pdf





TECHNICAL DRAWING (.dwg)
SCR312L_BEVERAGE_CEN._A-C2000_.dwg





MSDS INFORMATION
MSDS_R134a___C.pdf





USE & CARE
SCR312L_Manual_3-29-2019.pdf
