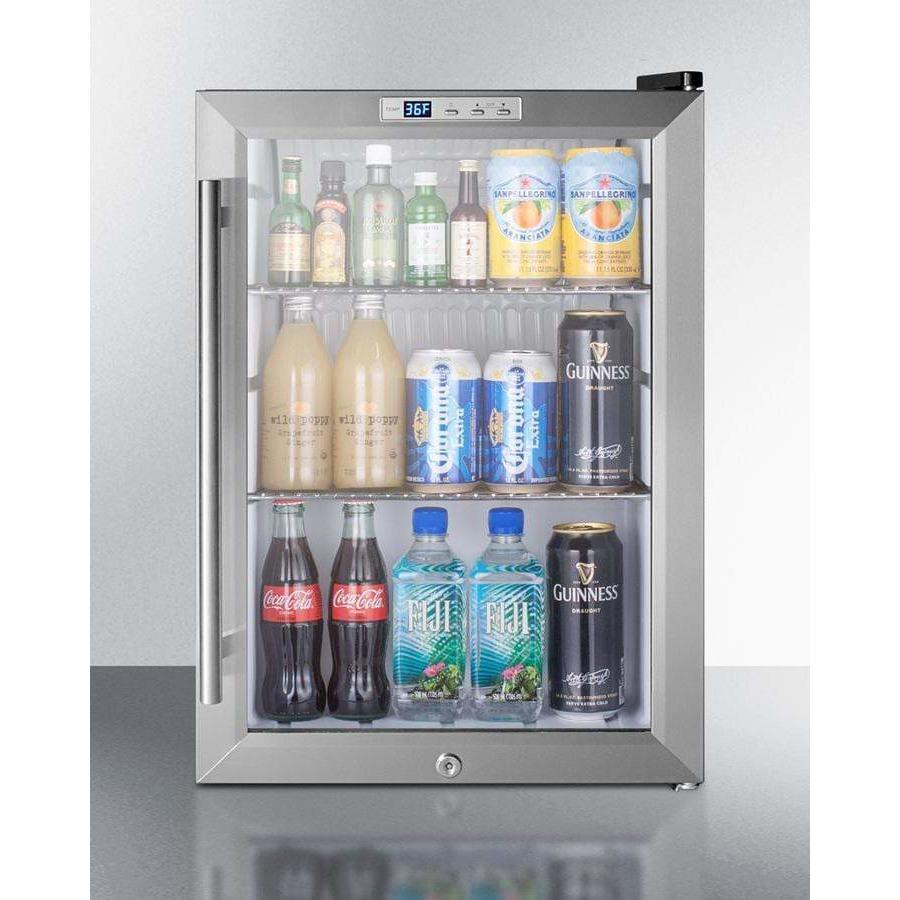

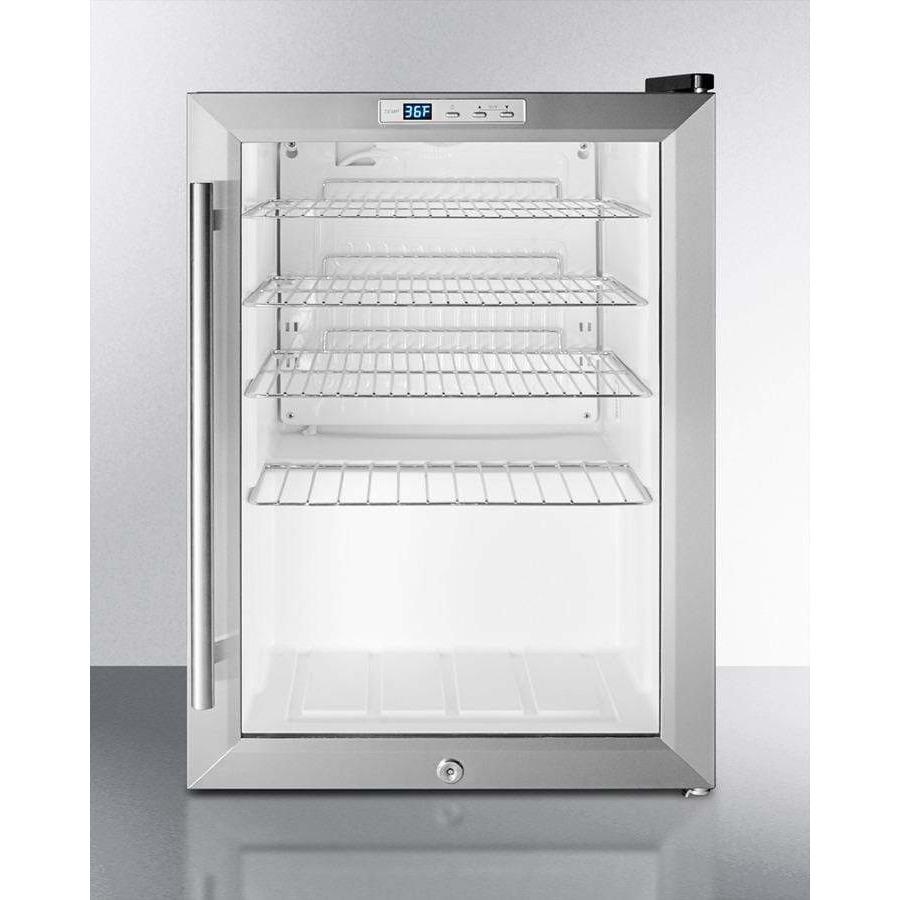

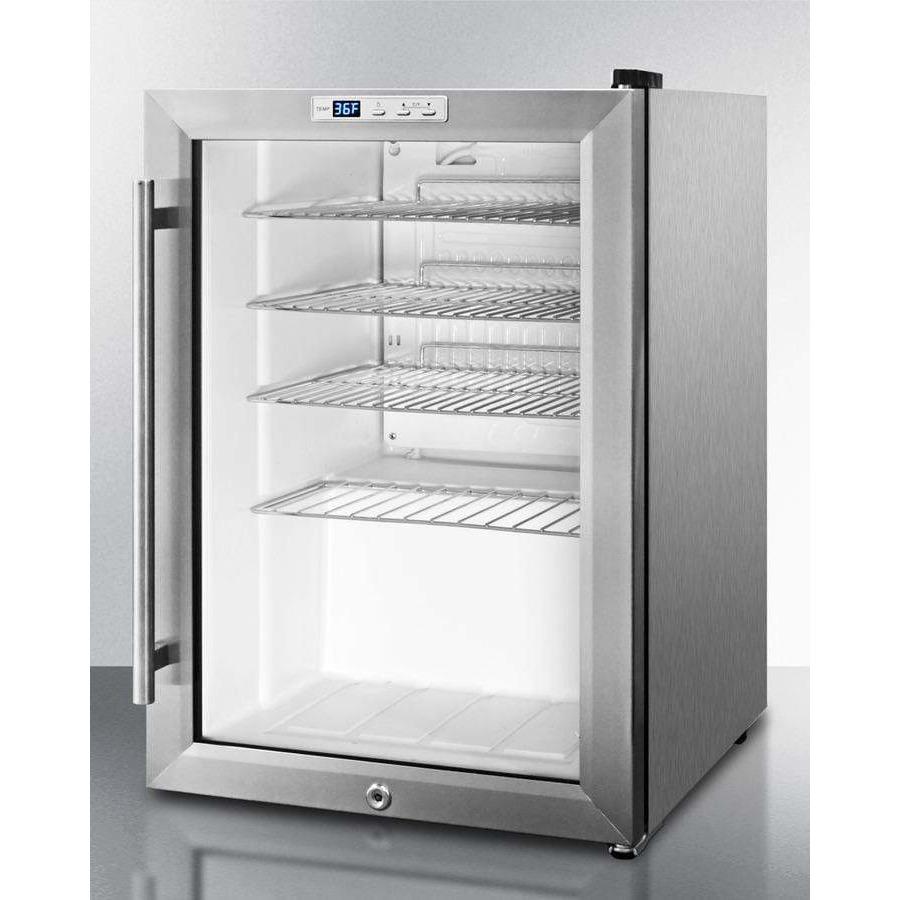

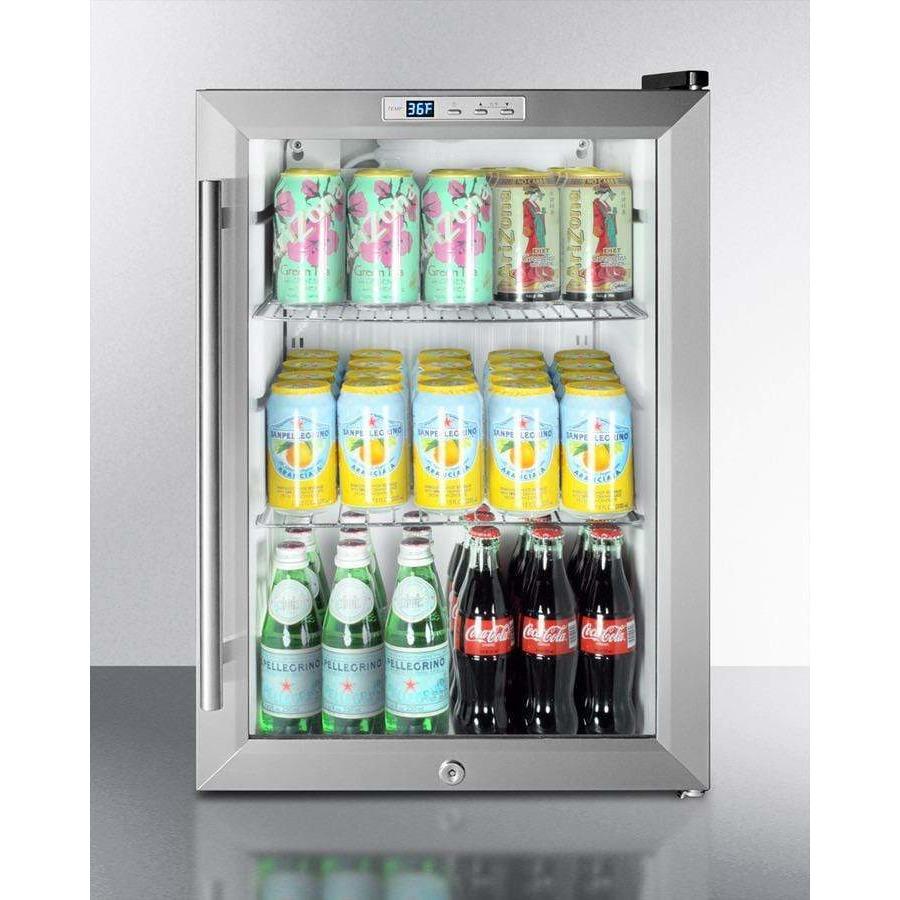

Summit Compact Built-In Beverage Fridge SCR312LBICSS

Summit Compact Built-In Beverage Fridge SCR312LBICSS Discontinued

SUMMIT's SCR312LBICSS is a versatile beverage center that offers the perfect storage conditions in a compact fit. This slim-fitting refrigerator features a front-breathing system that allows built-in installation, while the fully finished cabinet also enables freestanding use on countertops. A stainless steel trimmed glass door includes a factory installed lock for convenient security and a pro style handle. This unit comes with stainless steel wrapped cabinet for added style and durability. Inside, the SCR312LBICSS utilizes automatic defrost for low maintenance operation. The digital thermostat makes it easy to manage the interior temperature, with an electronic readout for added convenience. This unit features recessed LED lighting to provide an attractive, energy efficient display of stored items. Adjustable chrome shelves accommodate a variety of sizes. The SCR312LBICSS is ETL-S listed to NSF commercial standards. With its compact size and user-friendly features, this unit is ideal for use as a minibar or commercial beverage merchandiser.

FEATURES

• Commercially approved
• ETL-S listed to NSF-7 commercial standards
• Double pane tempered glass door
• Heat resistant design provides clear view of stored products, with an elegant trim in brushed aluminum
• Stainless steel cabinet
• Durable elegance built to last
• Professional handle
• 17 1/2" long handle in brushed aluminum
• Factory installed lock
• Keep contents secure with a front lock on the door
• Automatic defrost
• No-frost convenience for reduced user maintenance
• Digital thermostat
• Precise temperature management at the touch of a button, with an external display for added convenience
• Interior LED light
• Externally located button turns this light on and off to illuminate the products for a tempting view
• Adjustable chrome shelves
• Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup
• 100% CFC free
• Environmentally friendly design does not contain ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet	25.5" (65 cm)
Height to Hinge Cap	26.13" (66 cm)
Width	17.75" (45 cm)
Depth	20.25" (51 cm)
Depth with Handle	22.0" (56 cm)
Depth with door at 90°	36.25" (92 cm)
Capacity	2.5 cu.ft. (71 L)
Defrost Type	Automatic
Door	Glass
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.3
Voltage/Frequency	115 V AC/60 Hz
Weight	80.0 lbs. (36 kg)
Shipping Weight	83.0 lbs. (38 kg)
Estimated Time to Ship	2 to 4 days
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
Refrigerator Features
Door Swing	RHD
Reversible	No
Shelf Type	Wire
Shelf Qty	4
Adjustable Shelves	Yes
Thermostat Type	Digital
Fan Type	Exterior
Refrigerant Type	R600a
Refrigerant Amount	0.92oz.
High Side PSI	270.0
Low Side PSI	103.0
Level Legs Qty	2
Interior Light	Yes
Temperature Range	36°F to 43°F
Dimensions
Interior Height	20.5" (52 cm)
Interior Width	13.5" (34 cm)
Interior Depth	14.75" (37 cm)
Compressor Step Height	7.5" (19 cm)
Compressor Step Width	13.5" (34 cm)
Compressor Step Depth	5.25" (13 cm)



MANUALS



BROCHURE w/ DRAWINGS
SCR312LBICSS.pdf





TECHNICAL DRAWING (.dwg)
SCR312LBI_BEV.CENTER__A-C_2000_.dwg





MSDS INFORMATION
MSDS_R134a___C.pdf





USE & CARE
SCR215L_SCR312L_SCR486LBI_Engl_French_Manual_RSVD_11-27-2019.pdf
