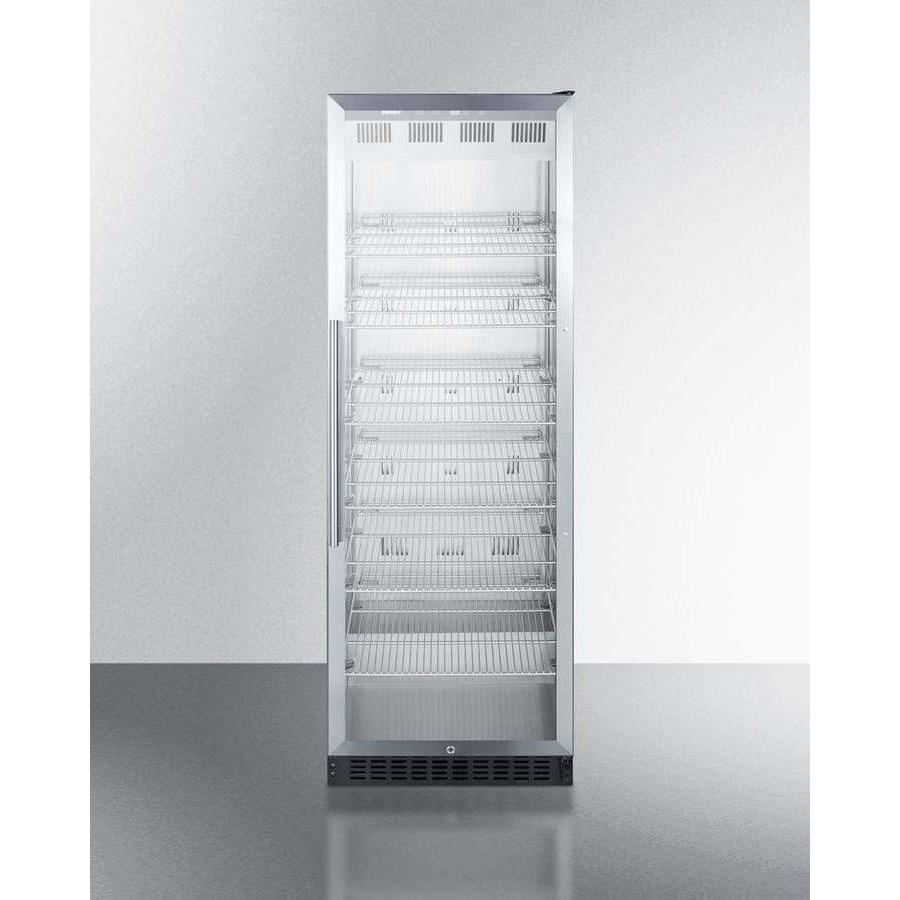

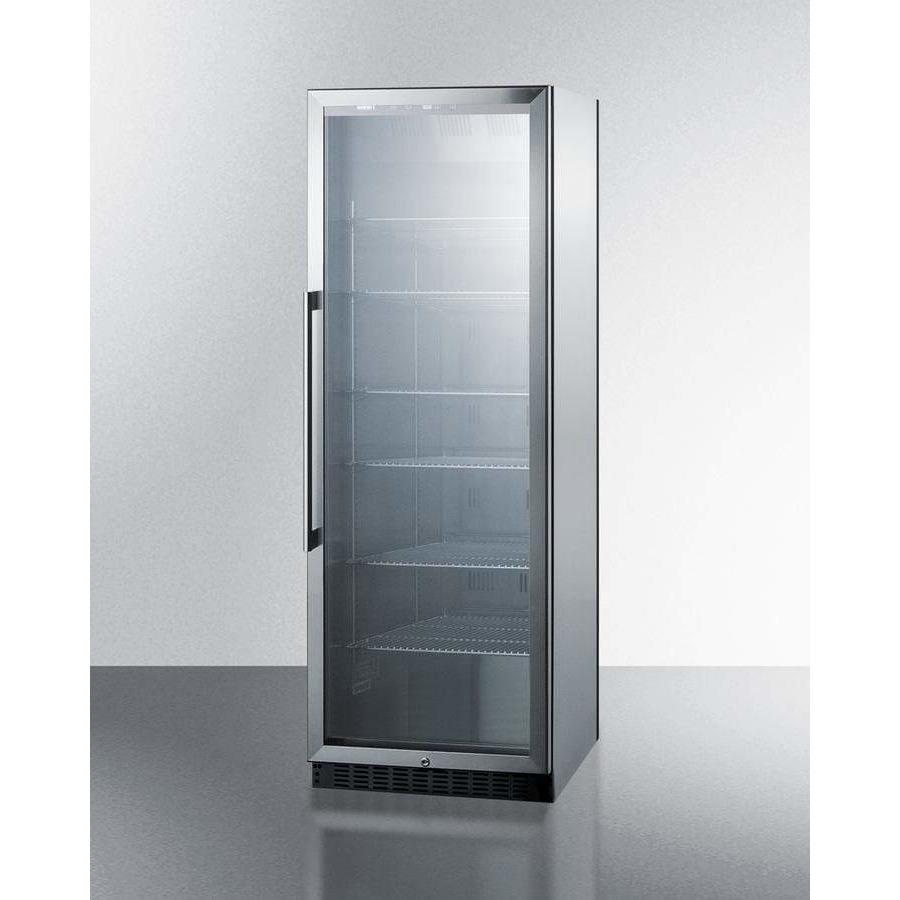

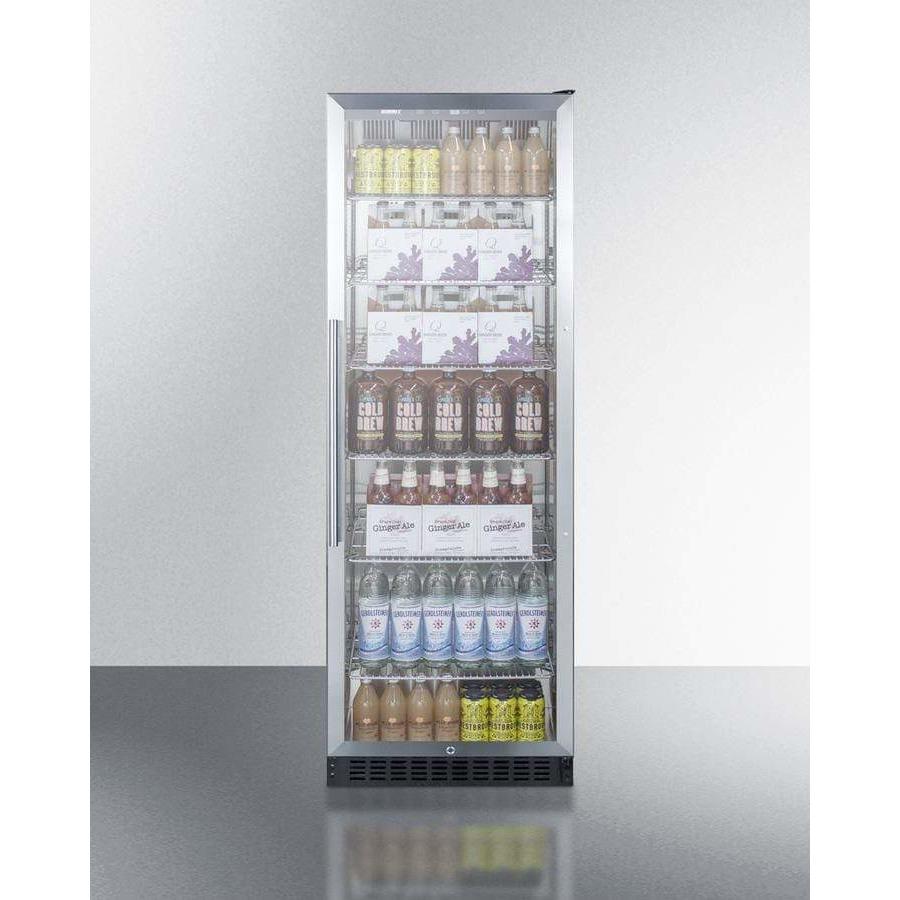

Summit Single Zone All Stainless Steel Right Hinge Commercial Beverage Fridge SCR1401CSS

• Commercially listed
• Design meets UL-471 commercial standards and is ETL-S listed to NSF-7 standards for commercial use
• Slim fit
• Just 24" wide and deep for an easy fit in any setting
• Frost-free operation
• No-frost convenience for reduced user maintenance
• Stainless steel interior
• Walls are constructed from stainless steel for added strength and easy cleanup
• Double pane tempered glass door
• Heat-safe glass door with stainless steel trim offers full display all the way down to the floor
• Self-closing door
• Door will automatically close when left ajar, preventing items from accidentally being exposed to ambient temperatures
• Digital thermostat
• Electronic controls for precise temperature management, with a readout viewable in Celsius or Fahrenheit
• Cantilevered shelving
• Adjustable shelving accommodates virtually any size with convenient cantilevered system
• Recessed LED lighting
• On/off button to illuminate stored products with an attractive and energy efficient glow
• Factory installed lock
• Keyed lock for a secure interior (2 keys included)
• Fan-forced cooling
• Internal fan ensures the interior is evenly cooled from top to bottom
• High temperature alarm
• Alarm sounds if the interior temperature rises out of suggested range
• Professional handle
• Attractive design in stainless steel to complete the look
• Sabbath mode setting
• Optional setting lets you disable the lighting and alarm for up to 96 hours
• Right angle plug
• Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
• Temperature Memory Function
• Unit will retain its last settings when power is restored in the event of power loss
• Stainless steel cabinet
• 304 grade stainless steel for durable elegance
• 100% CFC Free
• Environmentally friendly design with no ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet	69.75" (177 cm)
Width	23.63" (60 cm)
Depth	23.75" (60 cm)
Depth with Handle	25.63" (65 cm)
Depth with door at 90°	46.75" (119 cm)
Capacity	12.6 cu.ft. (357 L)
Defrost Type	Frost-Free
Door	Glass
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.7
Weight	185.0 lbs. (84 kg)
Shipping Weight	195.0 lbs. (88 kg)
Estimated Time to Ship	2 to 4 days
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
Refrigerator Features
Sabbath Mode	Yes
Door Swing	RHD
Reversible	No
Shelf Type	Chrome
Shelf Qty	6
Adjustable Shelves	Yes
Thermostat Type	Digital
Fan Type	Interior
Refrigerant Type	R600a
Refrigerant Amount	1.76oz.
High Side PSI	270.0
Low Side PSI	105.0
Level Legs Qty	4
Interior Light	Yes
Temperature Range	36 to 68ºF
Dimensions
Interior Height	59.75" (152 cm)
Interior Width	20.0" (51 cm)
Interior Depth	16.5" (42 cm)
Compressor Step Height	4.5" (11 cm)
Compressor Step Width	4.5" (11 cm)
Compressor Step Depth	4.5" (11 cm)



MANUALS



BROCHURE w/ DRAWINGS
SCR1401CSS.pdf





TECHNICAL DRAWING (.dwg)
SCR1401_BEVERAGE_CEN.__A-C_2010_.dwg





USE & CARE
SCR1401_SCR1401LH_Manual_042919.pdf
