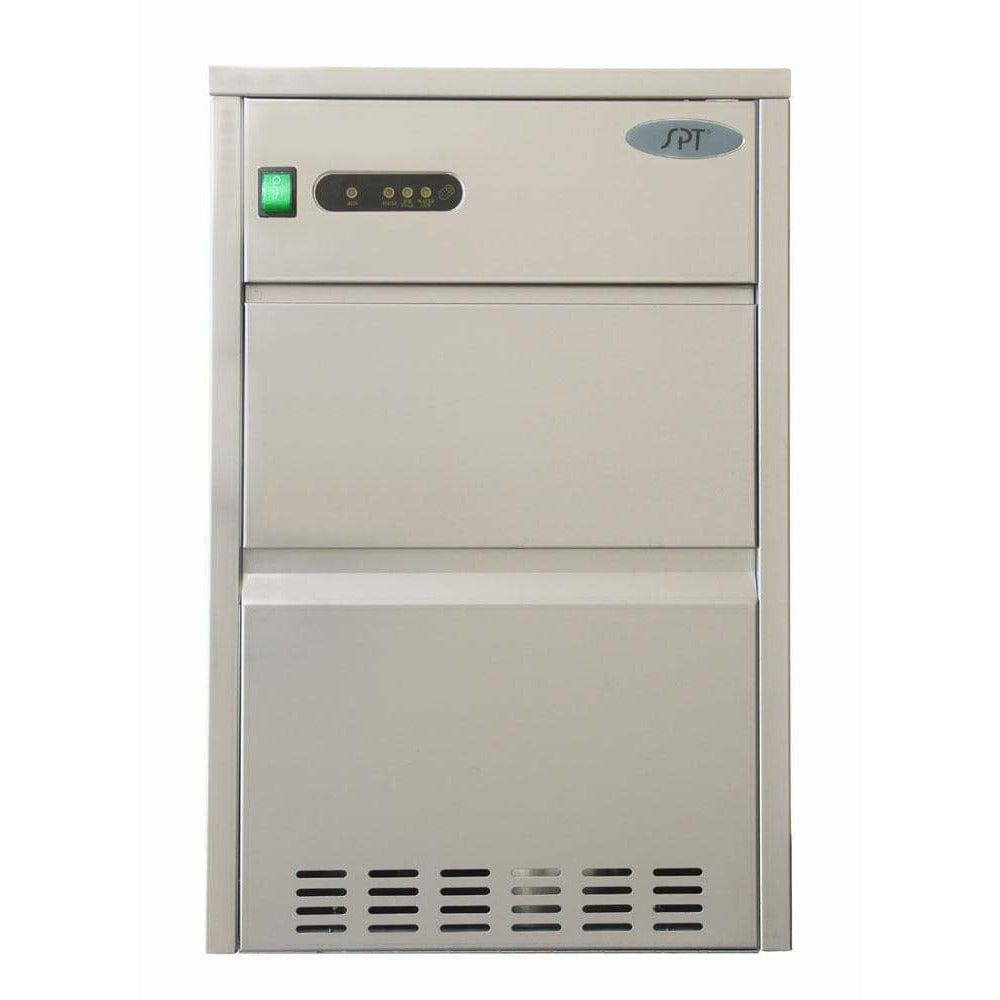

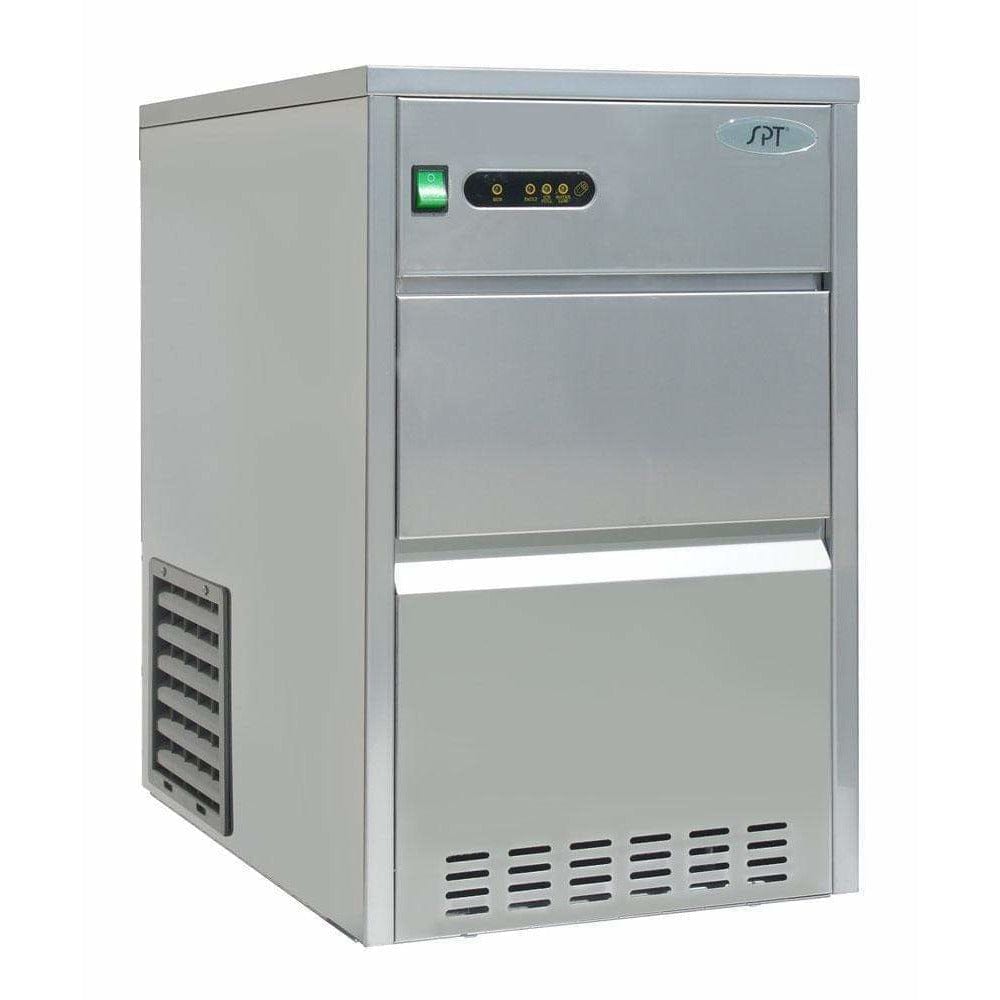

Sunpentown 44 lbs Automatic Stainless Steel Ice Maker IM-441C Overview
This freestanding fully automatic ice maker produces up to 44 lbs of bullet-shaped ice per day, with storage space of up to 9 lbs. Direct plumbing allows for constant supply of fresh ice without the hassle of manual fill. Full stainless steel housing is an attractive addition to any space setting.
FEATURES AND FUNCTIONS
- Free standing application
- Makes up to 44 lbs of ice daily
- Stores up to 9 lbs of ice
- Auto shut off when ice bin is full
- Makes 1 batch of 12 bullet-shaped cubes in about 18 minutes
- Fully automatic
- Full stainless steel housing
- Flush back design
- Adjustable leveling legs
- High efficiency CFC-free compressor
- Ice scoop, water hose and gravity drain hose included
- ETL
- Installation by a licensed plumber required
Note: While insulated, this ice maker is not a freezer. For energy saving purposes, the compressor shuts down when unit senses the storage bin is full. Stored ice may melt after sitting idle for a long period of time.
IMPORTANT: For unit's longevity, use of filtered or purified water is required (reverse osmosis would be best); or unit must be cleaned once every other week with citric acid to remove mineral build ups. Filtered water will also improve the taste and odor of ice cubes. Installation by a licensed plumber required
* Technical data and performance index is for reference only. Actual quantity of ice produced per day will vary with room and water conditions.
SPECIFICATIONS
Power |
110-120V / 60Hz
|
Ice-making current |
3.90A
|
Ice-making power consumption |
280 watts
|
Ice-harvest current
|
4.45A
|
Ice-harvest power consumption |
340 watts
|
Operating temperature
|
50 to 100°F
|
Supplied water temperature |
41 to 90°F
|
Ice storage capacity |
9 lbs maximum
|
Ice making capacity |
up to 44 lbs per day
|
Ice cube size (approx) |
1.5″ H x 1″ Diameter
|
Refrigerant |
R134a / 95g
|
Water supply hose length |
5 feet
|
Water supply hose connector size |
3/8″ OD (water supply side) 1/2″ OD (ice maker side)
|
Drain hose length (gravity-pulled) |
5 feet
|
Unit dimension |
13.5W x 20.5D x 23.88H inches
|
Box dimension |
18 X 24 X 28 inches
|
Net weight |
60 lbs
|
Shipping weight |
74 lbs
|
MANUALS
INSTRUCTIONS MANUAL
/IM-441C.661C.1109C_manual.pdf
