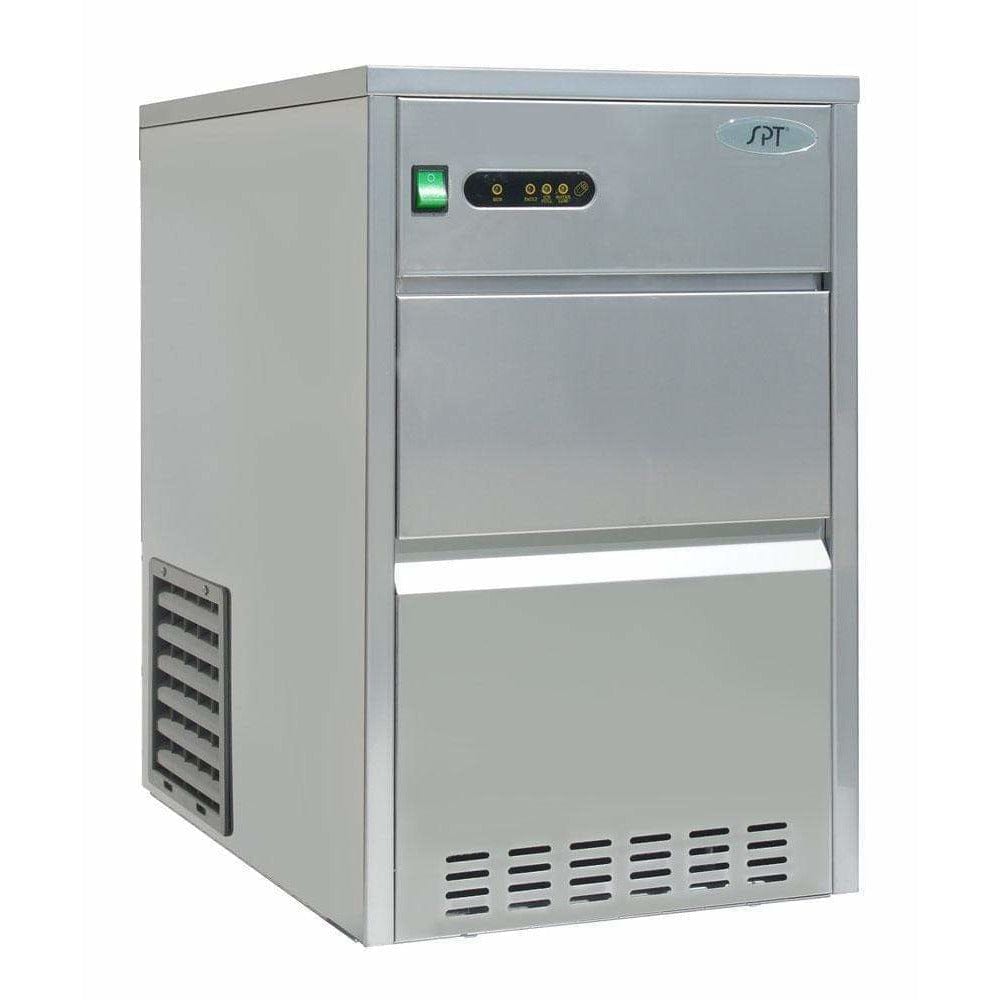

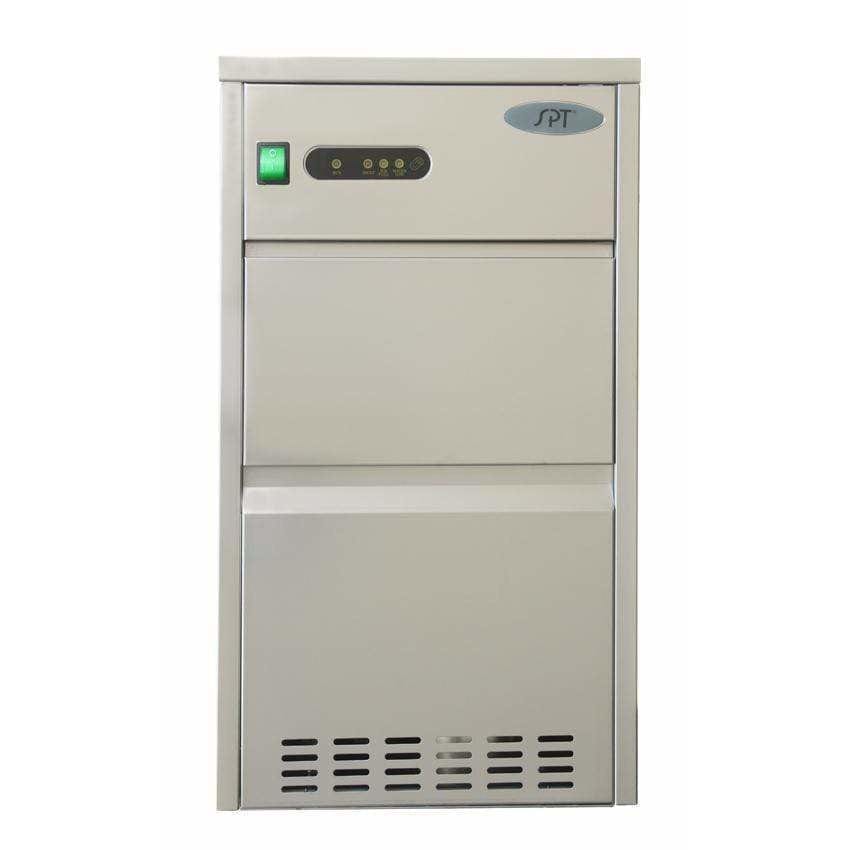

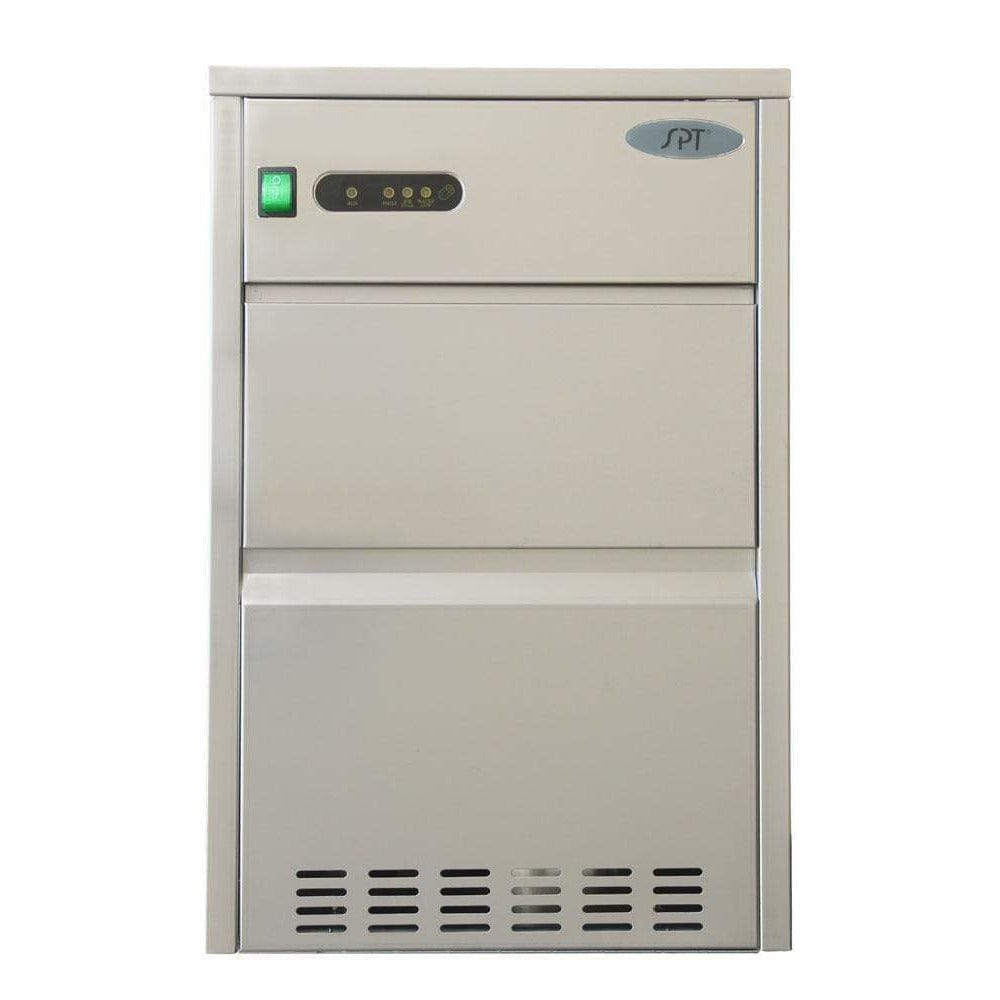

Sunpentown 66 lbs Automatic Stainless Steel Ice Maker IM-661C Overview
This freestanding fully automatic ice maker produces up to 66 lbs of bullet-shaped ice per day, with storage space of up to 15 lbs. Direct plumbing allows for constant supply of fresh ice without the hassle of manual fill. Full stainless steel housing is an attractive addition to any space setting.
FEATURES AND FUNCTIONS
- Free standing application
- Makes up to 66 lbs of ice daily
- Stores up to 15 lbs of ice
- Auto shut off when ice bin is full
- Makes 1 batch of 14 bullet-shaped cubes in about 15 minutes
- Fully automatic
- Full stainless steel housing
- Flush back design
- Adjustable leveling legs
- High efficiency CFC-free compressor

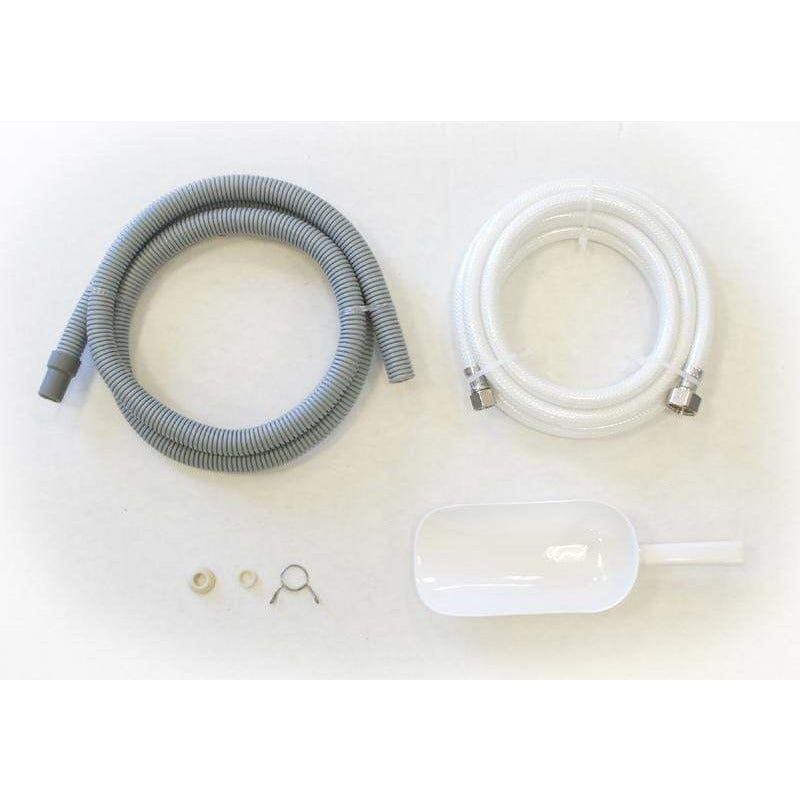

- Ice scoop, water hose and gravity drain hose included
- ETL
- Installation by a licensed plumber required
Note: While insulated, this ice maker is not a freezer. For energy saving purposes, the compressor shuts down when unit senses the storage bin is full. Stored ice may melt after sitting idle for a long period of time.
IMPORTANT: For unit's longevity, use of filtered or purified water is required (reverse osmosis would be best); or unit must be cleaned once every other week with citric acid to remove mineral build ups. Filtered water will also improve the taste and odor of ice cubes. Installation by a licensed plumber required
* Technical data and performance index is for reference only. Actual quantity of ice produced per day will vary with room and water conditions.
SPECIFICATIONS
Power |
110-120V / 60Hz
|
Ice-making current |
4.20A
|
Ice-making power consumption |
300 watts
|
Ice-harvest current
|
4.52A
|
Ice-harvest power consumption |
360 watts
|
Operating temperature
|
50 to 100°F
|
Supplied water temperature |
41 to 90°F
|
Ice storage capacity |
15 lbs maximum
|
Ice making capacity |
up to 66 lbs per day
|
Ice cube size (approx) |
1.5″ H x 1″ Diameter
|
Refrigerant |
R134a / 105g
|
Water supply hose length |
5 feet
|
Water supply hose connector size |
3/8″ OD (water supply side) 1/2″ OD (ice maker side)
|
Drain hose length (gravity-pulled) |
5 feet
|
Unit dimension |
16W x 22D x 26.88H inches
|
Box dimension |
20 X 26 X 31 inches
|
Net weight |
62 lbs
|
Shipping weight |
85 lbs
|
MANUALS
INSTRUCTIONS MANUAL
/IM-441C.661C.1109C_manual.pdf
