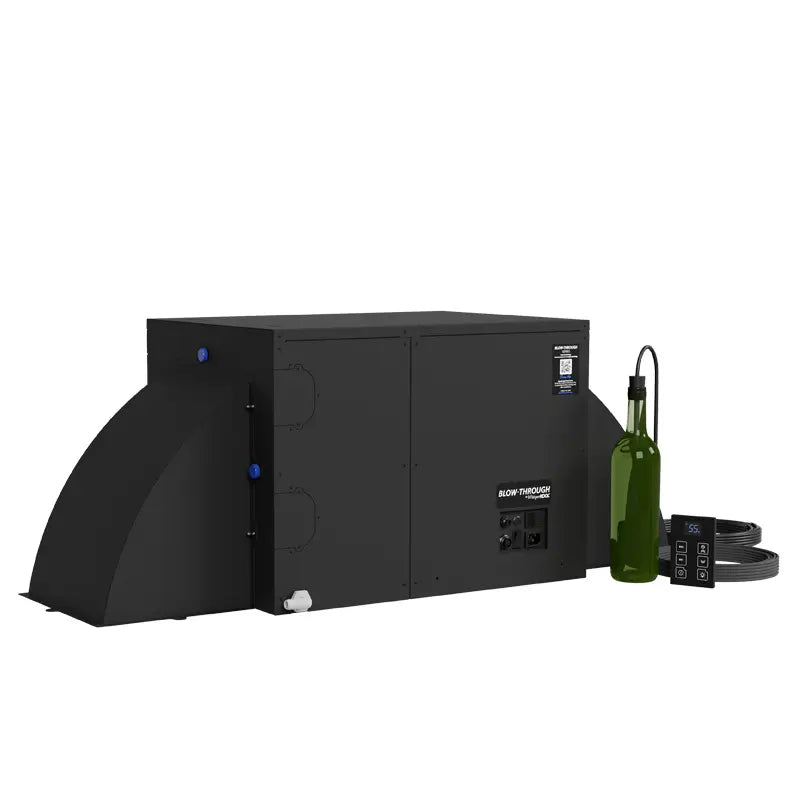

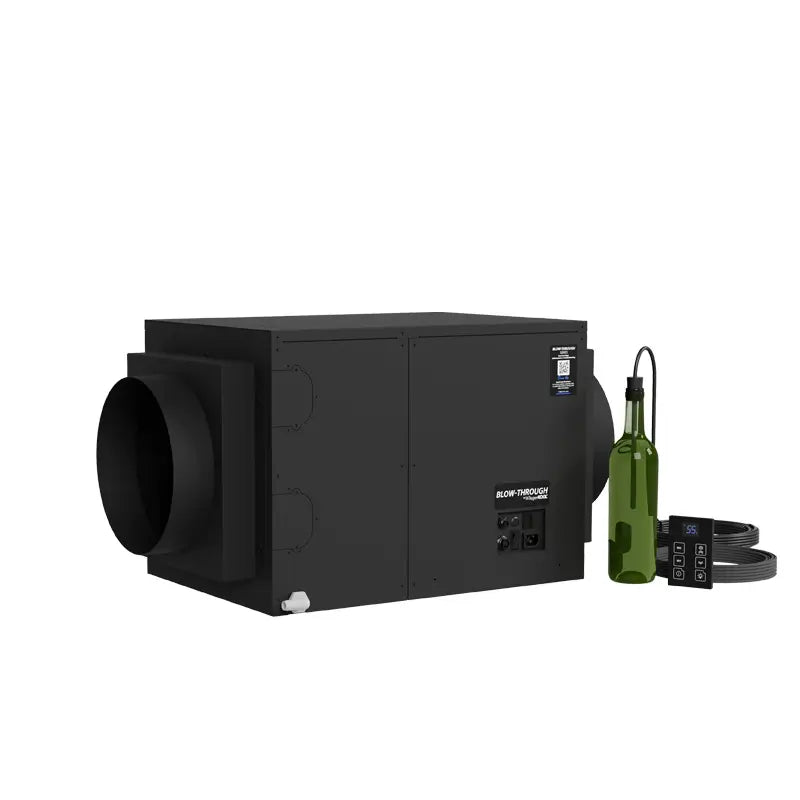

The WhisperKOOL Blow-Through 8000 OMEGA 110V H.E. is a concealed split-system wine cellar cooling solution designed for installations where conventional cooling equipment may be difficult to integrate without affecting the appearance of the cellar. Its compact evaporator can be incorporated into soffits, wine walls, built-in cabinetry, attic spaces, adjacent mechanical areas, and other discreet locations.
This pump-down system supports ducted, ductless, and hybrid airflow configurations, allowing the supply and return air paths to be adapted to the layout of the project. It pairs the Blow-Through 8000 evaporator with an OMEGA 110V high-efficiency condenser and is suited to residential wine rooms, glass-enclosed cellars, hospitality displays, restaurant wine storage, and custom architectural installations.
WhisperKOOL Blow-Through 8000 OMEGA: Quick Decision Summary
Choose the Blow-Through 8000 OMEGA when the project requires a high-capacity split wine cellar cooling system that can remain largely hidden from view. The system is particularly useful for wine walls, soffits, glass cellars, custom cabinetry, and architectural projects where airflow direction, equipment placement, and visual integration must be planned together.
| Best For | Custom wine cellars, glass-enclosed wine rooms, wine walls, built-in displays, restaurants, hospitality venues, and projects requiring concealed cooling equipment. |
|---|---|
| System Type | Split wine cellar cooling system with a Blow-Through 8000 evaporator and OMEGA 110V high-efficiency condenser using pump-down operation. |
| Airflow Choices | Ducted, ductless, or hybrid. One compatible airflow configuration kit must be selected for the evaporator. |
| Professional Installation | Installation, refrigerant piping, charging, electrical work, drainage, airflow verification, and commissioning must be completed by a qualified HVAC-R technician. |
Things to Know Before Ordering
- A compatible airflow configuration kit is required.
- The refrigerant line set is not included.
- The standard system uses WhisperKOOL's KDT controller and bottle probe.
- A third-party smart thermostat is not supplied by WhisperKOOL.
- Choosing the 24V Thermostat Conversion Kit changes the control configuration.
- The OMEGA condenser requires the appropriate installation accessory for indoor or outdoor placement.
- A heat-load calculation should be completed before the system is selected.
- The cellar must be properly insulated, sealed, and protected by an effective vapor barrier.
- The manufacturer warranty is not active until the required checklist is submitted and approved.
Key Features of the Blow-Through 8000 OMEGA
Concealed Cooling for Architecturally Sensitive Wine Cellars
The Blow-Through Series was developed for projects where the cooling system should not become the visual focal point of the cellar. The evaporator can be incorporated into a soffit, cabinetry assembly, wine wall, attic, adjacent mechanical space, or another planned enclosure while conditioned air is directed into and returned from the cellar.
This concealed format helps designers and builders preserve clean sightlines around glass walls, display racking, decorative millwork, lighting, stone finishes, and other architectural elements.
Ducted, Ductless, or Hybrid Airflow
The evaporator can be configured with two duct plenums, two airflow deflectors, or a combination of one plenum and one deflector. This allows the installer and cellar designer to determine how return air reaches the evaporator and how conditioned supply air enters the wine cellar.
The selected configuration should be finalized before the soffit, openings, registers, duct paths, insulation, and service access are constructed.

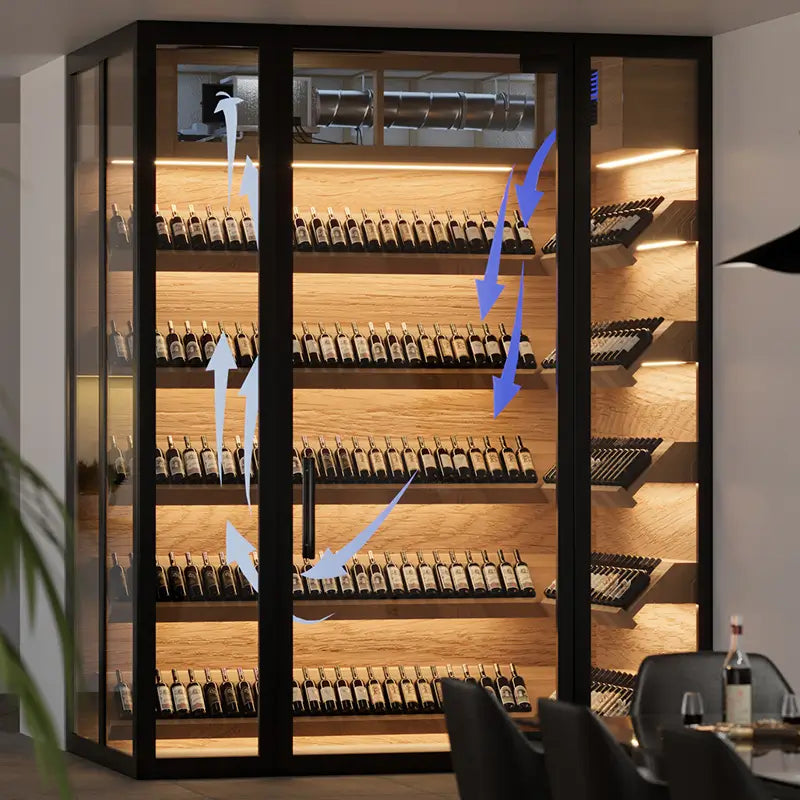

Multi-Directional Airflow Control
When airflow deflectors are used, supply and return air can be directed according to the selected layout. The available arrangements support front-facing, rear-facing, and downward airflow paths, as well as mixed orientations.
This flexibility is especially useful where racking, framing, lighting, glass panels, adjacent rooms, or limited ceiling space restrict where the supply and return openings can be placed.
Liquid-Temperature Bottle Probe
The standard KDT control system uses a liquid-temperature bottle probe rather than relying only on the temperature of the surrounding air. Because liquid temperature changes more gradually than air temperature, the bottle probe allows the system to respond to conditions that more closely represent the temperature of the stored wine.
Remote KDT Digital Display
The standard controller includes an advanced digital display with a 50-foot cable. This enables the display to be placed away from the evaporator in a practical, accessible location while the cooling equipment remains concealed.
Variable Fan-Speed Operation
The Blow-Through 8000 evaporator provides multiple fan-speed settings. Higher fan speeds increase airflow and available cooling output, while lower settings can reduce airflow sound. The appropriate setting must be determined as part of system commissioning and should account for duct resistance, register design, cellar layout, and required capacity.
Quiet Centrifugal Blower Design
The system uses centrifugal blower technology to move conditioned air through the selected airflow path. Actual sound in the finished room will depend on fan speed, duct construction, register free area, vibration isolation, enclosure design, and the distance between the equipment and occupied areas.
Built-In Condensate Pump
The evaporator includes condensate-management provisions and an internal condensate pump. A drain line must still be routed to an approved discharge location. The drain, pump, pan, fittings, and discharge path must be tested during commissioning and inspected during routine maintenance.

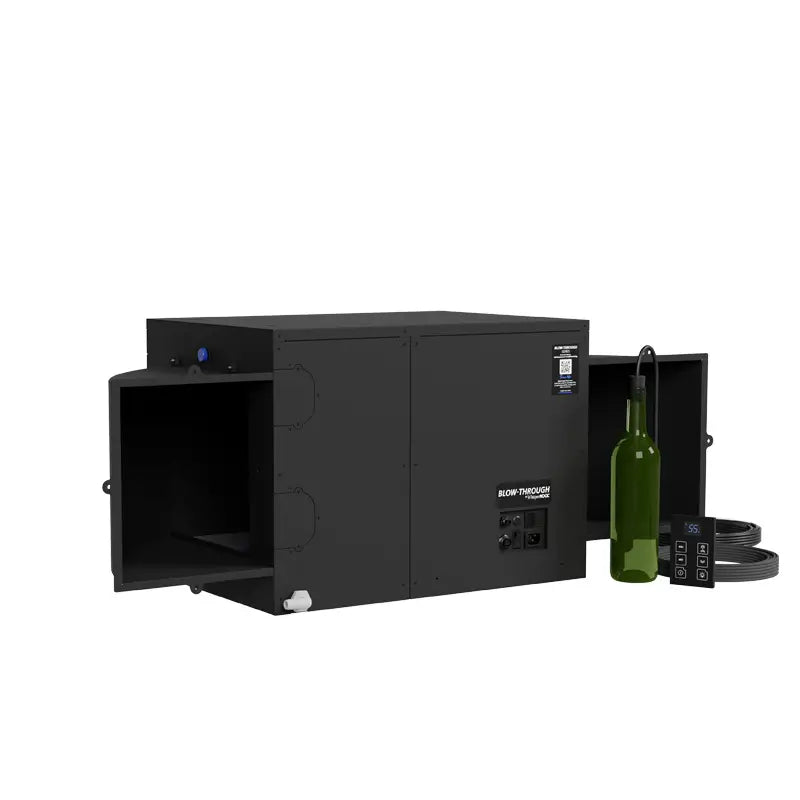

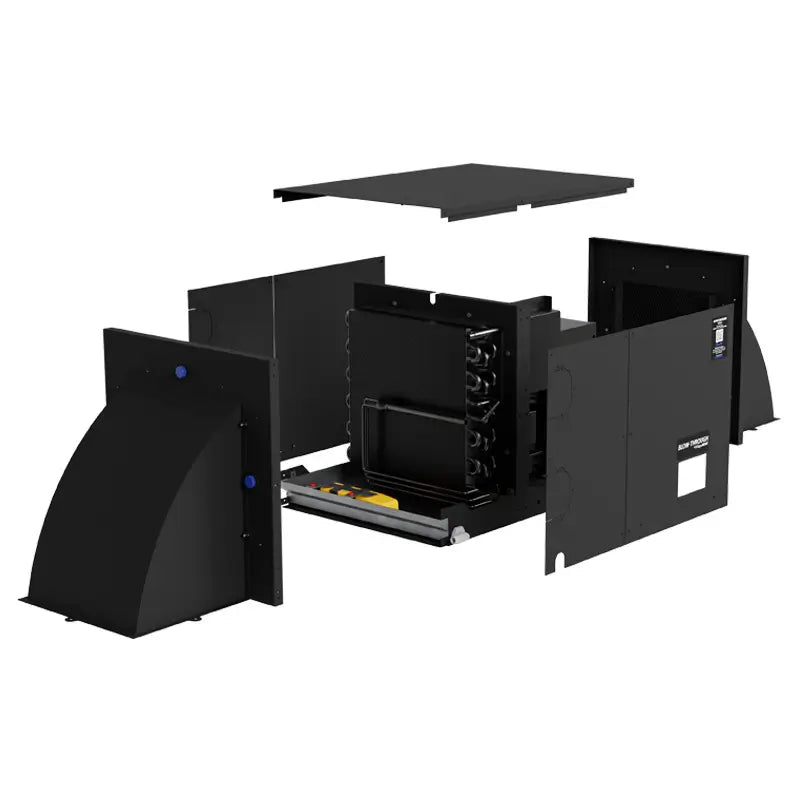

Dual-Side Service Access
Service access from either side provides greater flexibility when the evaporator is installed in a soffit, mechanical cavity, cabinetry enclosure, or other constrained location. Adequate clearance must still be preserved for removal of panels, inspection, maintenance, and future repair.
Service-Friendly Refrigerant Connections
The evaporator incorporates accessible connection points and multiple routing knockouts to support cleaner refrigerant piping, drain, control, probe, and electrical routing. Unused openings and penetrations must be sealed to prevent air leakage and condensation.

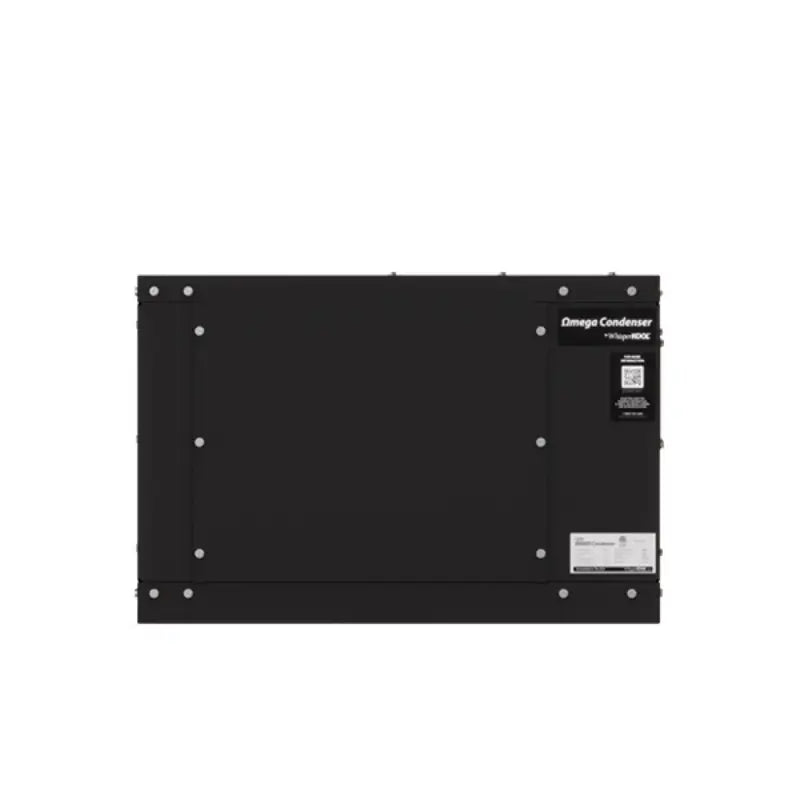

OMEGA 110V High-Efficiency Condenser
The matched OMEGA condenser is designed to provide flexible installation options for the pump-down system. Depending on placement, the appropriate exterior enclosure or condenser ducting accessory is required. The condenser can be located remotely from the evaporator within the manufacturer's stated line-set limits.
Pump-Down System Operation
In the standard pump-down configuration, a liquid-line solenoid and low-pressure control manage compressor cycling. When cooling is required, the solenoid opens and refrigerant flows. When the temperature control is satisfied, the solenoid closes and the compressor continues operating until refrigerant is pumped toward the condenser and receiver and the low-pressure control stops the compressor.
The pump-down design does not use the same evaporator-to-condenser communication arrangement as the 220V communication version. The installing technician must follow the wiring and commissioning instructions for the exact pump-down model.
Who Is the Blow-Through 8000 OMEGA Best For?
Luxury Residential Wine Cellars
The system is well suited to custom residential wine rooms where mechanical equipment must be integrated into premium finishes without dominating the interior design.

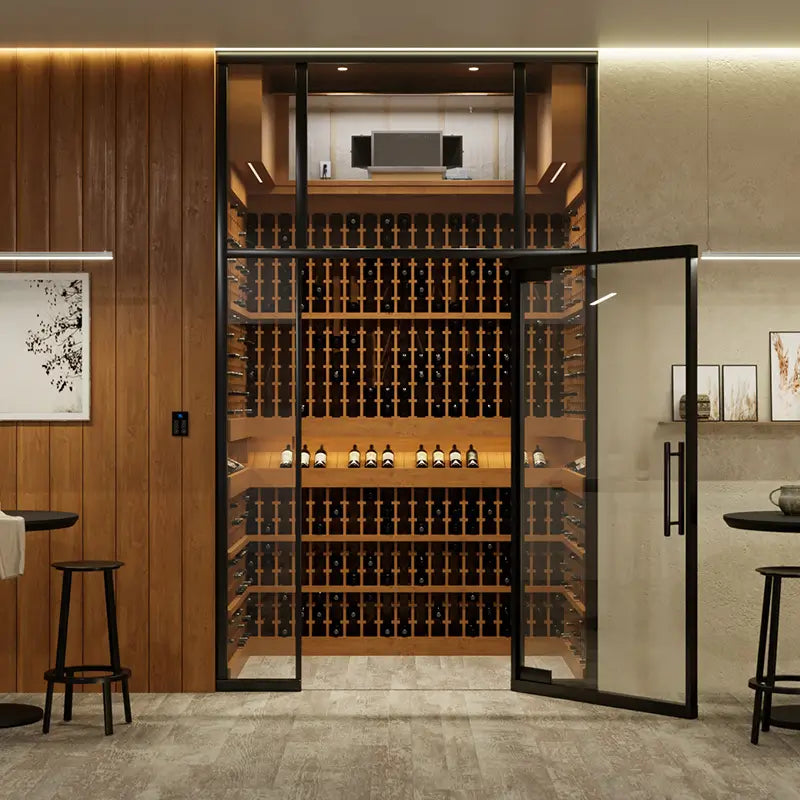

Glass-Enclosed Wine Rooms
Glass wine cellars often require careful equipment placement and may have higher cooling loads than similarly sized insulated rooms. The Blow-Through format helps preserve open sightlines, but the added load from glass must be included in the heat-load calculation.
Wine Walls and Built-In Cabinetry
Its configurable airflow and concealed evaporator design make it useful for custom wine walls and cabinetry where conventional wall-mounted equipment would be visually intrusive or difficult to service.
Restaurants and Hospitality Venues
Restaurants, tasting rooms, hotels, clubs, and hospitality venues can use the system in display-oriented wine storage projects where appearance, stable cellar conditions, and equipment access must be balanced.
Architects, Designers, and Custom Builders
The multiple airflow arrangements provide greater planning flexibility for professionals coordinating structural framing, racking, lighting, cabinetry, glass, duct routing, electrical service, drainage, and mechanical access.
Projects With Limited Traditional Equipment Space
The system can help solve placement challenges where a conventional visible evaporator cannot be positioned cleanly inside the room or where the equipment must be moved into a nearby concealed location.
Blow-Through 8000 Compared With a Conventional Visible Split Evaporator
| Decision Factor | Blow-Through 8000 | Conventional Visible Evaporator |
|---|---|---|
| Equipment visibility | Designed for concealed or visually integrated installations | Often mounted visibly inside the cellar |
| Airflow arrangement | Ducted, ductless, or hybrid | Typically based on a fixed evaporator discharge arrangement |
| Suitable installation locations | Soffits, cabinetry, wine walls, attics, or adjacent mechanical spaces | Usually requires a suitable visible wall or ceiling location |
| Design flexibility | Supply and return paths can be planned around architectural constraints | More dependent on the physical position and orientation of the evaporator |
| Installation complexity | Requires coordinated airflow, framing, insulation, access, and HVAC-R planning | May require fewer custom airflow components |
| Best use case | Premium or space-constrained projects where hidden integration is important | Projects where visible equipment is acceptable |
Which Airflow Configuration Should You Choose?
One airflow kit is required. The correct choice depends on the evaporator location, desired supply and return paths, available duct space, service access, register placement, and allowable airflow resistance.
| Configuration | Included Airflow Components | How It Works | Common Applications |
|---|---|---|---|
| Ducted Airflow Kit | 2 duct plenums | Both return and supply air are connected to ductwork. | Remote mechanical locations, attic or soffit installations, and projects where neither side of the evaporator should discharge directly into the cellar. |
| Ductless Airflow Kit | 2 airflow deflectors | Return and supply air are directed with deflectors rather than full duct runs. | Concealed in-cellar, cabinetry, or soffit installations where the evaporator is positioned close to the cellar openings. |
| Hybrid Airflow Kit | 1 duct plenum and 1 airflow deflector | One side is ducted while the other side uses a directional deflector. | Projects where either the return or supply requires remote routing but the opposite airflow path can connect directly to the cellar. |

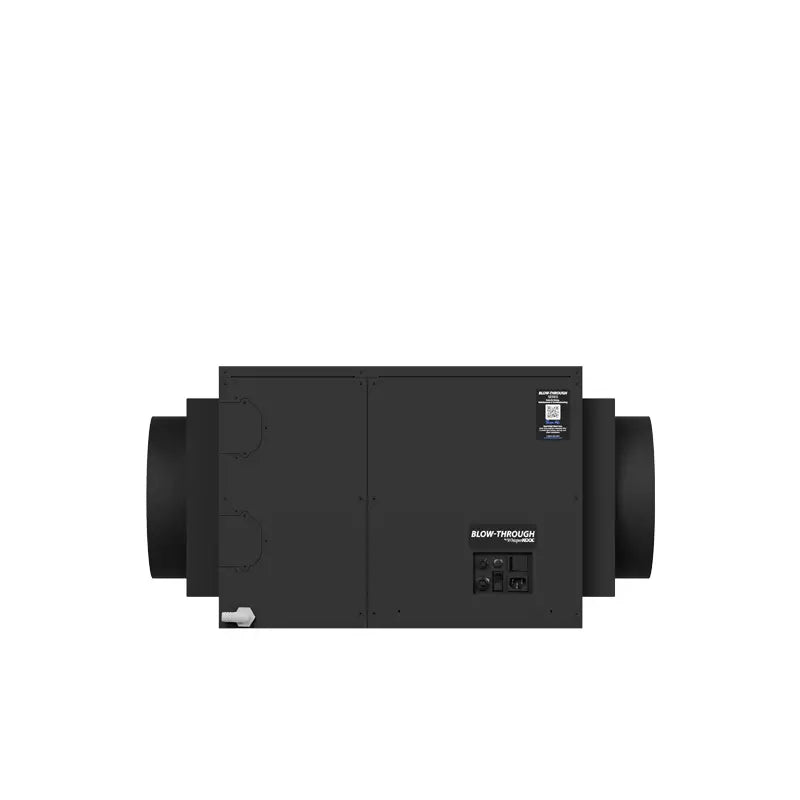

Ducted Configuration
Choose the ducted kit when both the supply and return air must travel through insulated ductwork. This is often the most appropriate option when the evaporator is located in an attic, mechanical area, or remote soffit cavity.
The Blow-Through 8000 uses 10-inch evaporator duct connections. Published duct guidance identifies a maximum combined run of approximately 25 feet, subject to proper duct design. Elbows, restrictions, undersized registers, sagging ductwork, and excessive run length can reduce airflow and cooling capacity.

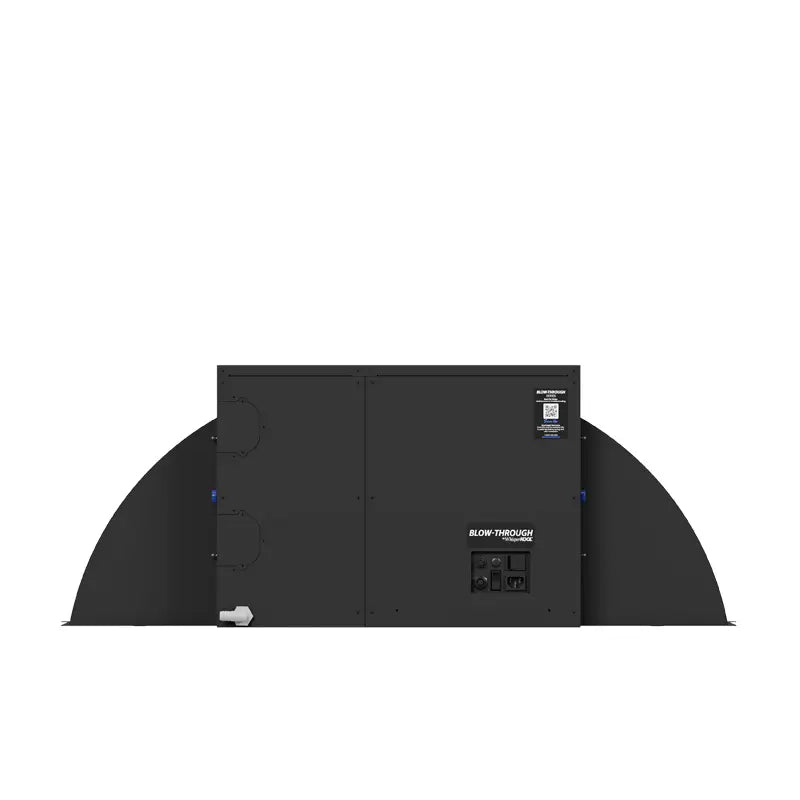

Ductless Configuration
Choose the ductless kit when the evaporator can be placed directly adjacent to the cellar openings. The two deflectors allow the return and supply paths to be aimed in the selected direction without complete duct runs.
The deflectors must be positioned before installation, and the openings must remain clear of racking, framing, trim, insulation, and decorative materials.
Hybrid Configuration
Choose the hybrid kit when one airflow path requires ducting and the other can use a direct deflector. This arrangement can reduce duct complexity where only the supply or return needs to be routed to another location.
Airflow Planning Is Critical
Restricted supply or return airflow can reduce capacity, increase noise, raise static pressure, contribute to evaporator icing, create condensate problems, and shorten system life. Registers, grilles, louvers, ducting, and decorative millwork must be sized for the required airflow before fabrication or installation.
Required Items and Project Requirements
1. Required Airflow Configuration Kit
Select one:
- Ducted Airflow Kit — 2 duct plenums
- Ductless Airflow Kit — 2 airflow deflectors
- Hybrid Airflow Kit — 1 duct plenum and 1 airflow deflector
2. Field-Supplied Refrigerant Line Set
The system does not include a refrigerant line set. The line set must be selected and installed according to the total equivalent length, vertical rise, manufacturer sizing requirements, and local code.
3. Qualified HVAC-R Installation
A qualified HVAC-R technician must complete the refrigeration, electrical, drainage, evacuation, leak testing, charging, TXV verification, controller setup, and system commissioning.
4. Properly Constructed Wine Cellar
The room must be insulated, sealed, and protected with a continuous vapor barrier. Openings around doors, conduits, wiring, registers, ducts, line-set penetrations, drains, and framing must be sealed.
5. Condenser Installation Accessory
The appropriate OMEGA accessory is required based on condenser placement:
- Exterior Enclosure for an outdoor OMEGA condenser installation
- OMEGA Ducting Kit for an indoor installation requiring condenser-air ducting
Optional Add-Ons
24V Thermostat Conversion Kit
This conversion kit allows the system to operate with a compatible, customer-supplied third-party 24V thermostat. WhisperKOOL does not provide the smart thermostat.
24V Thermostat Notice
Selecting the 24V Thermostat Conversion Kit means the system will not be built with the standard WhisperKOOL control configuration or its liquid-temperature bottle-probe control. The customer must source and purchase a compatible 24V thermostat. WhisperKOOL does not provide technical support for third-party smart thermostats.
| Control Feature | Standard KDT Control | 24V Thermostat Configuration |
|---|---|---|
| Primary temperature sensing | Liquid-temperature bottle probe | Ambient-air sensing through the selected thermostat |
| WhisperKOOL evaporator monitoring | Included in the standard control configuration | Not provided through the third-party thermostat |
| Automatic defrost control | Managed through the standard WhisperKOOL controller | Not supplied as a standard third-party thermostat function |
| Wine-temperature alerts | Available through the standard controller's protection functions | Dependent on the selected third-party thermostat |
| Preprogrammed system setup | WhisperKOOL control is configured for the cooling system | Customer and installer are responsible for thermostat selection and setup |
| Smart-home or app compatibility | Not the primary purpose of the standard KDT controller | Possible when supported by the customer-supplied thermostat |
| Thermostat technical support | WhisperKOOL support applies to its supplied control system | WhisperKOOL does not support the third-party smart thermostat |

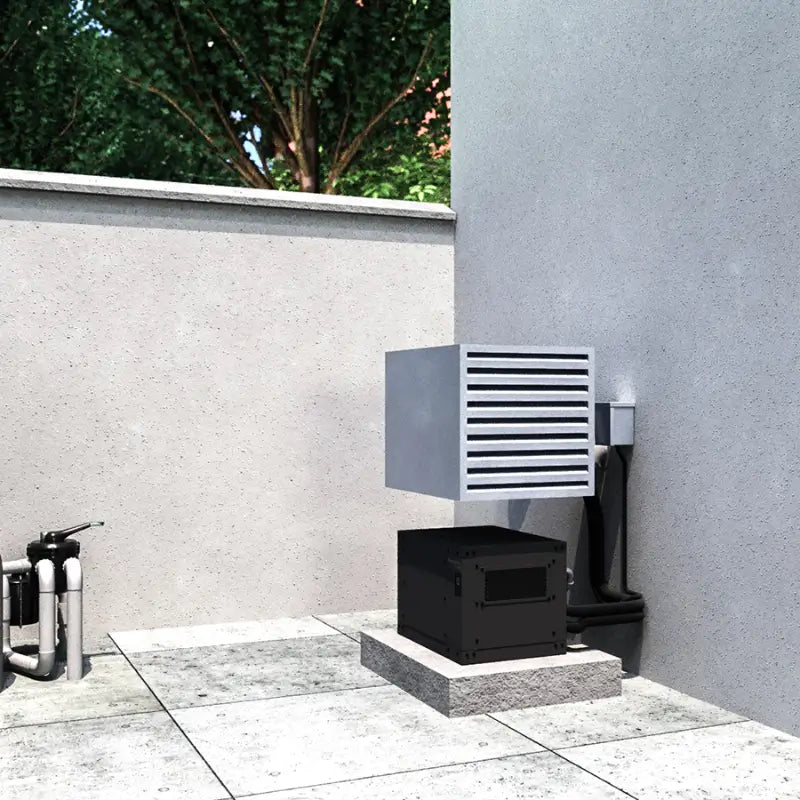

Exterior Enclosure for the OMEGA Condenser
The exterior enclosure is required when the OMEGA condenser is installed outdoors. The condenser must be level, properly supported, protected from environmental exposure as directed, and located where airflow will remain unobstructed.

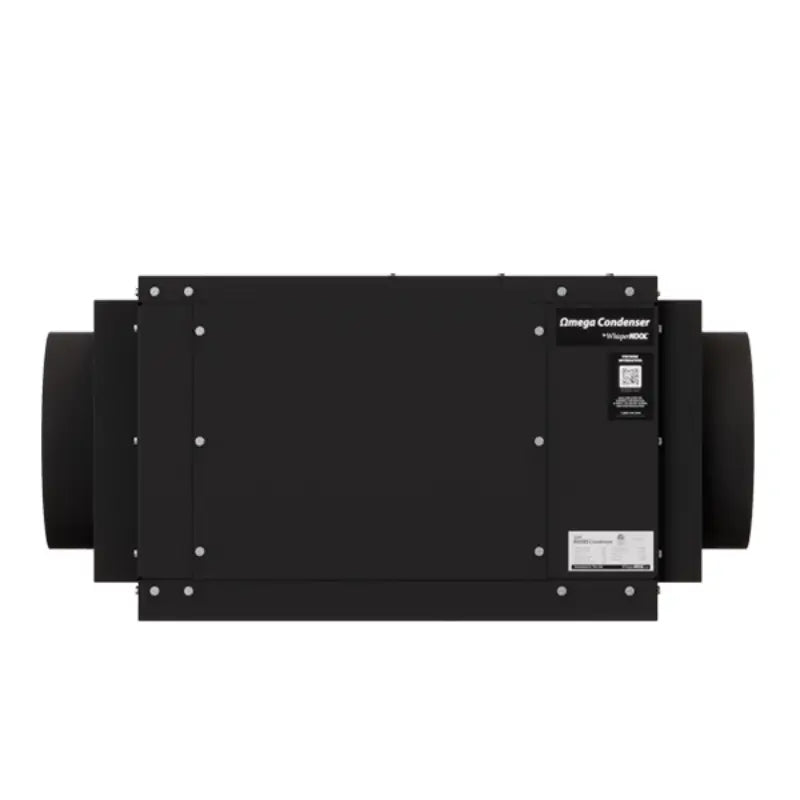

Ducting Kit for the OMEGA Condenser
The condenser ducting kit allows the OMEGA unit to be installed indoors while routing condenser intake and exhaust air. Condenser duct design must remain within the published diameter and length limits to avoid reducing heat rejection and system capacity.
Condenser Coil Coating
Condenser coil coating is available as an optional add-on for projects where additional coil protection is desired. Site conditions and suitability should be reviewed before ordering.
Cooling Performance and Cellar Sizing
The published product-page cooling range is approximately 4,463 to 5,544 BTU/h. This range is not a guaranteed output for every installation. Actual sensible and total capacity change according to condenser inlet temperature, fan speed, airflow configuration, duct resistance, refrigerant charge, cellar conditions, and system commissioning.
Why the Published BTU Capacity Is a Range
Cooling output varies because the system operates under changing conditions. A condenser receiving cooler air can generally reject heat more effectively than one receiving warmer air. Higher evaporator fan speed can also increase available airflow and output, provided the ductwork and registers do not restrict the system.
Cellar Construction Directly Affects Required Capacity
Nominal sizing assumes a wine cellar that is properly sealed, insulated, and protected with a correctly installed vapor barrier. Materials and construction conditions that can increase the heat load include:
- Large glass walls, doors, or ceilings
- Stone, concrete, or masonry surfaces
- Exterior walls or ceilings exposed to high ambient temperatures
- Insufficient insulation
- Missing or damaged vapor barriers
- Air leakage around doors, penetrations, registers, or ductwork
- Lighting and other internal heat sources
- Frequent door openings
- High ambient humidity
- Long or restrictive duct runs
Do Not Select the Unit by Room Volume Alone
Two cellars with the same cubic footage can require substantially different cooling capacities. A sealed interior room with high insulation values does not impose the same load as a glass-enclosed room with exterior exposure.
A project-specific heat-load calculation should be performed before purchase. An undersized system may run excessively, fail to reach the desired temperature, create unstable conditions, and experience premature component wear.
Sizing Recommendation
Do not use the published BTU range or a simple cubic-foot estimate as the only sizing method. Provide the cellar dimensions, insulation values, glass area, ambient conditions, construction materials, lighting load, and intended temperature to a qualified wine-cellar professional or HVAC-R designer.
Installation Requirements and Planning Considerations
Certified HVAC-R Installation Is Required
This is not a plug-and-play through-the-wall cooling unit. The evaporator and condenser must be connected by a field-installed refrigerant line set and professionally commissioned. The installer must follow the complete owner’s manual, charge chart, quick-start guide, wiring instructions, and warranty checklist.
Electrical Requirements
- The Blow-Through evaporator is configured for the voltage shown on its equipment label.
- The OMEGA 8000 condenser uses 110–130V power.
- The manufacturer documentation specifies a dedicated circuit.
- The 8000 OMEGA condenser requires the circuit capacity stated in the installation manual.
- The electrical supply must match the equipment nameplate.
- A surge protector is recommended.
- Do not use a GFI/GFCI outlet or breaker where prohibited by the manufacturer instructions.
- All electrical work must comply with applicable codes.
Refrigerant Line Set
The line set is sold separately. Published guidance for the 8000 system identifies:
- Liquid line: 1/4-inch OD
- Suction line up to 50 feet: 1/2-inch OD
- Suction line over 50 feet: 5/8-inch OD
- Maximum published separation: up to 100 line feet
Final sizing and routing must be confirmed by the installing technician. Total equivalent length, vertical lift, fittings, traps, oil-return requirements, insulation, and site conditions must be considered.
Evacuation, Leak Testing, and Charging
The refrigerant circuit must be pressure-tested, leak-checked, evacuated, charged, and adjusted according to the manufacturer instructions. The installation documentation calls for verification of pressure, superheat, subcooling, compressor amperage, voltage, airflow, and condensate operation.
The charge chart provides an approximate initial refrigerant quantity based on line-set length. That value is only a starting point. Final charging and TXV adjustment must be based on measured operating conditions.

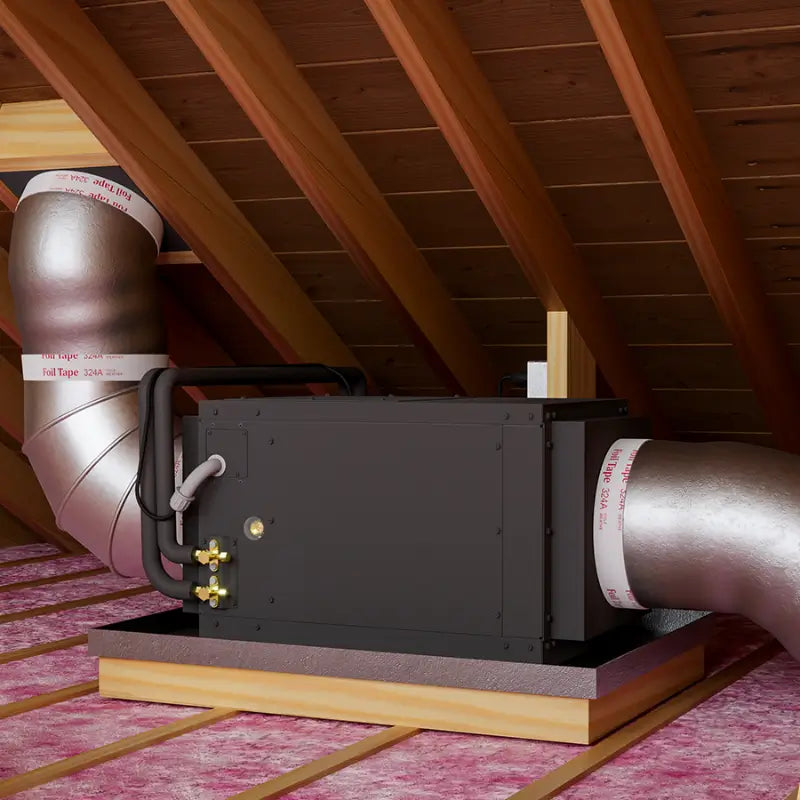

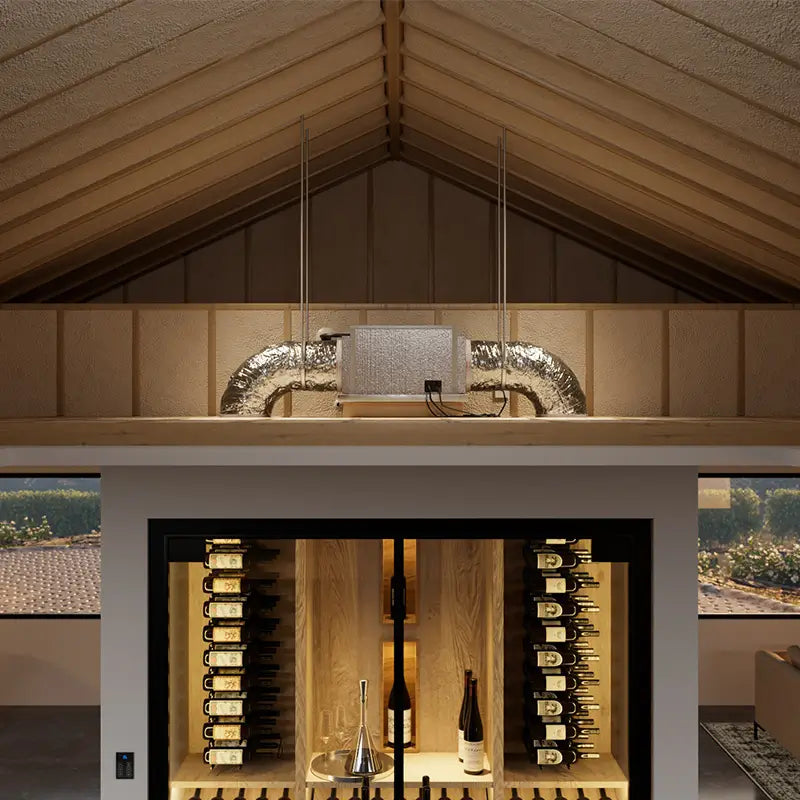

Evaporator Placement
The evaporator may be installed in the cellar, a soffit, an attic, or an adjacent mechanical space, depending on the selected airflow configuration. The mounting structure must support the full operating weight of the unit.
The installation must preserve clear access to panels, connections, drain components, controls, and serviceable parts. The manufacturer documentation identifies a minimum front service-access allowance that must be incorporated into the enclosure design.
Evaporator Insulation
The supplied exterior insulation must be installed according to the manual before the evaporator is placed into the soffit or enclosure. Additional insulation is required where the evaporator is exposed to warm attic or mechanical-space conditions.
Poor insulation can allow surface condensation, moisture damage, corrosion, loss of capacity, or damage to surrounding construction. All seams, gaps, penetrations, unused knockouts, duct joints, and line-set openings must be sealed after installation.
Condensate Drainage
A drain line is required even though the unit incorporates a condensate pump. The installer must route the drain to a suitable discharge point, cap unused drain ports, avoid kinks or traps that interfere with flow, and perform a complete drainage test.
Ductwork
Supply and return ductwork must be insulated, vapor sealed, supported, and free from obstructions. Connections should be mechanically secured and sealed using approved HVAC materials to prevent air leakage.
Unnecessary bends should be avoided. Each fitting and turn adds resistance and can reduce delivered airflow. Ductwork must not sag or place mechanical stress on the evaporator collars.
Registers, Grilles, and Louvers
Decorative registers must provide sufficient free area. Manufacturer guidance requires register and louver designs to maintain approximately 50% to 65% free area across the face, depending on the application.
Avoid tightly spaced slats, restrictive mesh, acoustic foam, screens, solid backing, or finishing treatments that close the openings. Register design must be verified after paint, stain, sealant, or other finish material has been applied.
Linear Registers
When linear registers are used, follow the manufacturer’s minimum length and open-area guidance. The supplied ducting document indicates that compatible linear registers should generally be at least 48 inches long and must provide adequate open airflow area.

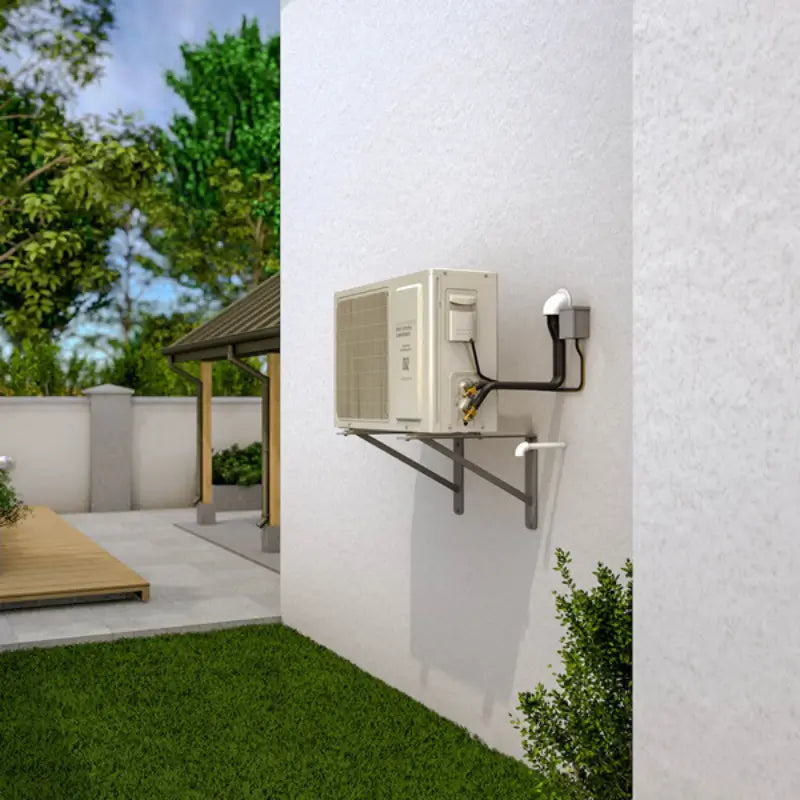

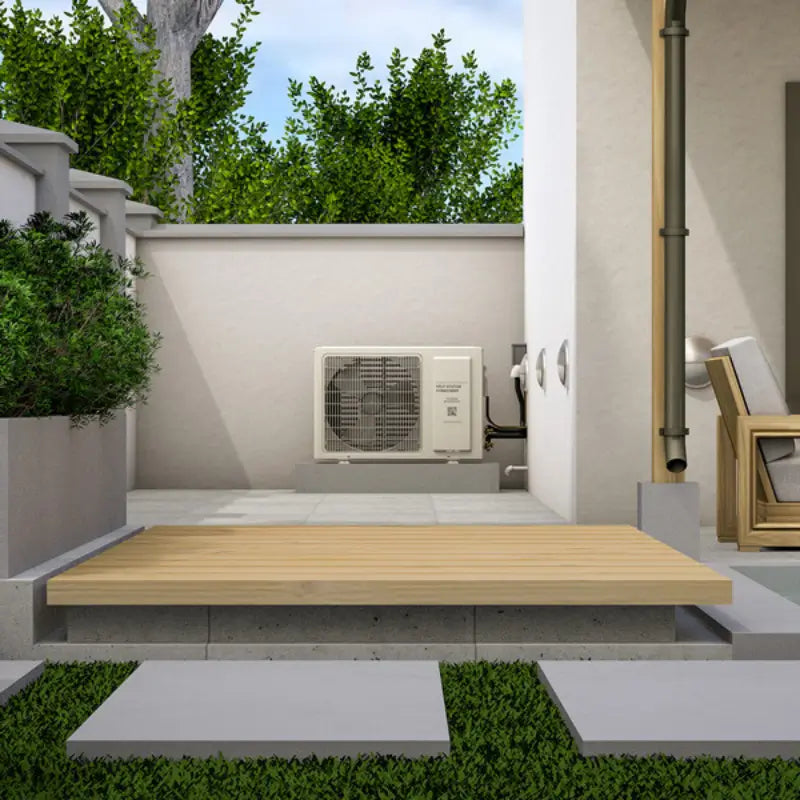

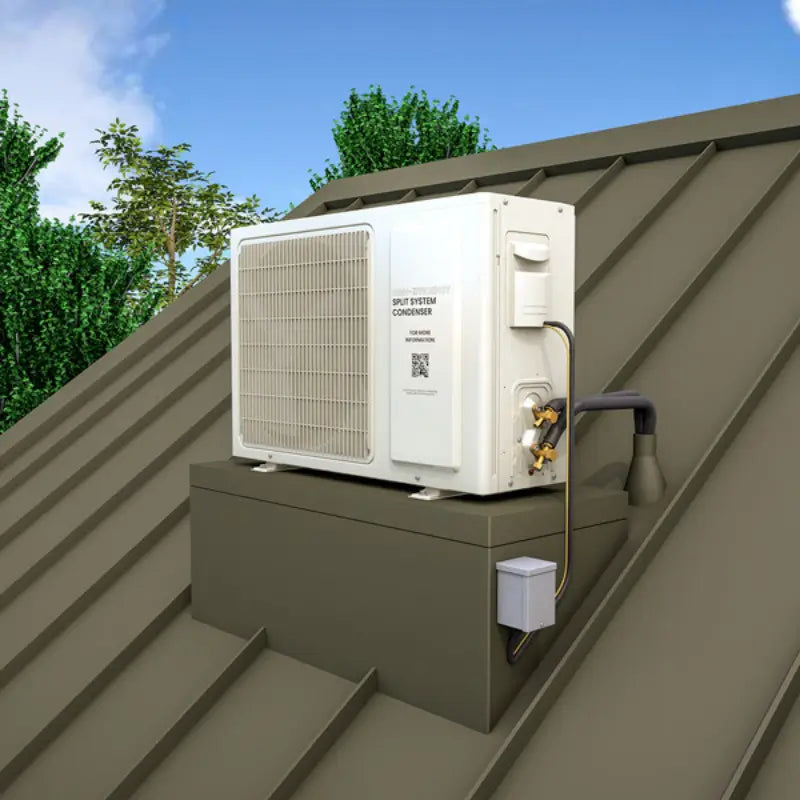

Condenser Placement
The OMEGA condenser may be installed indoors or outdoors when configured with the appropriate accessory. It requires unobstructed intake and exhaust airflow and must not recirculate its own heated discharge air.
Indoor locations must provide a method to remove rejected heat. A small, unventilated closet is not an acceptable condenser location. Outdoor installations require the exterior enclosure and a level, properly supported mounting surface.
Operating Temperature
Published OMEGA documentation identifies operation across ambient conditions from approximately -20°F to 110°F when the system is correctly installed and equipped for its location. Available cooling capacity decreases as condenser inlet temperature rises.
Technical Specifications
System Overview
| Brand | WhisperKOOL |
|---|---|
| Product | Blow-Through 8000 OMEGA 110V H.E. Split Wine Cellar Cooling System |
| Model | Blow-Through 8000 OMEGA 110V H.E. Pump Down |
| SKU | S-WKBT-8000-OMEGA |
| System type | Split wine cellar cooling system |
| Control method | Pump-down operation |
| Evaporator | WhisperKOOL Blow-Through 8000 |
| Condenser | WhisperKOOL OMEGA 8000 110V high-efficiency condenser |
| Available airflow configurations | Ducted, ductless, or hybrid |
| Required airflow accessory | One compatible ducted, ductless, or hybrid airflow kit |
| Published product-page cooling range | Approximately 4,463–5,544 BTU/h, depending on operating conditions |
| Refrigerant | R-134a according to installation and charging documentation |
| Line set included | No |
| Professional installation | Required |
Blow-Through 8000 Evaporator Specifications
| Evaporator airflow | 262 CFM low / 352 CFM medium / 430 CFM high |
|---|---|
| Published sound levels at 6 feet | As low as 46 dBA low / 53 dBA medium / 59 dBA high |
| Evaporator chassis dimensions | Approximately 21.5 in. L × 15.5 in. W × 15.5 in. H before airflow accessories |
| Approximate ducted overall dimensions | 30.5 in. L × 15.5 in. W × 15.5 in. H |
| Approximate ductless overall dimensions | 41.52 in. L × 15.5 in. W × 15.5 in. H |
| Approximate hybrid overall dimensions | 36.01 in. L × 15.5 in. W × 15.5 in. H |
| Evaporator weight | Approximately 65 lb |
| Evaporator voltage | 120V configuration for this system; verify equipment nameplate |
| Evaporator running amperage | Approximately 1.4 amps in published product-sheet data |
| Evaporator duct diameter | 10-inch return and 10-inch supply when fully ducted |
| Published evaporator duct guideline | Approximately 25 feet total; final design must account for fittings and static pressure |
| Drainage | Built-in condensate pump with required field-installed drain line |
| Standard thermostat/control | KDT advanced digital display with 50-foot cable |
| Temperature sensor | Liquid-temperature bottle probe with 50-foot cable |
| Evaporator installation locations | Cellar, soffit, attic, cabinetry, or adjacent mechanical space when properly designed |
OMEGA 8000 Condenser Specifications
| Condenser model | OMEGA 8000 |
|---|---|
| Condenser voltage range | 110–130V |
| Condenser horsepower | 0.5+ HP |
| Condenser running amperage | Approximately 9.5 amps |
| Condenser dimensions | Approximately 23 in. L × 15.75 in. W × 15.3 in. H |
| Condenser weight | Approximately 86 lb |
| Published sound level | As low as approximately 52 dBA at 85°F in a non-ducted application |
| Liquid line | 1/4-inch OD |
| Suction line up to 50 feet | 1/2-inch OD |
| Suction line over 50 feet | 5/8-inch OD |
| Maximum published line-set distance | Up to 100 line feet between condenser and evaporator |
| Condenser ducting | 10-inch duct diameter with a published 25-foot combined maximum when using the OMEGA duct kit |
| Published ambient operating range | Approximately -20°F to 110°F when correctly installed |
| Outdoor installation | Requires the OMEGA exterior enclosure |
| Indoor installation | Requires appropriate condenser-air ventilation; OMEGA duct kit required where condenser ducting is used |
Published Blow-Through 8000 Performance Data
The table below presents manufacturer-published sensible and total BTU/h values for the Blow-Through 8000 paired with the OMEGA condenser. Values vary by airflow configuration, fan speed, and condenser inlet-air temperature.
| Configuration | Condenser Inlet Air | Low Fan | Medium Fan | High Fan |
|---|---|---|---|---|
| Ductless / Deflector | 65°F | 4,667 / 5,488 | 4,775 / 5,638 | 4,870 / 5,770 |
| 75°F | 4,497 / 4,829 | 4,603 / 4,948 | 4,695 / 5,054 | |
| 85°F | 4,463 / 4,632 | 4,558 / 4,822 | 4,641 / 4,990 | |
| Fully Ducted | 65°F | 4,200 / 4,939 | 4,298 / 5,074 | 4,383 / 5,193 |
| 75°F | 4,047 / 4,346 | 4,143 / 4,453 | 4,226 / 4,549 | |
| 85°F | 4,017 / 4,169 | 4,102 / 4,340 | 4,177 / 4,491 |
Performance values are shown as sensible / total BTU/h. Published laboratory or specification values are not a substitute for a project-specific heat-load calculation. Hybrid performance will depend on the selected supply/return arrangement and installation.
Annual Maintenance Program
Preventive maintenance is necessary to preserve airflow, drainage, refrigeration performance, electrical reliability, and warranty compliance. WhisperKOOL advises that maintenance on this split system be performed by a licensed HVAC-R technician.
Recommended Inspection and Maintenance Items
- Inspect duct insulation and vapor-barrier integrity.
- Inspect and clean supply and return registers.
- Inspect filters and clean or replace them as required.
- Inspect evaporator and condenser coils for dirt and debris.
- Inspect coil fins for damage or fouling.
- Check the refrigerant circuit for evidence of leaks.
- Clean the drain pan, drain line, pump reservoir, and water sensor.
- Perform a condensate drainage test.
- Inspect electrical connections and tighten loose terminations.
- Inspect relays, contactors, and other electrical components.
- Confirm fan and blower operation.
- Measure operating voltage and amperage.
- Check refrigerant pressures, superheat, and subcooling.
- Inspect the sight glass and moisture indicator where applicable.
- Verify controller probes and alarm functions.
- Inspect and clean the bottle probe.
- Replace the liquid in the bottle-probe container as needed.
Maintenance frequency may need to be increased in dusty, humid, coastal, commercial, or high-use environments.
Split-System Product Warranty
WhisperKOOL documentation describes a limited two-year product warranty for split-system units, with up to an additional one-year grace period for installation. The warranty begins from the date of purchase but is not activated until the required Product Warranty Checklist has been completed, submitted, reviewed, and approved.
Warranty Activation Requirements
The certified HVAC-R technician must document the completed installation and operating measurements. Required information includes, but is not limited to:
- Installer and company information
- Product model and serial numbers
- Line-set size, length, and vertical rise
- Refrigerant charge amount
- Pressure and temperature measurements
- Superheat and subcooling values
- Electrical voltage and amperage
- Condensate drain test result
- System start-up date
Warranty coverage is subject to the full manufacturer terms, installation requirements, maintenance requirements, exclusions, and approval process. Review the owner's manual and warranty documentation before installation.
Official Product Resources and Downloads
The following are the exact manufacturer resources supplied for this product. No additional or placeholder download links have been added.
- WhisperKOOL 4000/8000 Condenser Quick Start Guide
- WhisperKOOL 4000/8000 Condenser Charge Chart
- Blow-Through Series 4000/8000 Evaporator Drawing
- Linear Register Ducting Best Practices
- WhisperKOOL Blow-Through Series OMEGA Owner's Manual
- Register and Louver Airflow Requirements
- WhisperKOOL Blow-Through Product Sheet
- KDT vs. 24V Thermostat Comparison Chart
- Blow-Through Airflow Configuration Sheet
- WhisperKOOL Blow-Through Series Sales Sheet
- WhisperKOOL Blow-Through Series Maintenance Checklist
Frequently Asked Questions

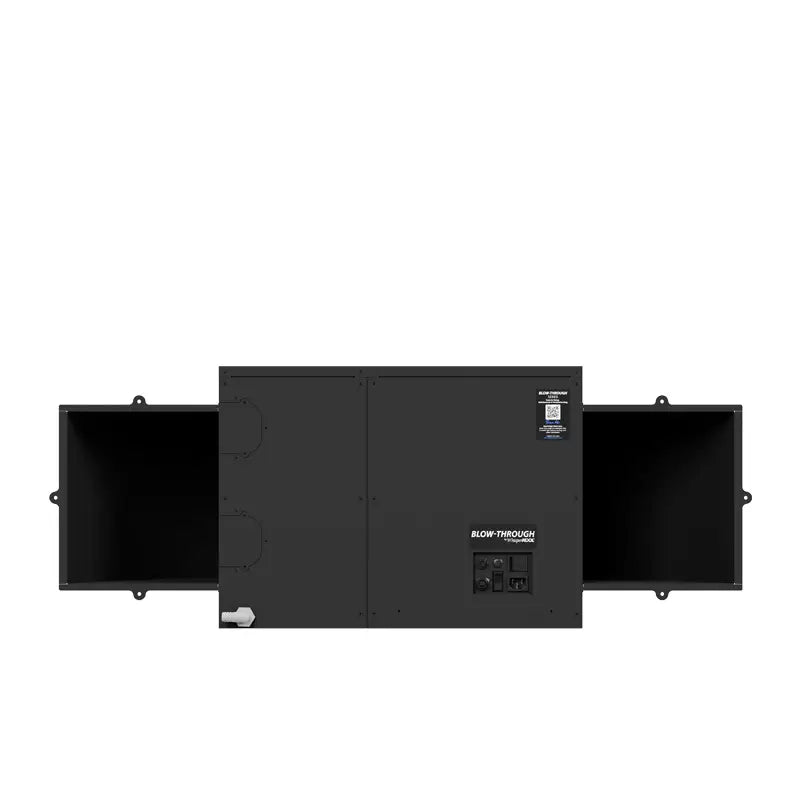

What is the WhisperKOOL Blow-Through 8000 OMEGA?
It is a split wine cellar cooling system consisting of a Blow-Through 8000 evaporator and an OMEGA 110V high-efficiency condenser. It is designed for concealed installations and supports ducted, ductless, and hybrid airflow configurations.
What makes the Blow-Through 8000 different from a conventional split system?
The Blow-Through evaporator is designed to be hidden in a soffit, cabinetry assembly, attic, wine wall, or adjacent mechanical area. Its airflow can be configured with plenums, deflectors, or a combination of both, giving designers and installers more flexibility than a fixed visible evaporator.
Is an airflow kit required?
Yes. One compatible airflow configuration kit must be selected: the ducted kit with two duct plenums, the ductless kit with two airflow deflectors, or the hybrid kit with one duct plenum and one deflector.
Which airflow kit should I choose?
Choose the ducted kit when both supply and return air must be routed through ductwork. Choose the ductless kit when the evaporator will sit directly beside the cellar openings. Choose the hybrid kit when only the supply or return side requires ducting. Final selection should be made with the cellar designer and HVAC-R installer.
Does the system include a refrigerant line set?
No. The refrigerant line set is not included. It must be field supplied and sized according to line length, vertical rise, system requirements, and the manufacturer's installation instructions.
How far can the condenser be installed from the evaporator?
Manufacturer documentation permits a separation of up to approximately 100 line feet when the line set is correctly sized and installed. Equivalent length, vertical lift, fittings, oil return, and site conditions must be evaluated by the HVAC-R technician.
What line-set sizes are used for the Blow-Through 8000 OMEGA?
Published guidance identifies a 1/4-inch OD liquid line, a 1/2-inch OD suction line for runs up to 50 feet, and a 5/8-inch OD suction line for runs over 50 feet. The installer must confirm final requirements for the project.
Can the Blow-Through 8000 be installed in a soffit?
Yes. Soffit installation is a primary application for the series. The soffit must support the operating weight, preserve service access, accommodate airflow openings, and provide correct insulation, drainage, refrigerant piping, electrical routing, and vapor sealing.
Can the evaporator be installed in an attic?
Yes, when the complete installation follows the manufacturer instructions. The evaporator must receive the supplied exterior insulation plus the additional insulation required for a warm attic environment. A secondary condensate pan may also be appropriate for overhead applications.
Can this system cool a glass wine cellar?
It can be used for a glass-enclosed cellar when the system is properly sized. Glass has a lower insulating value than a conventional insulated wall and can substantially increase the heat load, so a project-specific load calculation is essential.
What is the cooling capacity of the Blow-Through 8000 OMEGA?
The product information identifies a published capacity range of approximately 4,463–5,544 BTU/h. Detailed sensible and total output varies according to fan speed, airflow configuration, condenser inlet temperature, and installation conditions.
How large a cellar can the Blow-Through 8000 cool?
The correct cellar size cannot be determined from cubic footage alone. Insulation, vapor barrier, glass, stone, concrete, ambient temperature, duct design, lighting, humidity, and air leakage all affect the required capacity. A heat-load calculation should be completed before ordering.
Does the system include a condensate pump?
Yes. The evaporator incorporates a condensate pump, but a field-installed drain line is still required. The drain and pump must be tested during commissioning and maintained regularly.
What is the bottle probe?
The bottle probe is a liquid-temperature sensor used by the standard WhisperKOOL KDT controller. It measures a liquid temperature that more closely represents stored wine than rapidly changing ambient air temperature.
Can I use a smart thermostat?
A customer-supplied compatible 24V thermostat can be used only when the 24V Thermostat Conversion Kit is selected. The smart thermostat itself is not included, and WhisperKOOL does not provide technical support for third-party smart thermostats.
What do I lose by choosing the 24V thermostat conversion?
The converted system does not use the standard WhisperKOOL KDT control and liquid-temperature bottle-probe configuration. Manufacturer-specific monitoring, protection, alarm, and control functions associated with the standard KDT system may not be available through the third-party thermostat.
Can the OMEGA condenser be installed outdoors?
Yes, but the OMEGA exterior enclosure is required for an outdoor installation. The condenser must be level, properly supported, and installed with unobstructed airflow according to the manufacturer's instructions.
Can the OMEGA condenser be installed indoors?
Yes, when there is a properly designed method for removing condenser heat. Where condenser intake and exhaust air must be ducted, the OMEGA ducting kit and the published duct limits must be followed.
Why are register and louver free-area requirements important?
Restrictive registers reduce airflow and can cause lower capacity, excessive noise, high static pressure, evaporator icing, condensate problems, and premature component wear. Decorative openings must provide the required free area after finishing.
Can linear slot registers be used?
They can be used when they meet the manufacturer’s length and open-airflow requirements. WhisperKOOL guidance indicates compatible linear registers should generally be at least 48 inches long and must provide sufficient open area for the selected system.
Does the Blow-Through 8000 require professional installation?
Yes. A qualified, licensed HVAC-R technician must install and commission the system. Failure to meet the manufacturer installation requirements may void the warranty.
What maintenance does the system require?
Annual professional maintenance should include cleaning coils and registers, checking filters, testing drainage, inspecting the condensate pump, checking electrical connections, measuring refrigerant pressures, verifying superheat and subcooling, confirming fan operation, and inspecting the controller and bottle probe.
How is the WhisperKOOL warranty activated?
The certified HVAC-R installer must complete and submit the required split-system warranty checklist with the installation and commissioning measurements. The warranty is not active until the checklist has been reviewed and approved by WhisperKOOL.
What warranty is provided?
Manufacturer documentation describes a limited two-year split-system product warranty, with up to an additional one-year grace period for installation. Coverage remains subject to registration, professional installation, maintenance, exclusions, and the complete written warranty terms.
Product Information Notice
Specifications, performance values, dimensions, accessories, installation requirements, and warranty terms are based on the supplied WhisperKOOL documentation and may be revised by the manufacturer. Verify the current equipment nameplate, approved submittals, manuals, and project requirements before purchase or installation.
Cooling capacity and suggested cellar size depend on proper cellar construction and a project-specific heat-load calculation. Installation must comply with the manufacturer's instructions and all applicable electrical, mechanical, refrigeration, and building codes.
-
FAST, FREE SHIPPING
Get your online orders fast at your door with free shipping.
-
TAX FREE
No Sales Tax (Excludes Nevada) on most orders.
-
SECURED PAYMENTS
Giving you peace of mind with every purchase.
-
TOP-NOTCH SUPPORT
Excellence meets care, Ready to help you!
