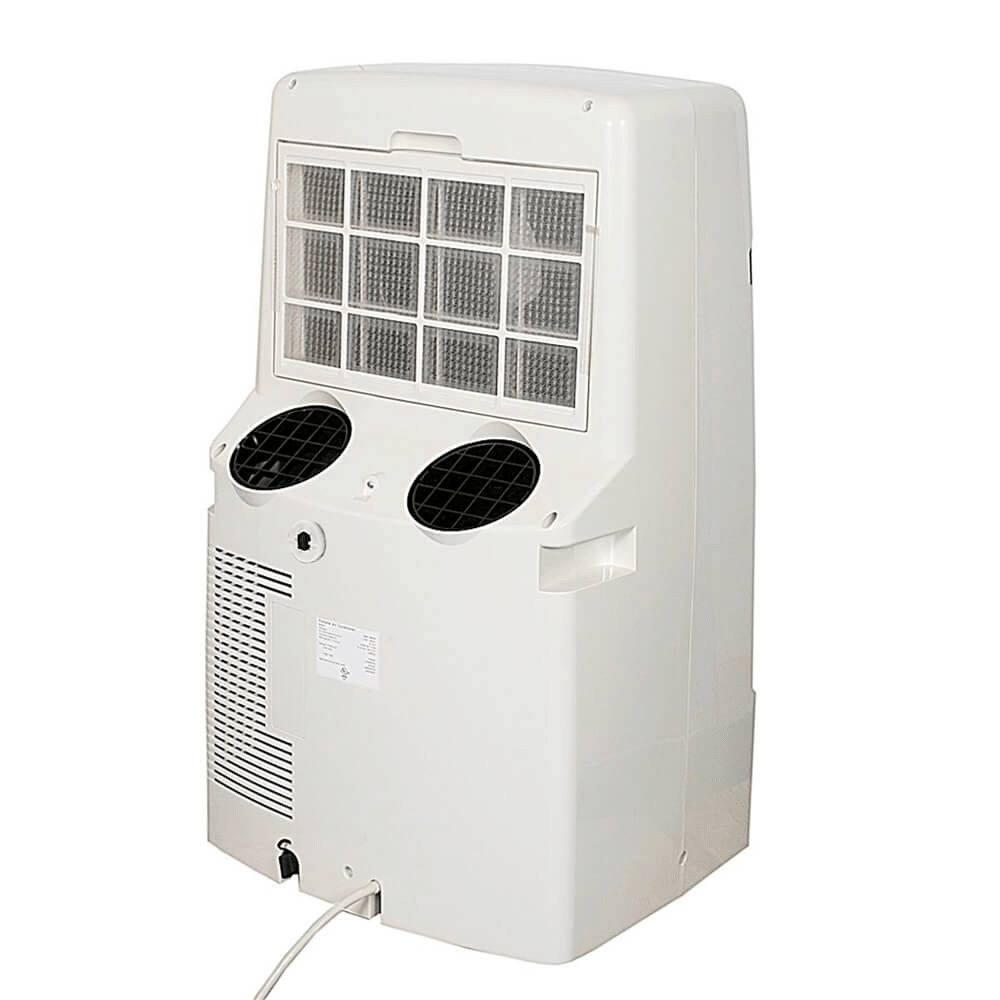

Whynter 12,000 BTU Dual Hose Portable Air Conditioner with Activated Carbon Filter ARC-12SD
Whynter is going GREEN! With this new Eco-friendly CFC free, lead-free and high energy efficiency portable air conditioner, you can stay cool while keeping with better environmental standards and reducing energy consumption.
This Whynter GREEN ARC-12SD portable air conditioner features the ECO-FRIENDLY CFC-free GREEN R-410A refrigerant and lead-free RoHS compliant components.
This unit features the patented advanced auto drain technology, which uses and recycles moisture collected during the cooling process to produce cool air. The dual hose operation provides fast cooling.
This unit can cool up to a 400 sq. ft. space (ambient temperature and humidity may influence optimum performance).
Comes with a protective cover with a pocket that will protect your portable AC unit plus store your exhaust hose, window kit, remote control, and user manual when not in use. This protective cover will keep dust and dirt from collecting on the unit while it is in storage.
FEATURES:
● Frost White color
● 12,000 BTU Cooling
● Dual hose operation
● ECO-FRIENDLY CFC free GREEN R-410A refrigerant
● Lead free RoHS compliant components
● Patented auto drain function fully exhausts all condensate automatically in most environments
● Three operational modes: Air conditioner, fan or dehumidifier
● Digital and remote control
● LCDI (Leakage-Current Detection and Interruption) plug
● Dehumidifying Capacity: 96 Pts / day
● Designed to provide quiet and efficient cooling to any room, with no permanent installation
● 3 fan speeds
● Carbon air filter and washable pre-filter
● Full thermostatic control (61°F – 89°F)
● Casters for easy mobility
● 24 hour programmable timer
● Noise level (dBA): <56
● Auto restart after power outage
● Storage cover bag with pocket
● Extendable exhaust hose (up to 60″)
● Upgraded Plastic window kit included
● Exhaust/ Intake Hose: 5.9″ diameter
● Hose Connectors: 5.9″ diameter with 5.0″ diameter reducer
● Fixture and Window Kit: 5.0″ diameter
● Window Kit: 6.5″ W x 20″ (min)/ 46″ (max) L
● Refrigerant: R-410A
● Air Flow (at high speed): 320 m3/h / 188 CFM
● Maximum power consumption: 1100 W / 10.5 A
● Power supply: 115 V / 60Hz / 1 Phase
● Unit dimensions: 20″ W x 16.5″ D x 34″ H
● Package dimensions: 21″ W x 19″ D x 44″ H
● Net weight: 71 lbs
● Gross weight: 95 lbs
● UL listed
● UPC 891207001965
*This unit comes with one year warranty and three year warranty on the compressor.
SPECIFICATIONS:
| ASHRAE BTU |
12,000 BTU
|
| Color |
White
|
| Coverage Sq. Ft. |
400 sq. ft.
|
| Dehumidifying Capacity |
96 pints/ day
|
| Exhaust Hose Length |
Max. 60"
|
| Fan Speed |
3 speed
|
| Filter Type |
Carbon air filter and washable pre-filter
|
| Heat Mode |
No
|
| Hose System |
Dual Hose
|
| Louver Type |
Manual adjust with manual side to side
|
| Maximum Power Consumption |
1100W/ 10.5A
|
| Noise level (dBA) |
< 56
|
| Pump Feature |
No
|
| Refrigerant |
R-410A
|
| Replacement Filter |
Carbon: ARC-CF-12SD
|
| Replacement Hose |
ARC-EH-TYPE-L
|
| Replacement Window Kit |
ARC-WK-DUALN
|
| SACC BTU |
7,694.6 BTU
|
| Storage Bag |
Yes
|
| Temperature Range |
61°F – 89°F
|
| Unit Dimensions |
20" W x 16.5" D x 34" H
|
| Upper Gravity Drain Port |
Yes
|
| Window Kit Length |
6.5" W x 20" (min)/ 46" (max) L
|
MANUAL:
ACCESSORIES:
Intake / Exhaust hoses: Based on the version of the portable air conditioner you have, you may need a 5.0″ or 5.9″ diameter hose(s) and/or connector(s) listed below. Please make sure to measure your existing hose(s) before ordering additional accessories.
NOTE: Please note that we do not recommend extending the exhaust hose(s) more than 9 feet long.
- ARC-EH-TYPE-S (Whynter Intake / Exhaust hose 5.0″ diameter)
- ARC-EH-TYPE-L (Whynter Intake / Exhaust hose 5.9″ diameter)
- Hose Extender Sets: Based on the version of the portable air conditioner you have, you may need a 5.0″ or 5.9″ diameter hose connector sets listed below. Please make sure to measure your existing hose(s) before ordering additional accessories.
- ARC-HCSET1-V1 (One Whynter hose connector set for 5.0″ diameter hose)
- ARC-HCSET2-V1 (Two Whynter hose connector sets for 5.0″ diameter hose)
- ARC-HCSET1-V2 (One Whynter hose connector set for 5.9″ diameter hose)
- ARC-HCSET2-V2 (Two Whynter hose connector sets for 5.9″ diameter hose)
- Window Slide Bars: ARC-WK-DUALN Whynter Plastic Window Kit 6.5″ W x 20″ L (minimum), 46″ (maximum)
- Activated Carbon Filter: ARC-CF-12SD Whynter Activated carbon filter
- Storage Bag: ARC-STRGBG-A Whynter portable air conditioner storage bag
- Optional Intake Hose Pre-Filter: ARC-IHF Whynter Intake Hose Pre-filter
- Optional Lower Drain Bucket: ARC-DB Whynter optional drain bucket for manual draining from the lower drain port
- Optional Upper Drain Hose: ARC-TYPN-UDPH Whynter optional upper drain hose for continuous gravity drainage setup
- Complete Accessories Set: ARC-ACC-DUSETG1-V2 Complete Ventilation Set for ARC-12SD/H
