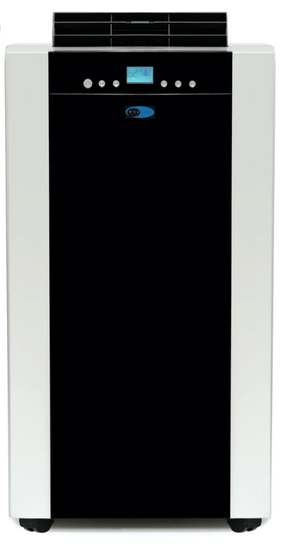

Whynter 14,000 BTU Dual Hose Portable Air Conditioner and Heater with Activated Carbon Filter ARC-14SH
Whynter is going GREEN! With this new Eco-friendly CFC free, lead free and high energy efficiency portable air conditioner, you can stay cool while keeping with better environmental standards and reducing energy consumption.
This Whynter GREEN ARC-14SH portable air conditioner features the ECO-FRIENDLY CFC free GREEN R-32 refrigerant and lead free RoHS compliant components.
This unit features the patented advance auto drain technology, which uses and recycles moisture collected during the cooling process to produce cool air. The dual hose operation provides fast cooling.
This unit can cool up to a 500 sq. ft. space (ambient temperature and humidity may influence optimum performance).
Comes with a protective cover with pocket that will protect your portable AC unit plus store your exhaust hose, window kit, remote control and user manual when not in use. This protective cover will keep dust and dirt from collecting on the unit while it is in storage.
FEATURES:
● Two tone design exterior- Platinum and Black
● 14,000 BTU Cooling (ASHRAE-128 Standard)/ 9,000 BTU Cooling (DOE 2017 Standard)
● 13,000 BTU Heating (ASHRAE-128 Standard)/ 8,200 BTU (DOE 2017 Standard)
● Dual hose operation
● ECO-FRIENDLY CFC free GREEN R-32 refrigerant
● Lead free RoHS compliant components
● Patented auto drain function fully exhausts all condensate automatically in most environments
● Four operational modes: Air conditioner, fan, dehumidifier or heat
● Digital and remote control
● LCDI (Leakage-Current Detection and Interruption) plug
● Dehumidifying Capacity: 71 Pts / day
● Designed to provide quiet and efficient cooling to any room, with no permanent installation
● 3 fan speeds
● Activated carbon air filter and washable pre-filter
● Cooling thermostatic control (61°F – 89°F)
● Heating thermostatic control (61°F – 77°F)
● Casters for easy mobility
● 24 hour programmable timer
● Noise level (dBA): <56
● Auto restart after power outage
● Storage cover bag with pocket
● Extendable exhaust hose (up to 60″)
● Upgraded Plastic window kit included
● Exhaust/ Intake Hose: 5.9″ diameter
● Hose Connectors: 5.9″ diameter with 5.0″ diameter reducer
● Fixture and Window Kit: 5.0″ diameter
● Window Kit: 6.5″ W x 20″ (min)/ 46″ (max) L
● Refrigerant: R-32
● Air Flow (at high speed): 430 m3/h / 253 CFM
● Maximum power consumption in cooling : 1300 W / 11.6 A
● Maximum power consumption in heating : 1000 W / 11.6 A
● Power supply: 115 V / 60Hz / 1 Phase
● Unit dimensions: 19″ W x 16″ D x 35.5″ H
● Package dimensions: 21″ W x 19″ D x 46″ H
● Net weight: 76 lbs
● Gross weight: 100 lbs
● UL listed
● UPC 891207001705
*This unit comes with one year warranty and three year warranty on the compressor.
SPECIFICATIONS:
| ASHRAE BTU |
Cooling: 14,000 BTU Heating: 13,000 BTU
|
| SACC BTU |
9,000 BTU
|
| Color |
Black, Platinum
|
| Coverage Sq. Ft. |
500 sq. ft.
|
| Dehumidifying Capacity |
71 pints/ day
|
| Exhaust Hose Length |
Max. 60"
|
| Window Kit Length |
6.5" W x 20" (min)/ 46" (max) L
|
| Fan Speed |
3 speed
|
| Filter Type |
Carbon air filter and washable pre-filter (compatible with 3M filter)
|
| Heat Mode |
Yes
|
| Louver Type |
Manual adjust with manual side to side
|
| Maximum Power Consumption |
1000 Watts / 11.6 Amps Heating, 1300 Watts / 11.6 Amps Cooling
|
| Noise level (dBA) |
< 56
|
| Pump Feature |
No
|
| Refrigerant |
R-32
|
| Replacement Filter |
Carbon: ARC-CF-14S 3M Antimicrobial: ARC-FIL-3M
|
| Replacement Hose |
ARC-EH-TYPE-L
|
| Replacement Window Kit |
ARC-WK-DUALN
|
| Storage Bag |
Yes
|
| Temperature Range |
"Cooling: 61 to 89 F Heating: 61°F – 77°F"
|
| Upper Gravity Drain Port |
No
|
MANUAL:
ACCESSORIES:
Intake / Exhaust hoses: Based on the version of the portable air conditioner you have, you may need a 5.0″ or 5.9″ diameter hose(s) and/or connector(s) listed below. Please make sure to measure your existing hose(s) before ordering additional accessories.
NOTE: Please note that we do not recommend extending the exhaust hose(s) more than 9 feet long.
-
ARC-EH-TYPE-S
(Whynter Intake / Exhaust hose 5.0″ diameter)
- ARC-EH-TYPE-L
(Whynter Intake / Exhaust hose 5.9″ diameter)
- Hose Extender Sets: Based on the version of the portable air conditioner you have, you may need a 5.0″ or 5.9″ diameter hose connector sets listed below. Please make sure to measure your existing hose(s) before ordering additional accessories.
- ARC-HCSET1-V1
(One Whynter hose connector set for 5.0″ diameter hose)
- ARC-HCSET2-V1
(Two Whynter hose connector sets for 5.0″ diameter hose)
- ARC-HCSET1-V2
(One Whynter hose connector set for 5.9″ diameter hose)
- ARC-HCSET2-V2
(Two Whynter hose connector sets for 5.9″ diameter hose)
- Window Slide Bars: ARC-WK-DUALN
Whynter Plastic Window Kit 6.5″ W x 20″ L (minimum), 46″ (maximum)
- Activated Carbon Filter: ARC-CF-14S
Whynter Activated Carbon Filter
- 3M™ Antimicrobial Filter: ARC-FIL-3M
Whynter 3M™ Antimicrobial Filter
- Storage Bag: ARC-STRGBG-A
Whynter portable air conditioner storage bag
- Optional Intake Hose Pre-Filter: ARC-IHF
Whynter Intake Hose Pre-filter
- Optional Lower Drain Bucket: ARC-DB
Whynter optional drain bucket for manual draining from lower drain port
- Complete Accessories Set: ARC-ACC-DUSETG1-V2
Complete Ventilation Set for ARC-14S
Buy Whynter 14,000 BTU Dual Hose Portable Air Conditioner and Heater with Activated Carbon Filter ARC-14SH now!
