Wine Guardian CS050 Ceiling Mount Cooling System
FREE SHIPPING in the Continental US on most orders
NO SALES TAX (Except NV)
Wine Guardian CS050 Ceiling Mount Cooling System - Base Model / Base Model is backordered and will ship as soon as it is back in stock.
Call Us At (800) 407-7770 Or Chat Now To UNLOCK THE BEST PRICE AVAILABLE!
Options:
Options:
*Extreme Climate Protection Bundle
For Self-Contained Ducted systems: Contains an integral compressor crankcase heater and controls to protect the system against low temperatures (required when inlet air to the condenser coil is below 40°F/5°C). The bundle also contains an integral high capacity condenser fan and coil for operation at elevated ambient temperatures. This bundle should be considered when inlet air to the condenser coil is above 100°F/38°C (condenser air inlet cannot exceed 120°F/49°C).
For Ducted Split systems: Unit protection in extreme climate conditions (on the condenser section only). It is required for continuous operation in climates that fall below 20°F. Enables the system to operate in temperatures as low as -20°F.
Couldn't load pickup availability
Wine Guardian CS050 Ceiling Mount Cooling System
In Stock & Ready to Ship
Estimated Delivery in 3-7 business days
Wine Guardian CS050 Ceiling Mount Cooling System Review
Searching for wine cellar cooling units that are both efficient and operate quietly? then the Wine Guardian CS050 Ceiling Mount Wine Cooling System is the perfect solution for you!
NOTE: The CS050 is a 60Hz system, which is commonly used in most of North America, including the USA and Canada. It has a unit capacity of up to 4,300 BTU/h.

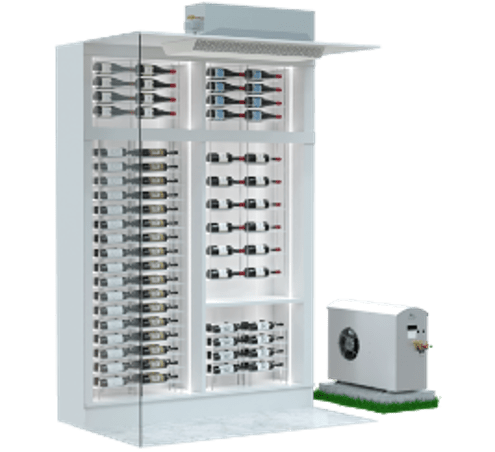

The Wine Guardian CS050 Ceiling Mount Wine Cellar Cooling Unit is perfect for small wine cellars to mid-size wine rooms with limited space where you can't install a traditional unit. It can cool cellars up to 2,200 cubic feet and has a capacity of up to 4,300 BTU/H. This wine cooling system is designed to be mounted seamlessly on the ceiling and can be easily installed between standard joist construction, so they won't look bulky. Ideal for applications such as wine displays, glass wine walls, or all-glass wine rooms.
Not only is this cooling system quiet in operation, but it also boasts a lightweight, corrosion-proof construction, ensuring that it will last for many years to come. The Wine Guardian CS050 comes paired with a specifically-designed Wine Guardian condensing unit, providing you with the perfect combination of power and efficiency. This system also features Low Ambient Protection, ensuring that your wine stays perfectly chilled even in extreme temperatures.
Other sizes available: Wine Guardian CS025 for 100-1200 cu.ft.
Available in Wine Wall version: Wine Guardian CS050 Wine Wall Cooling System
Looking for more options to protect your wine collection?
Wine Guardian offers the following options to provide extra protection:
Condensing Options:
- Standard: Base model with Low Ambient Protection – protects the system from cold temperatures below 5°C (40°F).
- Extreme Climate Protection: This option offers protection to the condenser section of the unit only during extreme climate conditions. It is necessary to use it to ensure continuous operation in climates where temperatures drop below 20°F. It allows the system to function even in temperatures as low as -20°F.
To preserve the quality of your wine collection, it's important to maintain the proper wine cellar humidity level with Wine Guardian Humidifiers. Temperature control alone won't suffice, so we advise using the Wine Guardian Freestanding Humidifier.
Advantages of Wine Guardian Ceiling Mounted Systems

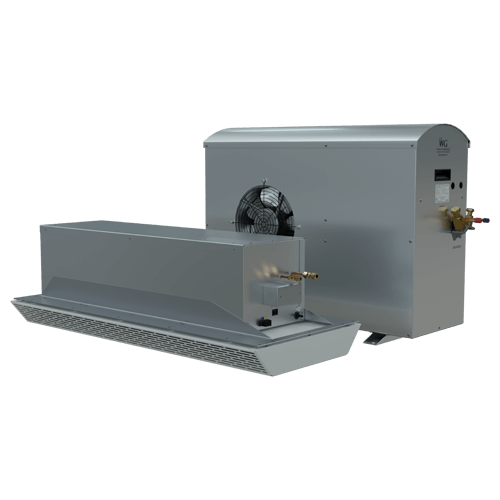

Wine Guardian's Ceiling Mounted Cooling Systems are split ductless wine cellar cooling units that are designed specifically for ceiling mounting. They offer excellent wine preservation when there's no option for ductwork and provide high-quality cooling and airflow to maintain the perfect storage conditions for your wine collection. Wine Guardian Ceiling Mount split ductless wine cooling systems are one of the quietest wine cellar cooling units. These Wine Guardian split systems are also very flexible for installers who have limited space to work with.
Want to see more of these? Browse through our Ceiling Mount Wine Cellar Cooling Units or check out all our Wine Guardian Systems.
Want to have the best wine cellar design? Choose modern wine racks and unique wine rack designs from Ultra Wine Racks & Cellars!
WHY BUY FROM US: Wine Coolers Empire is a trusted dealer of premium wine cellar refrigeration units, commercial wine cellar cooling units, residential wine cellar coolers, and wine room humidifiers. More Wine Guardian reviews can be found on our Customer Reviews page.
Contact us for any questions or concerns. For information on order processing, shipping options, and delivery times, please visit our Shipping Policy.
Buy Wine Guardian CS050 Ceiling Mount Wine Cooler Units today and enjoy your amazing wines at their best temperature!
Key Features
Features:
-
FLEXIBLE INSTALLATION
The Ductless Split system consists of two separate units and does not require any ductwork. This makes it a suitable solution for wine room projects with the following limitations:
- No room for ductwork
- Limited space in mechanical rooms
- Difficult to exhaust condenser air
-

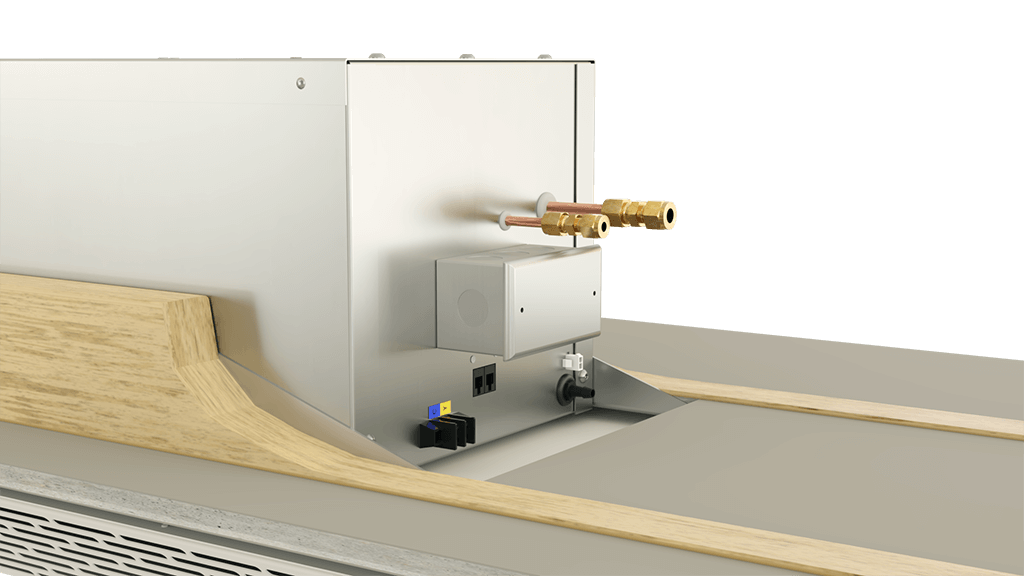

EASY ACCESS AND INSTALLATION
Both the Wine Wall Cooling System and the Ceiling Mounted System are equipped with a unique hinge design for ceiling mounting, which functions as an extra hand during installation, making it easy for one person to install.
-
SYSTEM CONTROL
The remote interface controller for the ductless split system lets you adjust the temperature and check the humidity levels. The controller uses Wine Guardian's Wireless2Base™ Technology, which means you can place it anywhere that's convenient for you – in the cellar, kitchen, or living room. If you need to measure the temperature and humidity levels outside the cellar, you can connect an additional controller and remote sensors to get accurate readings. This makes it easy to keep an eye on your wine room's conditions from anywhere in your home.
-

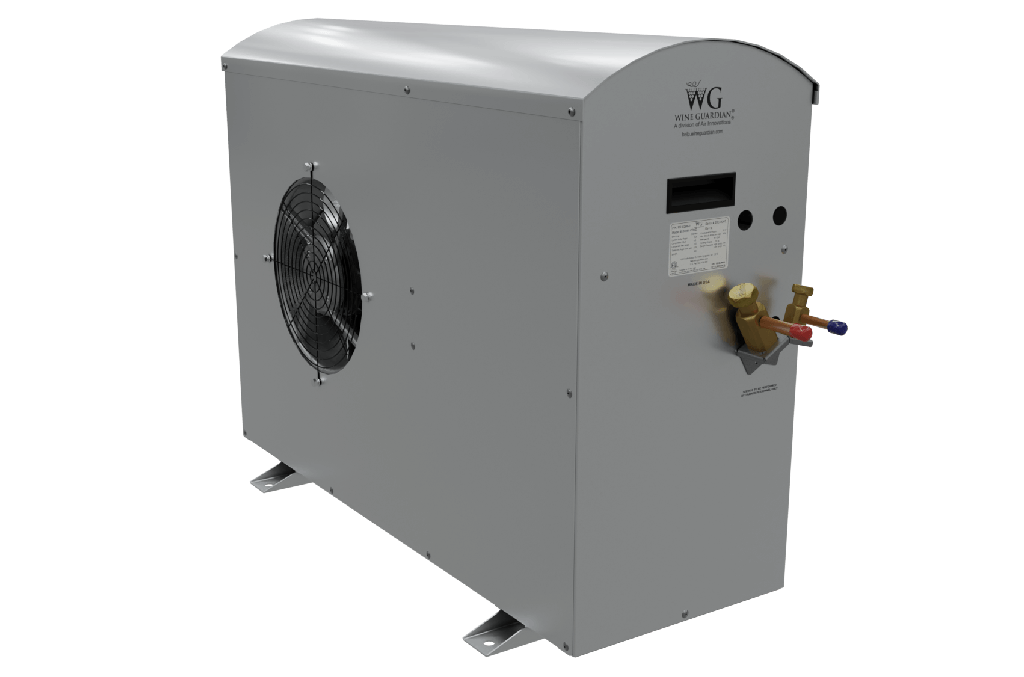

THE CONDENSER: MADE FOR WINE GUARDIAN
The Through-the-Wall and Ceiling Mounted versions of the system have an outdoor condensing unit that is made by Wine Guardian to work specifically with the evaporator. The evaporator and condenser units of the Ductless Split system are connected by copper tubing, which is the same type of tubing used in residential ducted mini split systems. This makes the installation feel familiar.
-
COMPLETE WINE PROTECTION
The system's remote controller uses air sensing technology to monitor both the wine cellar temperature and wine storage humidity. It ensures that the conditions remain consistent for optimal wine preservation. If any changes are detected, the controller adjusts the temperature to the best settings before any impact on your wine collection.
-
HASSLE-FREE SERVICE
The grille assembly of the Ductless Split system can be easily removed without requiring any tools. This provides easy access to the system's controls and internals, making it simple for servicepersons to make repairs and move on to the next job. Unlike its competitors, the Ductless Split system and all other Wine Guardian systems can be fully serviced in the field without needing to be sent back to the factory.
-
PAIRS WELL WITH WINE GUARDIAN HUMIDIFIERS
Maintaining proper wine storage humidity is crucial to ensure that your wine collection remains in pristine condition without any loss of liquid or spoilage. To ensure the flavor and quality of your wine are not compromised due to improper cellar conditions, an optional Wine Guardian Freestanding Humidifier can be installed in your cellar.
Specifications
Specifications:
- Model: CS050
- Line Frequency: 60 HZ
- Capacity: 1000- 4050 BTU
- Volume: 250 – 2200 ft³
- Length: 43.25" (evaporator) | 34" (condenser)
- Width: 18.125" (evaporator) | 12.3" (condenser)
- Height: 13.25" (evaporator) | 26" (condenser)
- Weight: 48 lbs | 76 lbs (condenser)
- Electrical: 115/1/60 | 208-230/1/60 (condenser)
Manuals
Manuals:
-
Ceiling Mounted Cooling System Product Brochure
- Ceiling Mounted Cooling System Manual
-
Ceiling Mounted Cooling System Specifications Sheet
- Ceiling Mounted Cooling System Quick Start Installation Guide
- Ceiling Mounted Cooling System CAD Drawing
- Condenser CAD Drawing
- Manufacturer's Warranty
Wine Guardian warrants, to the original buyer, a period of two (2) years parts and 1 year labor from the date of invoicing assuming NORMAL USE AND SERVICE
Need assistance? Talk to an Expert at +1-888-407-7770 or email: support@winecoolersempire.com to get the best-suited wine cooling system for your needs.
Options and Accessories
Available Options
Enhance your wine cooling systems by adding Wine Guardian parts and accessories. The system's performance and durability are upgraded and protected by these add-ons.
Condensing Options
- Standard: Base model with Low Ambient Protection – protects the system and your wine collection from cold temperatures or low ambient temperatures below 40°F (5°C) to a minimum of 0°F.
-
Extreme Climate Protection
Extreme Climate Protection For Ducted Split Systems: Protects the condenser section only in extreme climates that fall below 20°F to ensure continuous operation. This protection enables the system to operate in temperatures as low as -20°F.
Accessories
-
Remote Interface
The Wine Guardian system can be controlled by the Wine Guardian Remote Interface Controller, which includes thermostat (humidistat) and monitor controls. This device can be placed either inside or outside the wine room with the use of a remote sensor.
-
Remote Sensor
The Wine Guardian Remote Sensor is used for standard Wine Guardian cooling units. It can detect the temperature and humidity in the wine cellar and is especially useful for large rooms, multiple rooms controlled by one Wine Guardian cooling system, or when averaging temperature and humidity across different areas of the cellar. Each sensor comes with 50 feet of cable.
-
Cable
The Communication Cable links the Remote Interface Controller with the Wine Guardian wine cooler units. This can also be used as replacement for a damaged cable. With this cable, the remote interface controller can be placed up to a 50 feet away from the cooling unit.
Humidifier Options
-
Freestanding Humidifier Wall Mount
This Wine Guardian Freestanding Humidifier includes a power-control cable to connect to the Wine Guardian cooling system. Includes wall-mount bracket for maximum placement flexibility. The humidifier can be operated using the existing Wine Guardian controller.
-
Freestanding Humidifier Wall Mount Bracket
This Wine Guardian Freestanding Humidifier includes a wall mount bracket, power cord, and a humidistat for use in cellars with no Wine Guardian cooling system. The humidifier can be operated using the existing Wine Guardian controller.
Warranty Options
-
Wine Guardian 3 Year Extended Compressor Warranty
By choosing this option, the warranty period for the compressor, evaporator coil, and condenser coil (parts only) will be extended by three (3) years.
Product Video
Get to know the Wine Guardian CS050 Ceiling Mount Cooling System
Wine Guardian Ceiling Mounted Wine Cooling Units
Wine Guardian Ductless Split Wine Cellar Conditioning Systems
Read more to LEARN MORE! 📚
Welcome to our Special Section,
Here we've gathered all of the related articles in the hopes of assisting you in knowing the PERFECT MATCH for your Wine Cellar.
Here are Top-Rated Articles:
- Introducing the Wine Guardian Cooling Systems and Humidifiers
- Best Wine Cellar Cooling System for Small Cellars
- Ductless vs Ducted Wine Cellar Cooling Units
- Best Wine Cooling Unit for Glass Cellars
- The Importance of Wine Cellar Humidity
We understand that buying this unit is a significant investment, so we make sure you'll get the right unit for your wine room.
We have our Professional Team that is ready to assist you!
Furthermore, because YOUR SATISFACTION IS OUR TOP PRIORITY we offer ✨SURPRISING DISCOUNTS✨ that cannot be found anywhere else!
-
FAST, FREE SHIPPING
Get your online orders fast at your door with free shipping.
-
TAX FREE
No Sales Tax (Excludes Nevada) on most orders.
-
SECURED PAYMENTS
Giving you peace of mind with every purchase.
-
TOP-NOTCH SUPPORT
Excellence meets care, Ready to help you!
Fits seamlessly into the ceiling, which means I do not have to sacrifice any wall or floor space for a bulky unit.
Performance-wise, it is flawless. My 1,000-bottle collection stays at a consistent 55°F with no fluctuations. The humidity control is excellent, and I never worry about dry corks or mold issues. Plus, the silent operation makes it ideal for my cellar, which is right next to my dining area. If you are serious about wine storage and want an elegant cooling solution, this is the best system out there!
I have been collecting wine for over 20 years, and the CS050 is by far the best cooling system I have ever had. It distributes cool air evenly throughout my cellar, keeping everything at the perfect temperature and humidity. I previously had a floor-mounted unit, and switching to a ceiling-mounted system was the best decision. It is completely out of sight and out of mind. Highly recommend!
After experiencing temperature fluctuations with my old cooling unit, I knew I needed something more reliable. The Wine Guardian CS050 has completely stabilized my cellar. No more worrying about my aged Bordeaux and vintage Champagnes! This system is worth every penny.
My old system let the humidity drop too low, which dried out my corks. Since switching to the CS050, my humidity stays at a consistent 65%, and I have zero worries about cork shrinkage.
Worried about getting a ceiling-mounted wine cooling system because I was not sure how powerful it would be. This unit is amazing. It keeps my 1,000-bottle wine collection at the perfect temperature, and I never hear it running. It is also extremely energy efficient, which was a nice surprise.
It is expensive, but it’s also the best. If you want long-term reliability and perfect cooling, this is the unit to get.
This system has been a total game-changer for my 750-bottle wine room. My previous cooling unit was bulky and noisy, and it took up valuable wall space. The Wine Guardian CS050 changed all of that. It is silent, efficient, and hidden in the ceiling.
I love how evenly it distributes air, and I have noticed that my wines are aging beautifully since I installed it. Also, the paintable grille was a nice touch. I had it customized to match my ceiling, so it blends in perfectly. If you want a top-tier, luxury cooling system, this is worth every penny.
I have tried a few different cooling units over the years, and this is by far the best. The CS050 is incredibly efficient, maintaining perfect temperature and humidity levels with very little energy consumption.
One thing that stood out to me was how quiet it is. My wine cellar is right next to my study, and I never hear a thing. I was also able to customize the grille to match my ceiling, so it is completely unobtrusive. If you have a serious wine collection and want a seamless cooling solution, this is the one to get!
I almost forgot I had a cooling system because this thing makes no noise. It is amazing!
The ceiling-mounted design is fantastic because it keeps the floor space open for additional storage. The air circulation is even throughout, so I never have to worry about some bottles being too cold or too warm. Plus, it is silent, which is a huge relief after dealing with my old, noisy system.
I have had this running for almost a year now, and I have zero complaints. This is a must-have for serious collectors.
