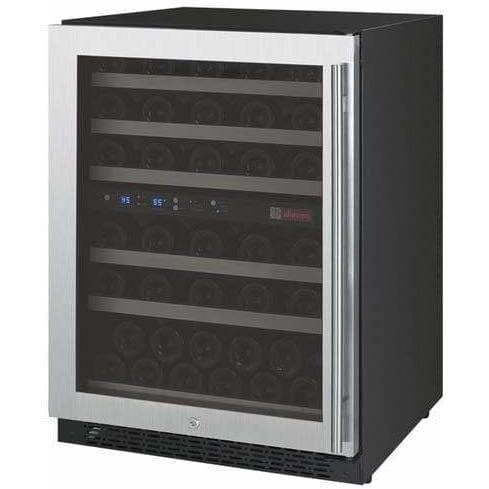

The all-new Allavino FlexCount Series VSWR56-2SSLN Dual Zone Wine Cooler Refrigerator is an ideal option for storing both red and white wine simultaneously.
A digital display and "red", "white", and "sparkling" indicator lights allow you to monitor temperatures at a glance, and push-button controls make it easy to individually adjust each zone.
The VSWR56-2SSLN also features new cutting-edge metal shelves that are strong enough to provide reliable stability and prevent sagging over time, and thin enough to allow more space between the shelves than you will find in most similarly sized wine refrigerators, allowing you to store larger bottles without sacrificing bottle capacity. These shelves are accented with stainless steel fronts and have wood slats that cradle your bottles to help prevent harmful vibration from affecting your wine.
Thanks to its front-venting design and finished top and sides, this refrigerator can be used as a built-in or freestanding unit.
56 Bottle Capacity with 2 Cooling Zones

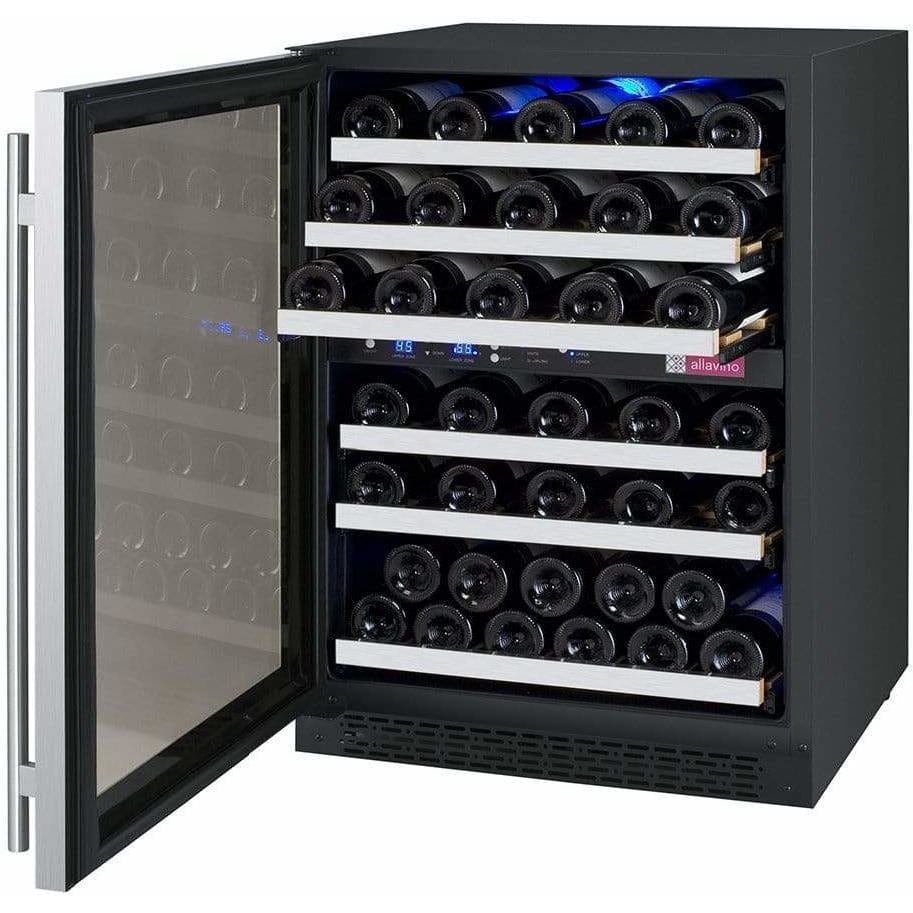

The VSWR56-2SSRN features 5 shelves that can fit 9 bottles each, as well as a bottom shelf that can fit 11 bottles, for a maximum storage capacity of 56 bottles. The maximum capacity can be reached with many different bottle sizes and is only affected when adding in larger Pinot or Champagne bottles. Store both red and white wines with this dual zone unit, which features "Red", "White", and "Sparkling" indicator lights to ensure that your wines are kept at their optimum temperatures.
Digital Display with Blue LED Interior Lighting

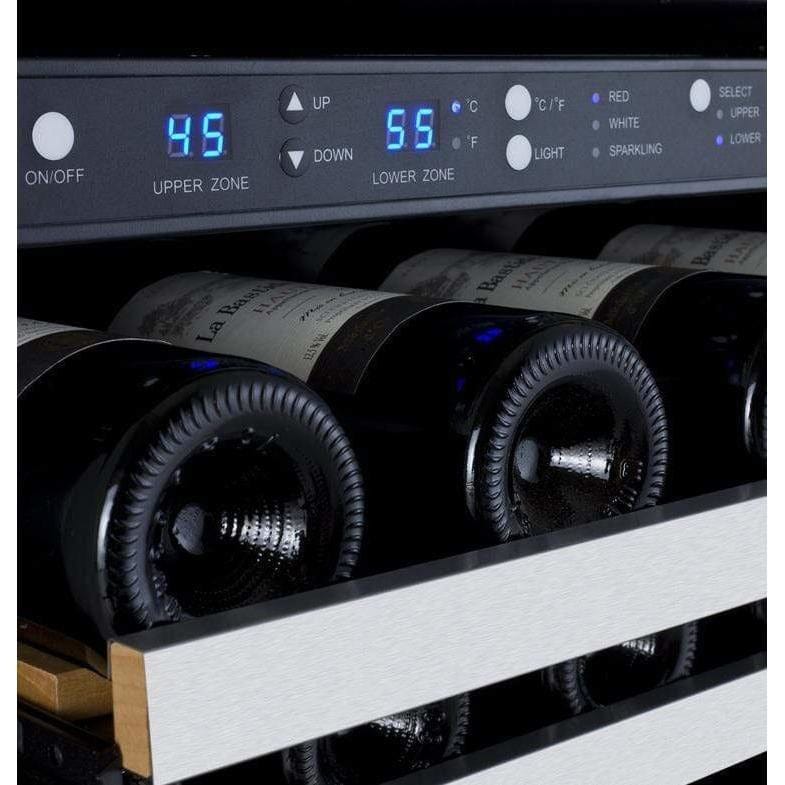

Each zone has its own digital display with easy to use push button controls so setting and reading the display is a snap! Cool blue LED lighting beautifully elegantly illuminates your bottles while remaining cooler than standard bulbs and can be turned on or off with the push of a button.

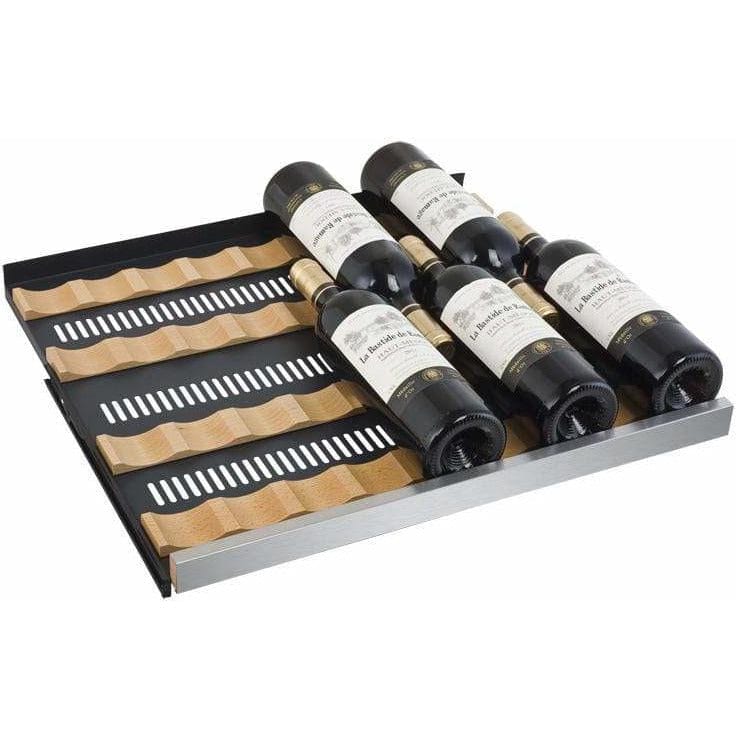

Innovative New Shelf Design

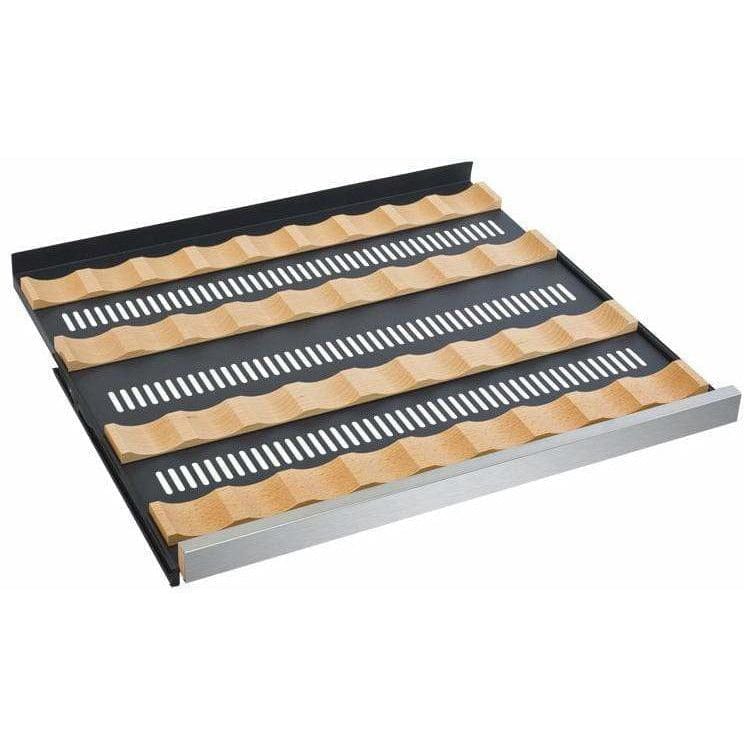

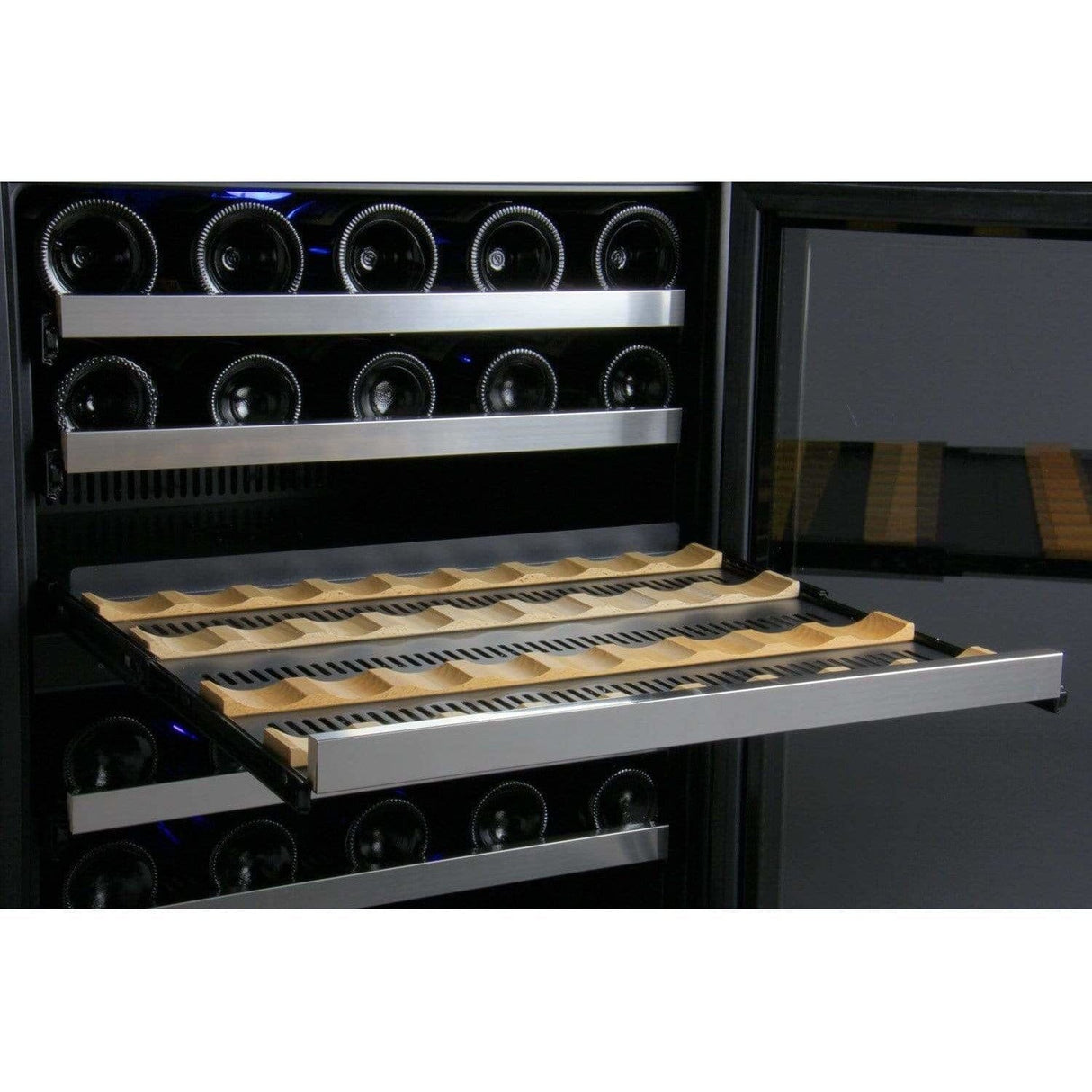

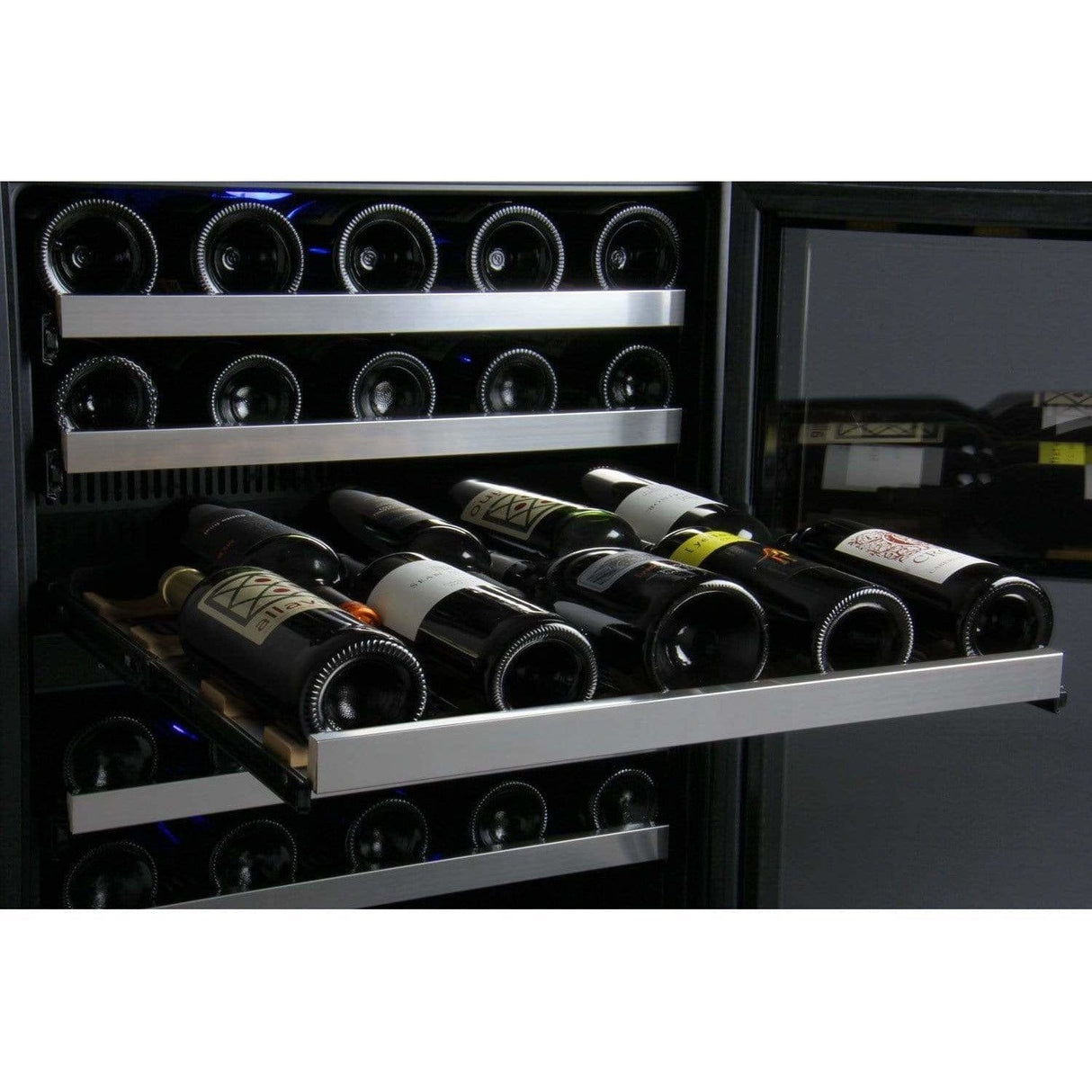

Allavino is at the leading edge of shelf design, incorporating revolutionary metal shelves that are strong enough to hold bottles without sagging, yet thin enough to maximize the available space in the cabinet for wine storage. Wood slats refine each shelf and gently cradle each bottle to prevent harmful vibration from affecting your wine. Each shelf is finished with a stylish stainless steel front to match the door frame. Each of the shelves glides out smoothly on ball bearing tracks, so every bottle is easily accessible.
Store More Bottle Sizes
The intelligent design of the shelves creates more space between each shelf, allowing you to store bottles with varying diameters without having to remove racks which would reduce your overall capacity. Click on the Features tab above to see how your specific collection can be stored on the FlexCount shelves.

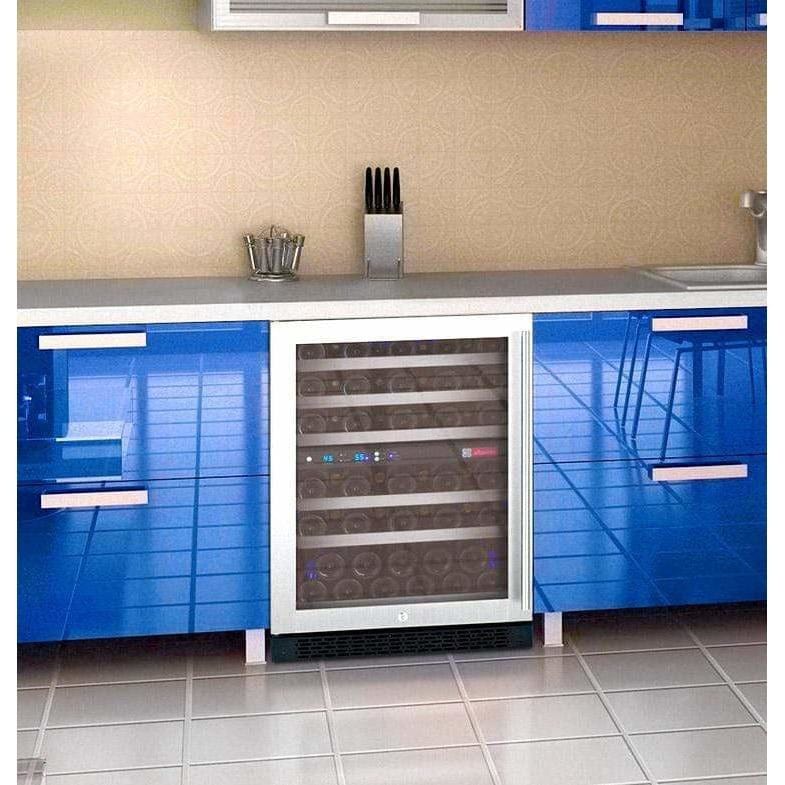

Built-In Design
This unit is front-venting and can be built into your cabinetry for a seamless look. It also has finished sides and top, allowing you to use it as a freestanding unit that will look great in any room of your home.
Fan-Forced Cooling
Internal fans circulate air inside the unit, reducing initial cool down time and preventing drastic temperature fluctuations that could be harmful to your wine.
FEATURES
- Black Cabinet with Stainless Steel Frame Glass Door

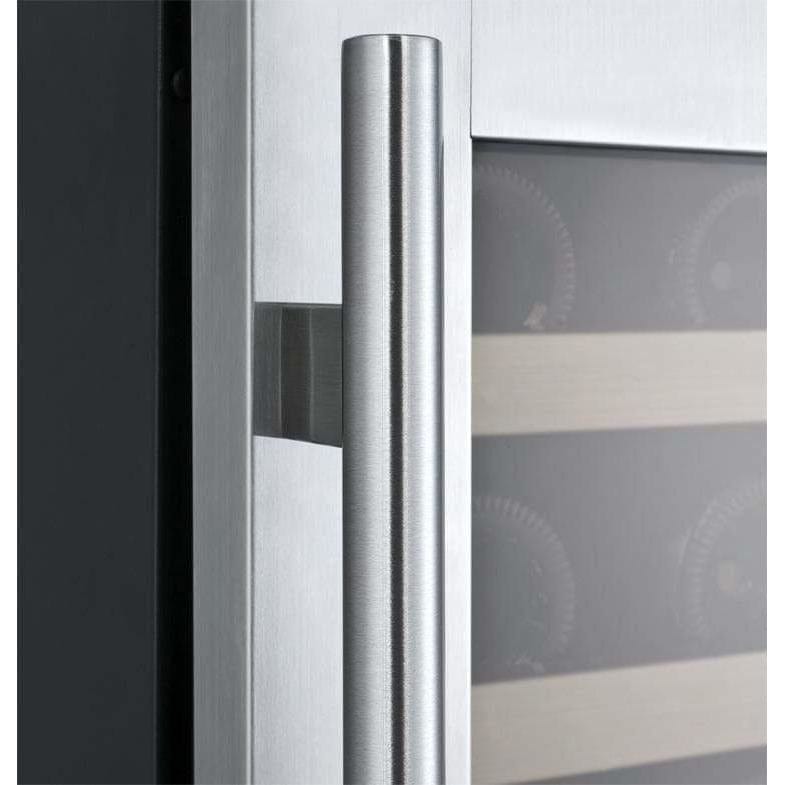

- Towel Bar and Curved Handle styles included so that you can use the one you like best
- All black interior emulates the traditional wine cellar
- Two independently controlled temperature zones:
- Upper Zone: The temperature setting can be adjusted between 41°F to 61°F
- Lower Zone: The temperature setting can be adjusted between 45°F to 64°F
Note: The lower zone must be set at least 4° and no more than 12° higher than the upper zone. It is normal for there to be a 3-5° variance between the top and bottom of a zone.
- Maximum Ambient Temperature: 90°F
- Minimum Ambient Temperature: The lowest temperature you want to store your wine at. The unit does not have a heater, so if the ambient temperature is lower than the set temperature, the internal temperature will match the external temperature.
- Blue LED lighting beautifully illuminates the interior without the heat created by an incandescent bulb
- Roller-glide shelves extend effortlessly, minimizing agitation to the wine
- Internal fans circulate air for even cooling and faster cooldown

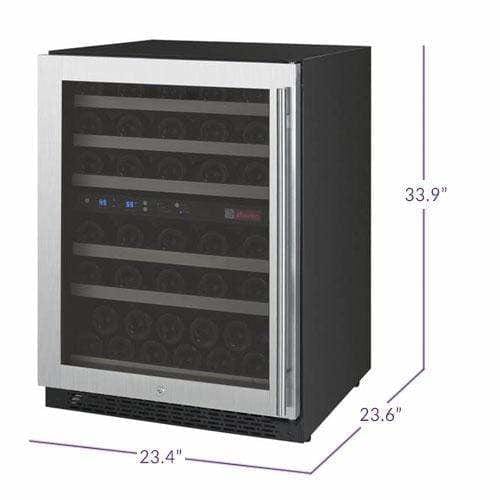

- Dimensions: 33.9"H x 23.4"W x 23.6"D
- Weight: 123.5 lbs.
- Please Note: The handles are not attached to the unit during shipping, and will need to be installed when the unit arrives.
This wine cellar has 5 shelves that can hold up to 9 bottles each and a bottom shelf that can hold 11 bottles for a maximum bottle capacity of 56 bottles. The maximum capacity can be reached with many different bottle sizes and is only affected when adding in larger Pinot or Champagne bottles, making this the ideal unit for diverse wine collections.

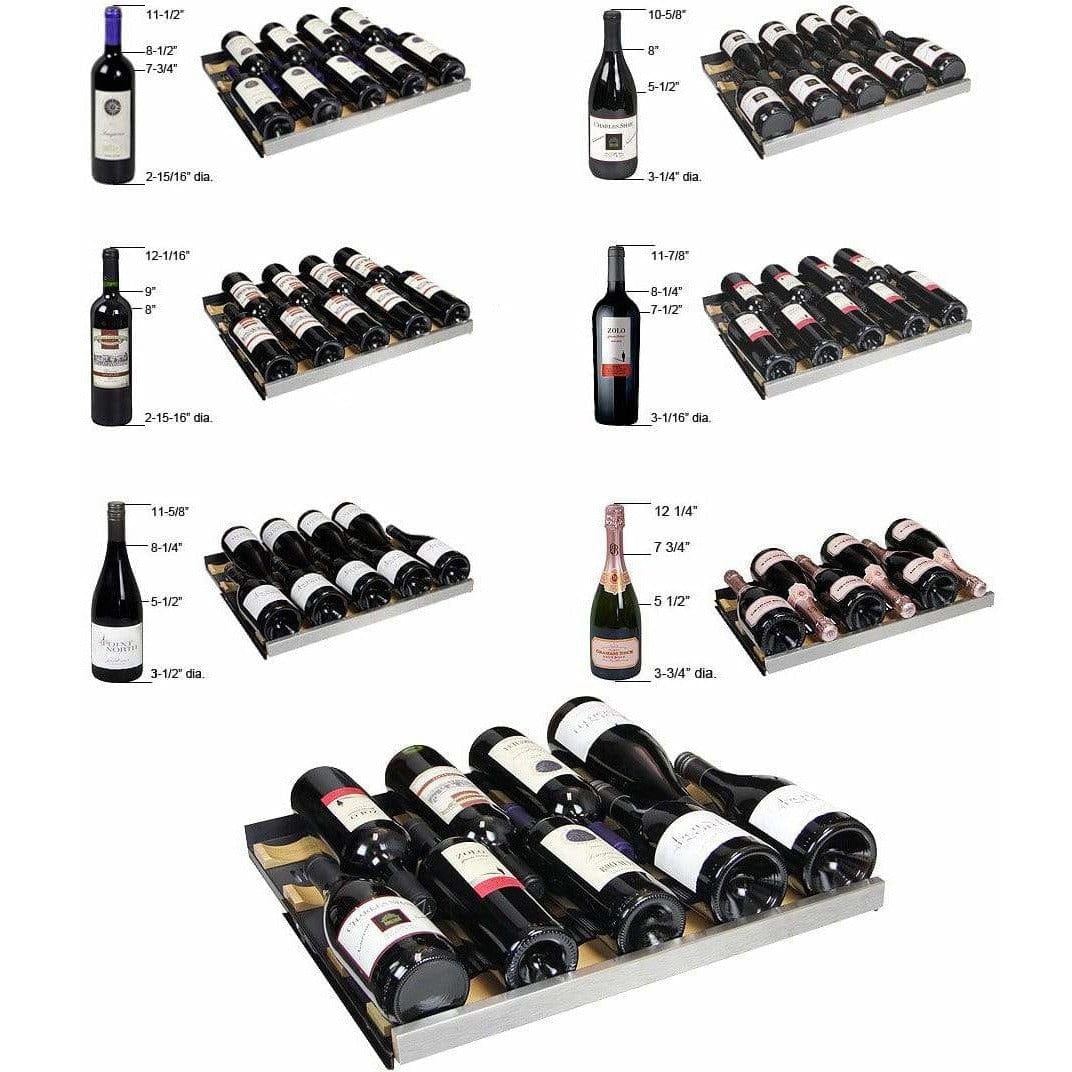

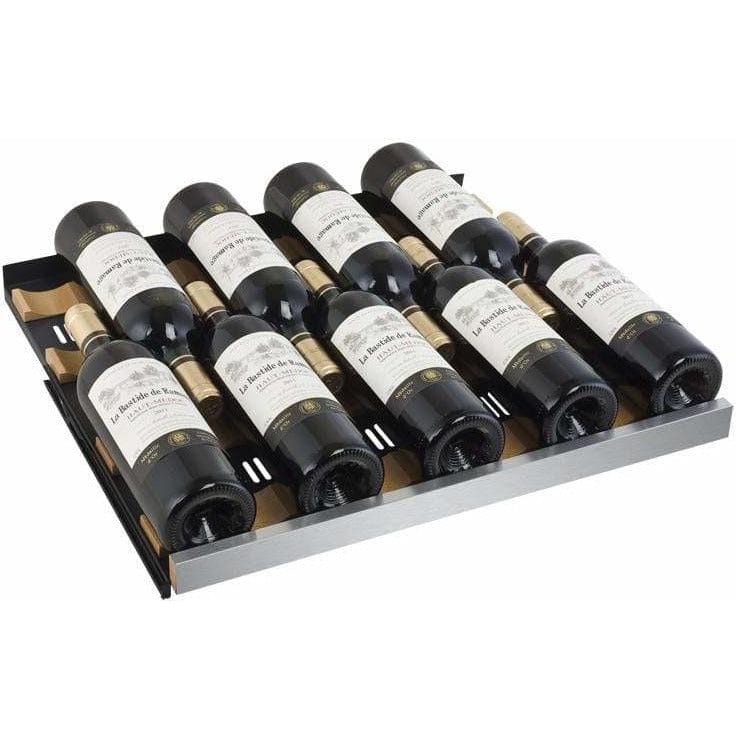

This is the standard 750 mL bottle, which most wine refrigerators are configured around as it is the most popular size on the market. It measures 11-1/2" tall with a 2-15/16" diameter and the shoulder tapers up from 7-3/4" to 8-1/2". This wine refrigerator can easily store 9 of these bottles on each of the upper shelves and 11 more on the bottom shelf for a total of 56 bottles.
This bottle is taller than the standard 750 mL bottle. It measures 12-1/16" tall with a 2-15/16" diameter and the shoulder tapers up from 8" to 9". The taller shoulder and top would normally wreak havoc on your wine storage because the necks would touch, making the overall length of the bottles too tall for most shelves or pushing the outside bottles out, causing them to hit the sides of the wine refrigerator. Generally, you would have to remove a shelf to accommodate these bottles, but with the extra space available on these shelves, they fit just fine and do not affect the overall capacity.
This bottle has the same diameter at the base, but the shoulder is wider, which would generally push it out of the grooves and make it rub on the shelf above. It measures 11-7/8" tall with a 2-15/16" diameter at the base and the shoulder tapers up from 7-1/2" to 8-1/4" with a 3-1/16" diameter. Due to the smart spacing on these shelves, these bottles fit with room to spare, preventing rubbing and allowing the maximum bottle capacity to stay the same.
This bottle is wider and shorter than the standard 750 mL bottle. It measures 10-5/8" tall with a 3-1/4" diameter and the shoulder tapers up from 5-1/2" to 8". Bottles this wide don't usually fit in wine refrigerators and if they do, they have issues with rubbing on the shelf above and scuffing your labels. This wine refrigerator has no issues with this type of bottle so once again, your maximum capacity will not be affected if you have them in your collection.
Until now, you wouldn't dream of fitting a Pinot bottle in an under-counter built-in wine refrigerator without drastically reducing the overall capacity. It measures 11-5/8" tall with a whopping 3-1/2" diameter and the shoulder tapers up from 5-1/2" to 8-1/4". On this model, only the bottom shelf is slightly affected. You can fit 6 bottles comfortably in the grooves by alternating the necks. So even if your ENTIRE COLLECTION was made up of Pinot bottles, your total capacity would only be reduced to 51 bottles!
Champagne bottles are too big to fit on the upper shelves, but you can still store up to 6 on the bottom shelf. They measure 12-1/4" tall with a 3-3/4" diameter and the shoulder tapers up from 5-1/2" to 7-3/4". Most wine refrigerators this size would not be able to store any Champagne bottles without removing a shelf.
Perhaps there are people out there that only drink one type of wine, all the time. Most wine connoisseurs with a diverse palate are going to have varying bottle sizes in their collection, so having the ability to store all those varying bottle sizes without having to reconfigure and reduce your storage makes this the wine refrigerator of choice.
SPECS
| Dimensions |
| Height |
33.9" |
| Width |
23.4" |
| Depth |
23.6" |
| Weight |
| Unit Weight |
123.5 lbs. |
| Shipping Weight |
177.0 lbs. |
| Key Features |
| Built-in Capable |
Yes |
| Security Lock |
Yes |
| Multiple / Dual Zone |
Yes |
| Beverage Center |
No |
| Cabinet Color / Material |
Black Metal |
| ADA Compliant |
No |
| Commercial Use |
Yes |
| Outdoor Use |
No |
| Energy Star Rated |
No |
| Capacity |
| Wine Bottle Count |
Up to 56 Bottles |
| Controls |
| Adjustable Thermostat |
Yes |
| Digital |
Yes |
| Cooling System |
| Type |
Compressor |
| Defrost System |
Auto |
| Front Ventilation |
Yes |
| Shelving |
| Type |
Glide-Out |
| Number of Shelves |
6 |
| Material |
Metal with Wood Slats |
| Removable |
Yes |
| Adjustable |
No |
| Glide-Out (Roller Assemblies) |
Yes |
| Bottles per Shelf |
9 |
| Interior |
| Color |
Black |
| Compartments (Distinct Zones) |
2 |
| Lighting |
Yes |
| Door |
| Type |
Glass |
| Number of Doors |
1 |
| Color / Material |
Stainless Steel Frame |
| Door Handle |
Towel Bar and Curved |
| Field Reversible |
No |
| Tinted / UV Protective |
Yes |
| Self-Closing |
No |
|
Electrical
|
| Electrical Requirements |
115V/60Hz |
