- Up to 172 bottle capacity*
This bottle count is an estimate based on 3" diameter standard wine bottle. If you have larger bottle diameters, you may hold less bottles per rack or you can remove racks to accommodate the larger bottle sizes.

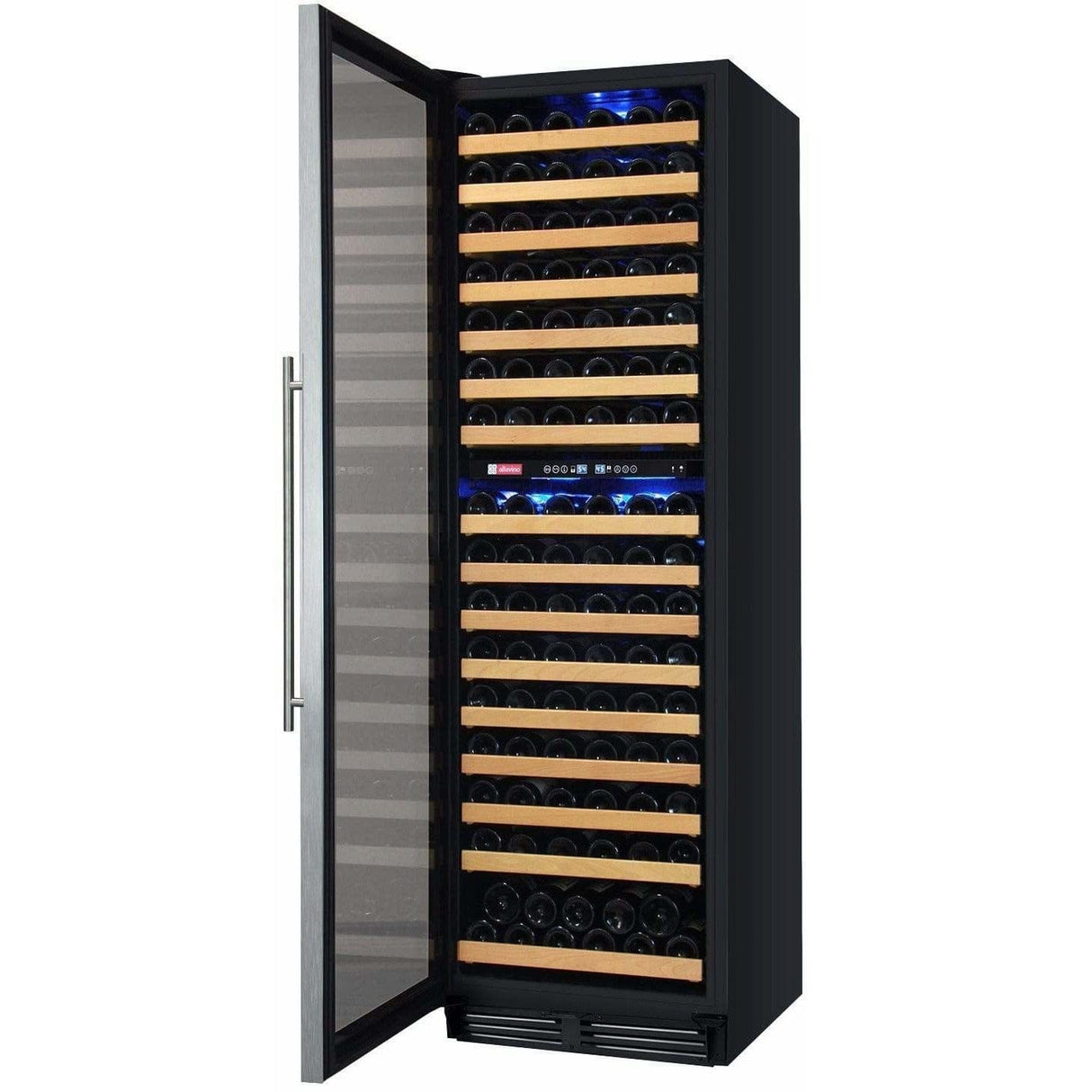

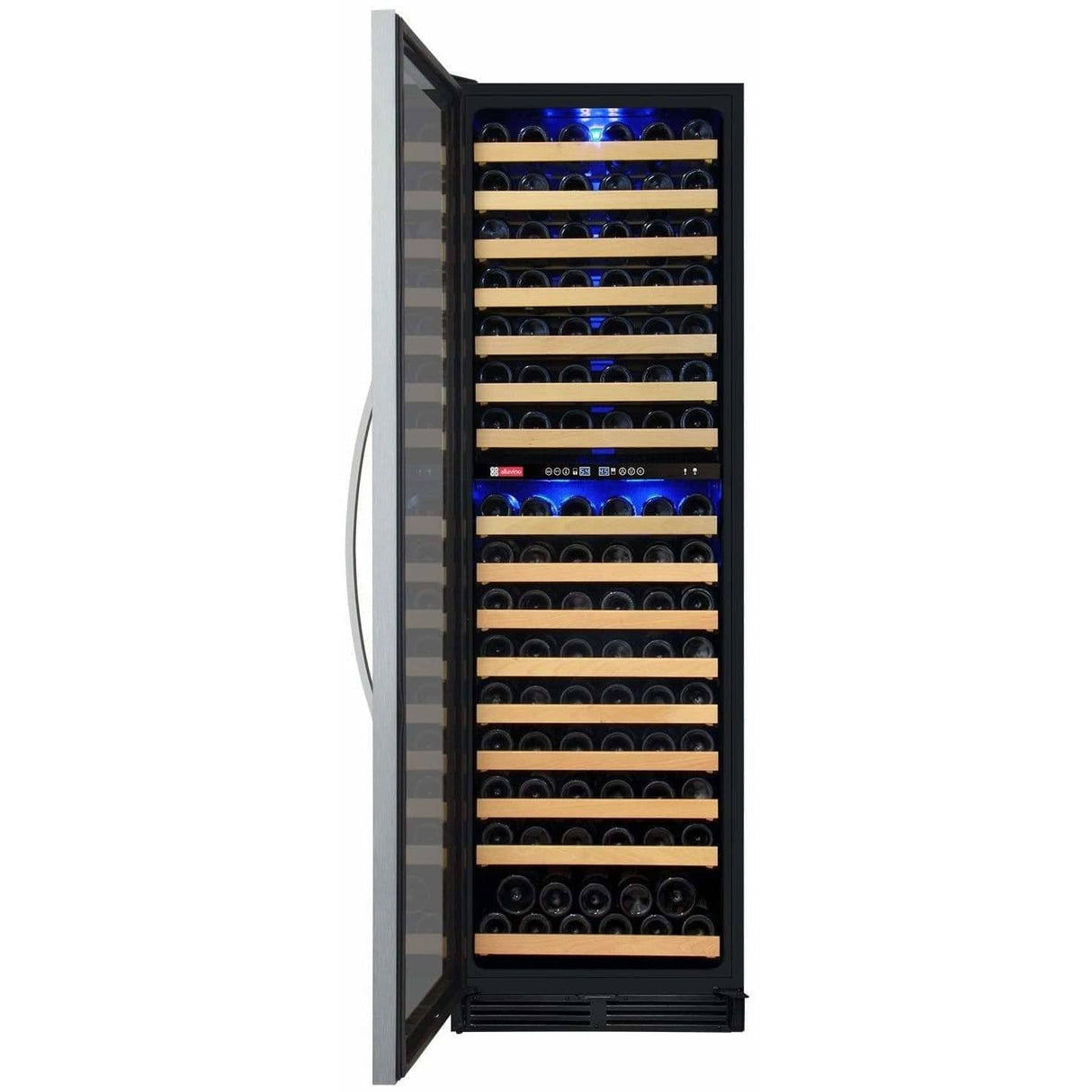

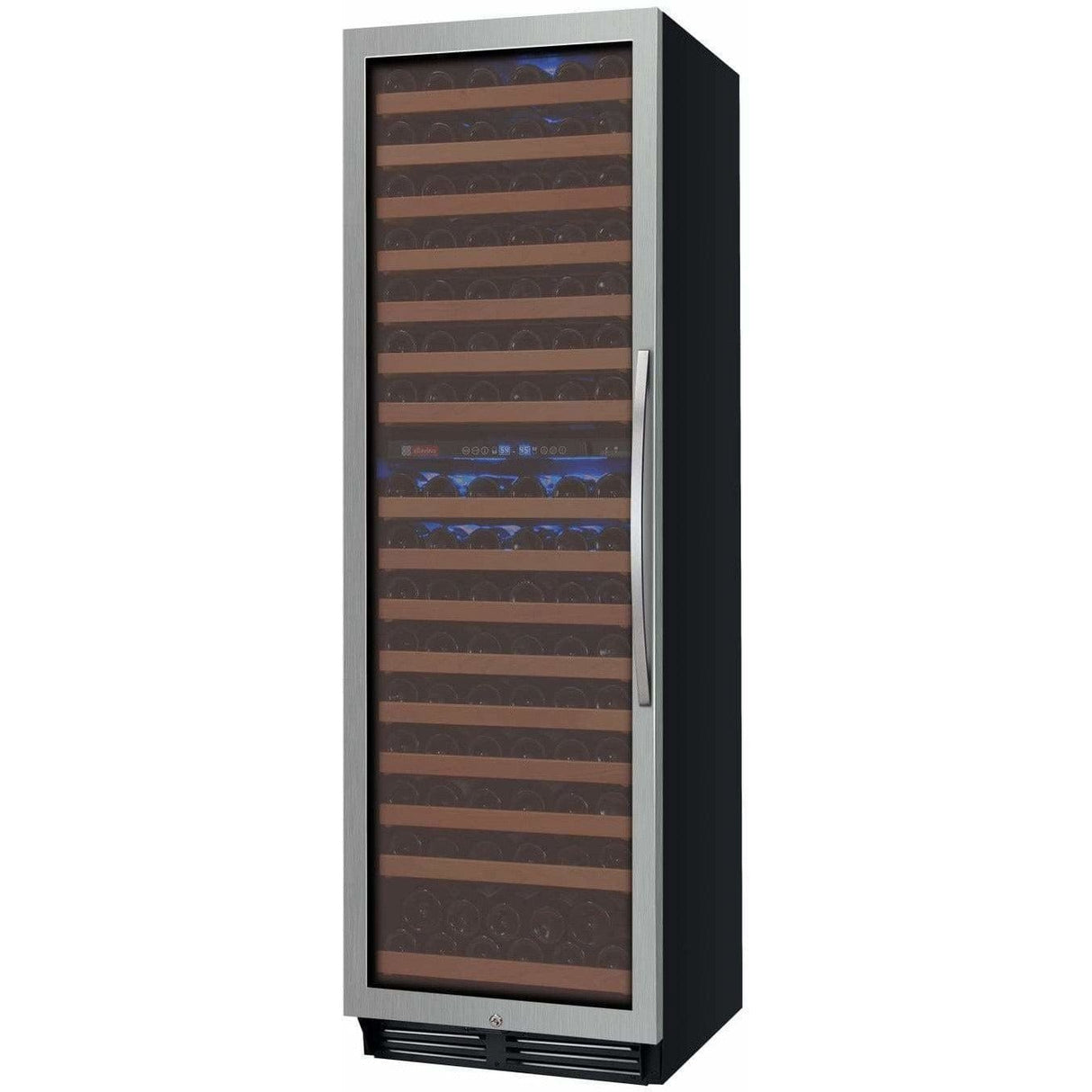

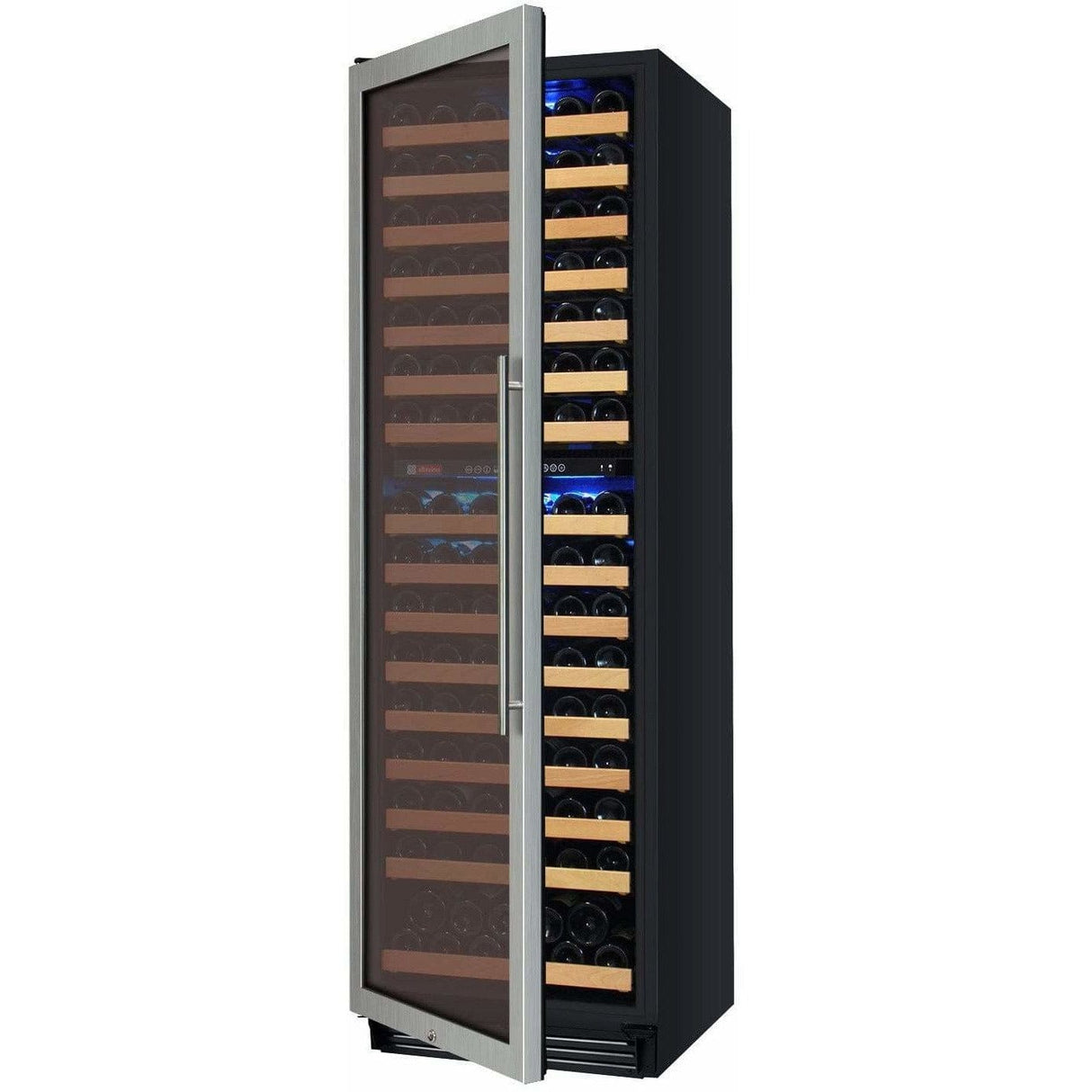

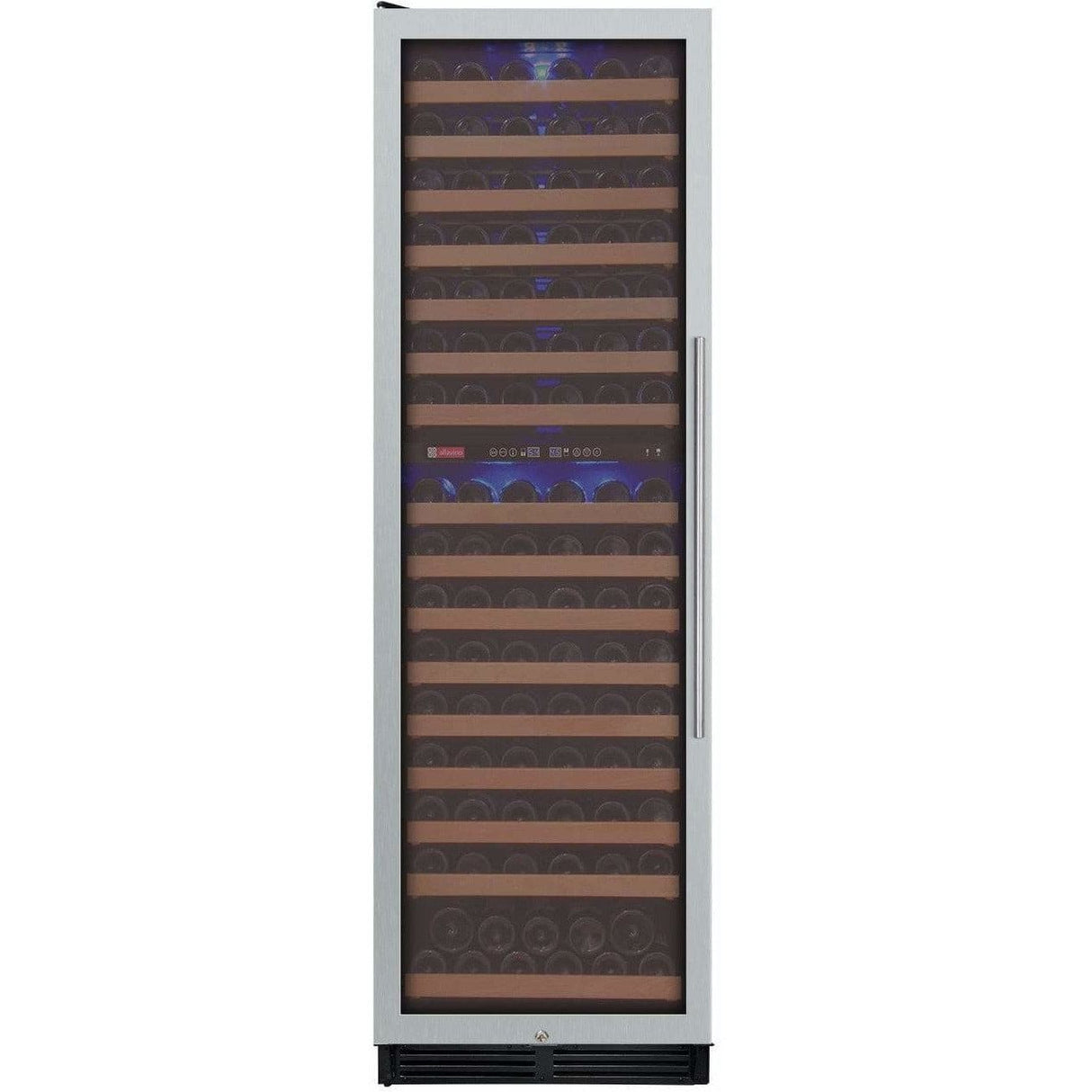

- Black Cabinet and Stainless Steel Framed Glass Door with hinge on left. Door is not field reversible.

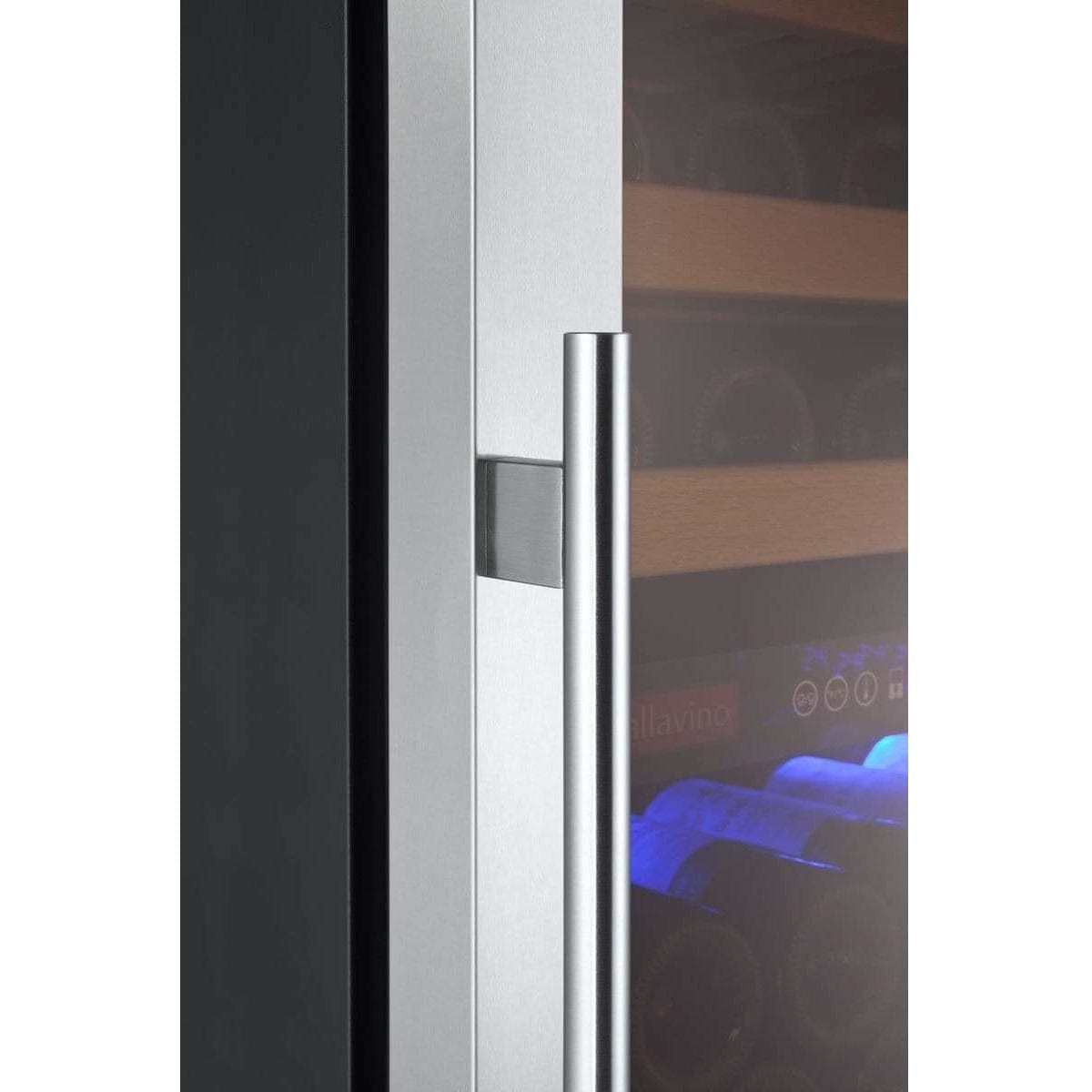

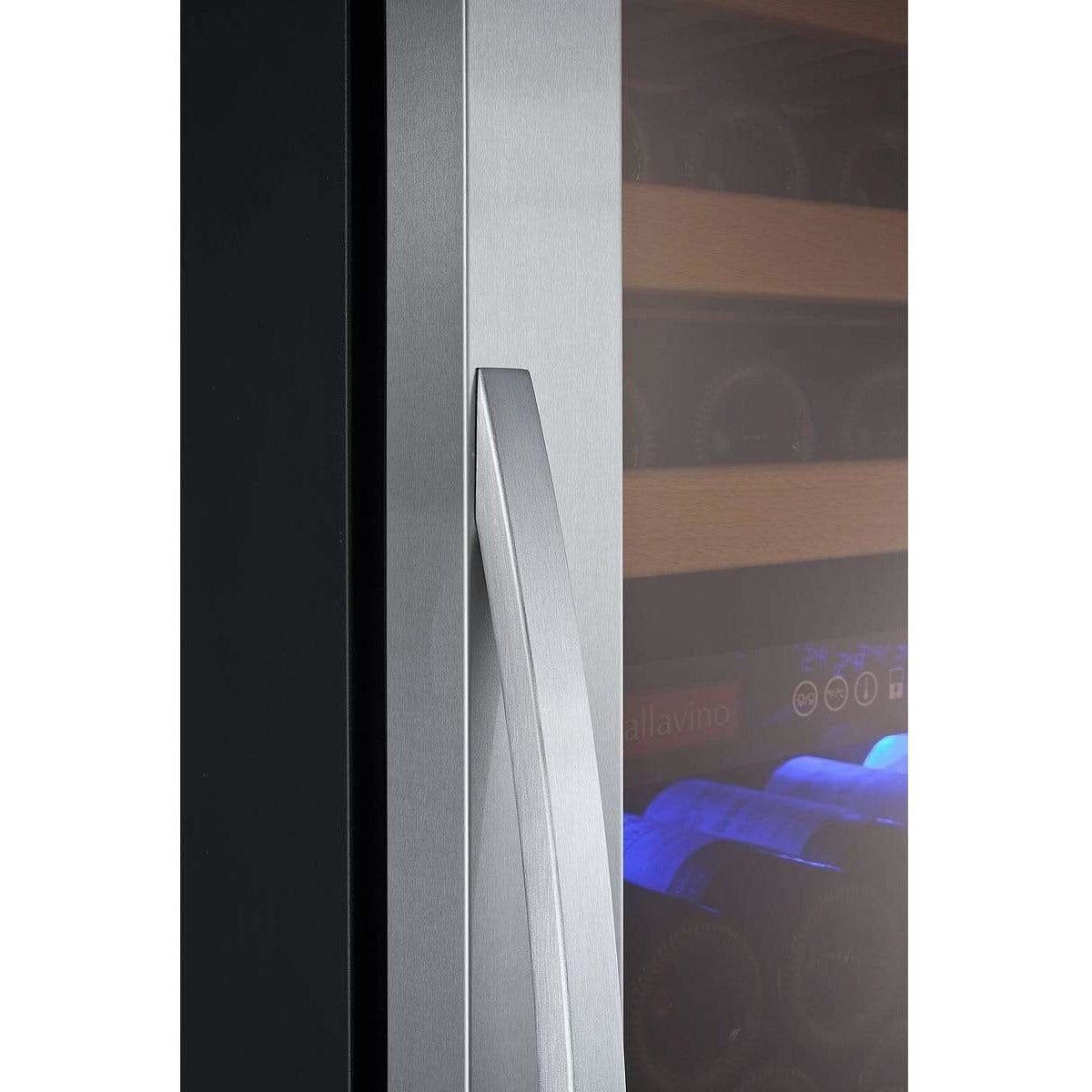

- Stainless Steel Towel Bar Handle
- Two temperature zones allow you to store red and white wine simultaneously*
- Upper Zone can be set between 40-56 degrees Fahrenheit
- Lower Zone can be set between 54-65 degrees Fahrenheit
- Maximum Ambient Temperature: 90 degrees Fahrenheit
- Minimum Ambient Temperature: The lowest temperature you want to store your wine at. The unit does not have a heater, so if the ambient temperature is lower than the set temperature, the internal temperature will match the external temperature.

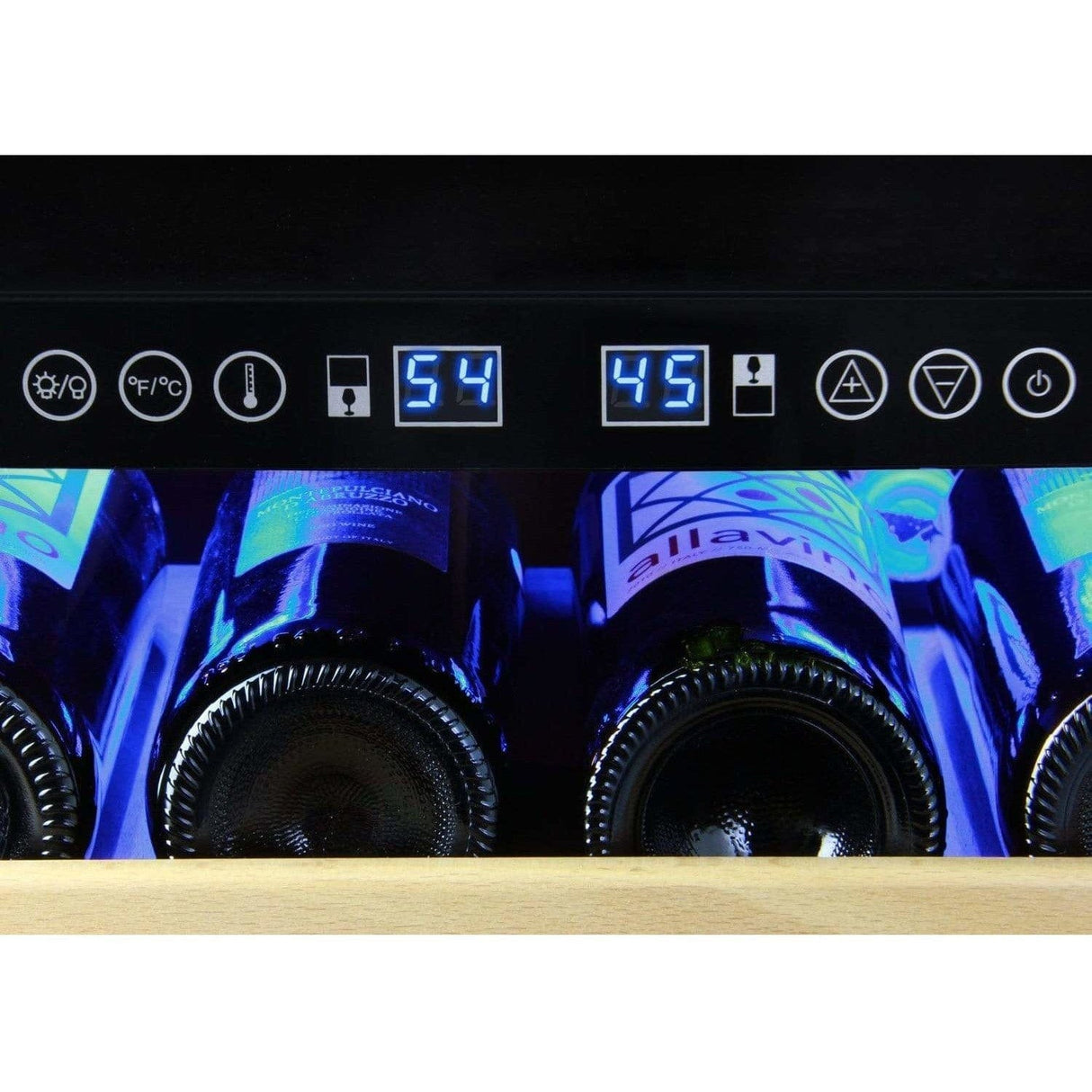

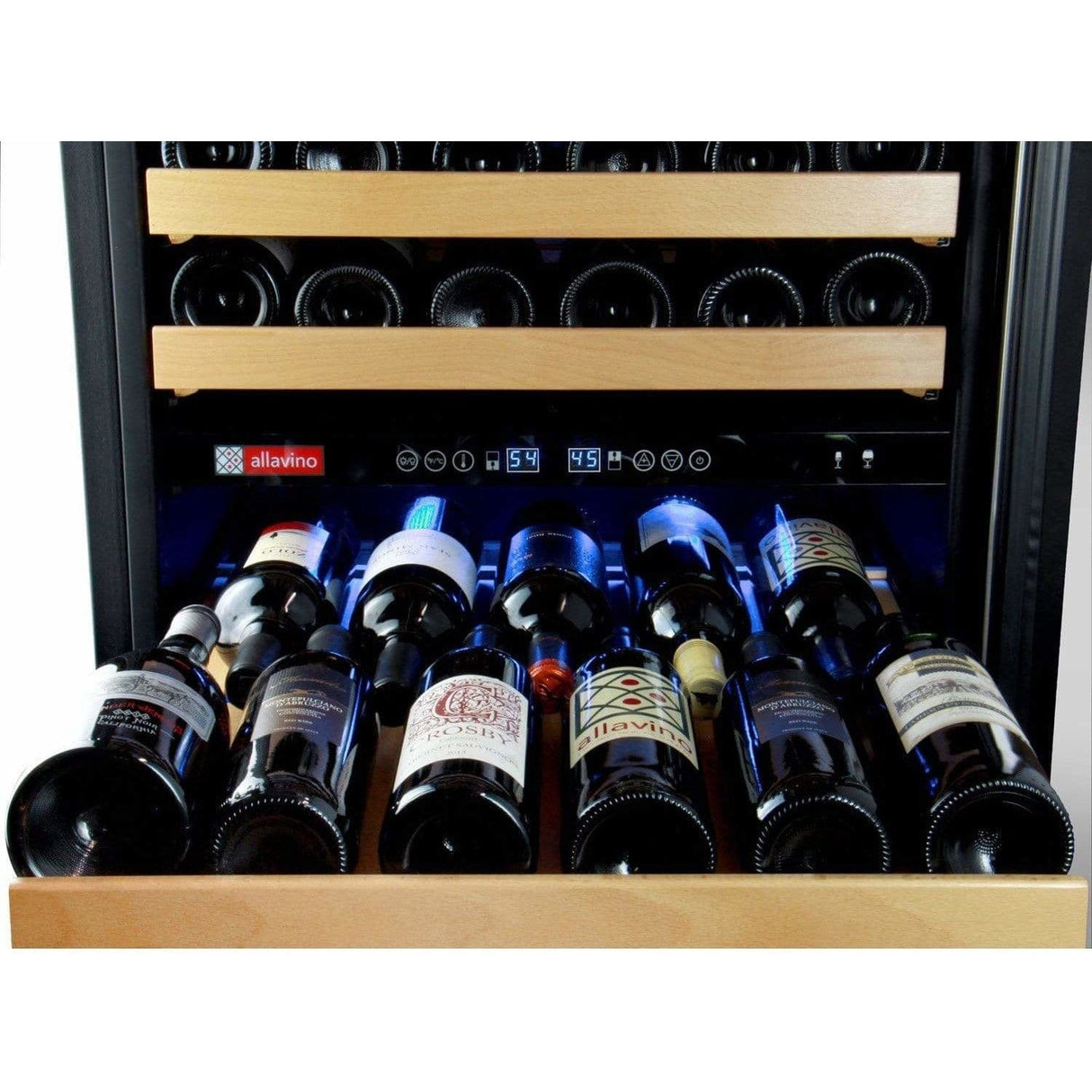

- LED Temperature Display
- Temperature can be displayed in Fahrenheit or Celsius
- Push button controls

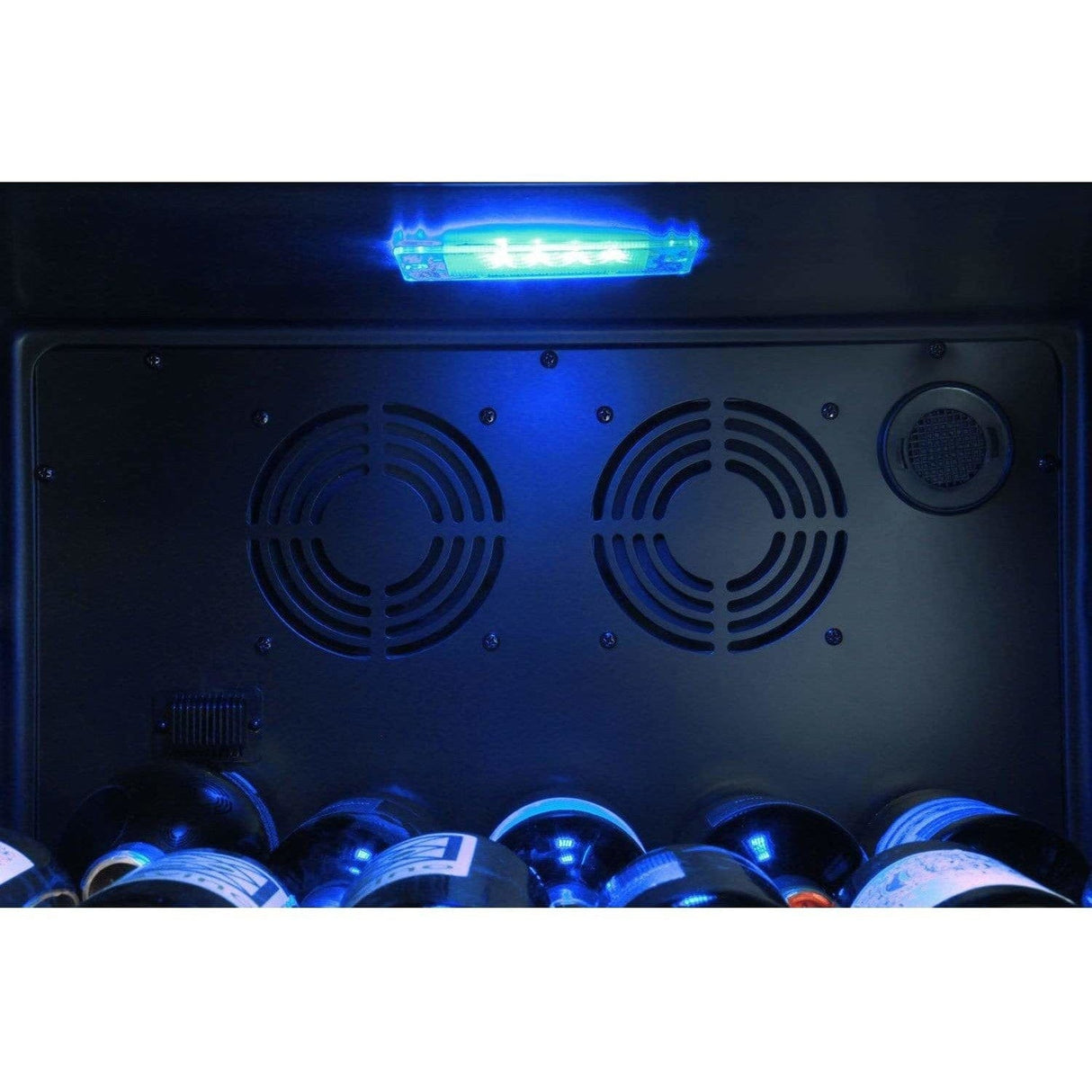

- Fan-forced cooling for even temperature distribution
- Cool Blue interior lighting

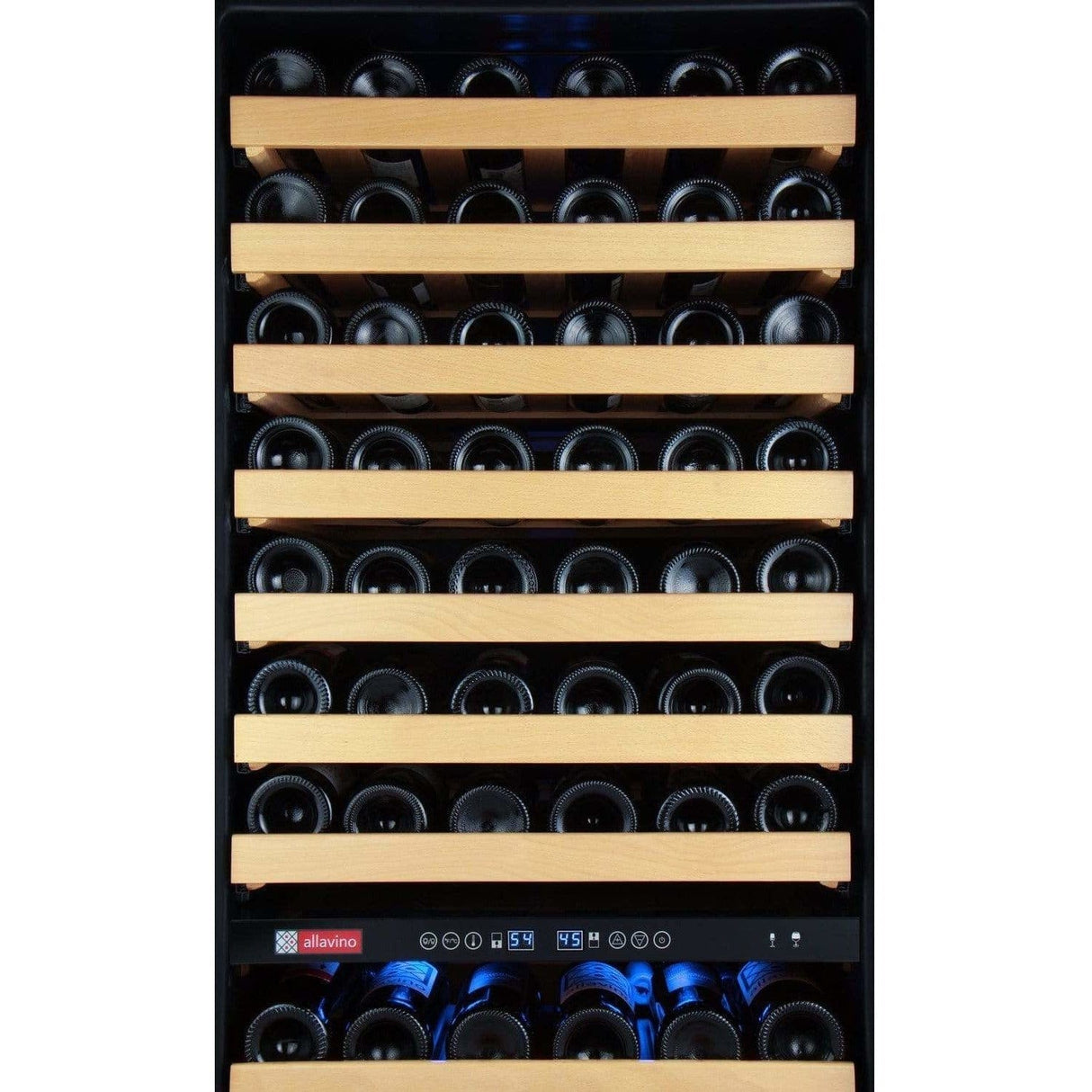

- Beautiful hardwood shelves



- Beveled shelf slats securely cradle wine bottles to reduce vibration

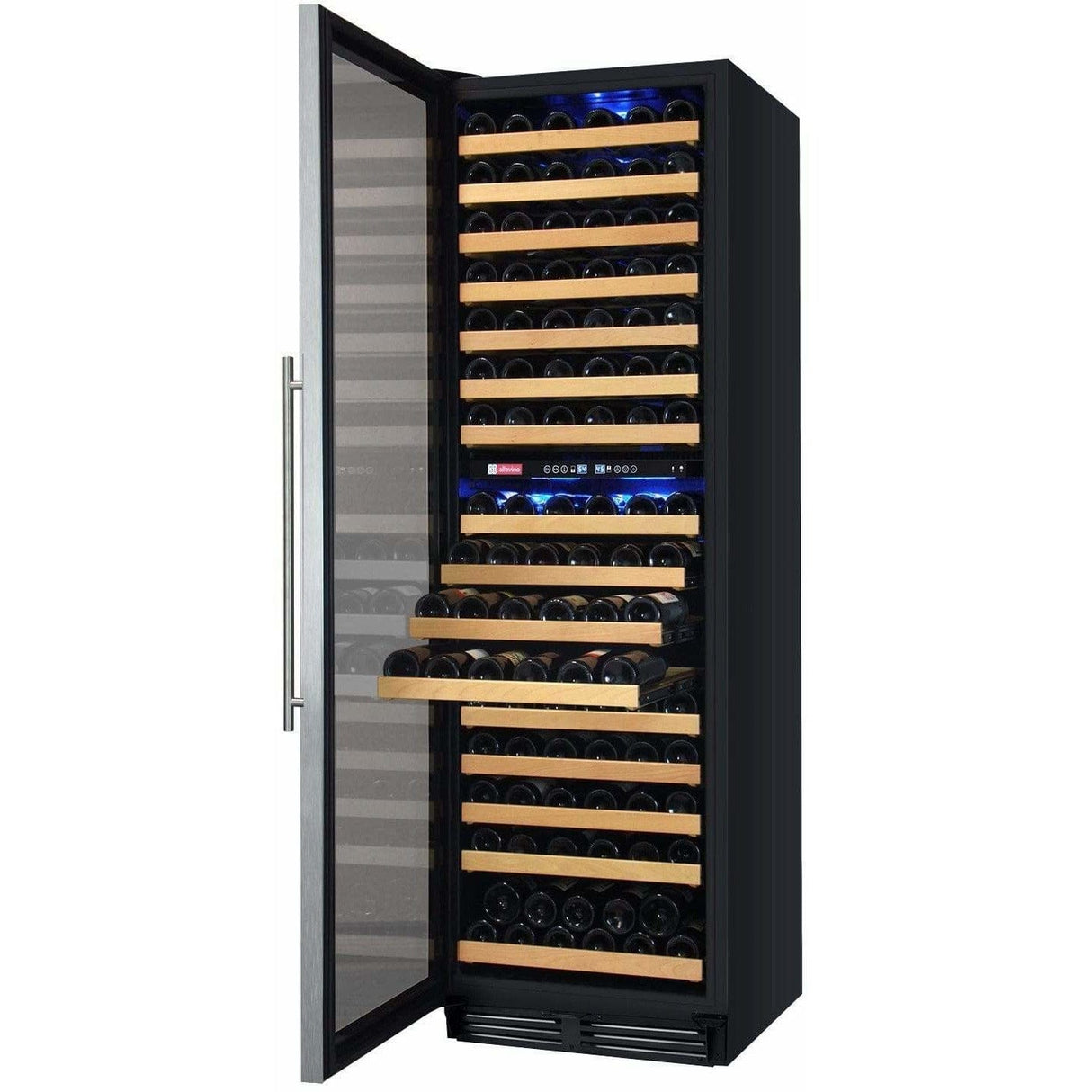

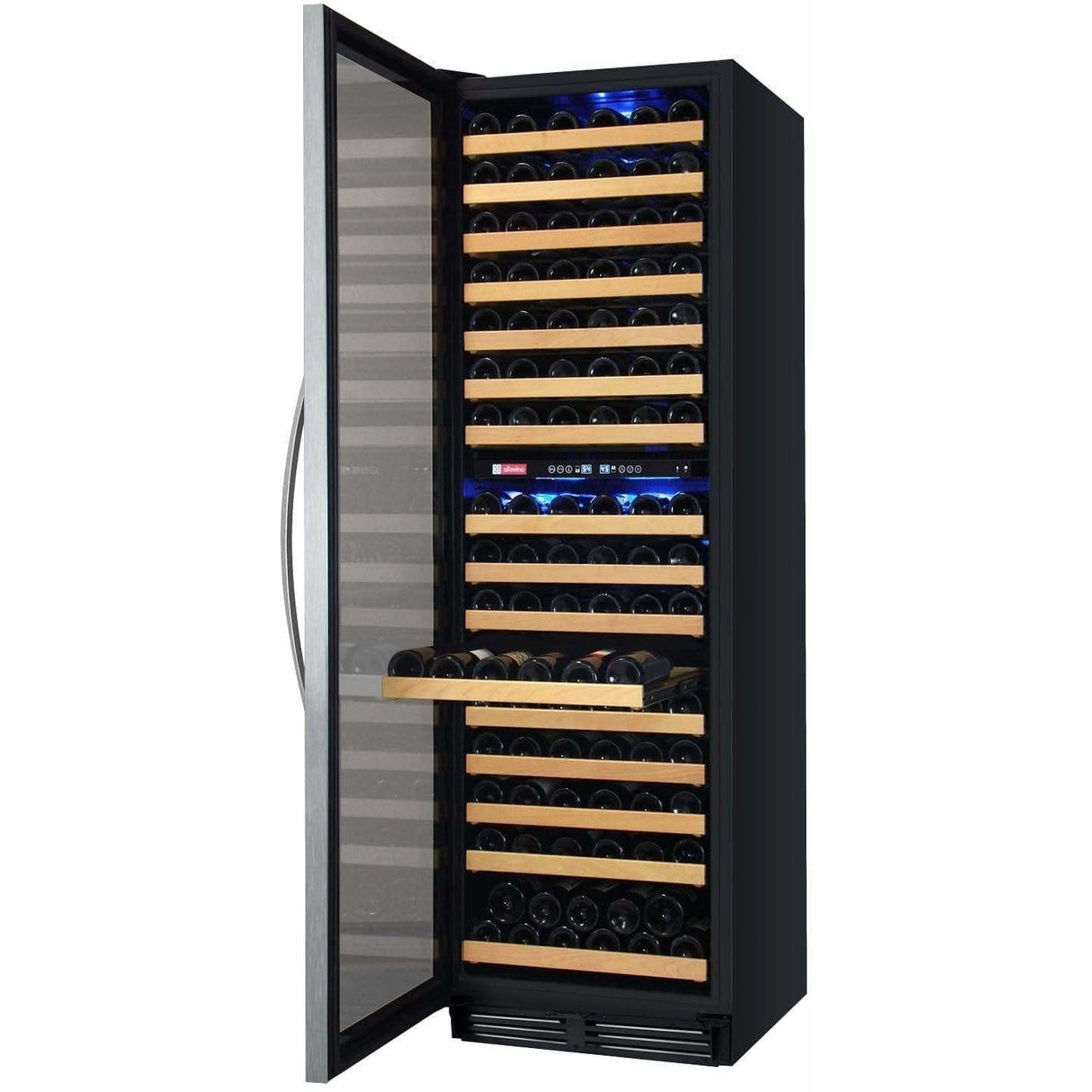

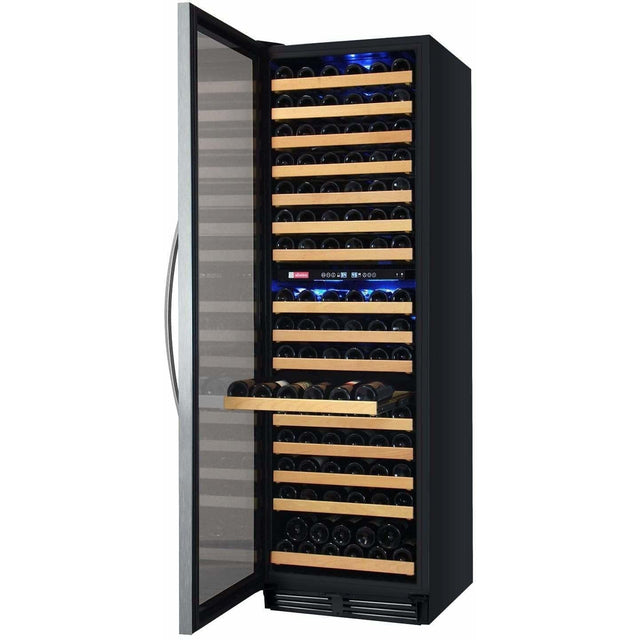

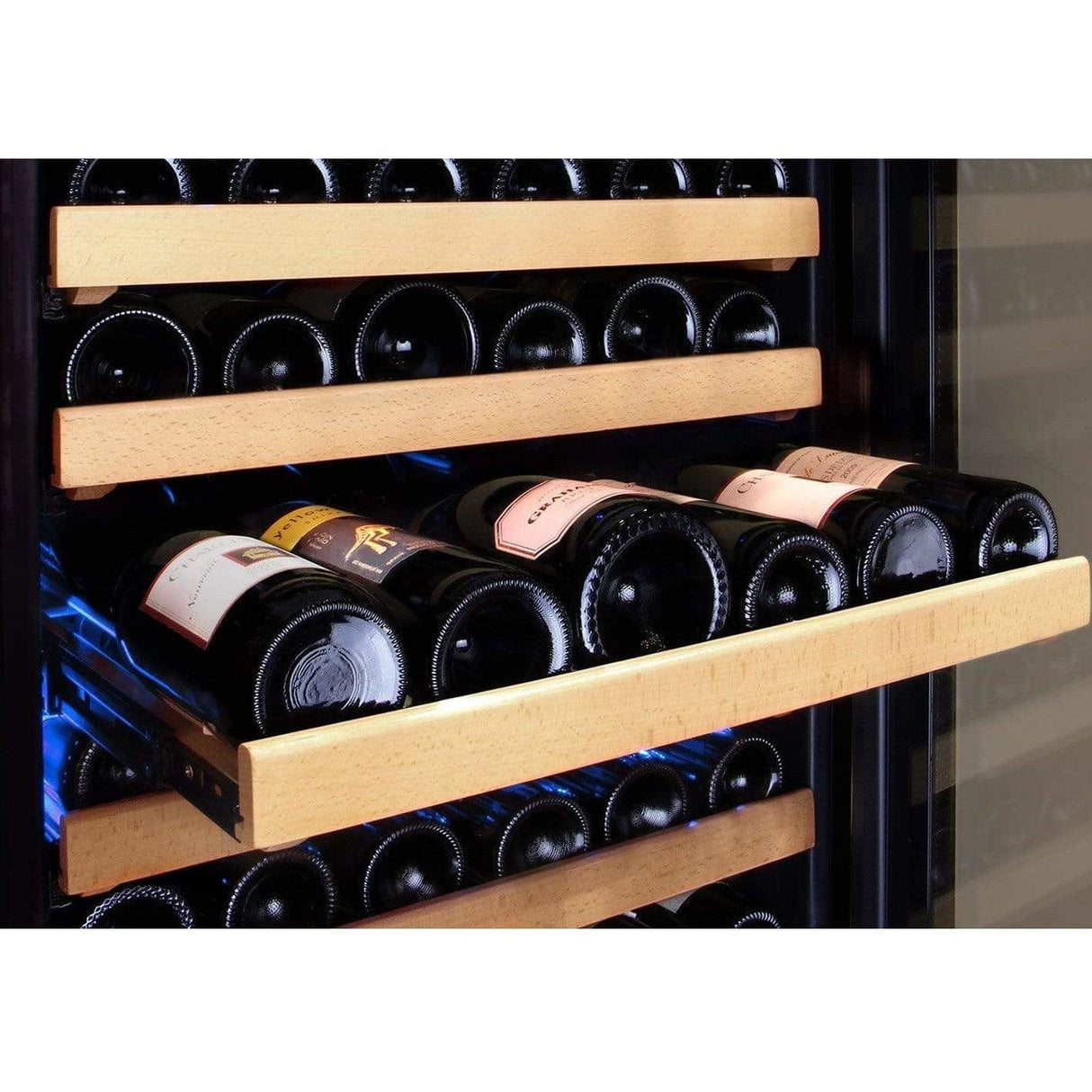

- Telescoping roller glides extend shelves far enough to access rear bottles
- Security Lock
- Dual Paned Glass Door with UV Protection

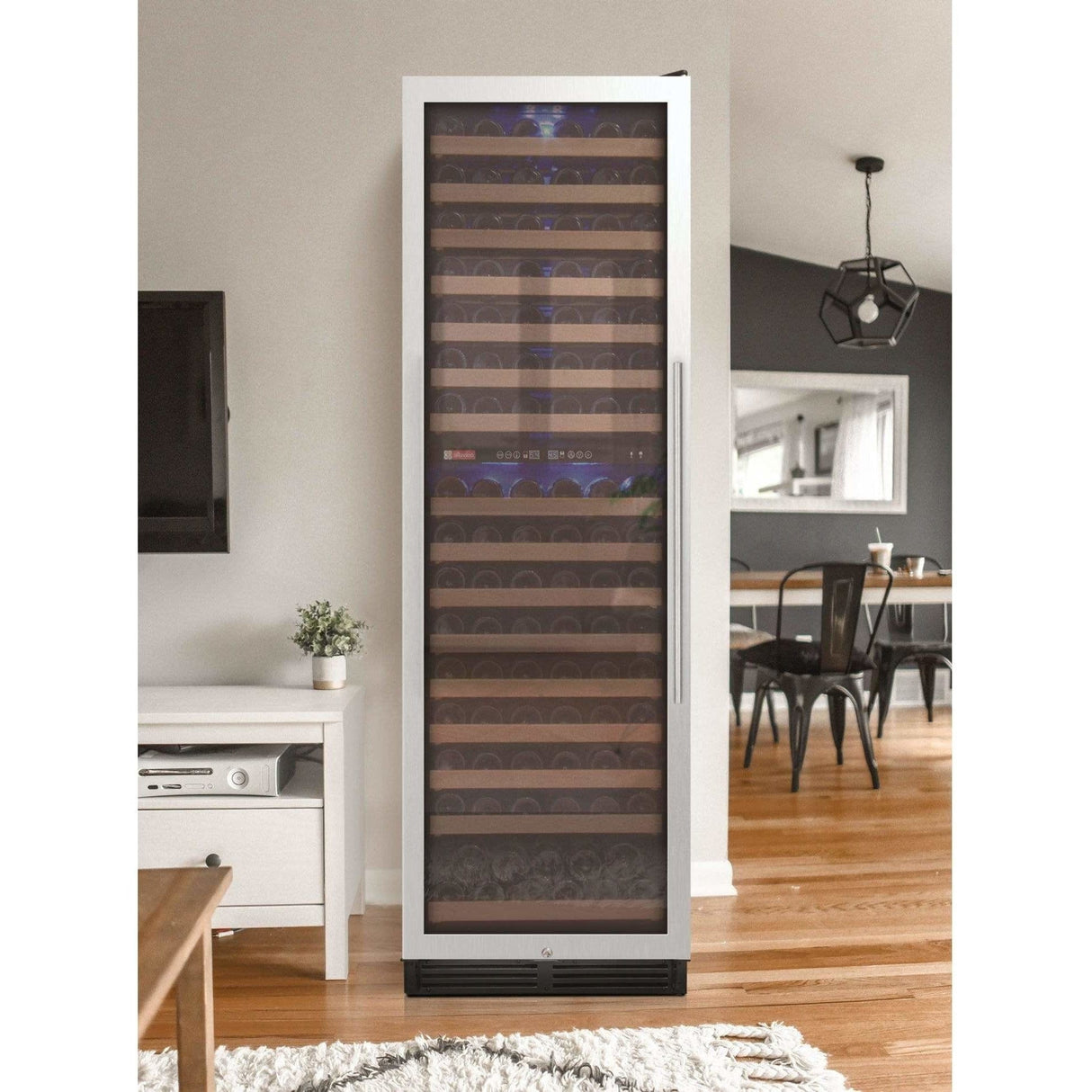

- Built-in or Freestanding use
* - Lower Zone must be set 2 degrees warmer than the Upper Zone and zones cannot be set more than 12 degrees apart

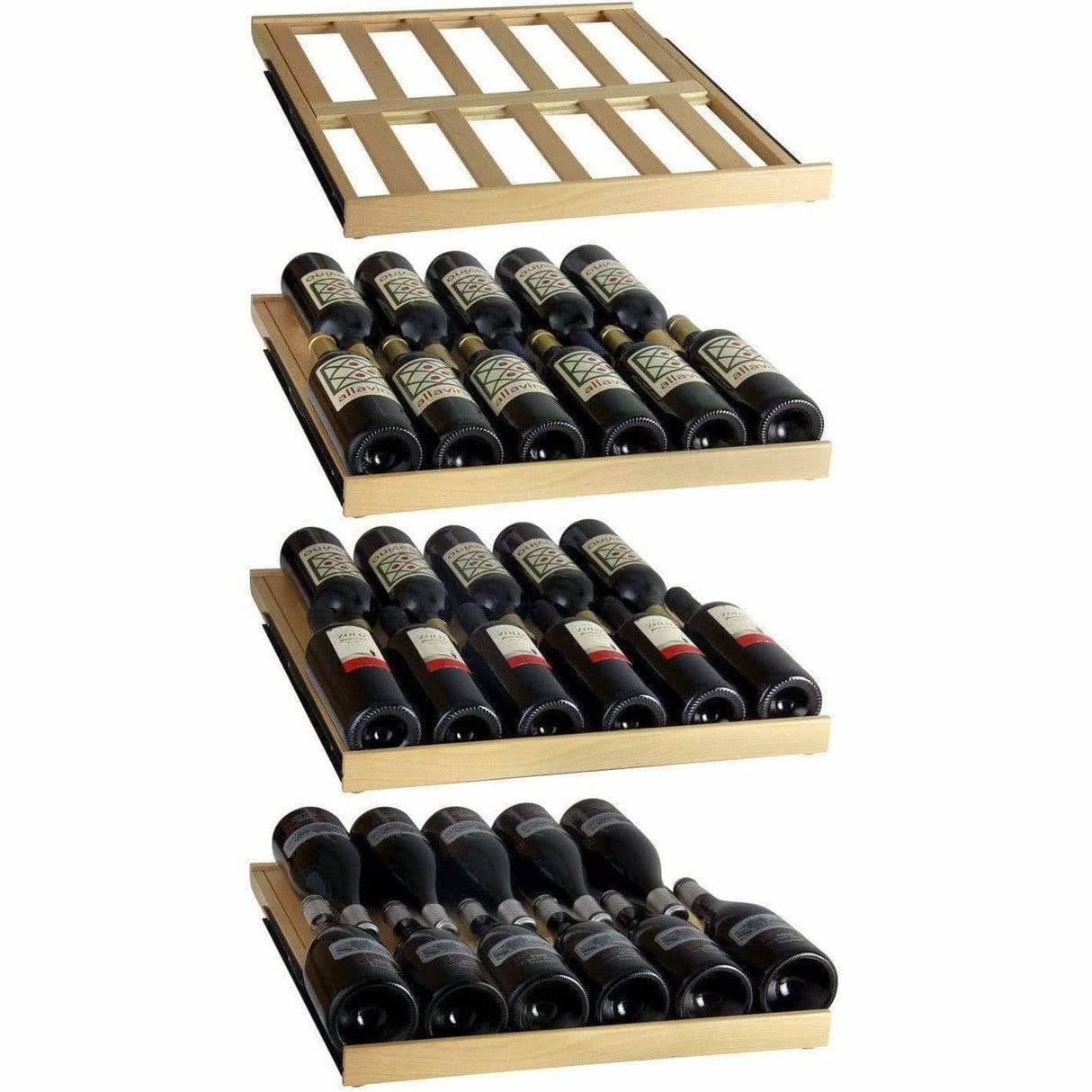

We realize that there is no "standard" bottle size anymore. Here is a small sample of bottle size variations and how they can affect your overall bottle capacity. Each of these bottles have varying widths and heights.
- Bottle A is the ideal bottle size. The bottles are just short enough that the neck of the back bottles fit between the shoulders of the front bottles without touching and the 2-15/16" diameter allows plenty of room between bottles. This allows you to fit 20 bottles on the top rack in each zone and 11 bottles on the other 12 racks with a total capacity of 172 bottles.
- Bottle B is taller than the average bottle at both the top and the shoulder. If only using this size bottle, the top of the rear bottles on the rack would hit the shoulder of the front bottles on the rack and push them too far to either side to have bottles all the way across the front of the rack. We were able to fit 11 bottles on the top shelf in each zone and the very bottom shelf by putting 6 bottles across in the grooves with 5 bottles stacked on top of them. On each of the remaining 11 shelves, we were able to get 8 bottles per shelf with one bottle in front and another bottle in the back, then skipping a groove before adding another bottle in the front. That would reduce the overall capacity to 121 bottles, if your entire collection were this size but you can have bottle B in the back with bottle A in the front of each rack and still achieve the maximum capacity of 174 bottles.
- Bottle C also works well. It is 2-3/4" wide at the base, but 3 1/4" wide at the shoulder. The grooves are spaced enough that the shoulder will touch the bottle next to it, but the height still allows you to fit the normal amount of bottles on a shelf for the full 174 bottle capacity.
- Bottle D is shorter and wider, and the bigger diameter will not allow you to stack bottles on the bottom shelf. This reduces the overall capacity by 5, for a maximum capacity of 167 bottles if your entire collection were this size.
- Bottle E is even wider, with a diameter of 3-1/2". They still fit on most of the shelves without having to remove a rack, but they require that a groove be skipped between the bottles which reduced the bottles per shelf to 8 on the upper shelves and 5 on the bottom shelf. That would reduce the overall capacity to 109 bottles if your entire collection were this size.
We understand that every collection is different, and we hope that providing this information will help you determine how your collection will work with this product.
UPC: 700697200461
