Allavino Single-Zone Wine Storage

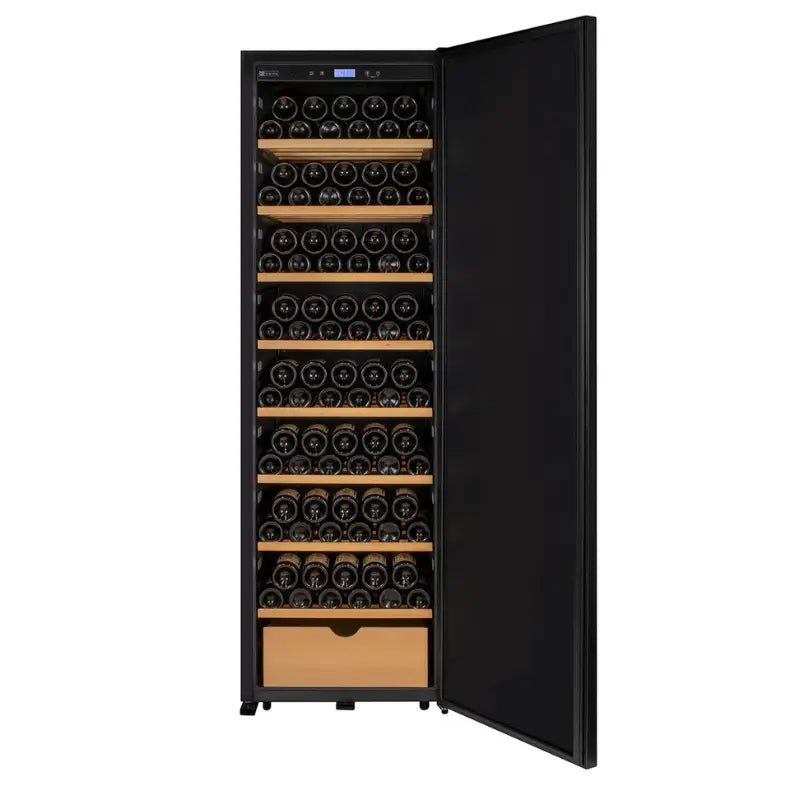

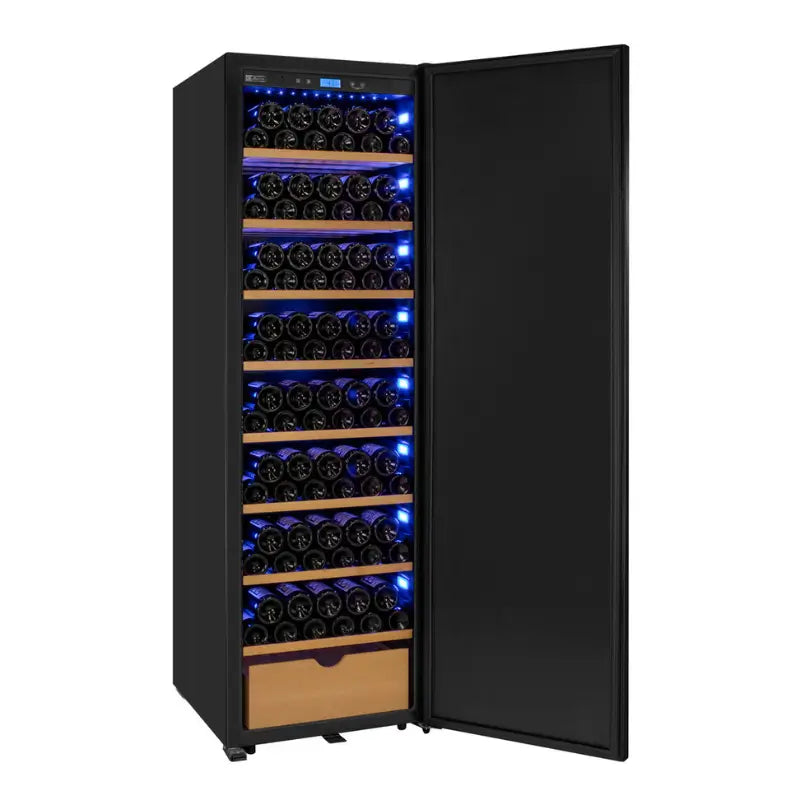

Allavino KWR-8185-1SDR 185 Bottle Single Zone Wine Vault with Solid Black Right Hinge Door
The Allavino KWR-8185-1SDR is a large-capacity freestanding wine refrigerator designed to store up to 185 standard 750mL Bordeaux bottles in one temperature-controlled zone. It combines a solid black right-hinge door, adjustable digital temperature control from 41°F to 64°F, fan-forced cooling, removable roll-out wooden shelving, locking storage, and blue LED interior lighting.
Eight main wooden storage shelves accommodate up to 22 standard bottles each in the rated configuration, while the lower storage position accommodates an additional 9 bottles. The shelves can be removed and repositioned when additional bottle clearance is required.
Allavino KWR-8185-1SDR: Quick Decision Summary
Choose the KWR-8185-1SDR when you need substantial freestanding wine storage in a relatively narrow cabinet and prefer a solid door rather than a glass display. The cabinet provides one controlled temperature zone, adjustable wooden shelving, locking storage, and a rated capacity of up to 185 standard Bordeaux bottles.
| Best For | Collectors needing high-capacity freestanding storage, one temperature zone, adjustable shelving, and a solid black locking door. |
|---|---|
| Rated Capacity | Up to 185 standard 750mL Bordeaux bottles. Actual capacity varies with bottle size, shape, and shelving arrangement. |
| Temperature Control | Single zone with an adjustable range of 41°F to 64°F. |
| Installation Type | Freestanding only, with required ventilation space around the sides and rear. |
Things to Know Before Ordering
- The rated 185-bottle capacity is based on standard 750mL Bordeaux bottles.
- Larger Burgundy, Champagne, oversized, or irregular bottles can reduce capacity.
- The entire cabinet operates at one selected temperature.
- This model is designed for freestanding use rather than built-in installation.
- The door is solid black and right hinged.
- The shelves are removable and repositionable.
- The refrigerator weighs approximately 355 lb before bottles are loaded.
- Required side and rear ventilation clearance must be maintained.

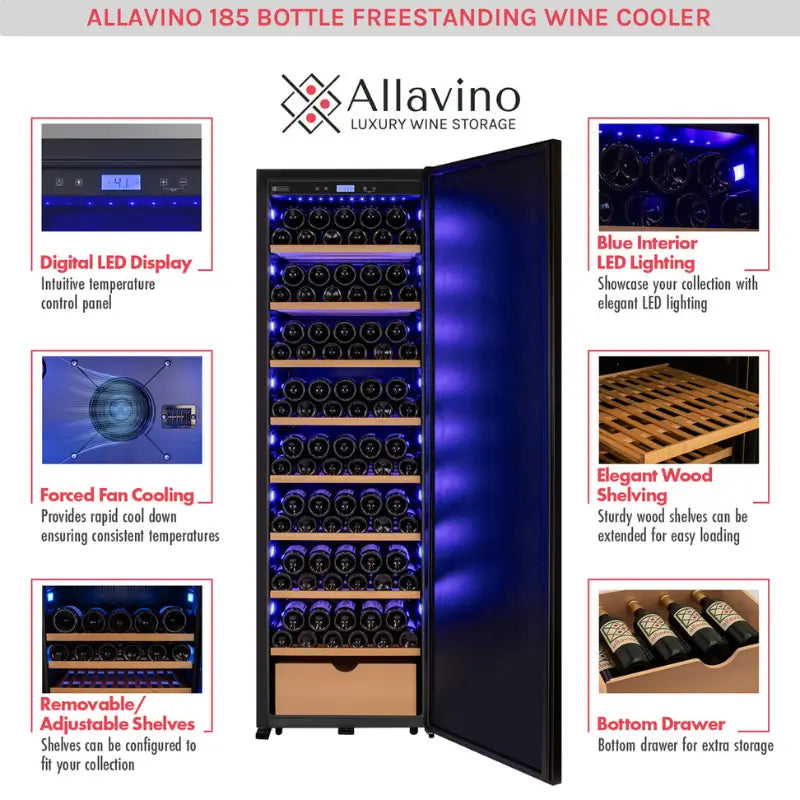

Key Features of the Allavino KWR-8185-1SDR
Up to 185-Bottle Storage Capacity
The KWR-8185-1SDR is designed for substantial wine collections, with a rated configuration of up to 185 standard 750mL Bordeaux bottles.
Eight main storage positions accommodate up to 22 standard bottles each, while a lower storage position accommodates another 9 bottles.
Single-Zone Digital Temperature Control
The cabinet operates as one temperature-controlled storage zone with an adjustable range from 41°F to 64°F.
The electronic control panel allows temperature adjustments in one-degree increments and supports both Fahrenheit and Celsius display modes.

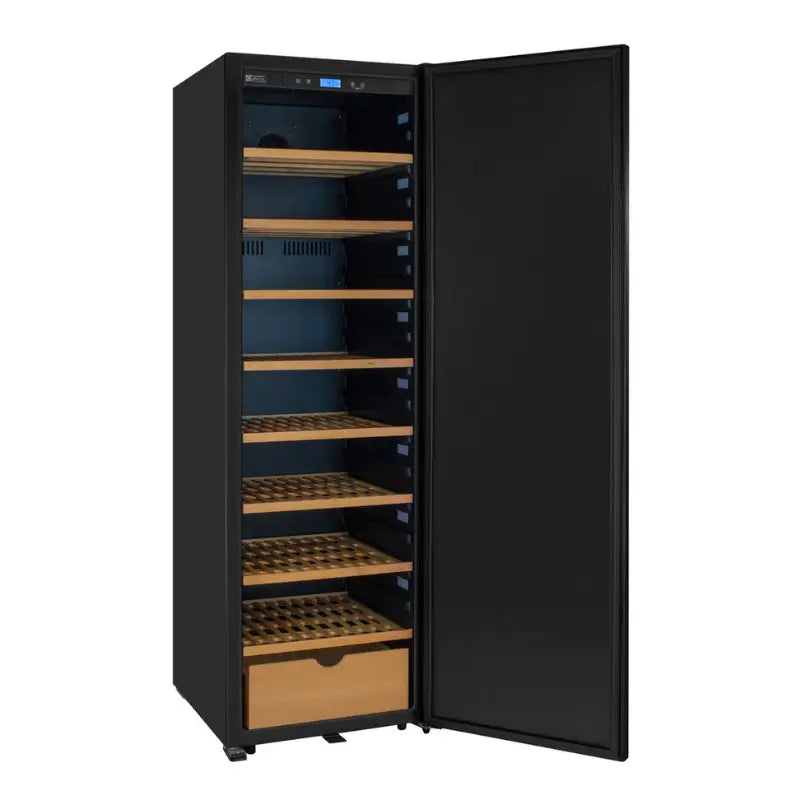

Adjustable Roll-Out Wooden Shelves
Eight main wooden storage shelves provide organized bottle storage and can roll outward for easier access to bottles positioned toward the rear of the cabinet.
The shelves can also be removed and repositioned when additional clearance is needed for larger or differently shaped bottles.
Fan-Forced Cooling
An internal fan circulates cooled air throughout the cabinet to support more consistent temperature distribution and improved cooling performance throughout the storage area.
Solid Black Right-Hinge Door
This configuration uses a solid black right-hinge door with a black metal cabinet and black interior liner.
The enclosed design is suited to collectors who prioritize protected storage over a glass-front display.
Locking Wine Storage
A keyed door lock helps control access to the collection and provides an additional layer of security for stored bottles.
Blue LED Interior Lighting
Energy-efficient blue LED lighting illuminates the cabinet interior for easier bottle identification and selection.
The lighting system supports continuous illumination or operation based on whether the refrigerator door is open or closed.
Automatic Defrost
The cooling system incorporates automatic defrost to simplify normal refrigerator operation and maintenance.
Freestanding Configuration
The KWR-8185-1SDR is specifically designed for freestanding installation. Required ventilation clearance must remain available around the appliance.
Who Is the Allavino KWR-8185-1SDR Best For?
Established Wine Collectors
The cabinet is suited to collectors who need substantially more storage than a compact wine refrigerator can provide while retaining a relatively narrow 23.5-inch cabinet width.
Collectors Who Prefer a Solid Door
The solid black door keeps the collection enclosed rather than visibly displayed through glass, making this model appropriate where storage function takes priority over bottle display.
Single-Temperature Collections
The KWR-8185-1SDR is appropriate when the collection can be maintained within one selected temperature zone rather than requiring two independently controlled compartments.
Collections With Mixed Bottle Formats
Removable and repositionable wooden shelving provides flexibility for bottles that require more clearance than standard Bordeaux bottles, although accommodating those bottles may reduce total capacity.
Freestanding Wine Storage Applications
This unit is best used in an indoor location where the required ventilation clearance can be maintained around the sides and rear of the cabinet.
Not Recommended For
- Built-in or undercounter installations
- Zero-clearance cabinetry installations
- Buyers requiring two independently controlled temperature zones
- Buyers specifically seeking a glass display door
- Outdoor installations
- Locations that cannot provide the required ventilation clearance
Allavino KWR-8185-1SDR Quick Specifications
| Brand | Allavino |
|---|---|
| Model | KWR-8185-1SDR |
| UPC / GTIN | 810069435787 |
| Rated Bottle Capacity | Up to 185 standard 750mL Bordeaux bottles* |
| Cooling Zones | 1 |
| Temperature Range | 41°F–64°F |
| Installation | Freestanding |
| Door | Solid black |
| Hinge | Right |

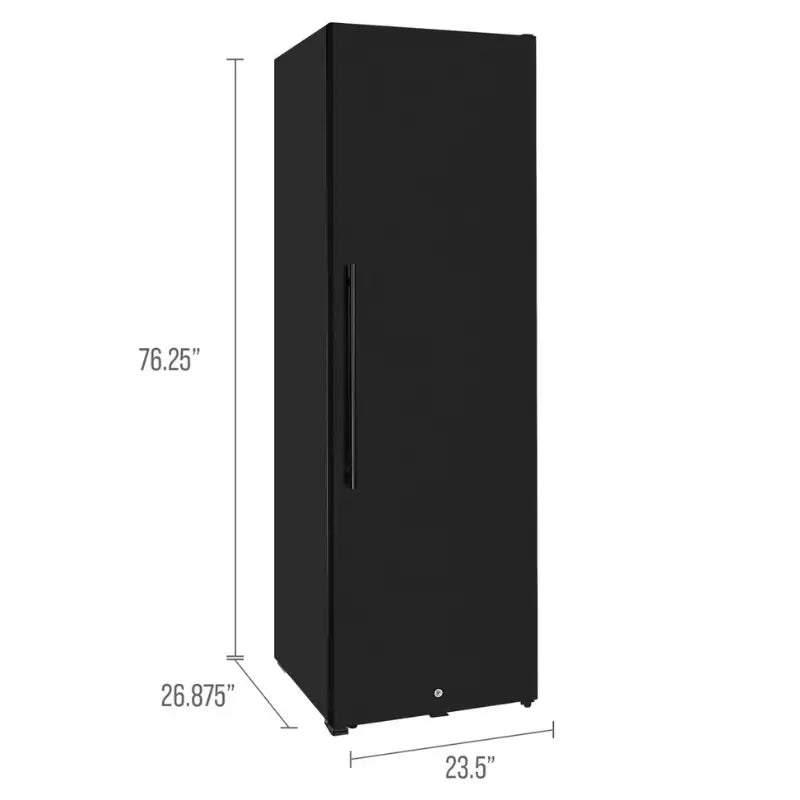

| Width | 23.5 in (59.7 cm) |
| Height | 76.25 in (193.7 cm) |
| Depth | 27.0 in (68.6 cm) |
| Depth With Handle | 28.75 in (73.0 cm) |
| Weight | 355 lb |
| Electrical | 115V / 60Hz |
| Current Draw | 2.0 amps |
| Refrigerant | R600A (isobutane) |
*Bottle capacity is based on standard 750mL Bordeaux bottles. Actual capacity may be reduced when storing larger or differently shaped bottles.

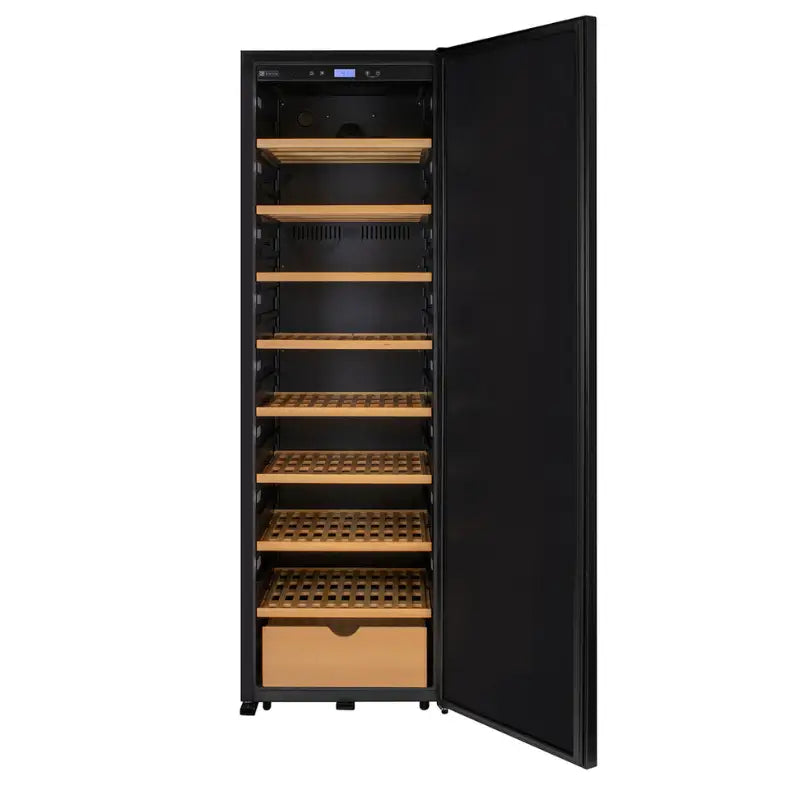

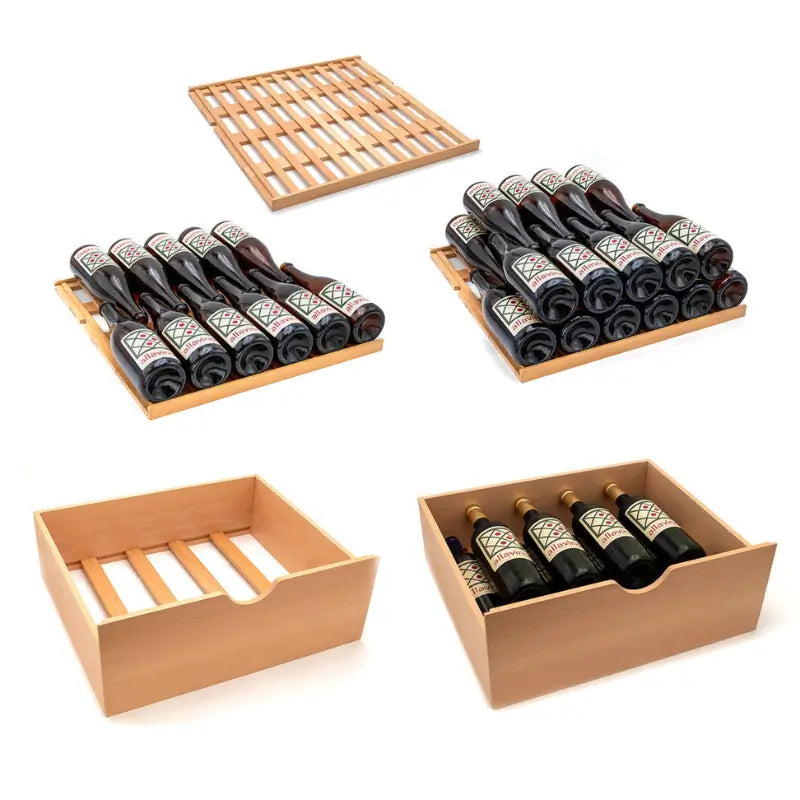

185-Bottle Storage Configuration
The KWR-8185-1SDR provides high-capacity storage while maintaining a cabinet width of only 23.5 inches. Its rated configuration uses eight main storage positions accommodating up to 22 standard bottles each, plus additional lower storage.
| Storage Position | Rated Capacity |
|---|---|
| Main Shelf 1 | 22 bottles |
| Main Shelf 2 | 22 bottles |
| Main Shelf 3 | 22 bottles |
| Main Shelf 4 | 22 bottles |
| Main Shelf 5 | 22 bottles |
| Main Shelf 6 | 22 bottles |
| Main Shelf 7 | 22 bottles |
| Main Shelf 8 | 22 bottles |
| Lower Storage Position | 9 bottles |
| Total Rated Capacity | 185 bottles |
Understanding the 185-Bottle Rating
The stated capacity is based on standard 750mL Bordeaux bottles. Collections containing larger Burgundy, Champagne, oversized, or unusually shaped bottles may have a lower final bottle count.
Because the wooden shelves are removable and repositionable, the storage layout can be adjusted when additional clearance is required for non-standard bottles.
Loading Recommendation
Distribute bottles evenly throughout the refrigerator rather than concentrating excessive weight at the top or bottom of the cabinet. Even distribution also supports more consistent temperature conditions throughout the storage area.

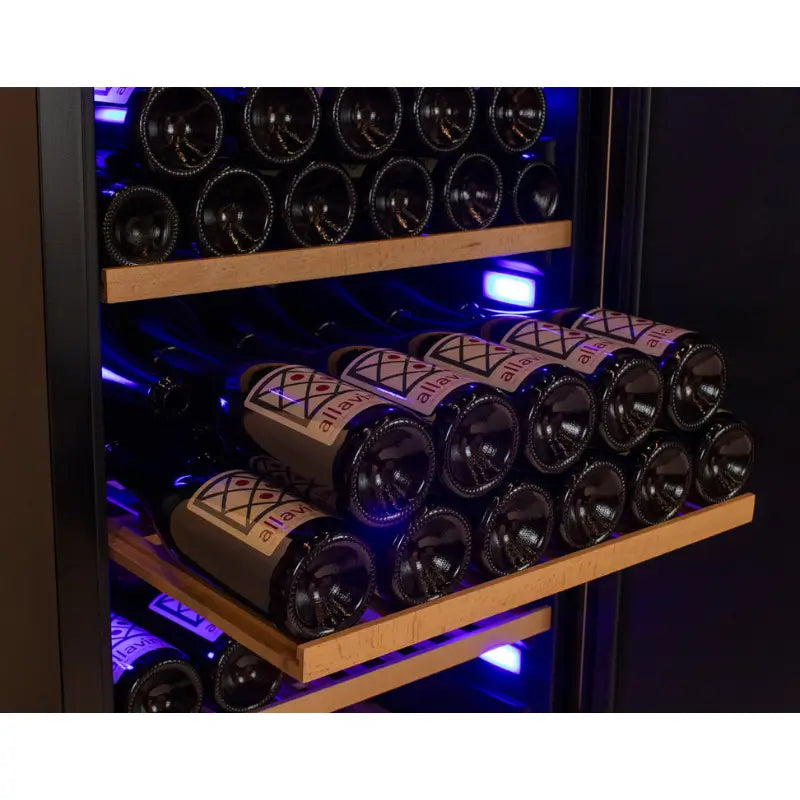

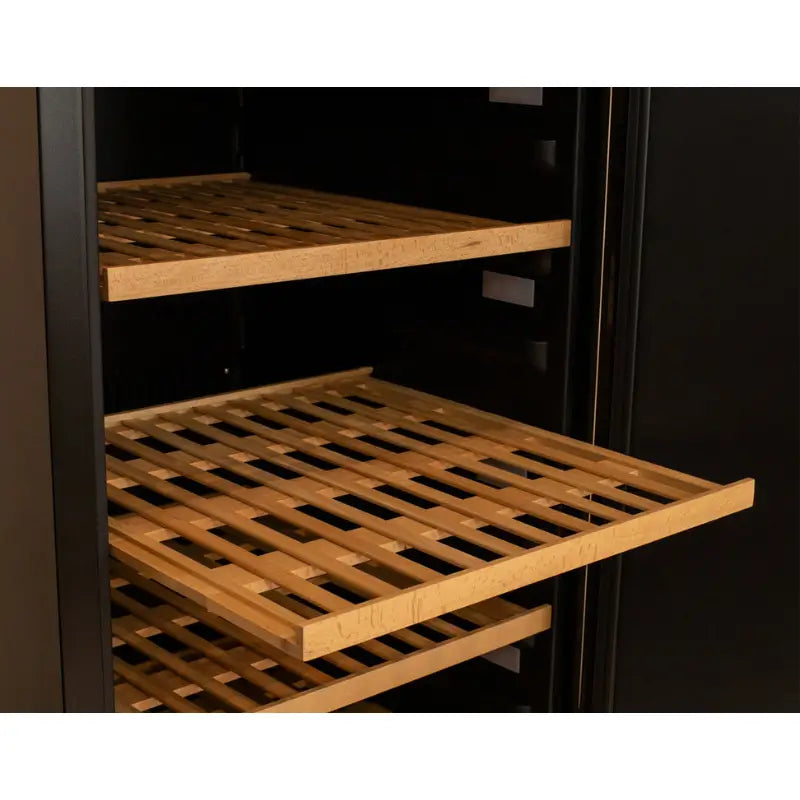

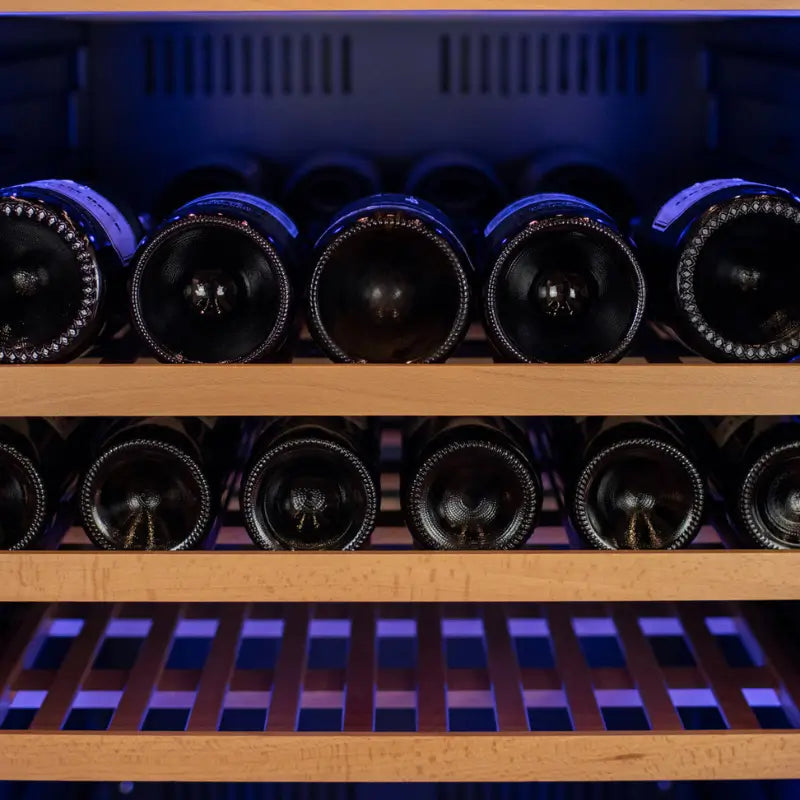

Adjustable Roll-Out Wooden Shelving
Eight main wooden storage shelves provide organized bottle storage while allowing easier access to bottles positioned toward the rear of the cabinet.
Each shelf can support up to 22 standard bottles in the rated storage configuration. The shelves can also be removed and repositioned to accommodate bottles requiring additional vertical clearance.

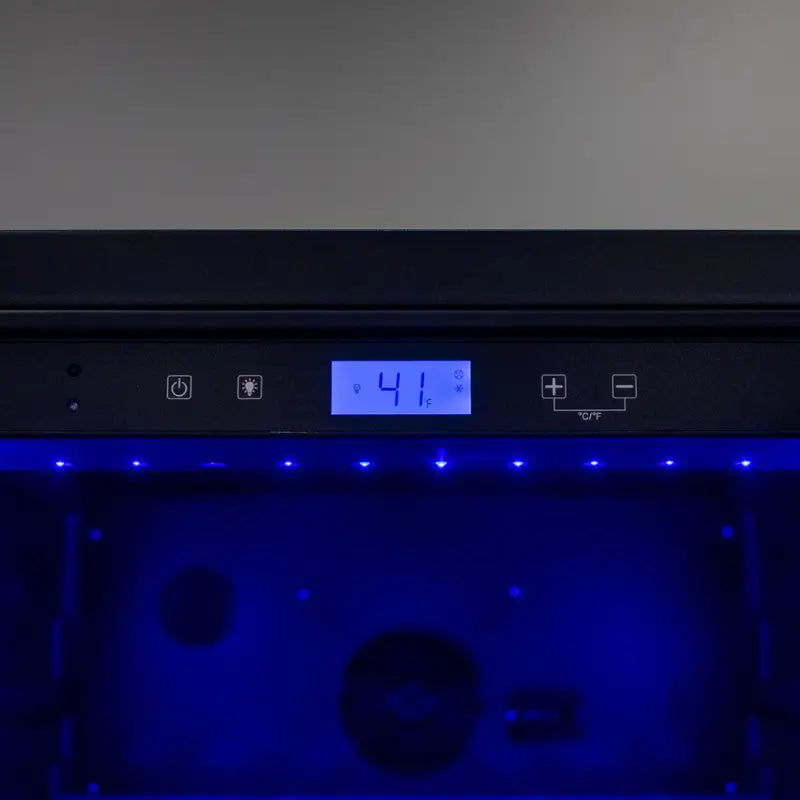

Single-Zone Digital Temperature Control
The Allavino KWR-8185-1SDR operates with one temperature-controlled storage zone and an adjustable range of 41°F to 64°F.
The digital control panel provides straightforward temperature setting and monitoring, with adjustments made in one-degree increments.
The display can also be switched between Celsius and Fahrenheit.

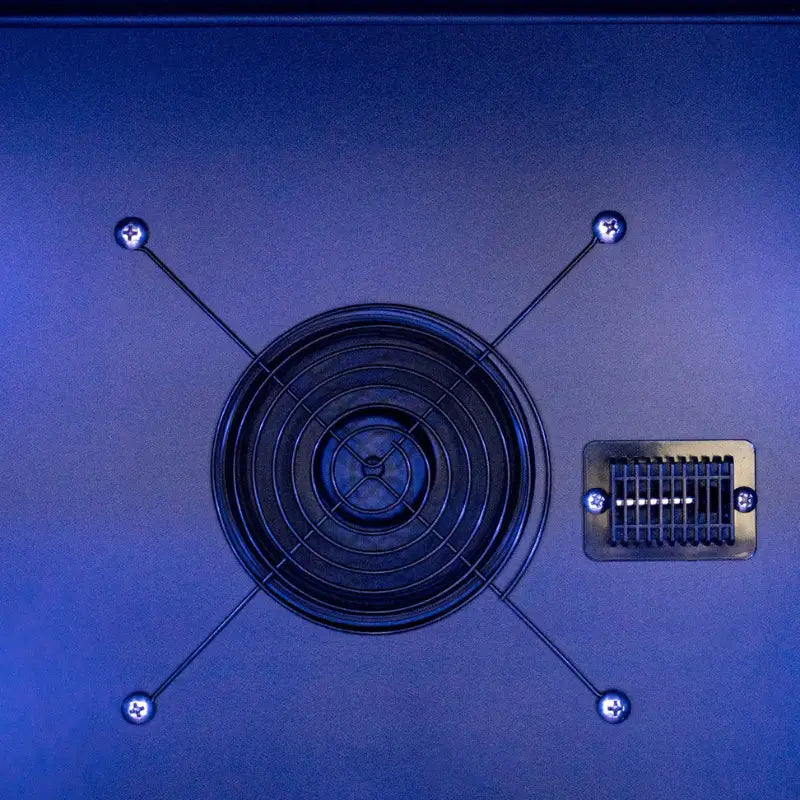

Fan-Forced Cooling
An internal fan circulates cooled air throughout the cabinet to support more even temperature distribution and faster cooldown.
Proper bottle distribution is also important. Avoid concentrating the entire collection in one section of the cabinet, as evenly dispersed bottles help support more consistent conditions throughout the storage space.
Solid Black Door and Blue LED Interior Lighting

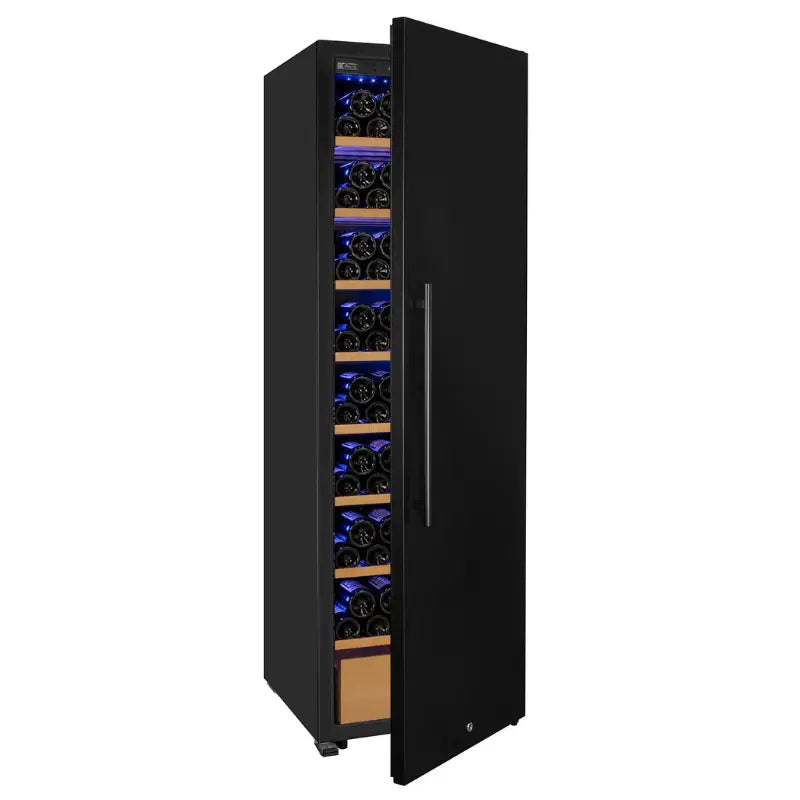

Solid Black Right-Hinge Door
This KWR-8185 configuration features a solid black right-hinge door, black metal cabinet exterior, and black interior liner.
The solid-door design is suited to buyers who prioritize enclosed wine storage rather than displaying bottles through a glass door.
A locking door with key provides additional control over access to the collection.

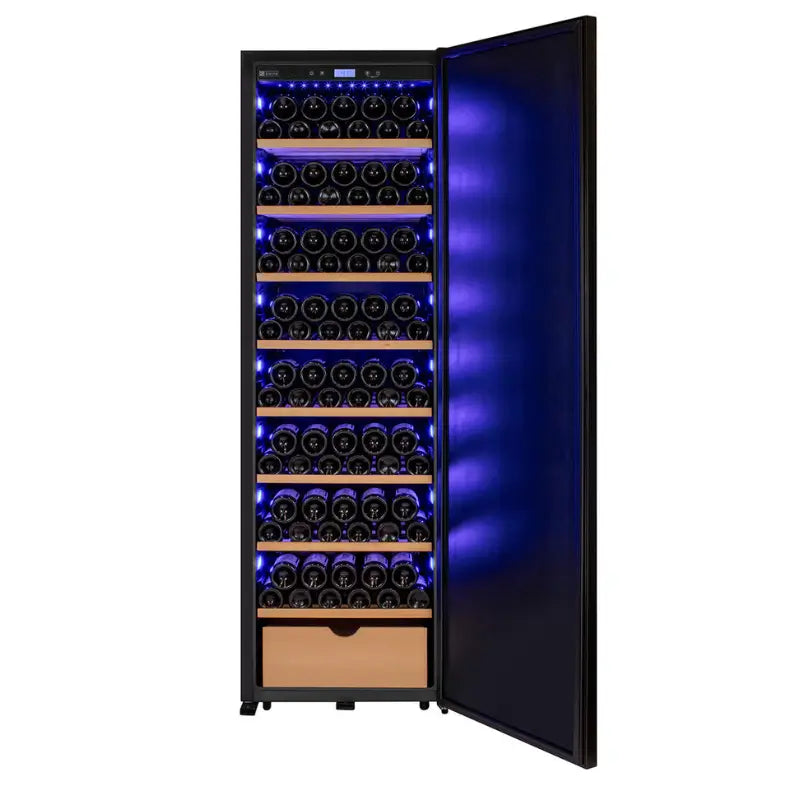

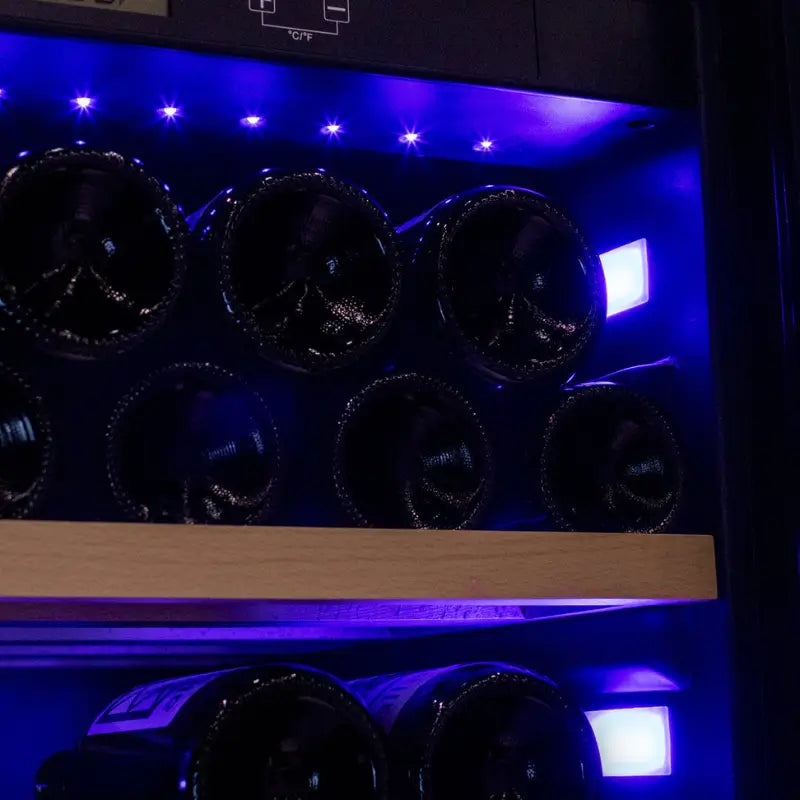

Blue LED Interior Lighting
Energy-efficient blue LED lighting illuminates the refrigerator interior, helping make bottle identification and selection easier.
LED lighting produces substantially less heat than conventional incandescent lighting, reducing the likelihood of the interior lighting creating an undesirable concentrated heat source around stored bottles.
The control panel supports two lighting modes: the lights can remain continuously illuminated, or they can turn on when the door opens and switch off when the door closes.
Advantages and Limitations
| Advantages | Limitations to Consider |
|---|---|
| Rated capacity of up to 185 standard Bordeaux bottles | Designed for freestanding use only |
| Eight removable and repositionable wooden storage shelves | Does not provide independent dual-zone temperature control |
| Roll-out shelving for easier bottle access | Requires ventilation clearance around the cabinet |
| 41°F–64°F adjustable temperature range | Actual capacity varies with bottle dimensions |
| Fan-forced cooling and air circulation | 355 lb empty weight requires an appropriate supporting surface |
| Solid locking door and blue LED lighting | Solid door does not provide a visible bottle display |
Installation and Clearance Requirements
Correct placement and ventilation are essential for the KWR-8185-1SDR because it is designed specifically for freestanding installation.
Required Ventilation Clearance
| Left Side | Approximately 5 cm (1.97 in) |
|---|---|
| Right Side | Approximately 5 cm (1.97 in) |
| Rear | Approximately 8 cm (3.15 in) |
| Front | Keep unobstructed |
Placement Requirements
- Place the refrigerator on a flat, solid floor capable of supporting the appliance when fully loaded.
- Level the appliance using the adjustable front leveling leg.
- Keep the refrigerator away from direct sunlight.
- Do not install next to ovens, heaters, radiators, or other significant heat sources.
- Avoid damp locations.
- Install indoors in an area protected from weather, rain, water spray, and dripping water.
- Maintain the required side and rear ventilation clearance.
The manufacturer's installation instructions identify an optimal ambient temperature range of approximately 18°C–26°C (64.4°F–78.8°F).
Before First Use
- Remove all exterior and interior packaging.
- Allow the wine refrigerator to stand upright for approximately 8 hours before connecting it to power after transportation.
- Clean the interior surface with lukewarm water and a soft cloth.
- Position the refrigerator on a flat, solid supporting surface.
- Provide the required ventilation clearance.
- Level the refrigerator using the adjustable leveling leg.
- Connect the appliance to a properly installed and grounded electrical outlet.
- Allow approximately 3–4 hours for the refrigerator to cool before placing wine bottles inside.
Electrical Requirements
| Voltage | 115V AC |
|---|---|
| Frequency | 60Hz |
| Current Draw | 2.0 amps |
| Outlet | Properly grounded 3-prong outlet |
| Fuse / Circuit Breaker | 15 amps |
The manufacturer recommends a separate electrical circuit serving only the appliance. Do not remove the grounding prong from the power cord.
The manufacturer also advises against using an adapter or extension cord under normal installation conditions.
Temperature Settings and Power Interruptions
- The selected temperature can be adjusted in one-degree increments.
- Previous temperature settings are automatically retained after a power interruption.
- If the appliance is unplugged, loses power, or is switched off, wait approximately 3–5 minutes before restarting it.
- During initial operation or after the refrigerator has been shut down for an extended period, there may temporarily be a difference between the selected temperature and displayed internal temperature.
- The temperature should normalize after several hours of operation.
Care and Maintenance
Routine Cleaning
- Turn the appliance off and unplug it before cleaning.
- Remove bottles and other stored items before cleaning the interior.
- Clean interior surfaces with warm water and a baking soda solution.
- Clean shelves with a mild detergent solution.
- Avoid excess water around controls and electrical components.
- Clean the exterior cabinet with warm water and mild liquid detergent.
- Dust the front grille and rear of the refrigerator twice per year.
- Clean the refrigerator completely inside and outside approximately once per year.
When Moving the Refrigerator
- Remove all bottles and other items.
- Secure loose shelves inside the appliance.
- Secure the door.
- Raise the adjustable leg to avoid damage.
- Keep the refrigerator upright during transportation.
- Protect the exterior cabinet during the move.
Full Technical Specifications
Product Identification
| Brand | Allavino |
|---|---|
| Model | KWR-8185-1SDR |
| UPC / GTIN | 810069435787 |
| Product Type | Single-zone wine vault / wine refrigerator |
| Installation | Freestanding |
| Hinge | Right |
Dimensions and Weight
| Width | 23.5 in (59.7 cm) |
|---|---|
| Height | 76.25 in (193.7 cm) |
| Cabinet Depth | 27.0 in (68.6 cm) |
| Depth With Handle | 28.75 in (73.0 cm) |
| Weight | 355 lb |
Storage
| Rated Bottle Capacity | Up to 185 standard 750mL Bordeaux bottles* |
|---|---|
| Main Shelf Capacity | Up to 22 bottles per shelf |
| Main Storage Shelves | 8 |
| Lower Storage | 9 bottles in the rated configuration |
| Shelf Front | Wood |
| Shelf Adjustment | Removable and repositionable |
| Pull-Out | Roll-out shelves |
| Shelf Type | Standard slat shelves |
*Actual bottle capacity varies depending on bottle dimensions and storage configuration.
Appearance
| Door Color | Black |
|---|---|
| Door Type | Solid |
| Body Color | Black metal |
| Interior | Black liner |
| Hinge | Right |
| Overlay Panel Compatible | No |
| Lock | Locking door with key |
Cooling
| Cooling Zones | 1 |
|---|---|
| Temperature Range | 41°F–64°F |
| Air Circulation | Fan-forced |
| Thermostat | Adjustable digital |
| Refrigerant | R600A (isobutane) |
| Defrost | Automatic |
| Ventilation | Rear-venting |
Electrical and Lighting
| Voltage | 115V |
|---|---|
| Frequency | 60Hz |
| Current | 2.0 amps |
| Lighting | Energy-efficient blue LED |
| Control | Digital temperature control panel |
Warranty Coverage
| Parts | 1 year |
|---|---|
| Labor | 1 year |
| Compressor | 5 years, parts only |
Product Resource
Review the manufacturer's instructions before installation and operation for complete placement, electrical, control, loading, maintenance, and troubleshooting guidance.
Wine Coolers Empire Expert Recommendation
The Allavino KWR-8185-1SDR is best suited to collectors who need substantial freestanding wine storage and are comfortable maintaining their collection within one temperature zone.
Its combination of a 185-bottle rated capacity and 23.5-inch cabinet width makes it particularly useful for larger collections where floor width is limited. Roll-out wooden shelves improve bottle access, while removable and repositionable shelving provides flexibility for collections that include bottles outside the standard Bordeaux format used for the capacity rating.
Choose this model when your priority is high-capacity, single-zone, solid-door freestanding storage. Consider another wine refrigerator if your installation requires built-in ventilation, independent dual-zone temperature control, or a glass display door.
Allavino KWR-8185-1SDR FAQs
How many bottles does the Allavino KWR-8185-1SDR hold?
The Allavino KWR-8185-1SDR is rated to hold up to 185 standard 750mL Bordeaux bottles. The rated configuration consists of eight 22-bottle storage positions, providing space for 176 bottles, plus an additional 9-bottle lower storage position. Actual capacity may be lower when storing larger or differently shaped bottles.
Is the Allavino KWR-8185-1SDR built-in or freestanding?
The KWR-8185-1SDR is designed for freestanding installation. It should not be installed as a zero-clearance or built-in wine refrigerator.
How much clearance does the KWR-8185-1SDR require?
The manufacturer's installation instructions specify approximately 5 cm (1.97 inches) of air space on each side and approximately 8 cm (3.15 inches) behind the refrigerator. The front should remain unobstructed.
What is the temperature range of the Allavino KWR-8185-1SDR?
The adjustable temperature range is 41°F to 64°F. Temperature is controlled using the digital control panel.
Is the KWR-8185-1SDR single-zone or dual-zone?
The KWR-8185-1SDR is a single-zone wine refrigerator. The entire cabinet operates at one selected temperature and does not provide two independently controlled compartments.
Can the shelves be adjusted for larger bottles?
Yes. The wooden shelves are removable and repositionable, allowing the interior layout to be adjusted for bottles requiring additional clearance. Changing the standard shelving configuration or storing larger bottles can reduce total bottle capacity.
Do the shelves pull out?
Yes. The KWR-8185-1SDR uses roll-out wooden shelves for easier access to bottles stored toward the rear of the cabinet. Only one sliding shelf should be pulled out at a time to reduce the risk of the appliance tipping forward.
Does the KWR-8185-1SDR have a locking door?
Yes. The solid black door includes a keyed lock for controlled access to the wine collection.
Does the KWR-8185-1SDR have interior lighting?

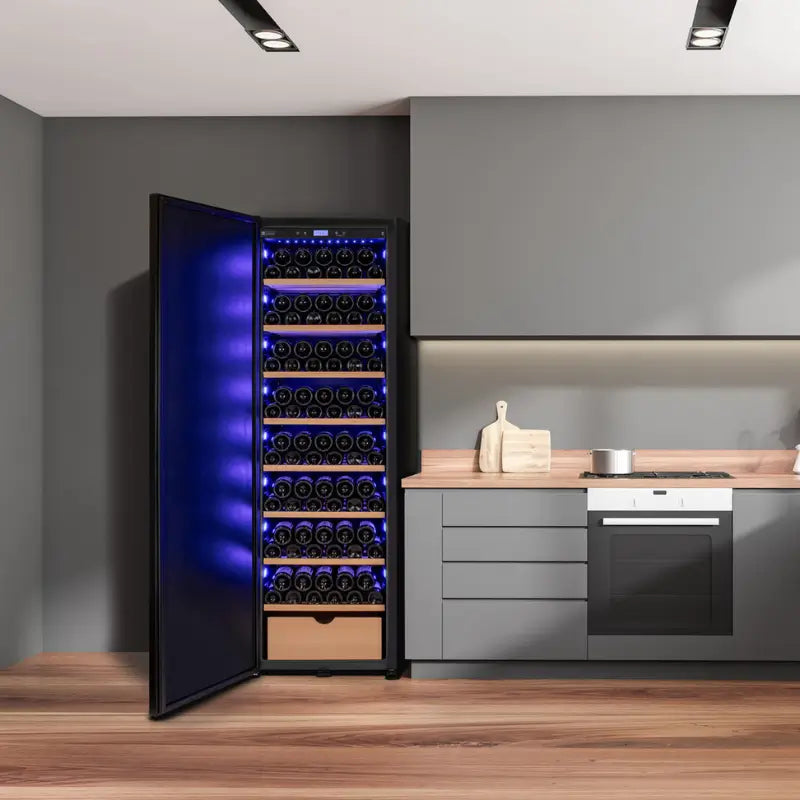

Yes. The refrigerator includes energy-efficient blue LED interior lighting. The lighting can be configured to remain continuously illuminated or to operate based on whether the door is open or closed.
What electrical connection does the KWR-8185-1SDR require?
The refrigerator requires a 115V / 60Hz properly grounded electrical supply. The supplied specifications list a current draw of 2.0 amps. The manufacturer specifies a 15-amp fuse or circuit breaker and recommends a separate circuit serving only the appliance.
How long should the refrigerator stand before it is plugged in after delivery?
After transportation, allow the refrigerator to remain upright for approximately 8 hours before connecting it to power. After plugging it in, allow approximately 3–4 hours for the refrigerator to cool before loading wine bottles.
What are the dimensions of the Allavino KWR-8185-1SDR?
The refrigerator measures 23.5 inches wide × 76.25 inches high × 27 inches deep. Total depth including the handle is 28.75 inches. The unit weighs approximately 355 lb.
What warranty is provided with the Allavino KWR-8185-1SDR?
According to the supplied product specifications, the KWR-8185-1SDR includes 1 year of parts coverage, 1 year of labor coverage, and 5 years of compressor parts coverage.
Planning a Complete Wine Storage Space?
The Allavino KWR-8185-1SDR provides substantial freestanding storage for an established collection, but choosing the right wine-storage solution also depends on bottle count, available space, temperature requirements, and long-term collection plans.
Wine Coolers Empire offers free professional wine cellar design planning to help evaluate appropriate wine storage equipment and products for your project.
Free Wine Cellar Design Planning
