MRCOOL GeoCool 24K BTU 2 Ton Vertical Heat Pump with Desuperheater GCHPV024TGTANDL

Name: MRCOOL GeoCool 24K BTU 2 Ton Vertical Heat Pump with Desuperheater GCHPV024TGTANDL
Brand: MRCOOL
SKU: GCHPV024TGTANDL
Price: 7747.60 USD
Availability: InStock

MRCOOL | SKU: GCHPV024TGTANDL

MRCOOL Authorized Dealer badge – trusted retailer for MRCOOL mini split systems, HVAC units, and home comfort solutions.

27% off

$7,747.60 $10,558.61

FREE SHIPPING in the Continental US on most orders

Call Us At (800) 407-7770 Or Chat Now To UNLOCK THE BEST PRICE AVAILABLE!

No refunds or returns on any parts order. Parts are sold with NO warranty

In Stock & Ready to Ship

Estimated Delivery in 3-7 business days

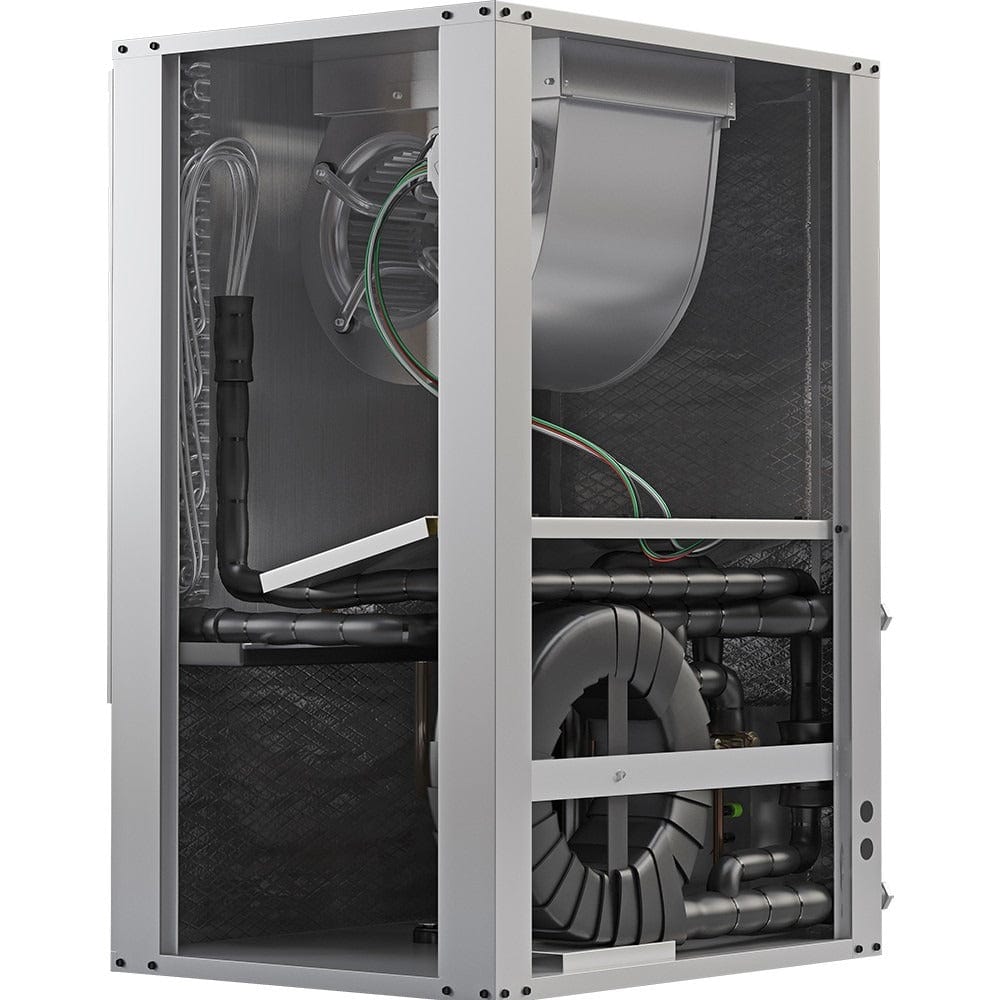

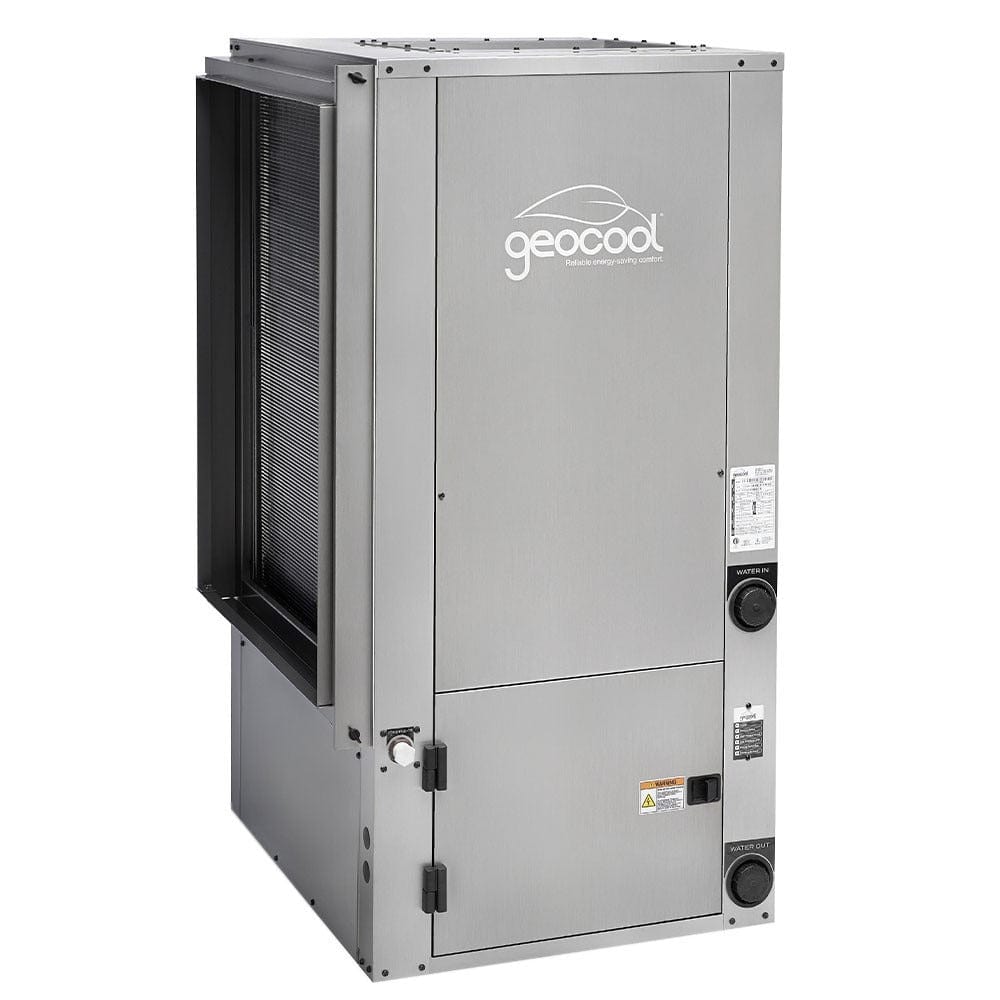

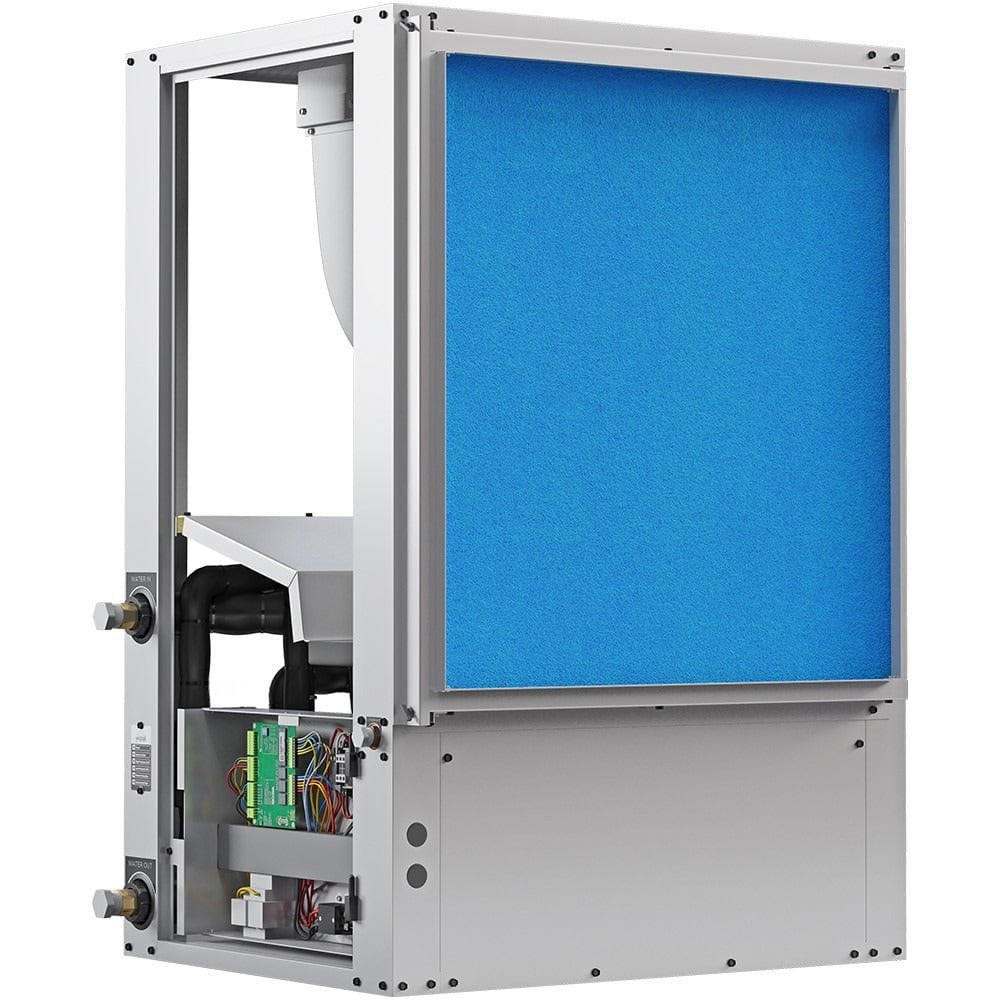

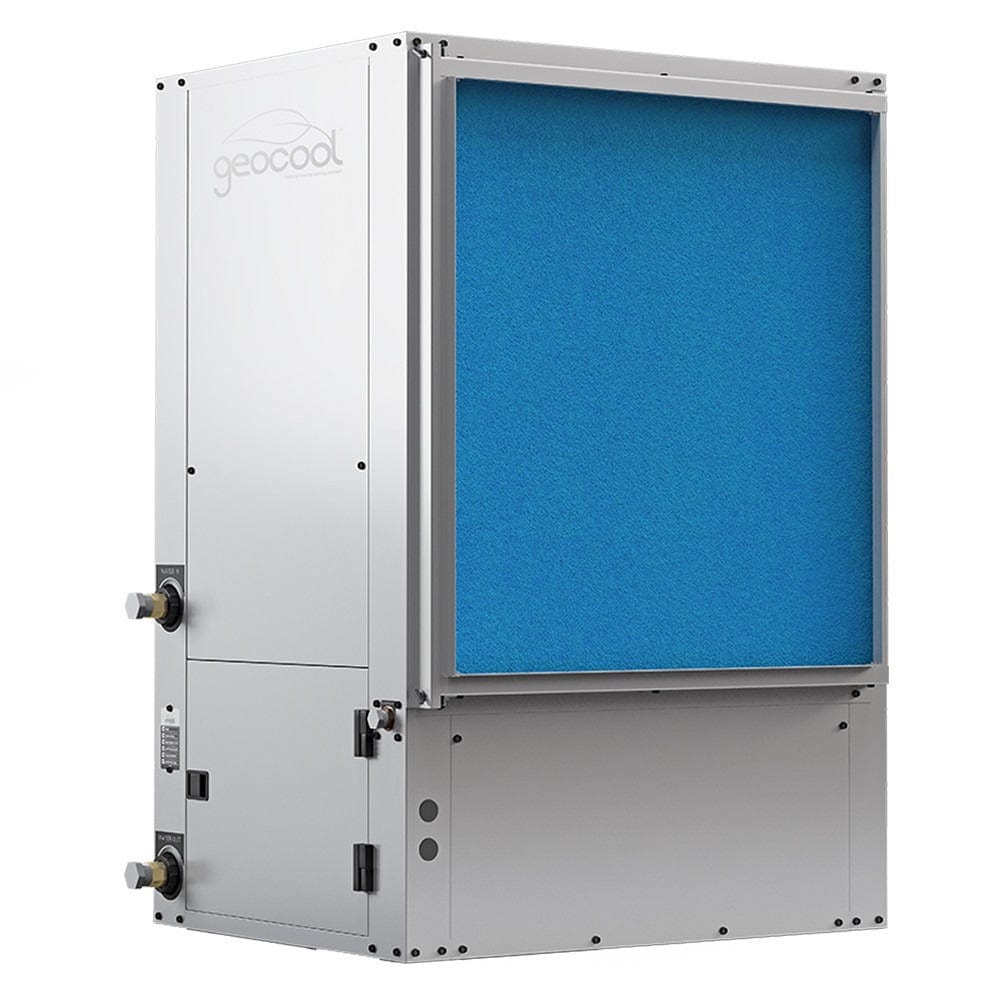

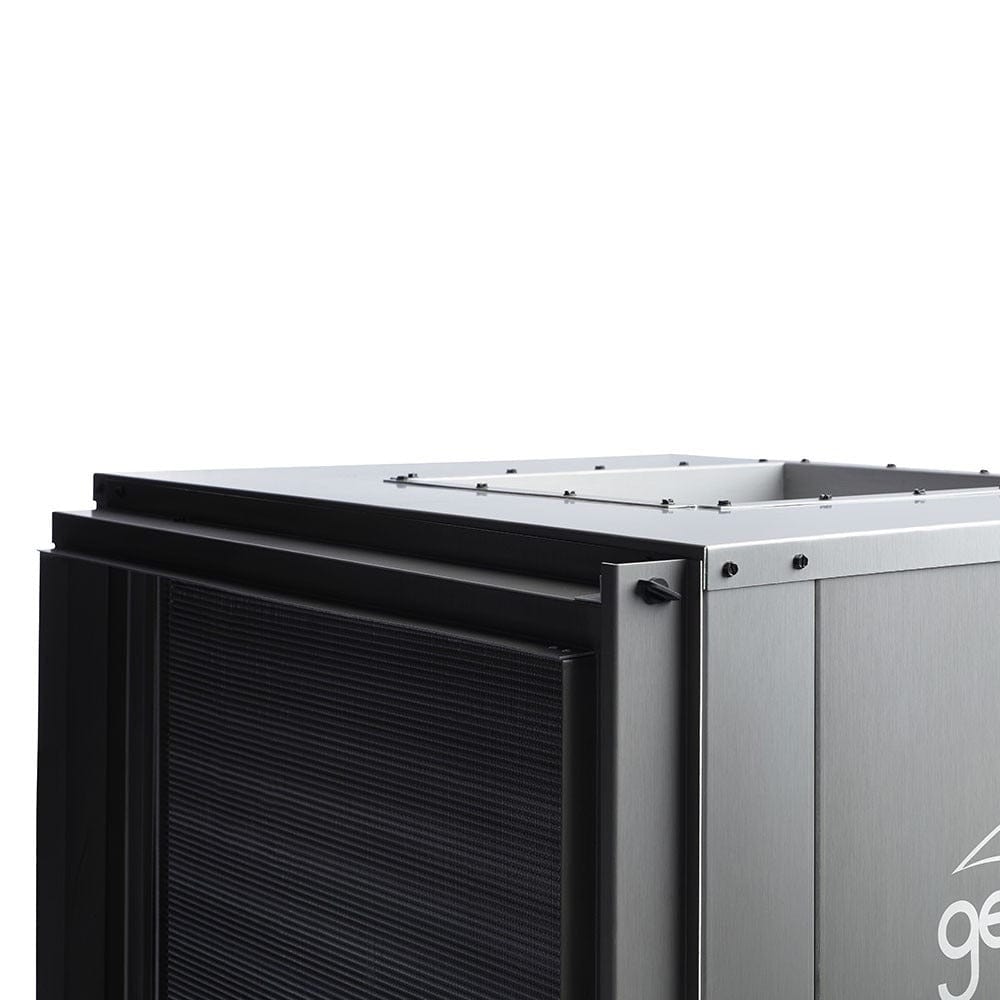

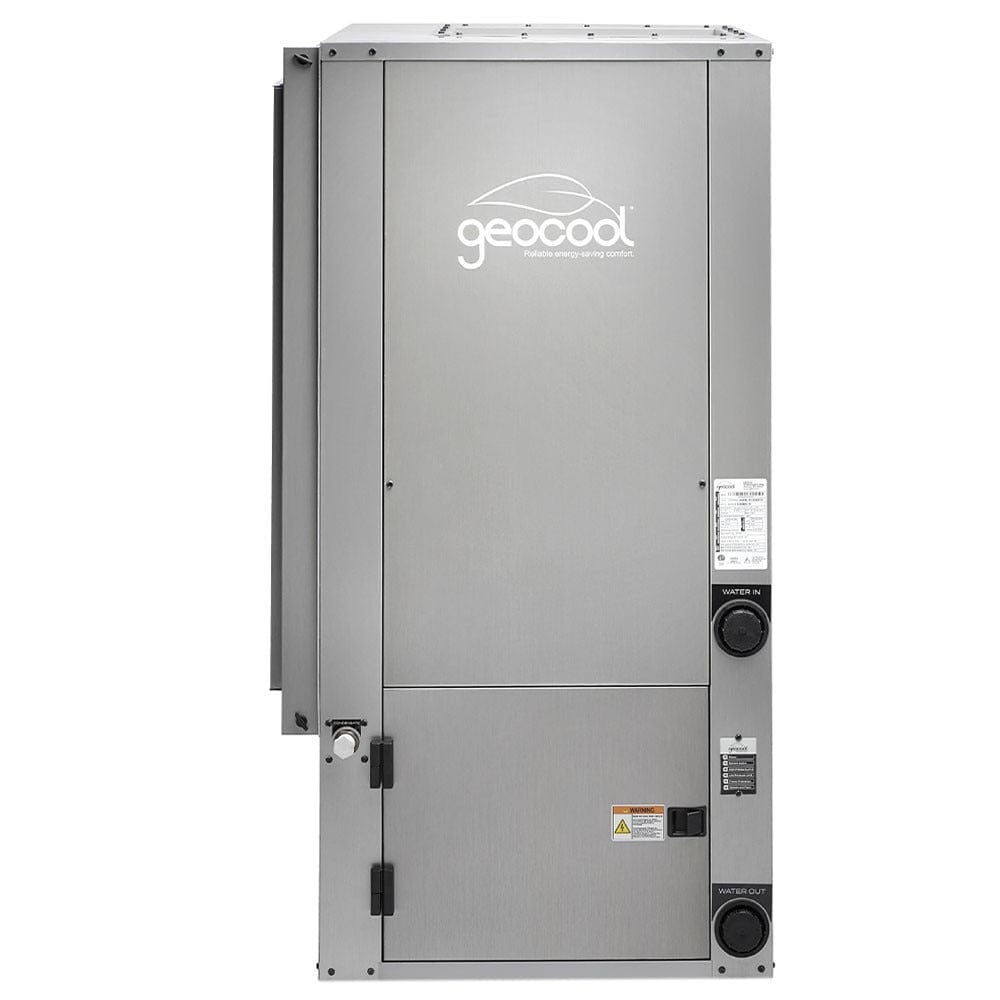

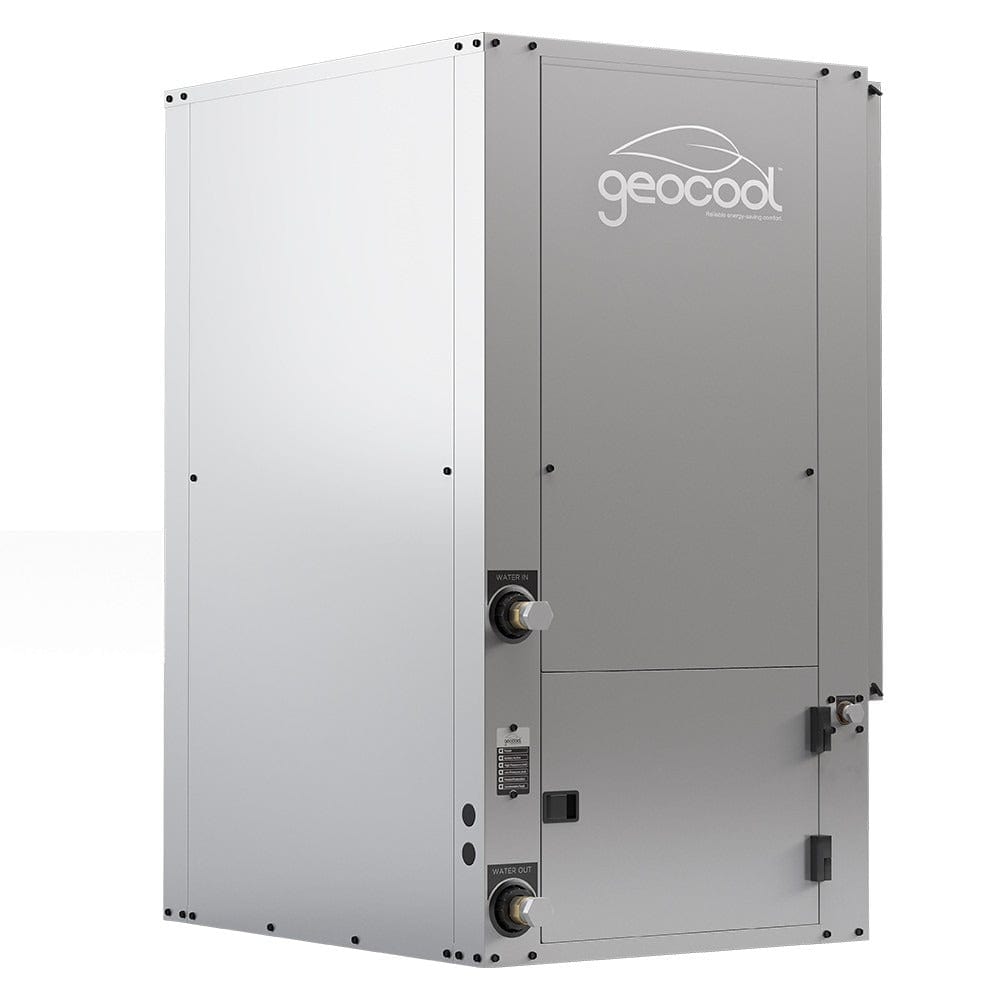

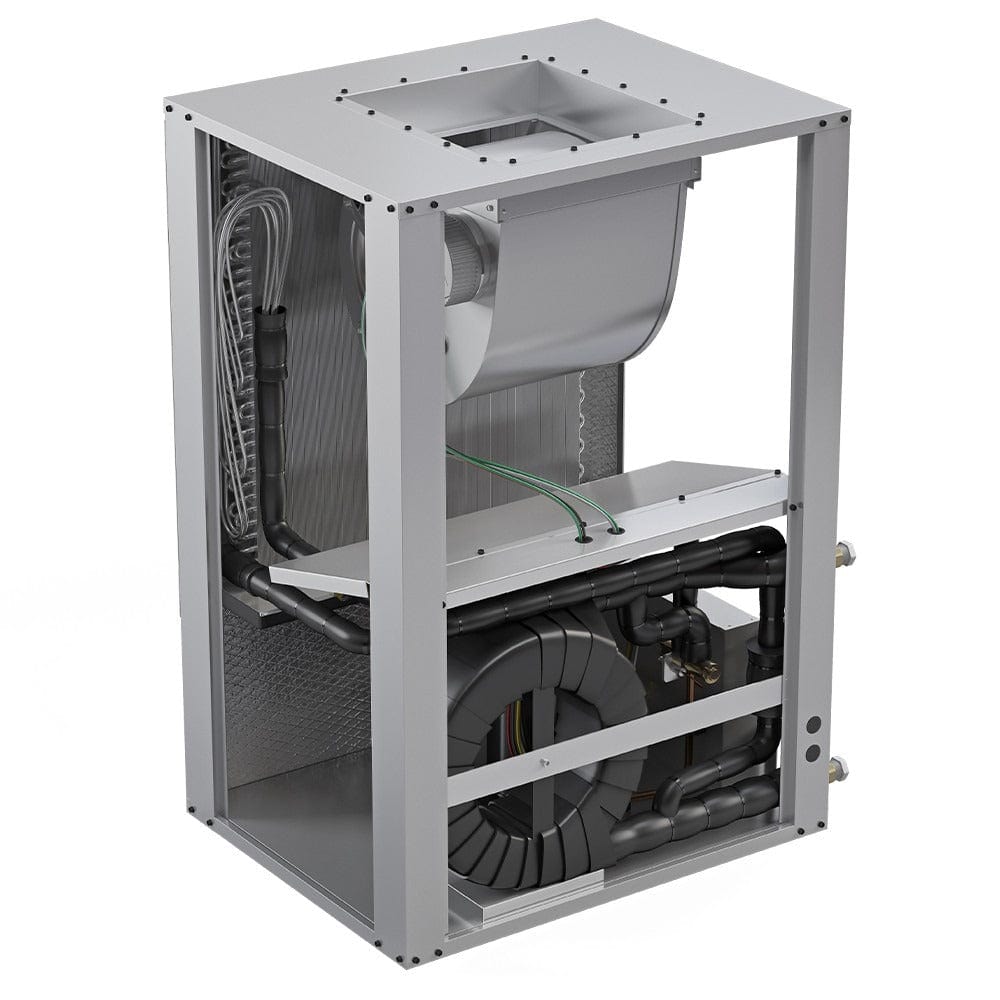

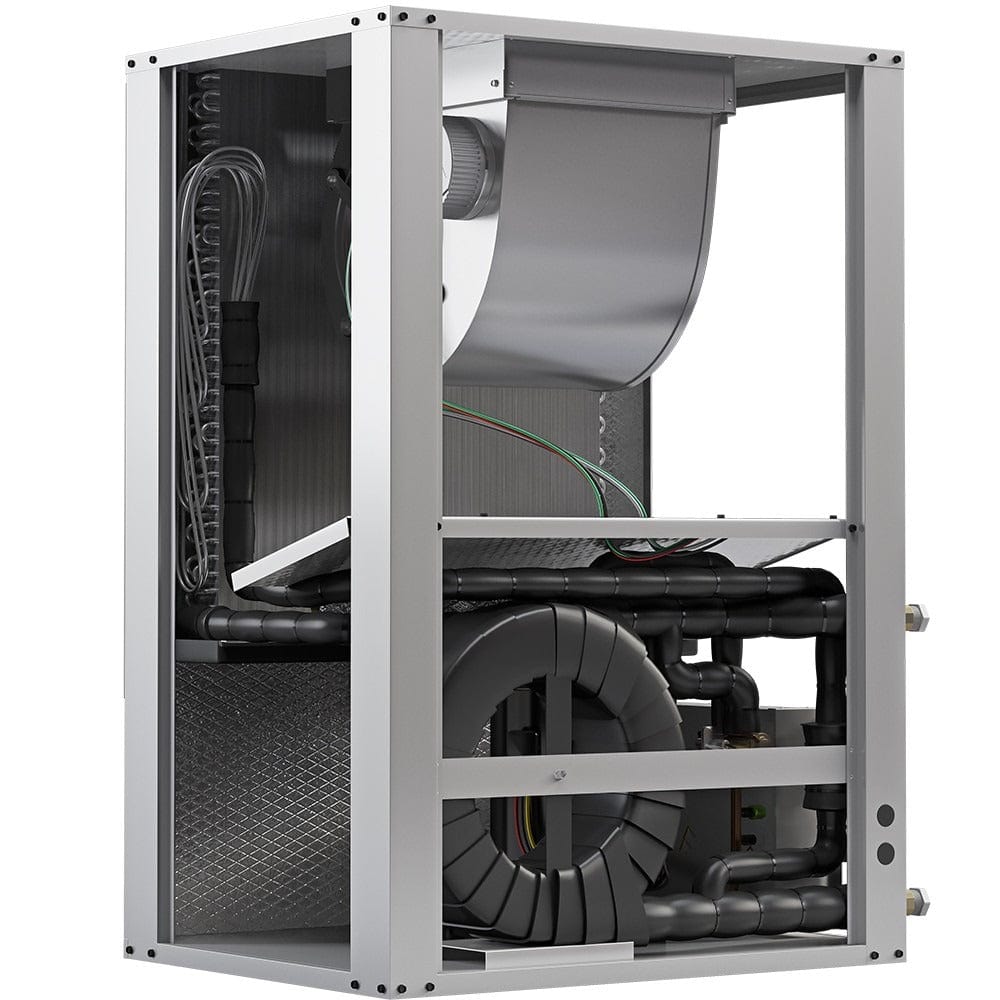

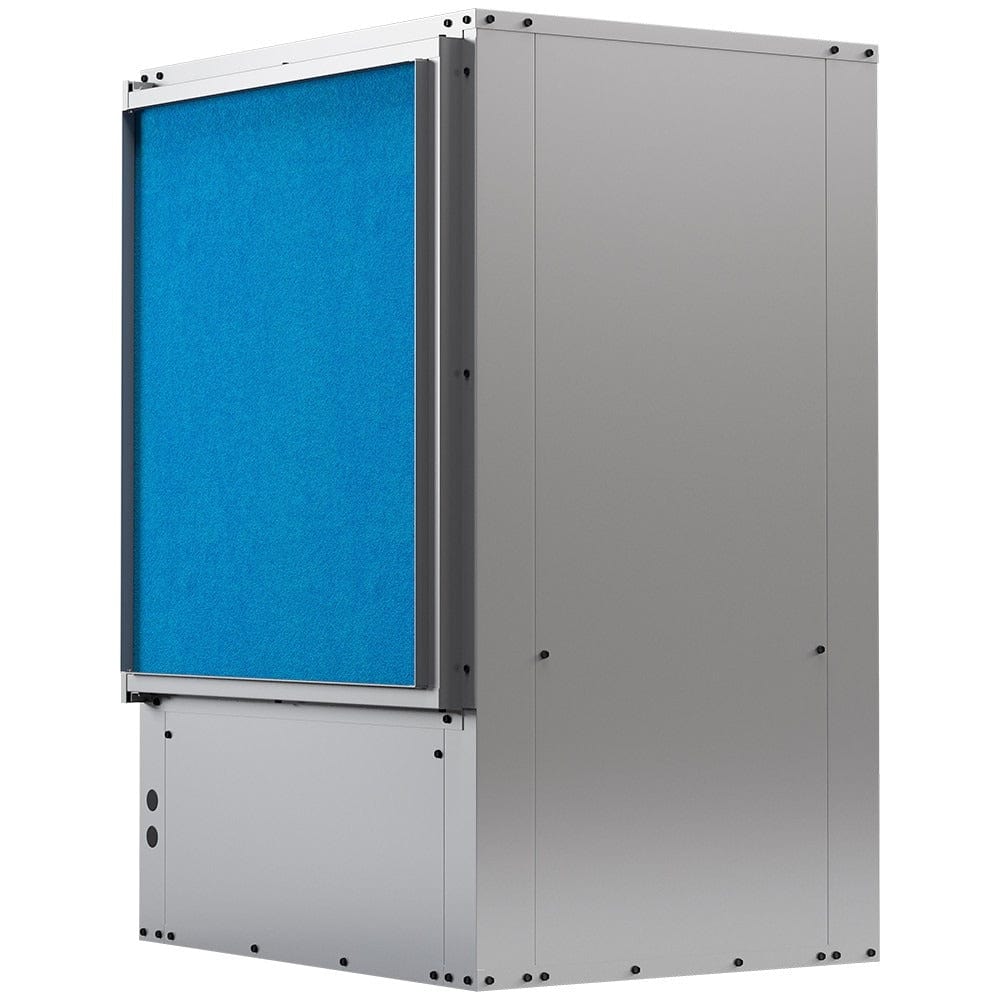

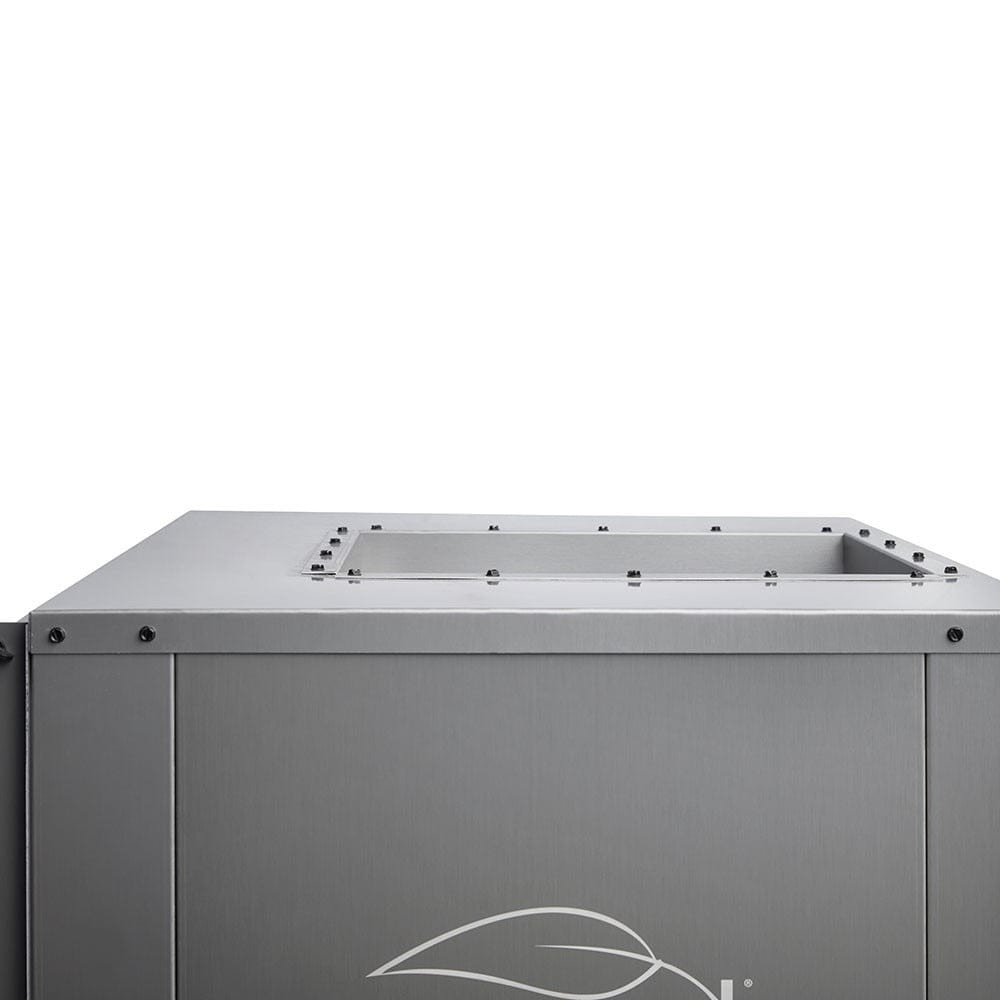

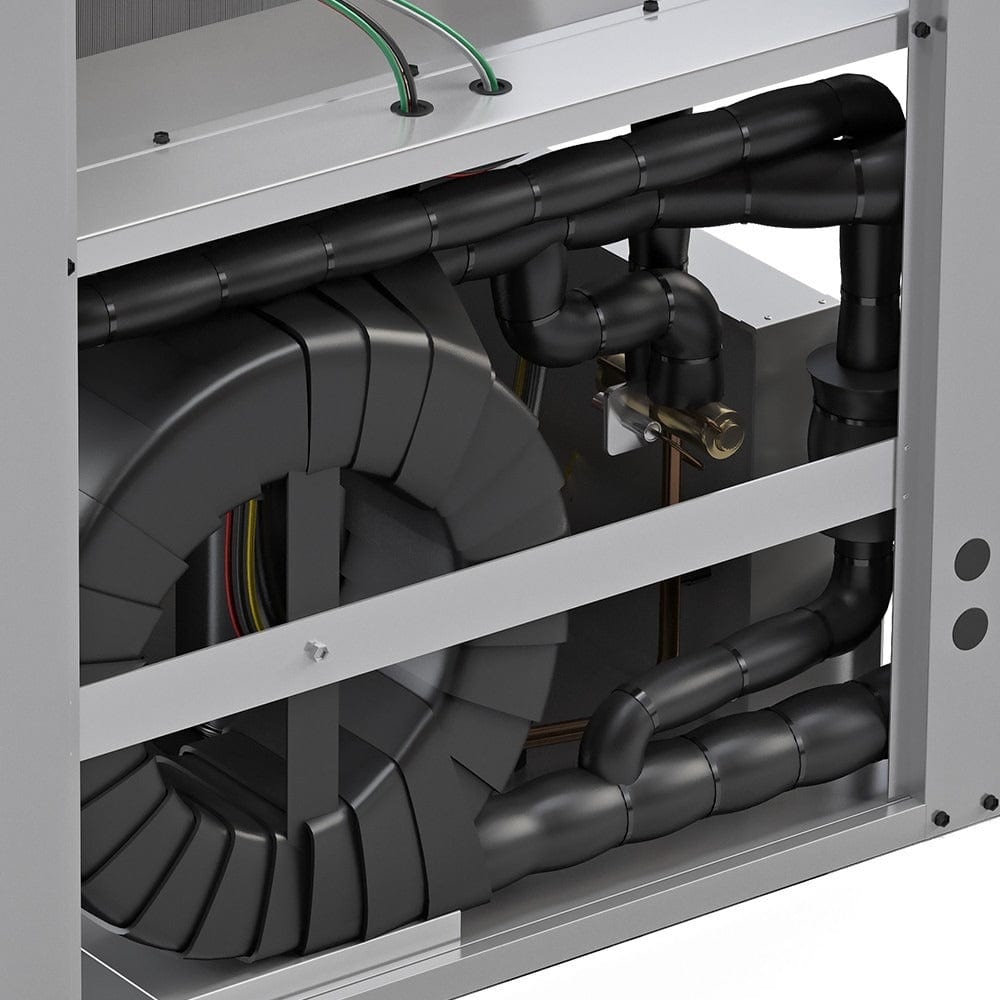

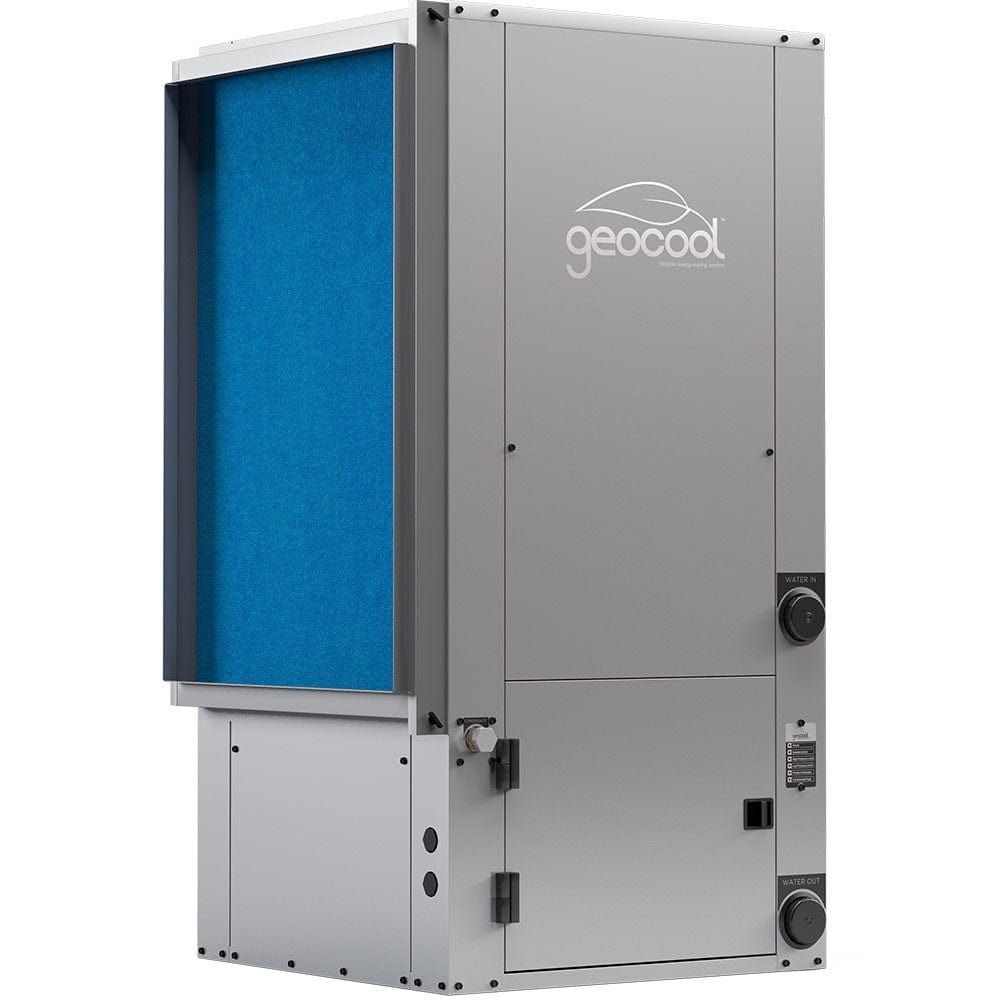

MRCOOL GeoCool 24K BTU 2 Ton Vertical Two-Stage Left Return Geothermal Heat Pump with Desuperheater GCHPV024TGTANDL

Why is the MRCOOL GeoCool 24K BTU 2 Ton Vertical Two-Stage Left Return Geothermal Heat Pump with Desuperheater GCHPV024TGTANDL the optimal choice for high-efficiency and eco-friendly home heating and cooling?

The MRCOOL GeoCool 24K BTU 2 Ton Vertical Two-Stage Left Return Geothermal Heat Pump with Desuperheater GCHPV024TGTANDL is the optimal choice for high-efficiency and eco-friendly home heating and cooling. With its 24K BTU capacity and two-stage system, it provides precise and reliable temperature control. The vertical design with a left return supports versatile installation. The integrated desuperheater enhances energy efficiency by generating additional hot water, making it a cost-effective and sustainable solution for year-round comfort.

Features:

Qualifies for federal tax credit, and other incentives
Highest energy efficiency in its class
Safety high and low pressure switches
Quiet operation
Full featured sinusoidal eon motor control technology
Insulated sloped stainless steel drain pan

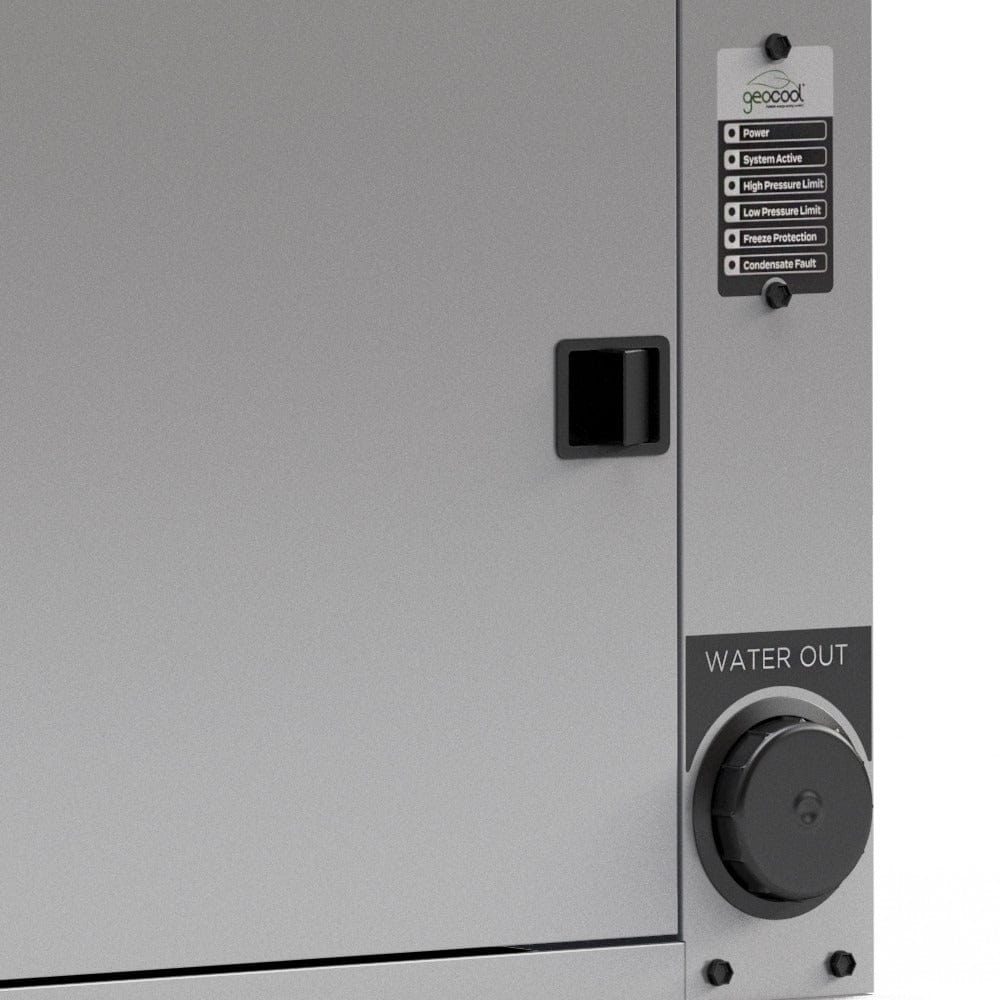

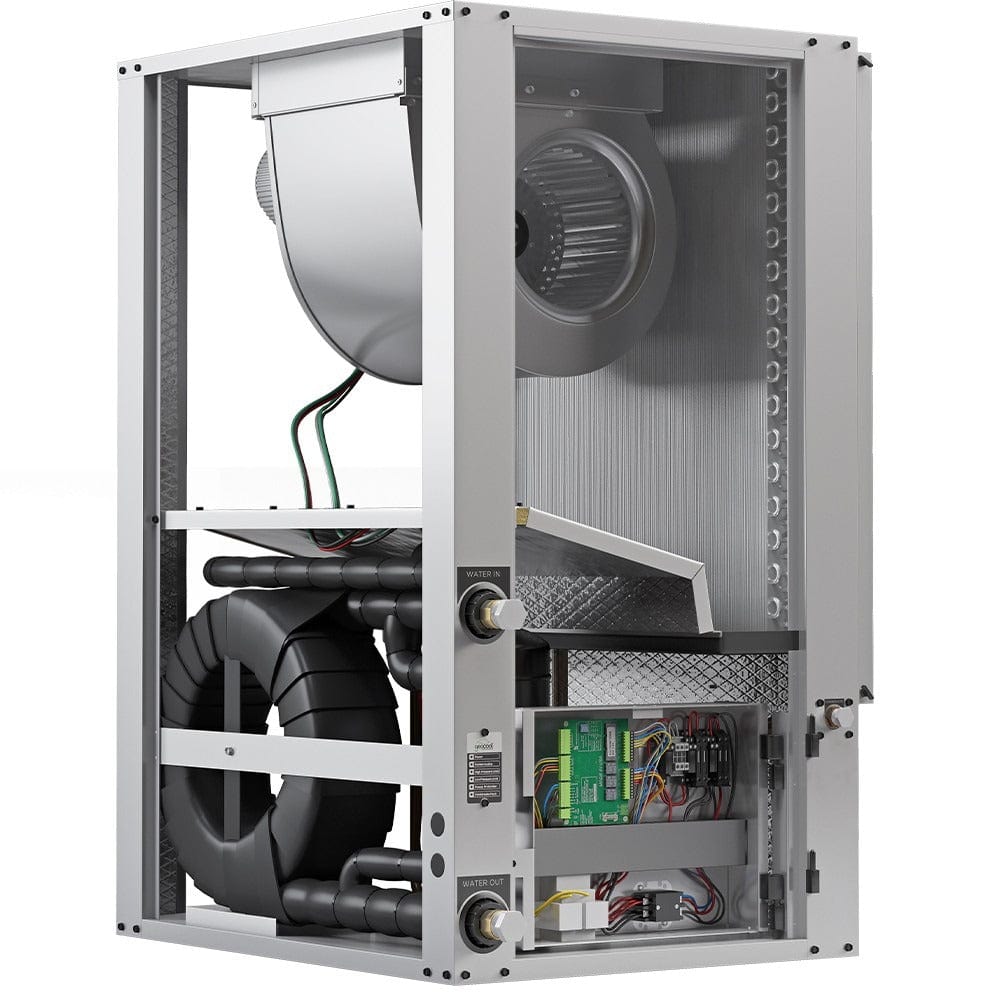

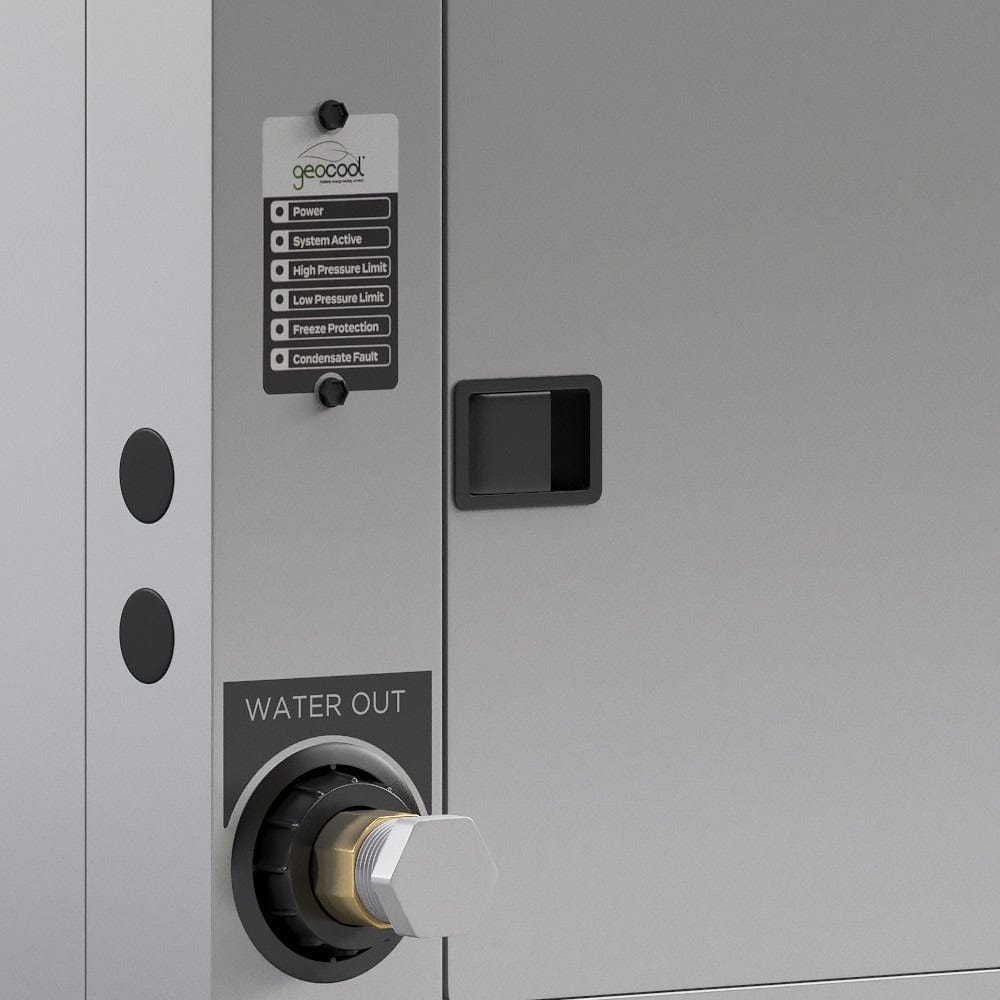

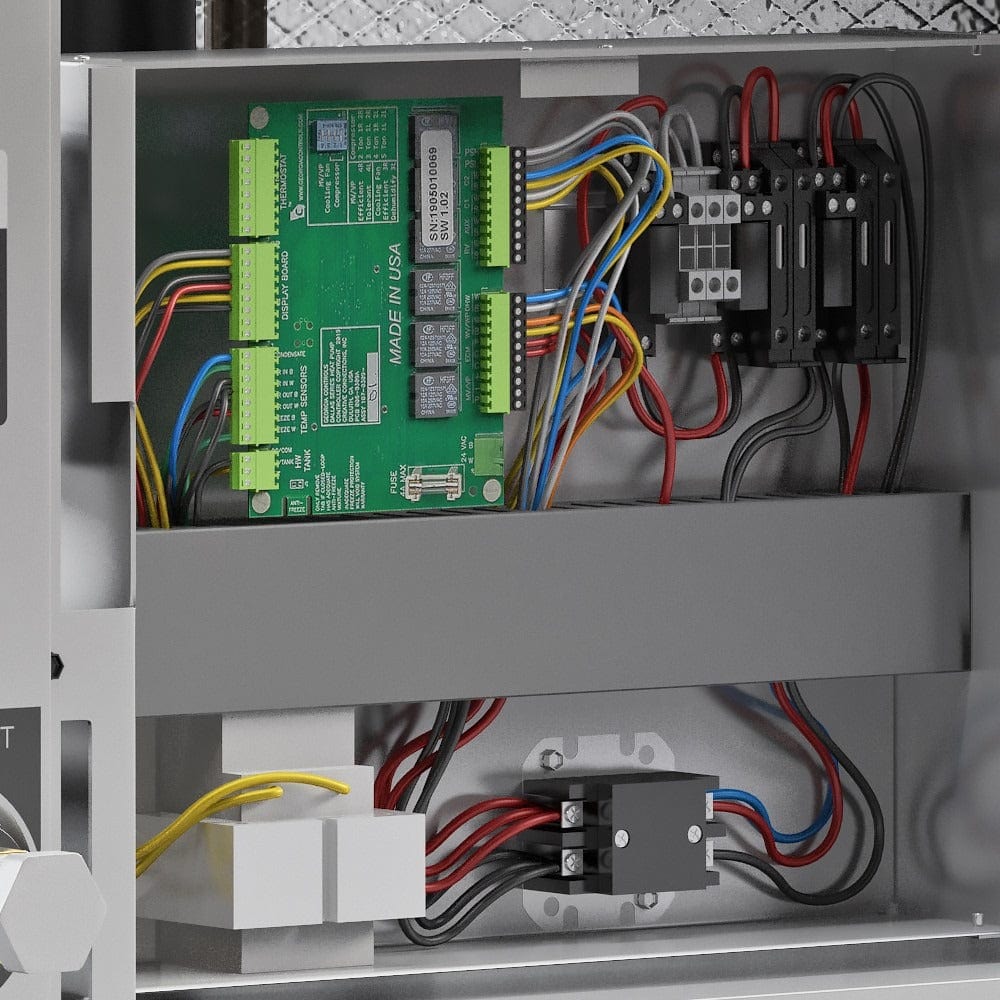

Advanced unit control board with diagnostic LEDs

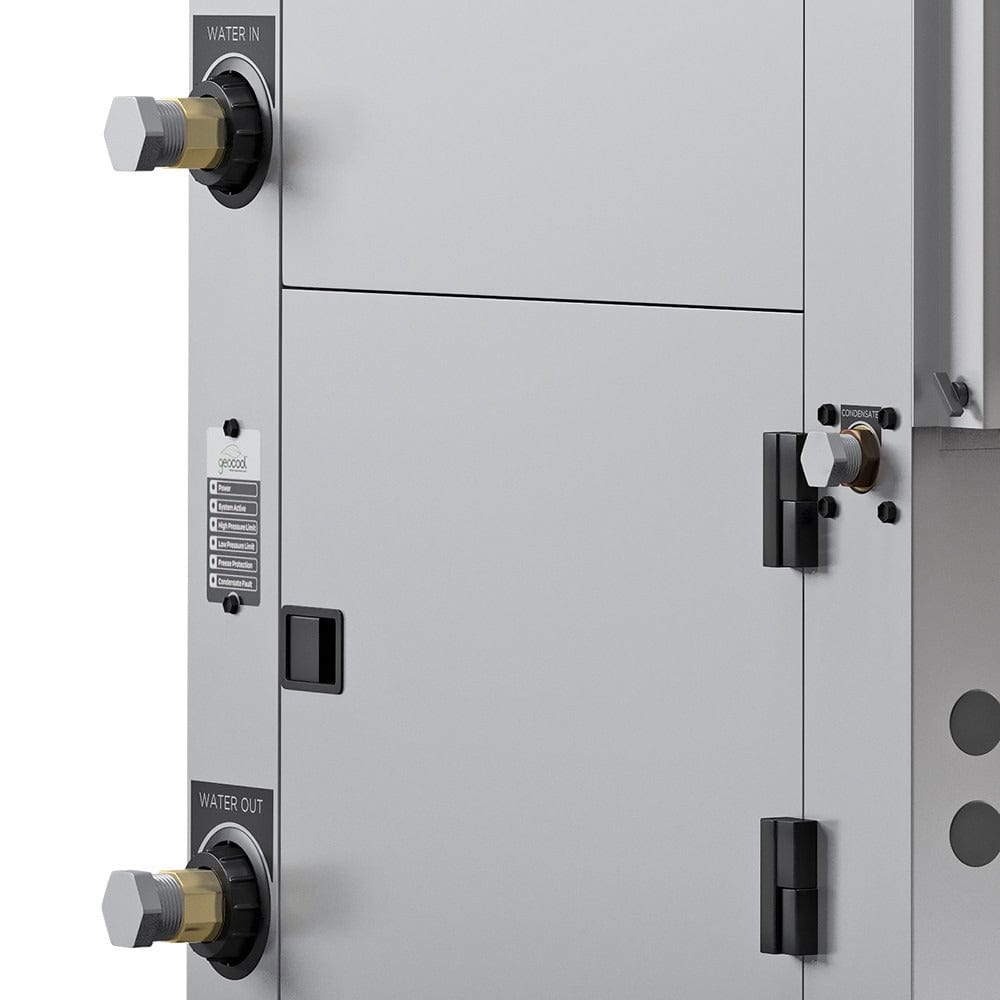

Double O-ring water connections
Easy service access
Optional domestic water pre-heating
Made in the USA
10 year compressor warranty

Manuals

Manuals:

Specifications

Specifications:

Dimensions	44" H x 32" D x 25.75" W
AHRI Certified	Yes
ASHRAE Compliant	No
Base Warranty	5 year limited parts warranty
Blower Motor Hp	3/4
Blower Motor Type	Axial Flux (No Shaft) BLA
Color	Gray
Color Family	Gray
Compressor Motor Type	Scroll
Contains Aerosol	Yes
Contains Chemicals	Yes
Contains Compressed Gas	Yes
Contains Electronics	Yes
Cooling Capacity	24000
COP 47	4.1-5.2
COP 47 Part Load	4.5-5.3
CYCLE	60
EER	21.3-28.8
EER Part Load	27.6-32.7
Energy Star Certified	Yes
Energy Star Compliant	Yes
ETL Certified	No
ETL Listed	Yes

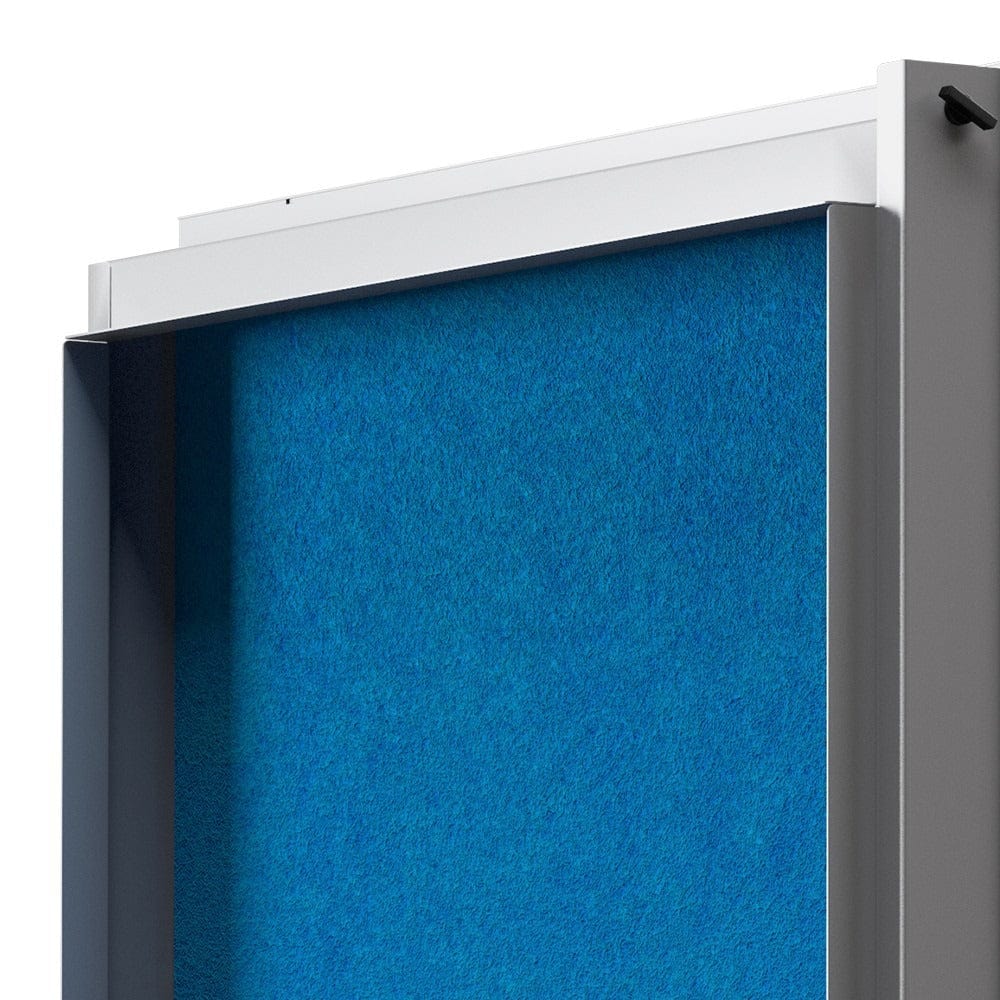

Filter Size	28x30
Filter Type	Replaceable
Freight Class	85
Has Batteries	No
Heating Capacity	24000
LEED Certified	No
Max Coverage Area	1000
Max Fuse Breaker	34.0(W/O Desupe
Min Circuit Ampacity	21.9
Net Weight	290
Phase	1
Proposition 65 Warning	Yes
Refrigerant Type	R-410A
Registered Warranty	10 year registered parts limited warranty & 10 year compressor warranty
Restricted States	No
Stage	Two-Stage
Tonnage	2
UL Listed	No
UL Reconized	No
Voltage	230
