MRCOOL GeoCool 36K BTU 3 Ton Horizontal Heat Pump GCHPH036TGTANXR

Name: MRCOOL GeoCool 36K BTU 3 Ton Horizontal Heat Pump GCHPH036TGTANXR
Brand: MRCOOL
SKU: GCHPH036TGTANXR
Price: 7783.60 USD
Availability: InStock

MRCOOL | SKU: GCHPH036TGTANXR

MRCOOL Authorized Dealer badge – trusted retailer for MRCOOL mini split systems, HVAC units, and home comfort solutions.

27% off

$7,783.60 $10,711.46

FREE SHIPPING in the Continental US on most orders

Call Us At (800) 407-7770 Or Chat Now To UNLOCK THE BEST PRICE AVAILABLE!

In Stock & Ready to Ship

Estimated Delivery in 3-7 business days

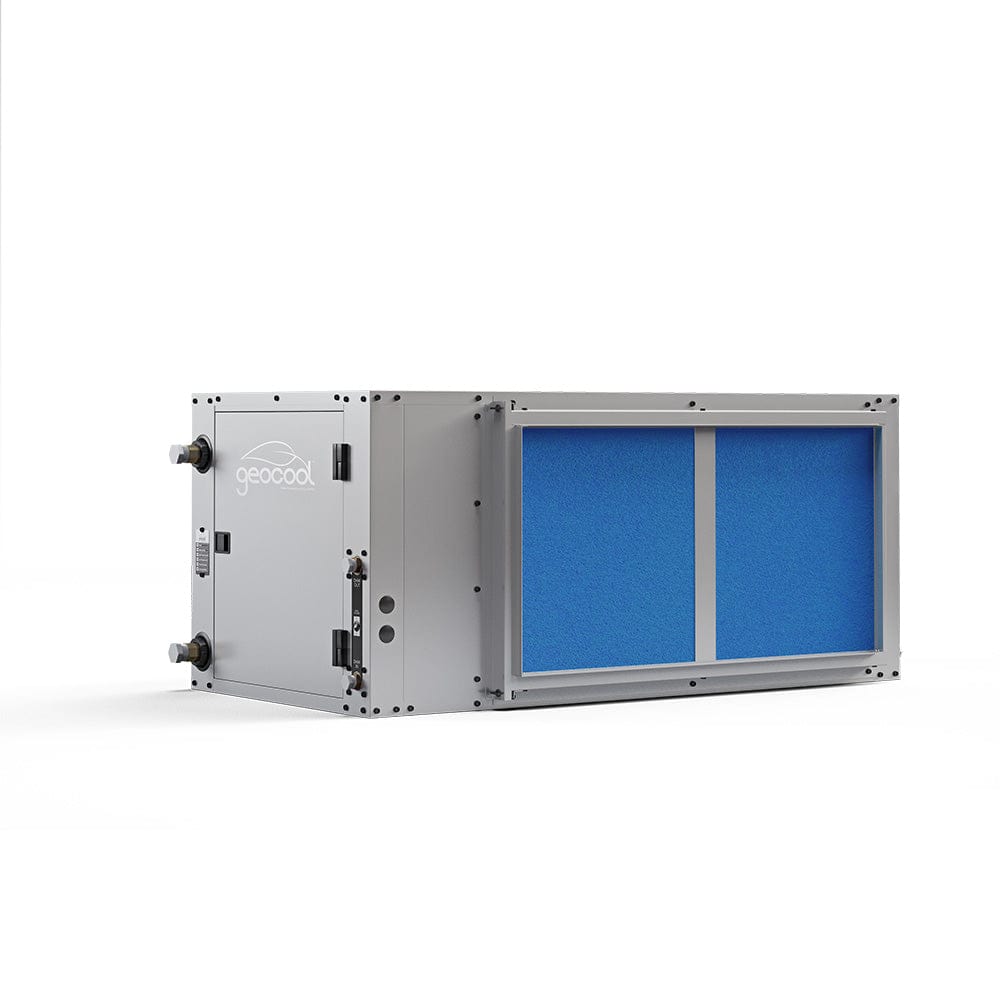

MRCOOL GeoCool 36K BTU 3 Ton Horizontal Two-Stage Right Return Geothermal Heat Pump GCHPH036TGTANXR

Why is the MRCOOL GeoCool 36K BTU 3 Ton Horizontal Two-Stage Right Return Geothermal Heat Pump GCHPH036TGTANXR the best choice for efficient and flexible climate control in large spaces?

The MRCOOL GeoCool 36K BTU 3 Ton Horizontal Two-Stage Right Return Geothermal Heat Pump GCHPH036TGTANXR is the best choice for efficient and flexible climate control in large spaces. Its 36K BTU capacity and two-stage operation ensure powerful and precise temperature regulation, enhancing comfort. The horizontal design with a right return allows versatile installation options. This geothermal heat pump delivers exceptional energy efficiency and reliable performance, ideal for managing large-area climate needs.

Features

Qualifies for federal tax credit, and other incentives
Highest energy efficiency in its class
Safety high and low pressure switches
Quiet operation
Full featured sinusoidal eon motor control technology
Insulated sloped stainless steel drain pan
Advanced unit control board with diagnostic LEDs
Double O-ring water connections
Easy service access
Optional domestic water pre-heating
Made in the USA
10 year compressor warranty

Manuals

Manuals:

Specifications

Specifications:

Dimensions	51" D x 23.125" H x 25.75" W
EER	Ground Water (FULL) 27.20 / Ground Loop (FULL)17.86
EER Part Load	Ground Water (PART) 35.70 / Ground Loop (PART) 25.84
COP 47	Ground Water (FULL) 5.30 / Ground Loop 4.40 (FULL)
COP 47 Part Load	Ground Water (PART) 5.60 / Ground Loop 4.80 (PART)
HSPF	Ground Water Fluid Flow Rate \| COOLING: (PART) 8 - 9 (FULL) / HEATING: (PART) 8 - 9 (FULL)
AFUE	Ground Loop Fluid Flow Rate \| COOLING: (PART) 8 - 9 (FULL) / HEATING: (PART) 8 - 9 (FULL)
CFM	COOLING (PART) 1150 - 1350 (FULL) / HEATING (PART) 1100 - 1100 (FULL)
Tonnage	3
Cooling Capacity	Ground Water (PART) 33000 - 43000 (FULL) / Ground Loop (PART) 30300 - 39000 (FULL)
Heating Capacity	Ground Water (PART) 27500 - 38000 (FULL) / Ground Loop (PART) 24000 - 26900 (FULL)
Voltage	230
Phase	1
Cycle	60
Stage	Two-Stage
Max Fuse Breaker	42.1(W/O Desupe
Min Circuit Ampacity	26.4(
Color	Gray
Color Family	Gray
Max Coverage Area	1500
Refrigerant Type	R-410A
Compressor Motor Type	Scroll
Blower Motor Type	Axial Flux (No Shaft) BLA
Blower Motor Hp	3/4
Filter Type	Replaceable
Filter Size	20X37
UL Reconized	No
UL Listed	No
ETL Listed	Yes
ETL Certified	No
LEED Certified	No
ASHRAE Compliant	No
Energy Star Compliant	Yes
Energy Star Certified	Yes
AHRI Certified	Yes
Registered Warranty	10 year registered parts limited warranty & 10 year compressor warranty
Base Warranty	5 year limited parts warranty
Has Batteries	No
Contains Electronics	Yes
Contains Chemicals	Yes
Contains Aerosol	Yes
Contains Compressed Gas	Yes
Proposition 65 Warning	Yes
Restricted States	No
Net Weight	330
Freight Class	70
