Summit 24" Wide Built-In Dual Tap , ADA Compliant Coffee Kegerator SBC58BBIIFCFTWINADA Review
DISCONTINUED- REPLACED BY SBC58BLBIADAIFCFTWIN
Summit Commercial brings unique appliance choices to ADA compliant settings with a new line of commercial coffeer dispensers made in Europe. Sized at 32 inches high, the SBC58BBIIFCFTWINADA is designed to fit under lower ADA compliant counters. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. This unit features an integrated stainless steel door frame designed to accept overlay panels, allowing you to create a custom look that blends into your cabinetry. We include a guard rail (ships uninstalled) and removable two-piece stainless steel drip tray for cleaner service. This unit ships with an NSF-listed stainless steel tap kit that includes everything you need to serve iced coffee, including a standard dual tap draft tower, regulator, and nitrogen tank. Inside, the SBC58BBIIFCFTWINADA is designed to hold two 1/6 (sixtel) kegs or one tall quarter keg (note: interior does not accommodate a standard half barrel). Automatic defrost ensures easy user maintenance, with a seamless interior for easier cleaning. The stainless steel floor offers added durability when loading kegs. This unit includes an interior light with an on/off rocker switch and a dial thermostat for easy and intuitive temperature management. The nitrogen tank bracket is located inside, allowing you to keep the tank inside and save on exterior depth. The SBC58BBIIFCFTWINADA is ETL-S listed to NSF-7 commercial standards. Additional ADA compliant kegerator choices are available with stainless steel or glass doors. Browse our complete line for more choices.
FEATURES
- ADA compliant height
- Sized at 32 inches high (32.25 to hinge cap) for installation under lower ADA compliant counters
- Commercially approved
- ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in foodservice settings
- Built-in capable
- Front-breathing design allows fully recessed installation under counters
- Complete dual tap cold brew coffee kit
- Commercial grade tap kit includes a dual tap stainless steel draft tower, Nitrogen tank, regulator, and connections for ball lock cornelius kegs

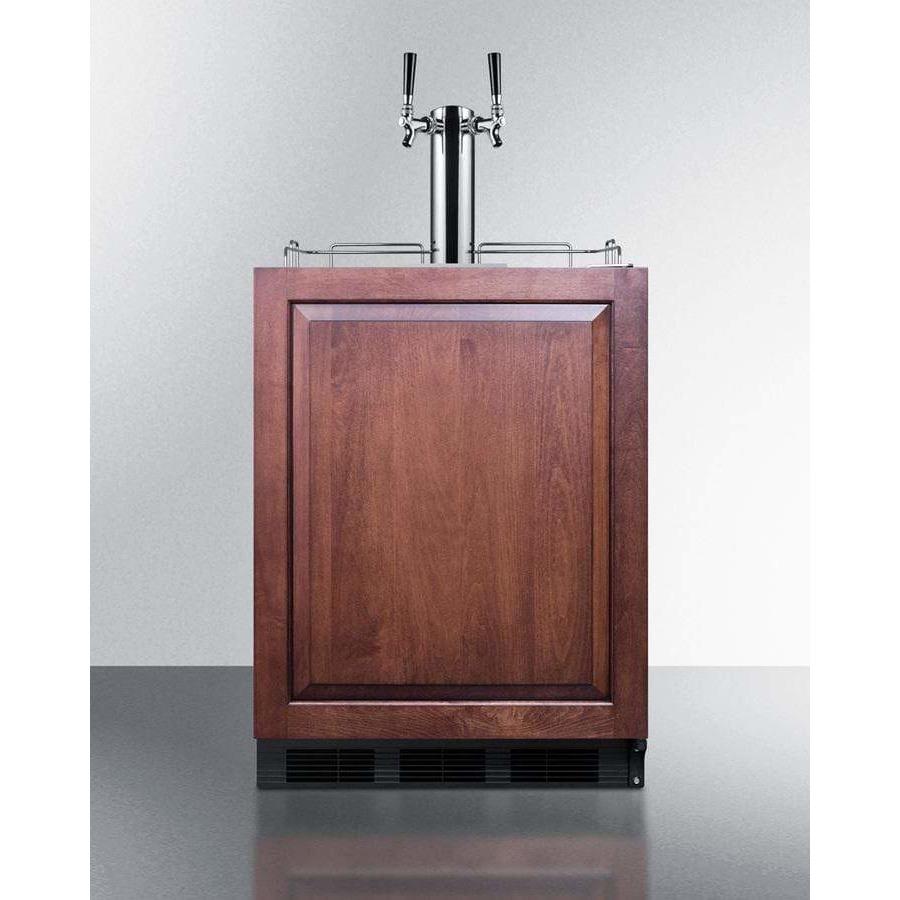

- Panel-ready door
- Customize the front by mounting an overlay panel over the door; seamless look can blend into other cabinetry with no exposed frame. Handle not included (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
- Adjustable thermostat
- Interior dial thermostat ensures easy temperature management
- Automatic defrost
- No-frost operation for minimum user maintenance
- User-reversible door
- Unit ships with a right hand door swing. For a left hand version, add option LHD upon order
- Stainless steel drip tray
- Removable two-piece drip tray included for added convenience
- Stainless steel guard rail
- Durable railing makes it easier to neaten service
- Interior light
- Turn the light on when you need it and off when you're done with a convenient rocker switch
- Interior nitrogen tank holder
- Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs
- Stainless steel floor cover
- Interior includes steel cover to protect the floor when loading kegs
- One piece interior liner
- Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
- Hidden evaporator
- Cold wall design with hidden evaporator and seamless interior
- Fully finished cabinet
- Allows the unit to be used freestanding
- 100% CFC free
- Environmentally friendly design without ozone-damaging chemicals
SPECIFICATIONS
| Overview |
| Height of Cabinet |
32.0" (81 cm) |
| Height to Hinge Cap |
32.25" (82 cm) |
| Width |
23.63" (60 cm) |
| Depth |
22.75" (58 cm) |
| Depth with door at 90° |
45.0" (114 cm) |
| Capacity |
5.5 cu.ft. (156 L) |
| Defrost Type |
Automatic |
| Door |
Panel-Ready |
| Cabinet |
Black |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Sanitation |
ETL-S |
| Amps |
1.3 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
110.0 lbs. (50 kg) |
| Shipping Weight |
120.0 lbs. (54 kg) |
| Estimated Time to Ship |
3 to 5 days |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| Kegerator |
| Door Swing |
RHD |
| Reversible |
Factory Reversible |
| Tap Kit |
Yes |
| Height with Tap |
47.5" (121 cm) |
| Number of Taps |
2 |
| Thermostat Type |
Dial |
| Interior Light |
Yes |
| Fan Type |
Exterior |
| Refrigerant |
R134a |
| Refrigerant Amount |
1.8 oz. |
| High Side PSI |
285.0 |
| Low Side PSI |
88.0 |
| Inter Height |
26.25" (67 cm) |
| Interior Width |
21.0" (53 cm) |
| Interior Depth |
17.75" (45 cm) |
| Compressor Step Height |
5.5" (14 cm) |
| Compressor Step Width |
21.0" (53 cm) |
| Compressor Step Depth |
5.5" (14 cm) |
| Temperature Range |
34º to 43ºF |
MANUALS
User Manual
